LED UFO Highbay 200W 150lm/W Sosen Driver Dimmable

In short

• 70% energy savings compared to mercury vapor highbays
• With motion sensor
• Replaces 1000W
• 30,000 lumens Very high light output
• IP65 Water resistant
• Ceiling height 10 meters
• Dimmable 1-10V
• Direct start, no flickering and no buzzing
• Lasts on average 13.5 years (10 hours per day)
• Environmentally friendly and lead-free
• 5 Years warranty

Installation

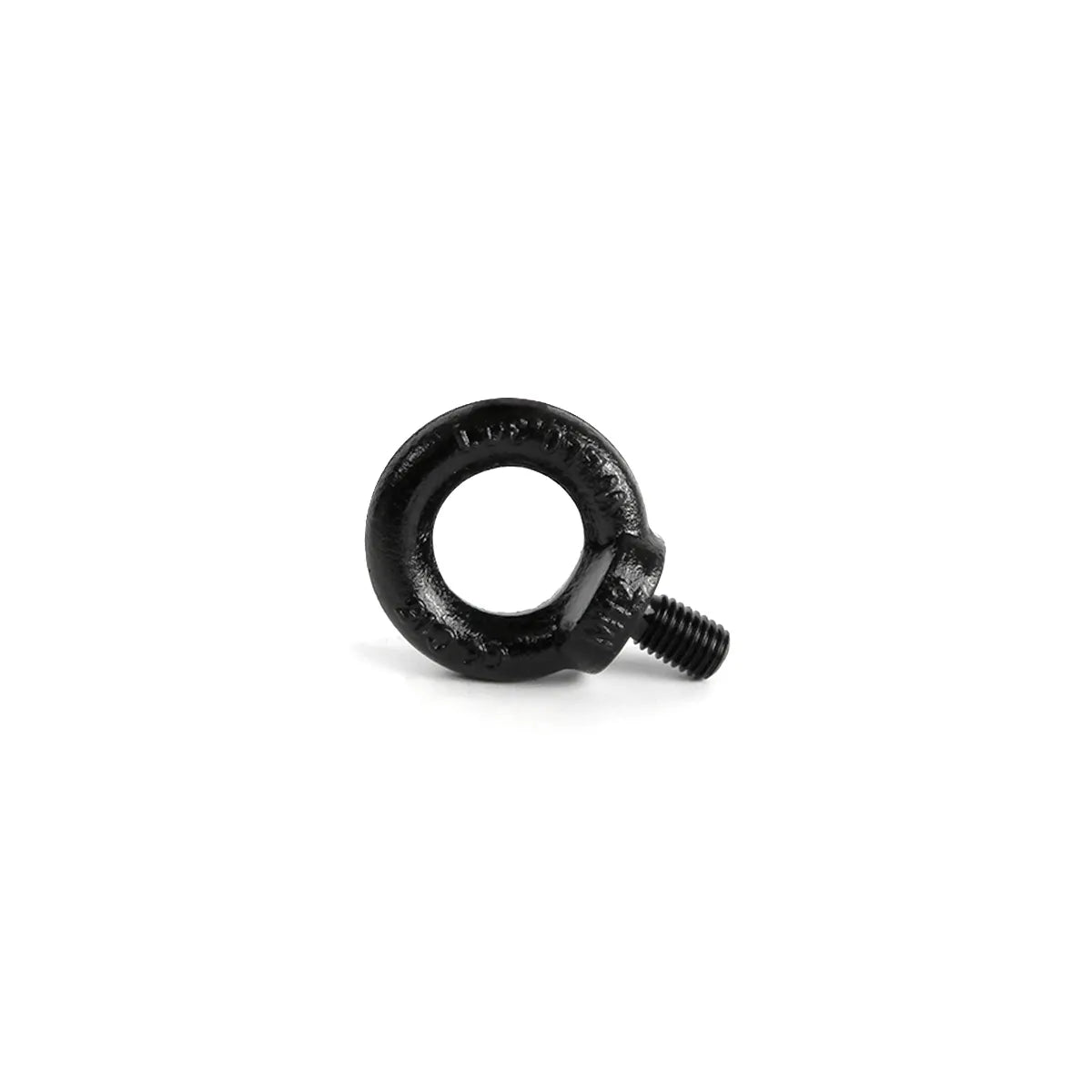

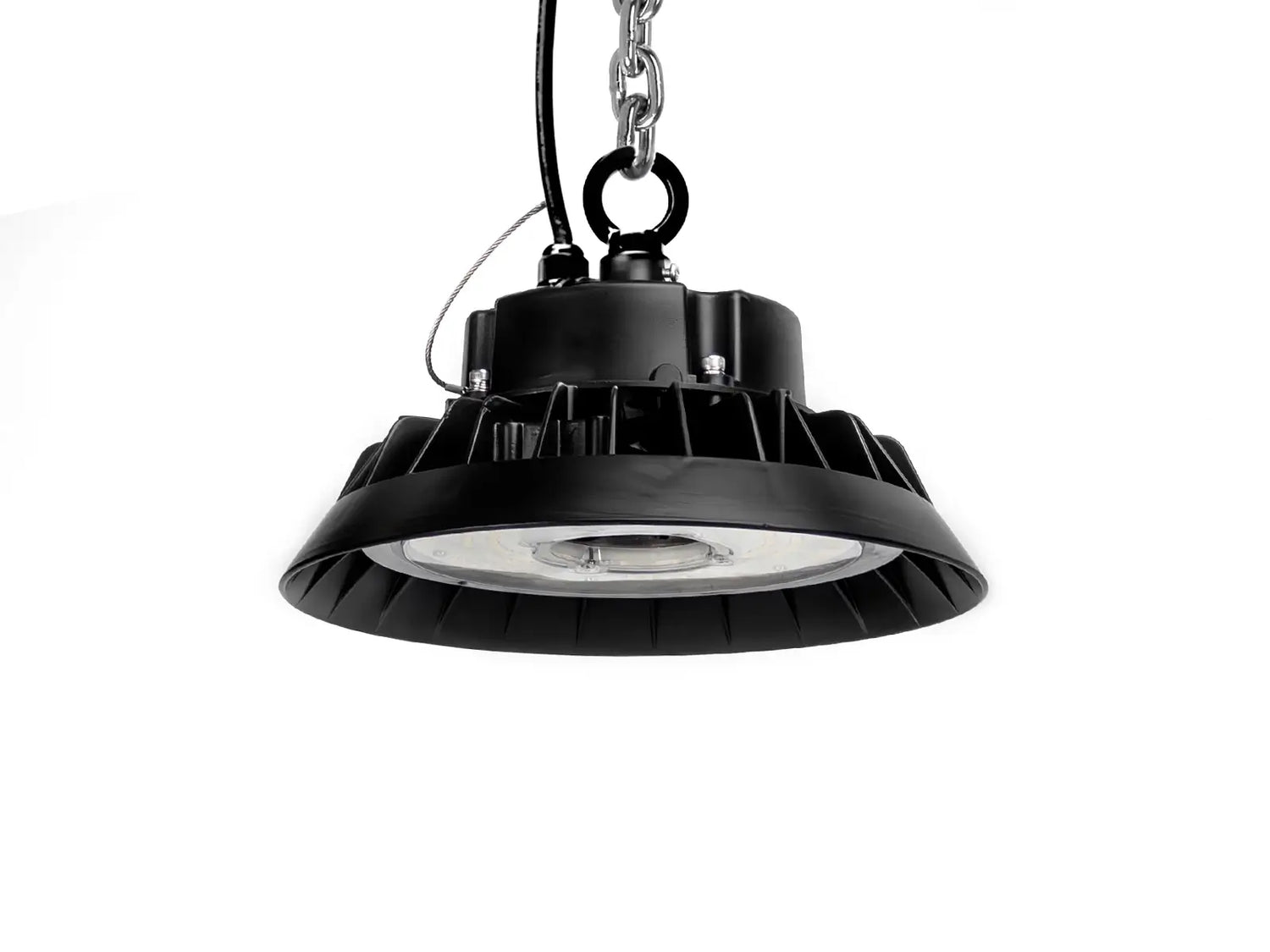

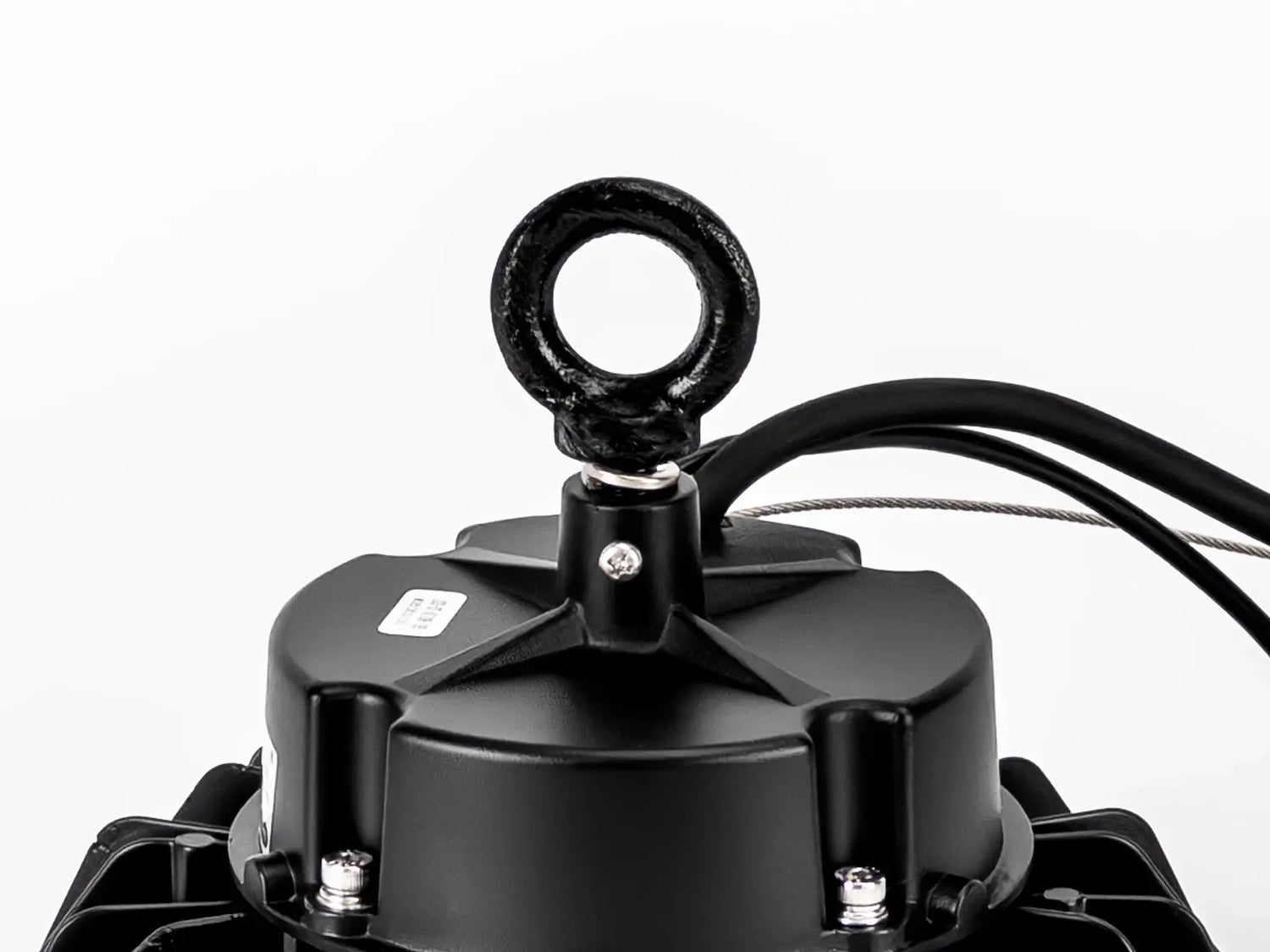

This LED Highbay provides strong and bright light and is suitable for ceiling heights between 4 and 6 meters. This LED highbay is therefore ideal for spaces where a lot of strong light is needed, such as warehouses, sports halls, factory halls, and garages. Due to its small size, this LED UFO highbay can be easily placed anywhere and can be directly connected to the power network with an input voltage of 220-240V AC. The highbay has a strong iron loop with a diameter of 30 mm at the top to which it can be hung. With the 24 cm safety cable with carabiner hook, the highbay can be additionally secured; this cable can also be used to hang the highbay straight or tilt it.

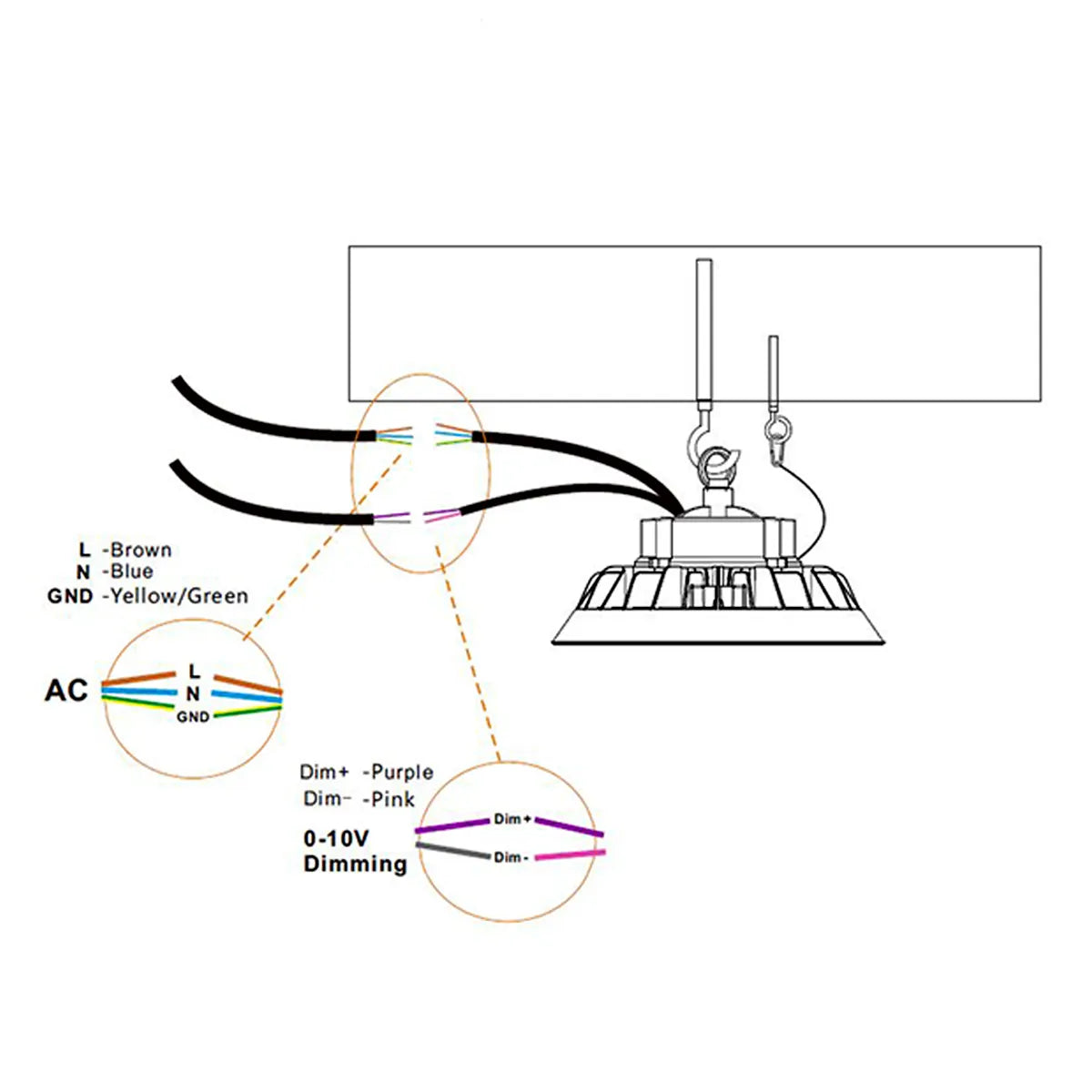

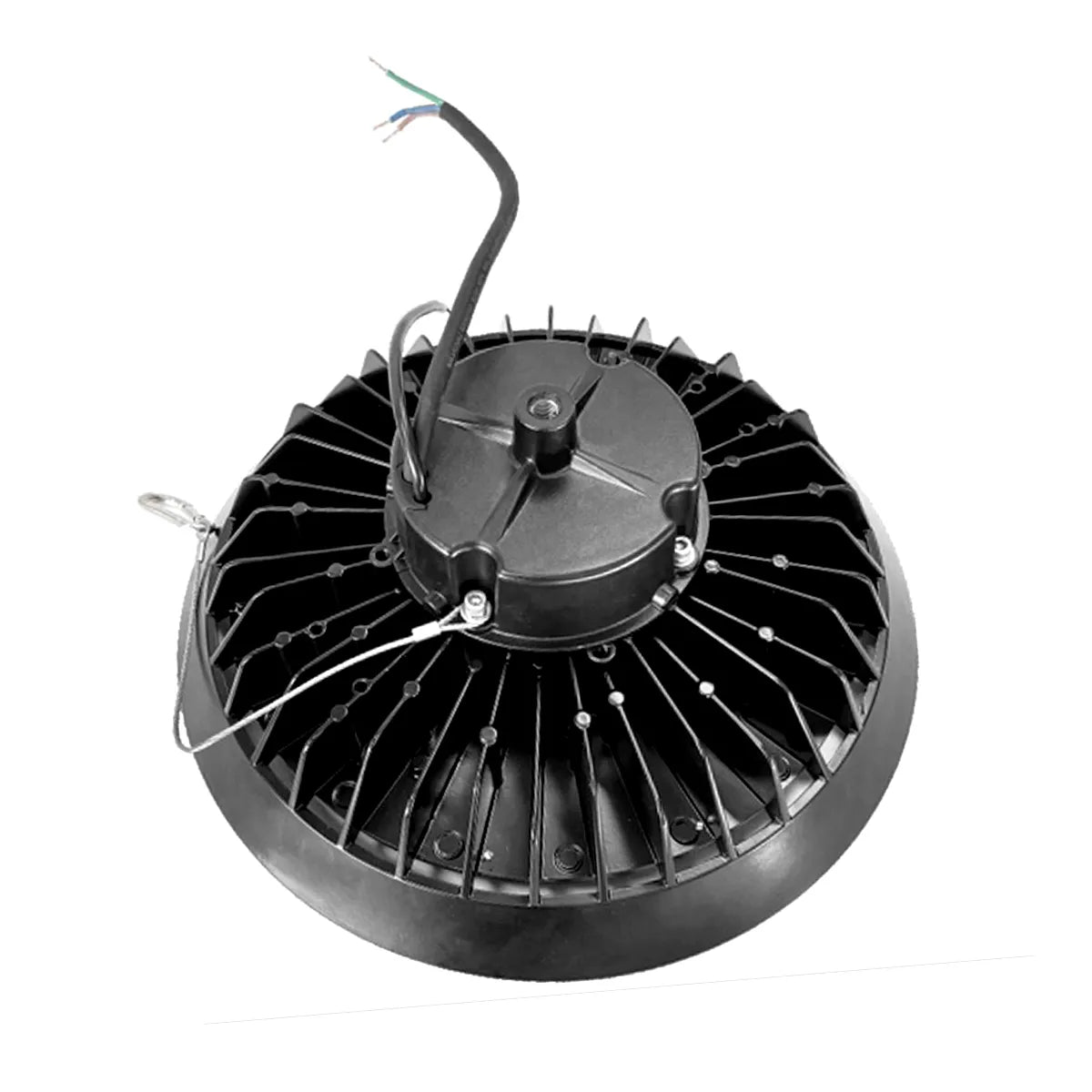

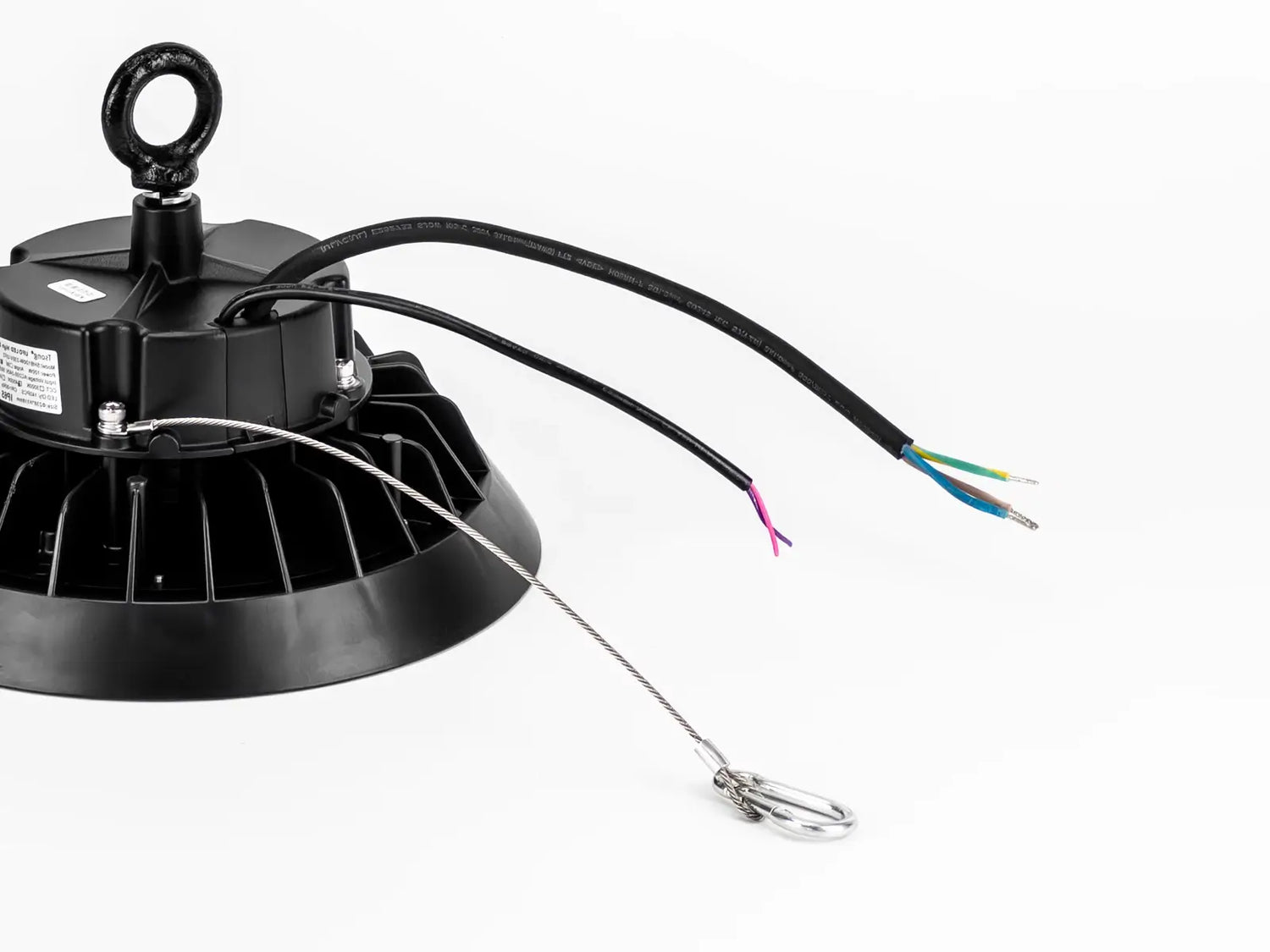

The highbay has 2 cables of 30 cm. The thick cable can be connected directly to the power grid or with a power cord for a socket. The thin cable is for dimming the Highbay and can be connected to a 1-10V dimmer. Dimming is optional; if the dim cable is not used, we recommend terminating it with a (waterproof) terminal block or connector.

With motion sensor

The microwave sensor detects motion and operates using radio waves, making it an extremely effective solution for controlling lighting in these spaces. Once the sensor detects movement, the LED UFO High Bay lighting will automatically turn on and spread bright and even light. When no movement is detected, the lighting will gradually dim or turn off.

The benefits are versatile. Firstly, it helps save energy by ensuring that the lighting only operates when needed. This results in significant cost savings on the energy bill. Additionally, the automatic on and off system contributes to extending the lifespan of the LED lamps, thereby reducing maintenance costs.

The microwave sensor also offers flexibility in lighting control. You can adjust the settings to meet your specific needs, such as the sensitivity of the sensor, the time delay after detecting motion, and the dimming level during inactivity. This allows you to create a customized lighting solution that perfectly fits the requirements of your space and maximizes energy efficiency.

Sustain and Save

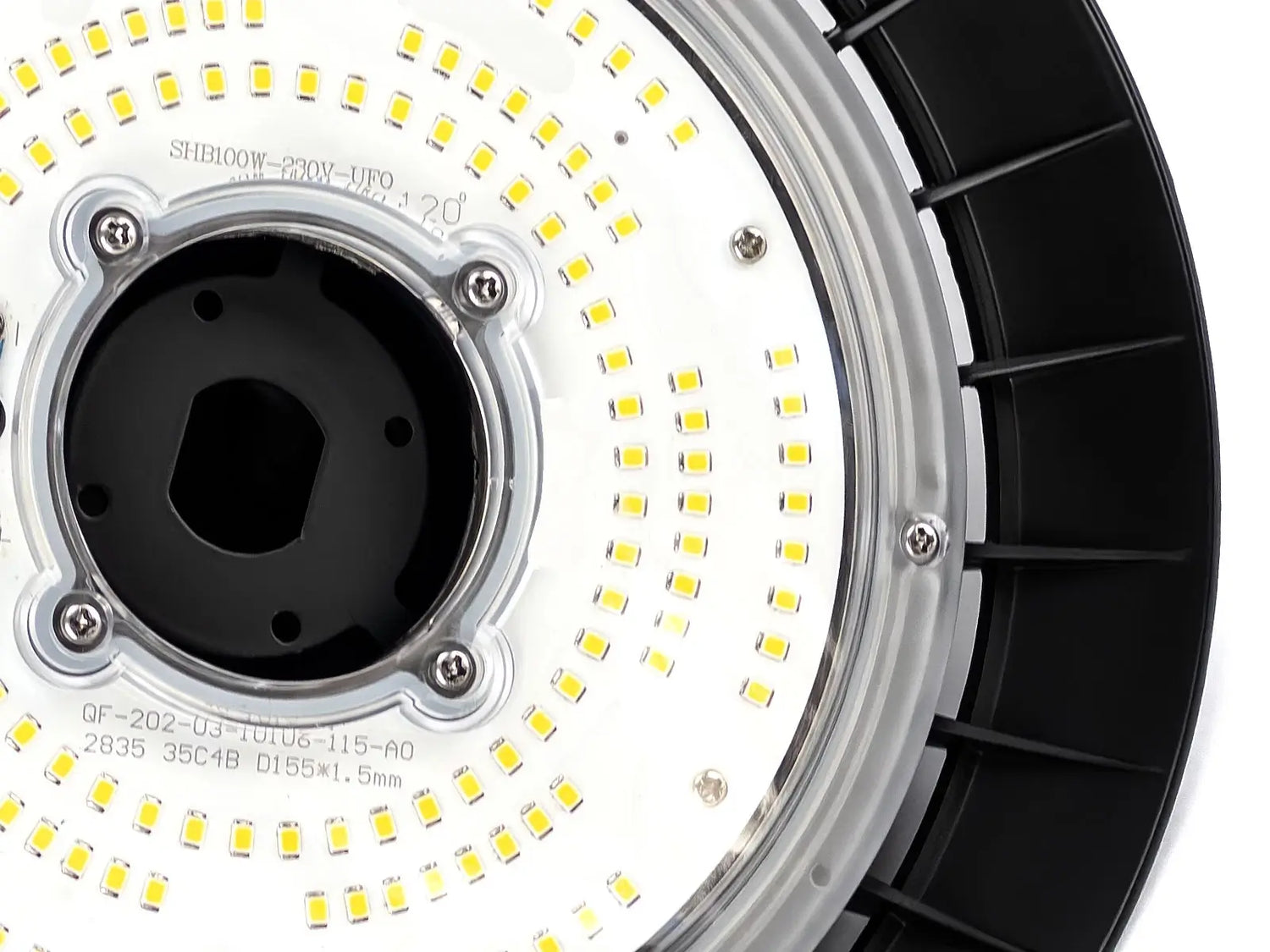

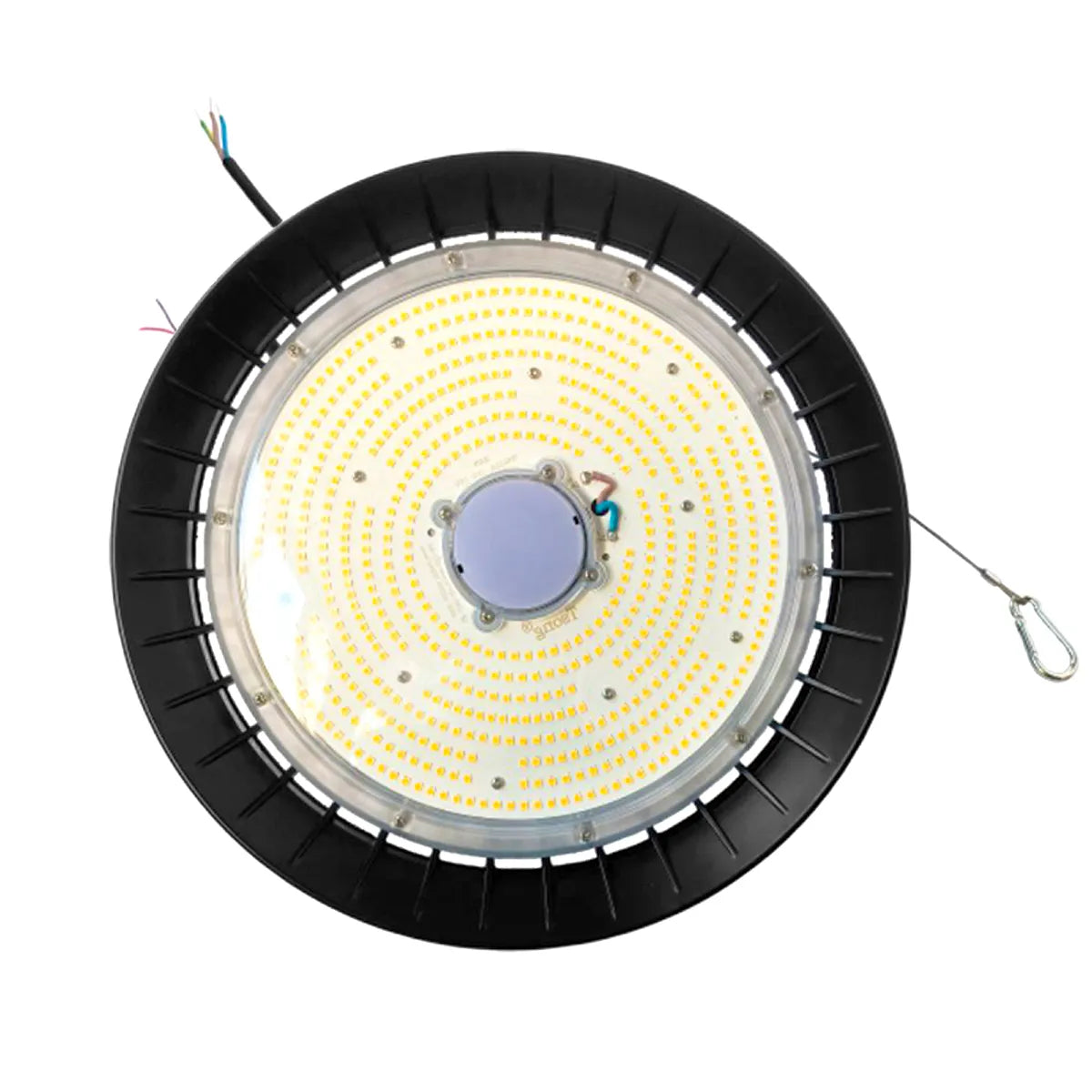

This UFO highbay replaces a conventional 1000W mercury vapor lamp, allowing you to save up to 70% on energy (and energy costs) without compromising on the light output of the lamp. This Highbay features 280 high-lumen LED chips of the SMD3030 type with a lumen efficiency of 150 lumens per watt. For this 200W highbay, this totals an impressive 30,000 lumens.

Calculate how much you will save here

Dimmable

This UFO highbay is dimmable and includes a Sosen dimmable LED driver. You can set the light to your desired brightness. The Sosen LED driver requires a 1-10V LED dimmer. Please note that a traditional (LED) dimmer will not work with this highbay and could cause a short circuit.

View all 1-10V LED Dimmers here

Water Resistant

This LED highbay has an IP65 rating. It is dust-tight and water-resistant, making it suitable for installation in humid environments. The lamp is protected against water up to 100 liters per minute. A tap delivers about 12-16 liters per minute, so it can handle quite a bit but cannot be submerged.

Read more about IP ratings and lamp protection here

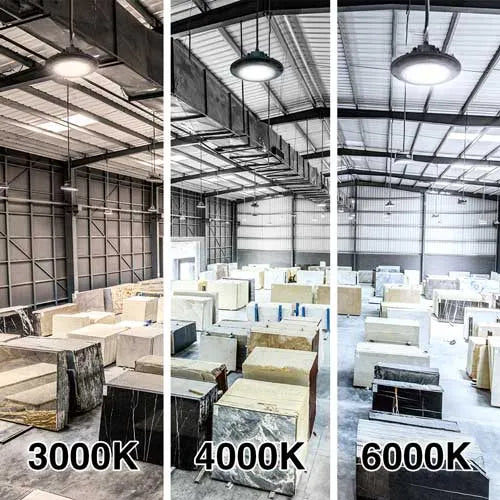

Light Color

To determine the right light color, it is important to know what the light is used for. Below is a description of where the different light colors are most commonly used.

• 3000K has a somewhat yellow/orange glow. Ideal for creating a warm, cozy, and calming atmosphere in living rooms, waiting areas, cafés, restaurants, hallways, and other common spaces.
• 4000K has a white/yellow glow. Ideal for a well-lit space where good visibility, focus, and a pleasant atmosphere are desired, such as in offices, classrooms, kitchens, corridors, shops, fitting rooms, hair salons, stairwells, or waiting areas.
• 6000K has a white/light blue glow. Ideal for a well-lit space where good visibility and concentration are required, such as in hospitals, laboratories, workshops, studios, and garages.
