Dimmable LED Panels

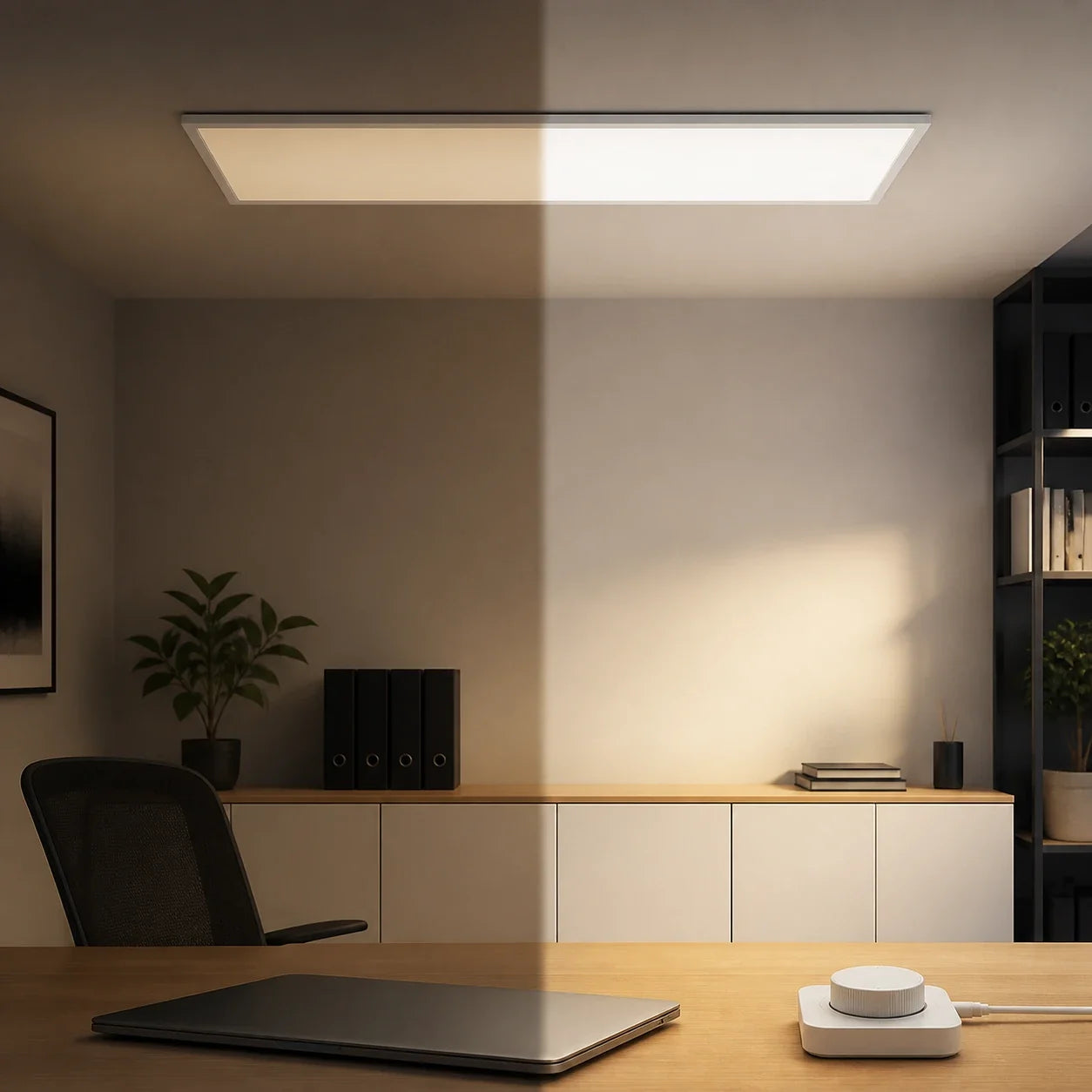

A dimmable LED panel adapts the light to the moment: full output for desk work, dimmed for a presentation or in the evening. Almost all our LED panels are dimmable: simply select a 0-10V, Triac or DALI driver on the product page. Other panels are dimmable as standard, with a motion sensor, adjustable colour temperature or app control. Available in all common sizes, from 30x30 to 30x150.

Where a dimmable LED panel makes the difference

Meeting rooms and classrooms: dim for a presentation or screen, full light for paperwork.
Offices with daylight: turn the light down when plenty of daylight comes in, with a lighting control system or DALI.
Healthcare, surgeries and hospitality: calmer light in waiting areas and in the evening.
At home: in the home office, kitchen or garage, set the light to suit the task.

Which dimming method should you choose?

Triac (phase dimming): dim with a wall dimmer, no extra control cable required. Practical for refurbishments, smaller rooms and homes. Check that your dimmer is LED compatible.
0-10V: dim via a separate control cable and a 0-10V dimmer or controller. Widely used in offices and commercial buildings, with several panels on one controller.
DALI: digital control per panel or group, linked to a building management system (BMS), sensors or a lighting control system. The choice for larger projects. See our DALI lighting.

Select the dimmable driver on the product page, under Driver type. Separate drivers are available under LED panel drivers.

LED panels that are dimmable as standard

With motion sensor: 28 W and 4,200 lumens, for corridors, toilets and archives.
Adjustable colour temperature (CCT): from warm white to cool white, via the app. See our CCT LED panels.
RGB+CCT: colour and white, with a remote control for up to 16 panels or a Wi-Fi hub for the app. See our RGB LED panels.

Which size do you need?

60x60 for a suspended ceiling with a 600 mm grid. See our 60x60 LED panels.
62x62 for a 625 mm grid. See our 62x62 LED panels.
30x120 for long, narrow ceiling tiles and corridors. See our 30x120 LED panels.
60x120 and 30x150 for large spaces and long lines of light.

For workstations and screen work, choose a UGR19 LED panel; these are dimmable too.

What do you need?

A dimmable panel or a panel with a dimmable driver.
A suitable dimmer or control: an LED-compatible Triac dimmer, a 0-10V dimmer or a DALI control system.
No suspended ceiling: a surface-mount frame. See our surface-mount frames for LED panels.

Have the 230V connection and the control wiring installed by a qualified electrician.

Dimmable LED panels: frequently asked questions

Can you dim an LED panel?

Yes, if you choose a dimmable driver: 0-10V, Triac or DALI. A panel with a standard driver cannot be dimmed.

Can I dim an LED panel with my existing dimmer switch?

Yes, with the Triac driver and an LED-compatible dimmer. An old dimmer designed for incandescent bulbs often does not work well with LED.

What is the difference between 0-10V and DALI dimming?

0-10V dims all panels on one control line at the same time. With DALI you control each panel or group individually and can link sensors or a building management system.

Are all LED panels dimmable?

No. The IP65 panels and the 200 lm/W panels are not dimmable. All other panels are either dimmable as standard or available with a dimmable driver.

Do you supply larger projects?

Yes. Business customers can pay on invoice, and volume pricing applies to larger quantities. For projects, we are happy to prepare a tailored quote.
