LED high bay 240W: maximum light from 10 metres

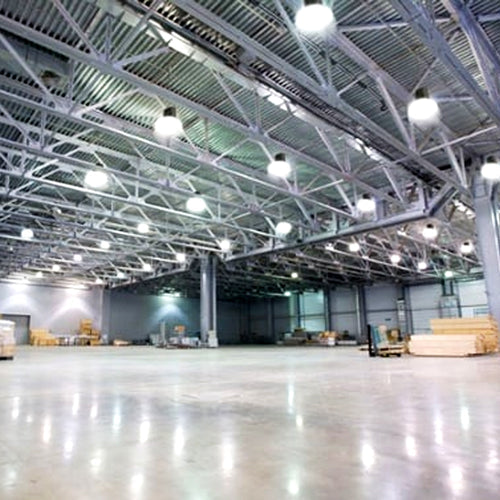

The 240W high bay is our most powerful UFO model, for halls from about 10 metres high: large distribution centres, high production halls and storage with high racking. These are the versions:
- UFO 190 lm/W: 45,600 lumens, most light, dimmable via 0-10V, from 12 metres.
- UFO 150 lm/W with Philips Xitanium driver: 36,000 lumens, optionally dimmable.
- UFO 150 lm/W dimmable: 36,000 lumens, dimmable via 0-10V.
- UFO 150 lm/W with DALI driver: 36,000 lumens, for DALI lighting control systems.
- UFO with motion sensor: 36,000 lumens, switches automatically on movement.
How many 240W high bays do you need?
A 36,000-lumen high bay lights about 60 m² at 300 lux and about 85 m² at 200 lux. With 45,600 lumens that is about 75 and 110 m². For a 2,000 m² hall at 200 lux you need 18 to 24 fittings. More about lumen and lux
What does a 240W LED high bay replace?
A 240W high bay replaces a fitting with a 400W to 600W mercury vapour or metal halide lamp (HQL/HQI). You save up to 70% energy and the light is at full output instantly, without warm-up time. Calculate your saving
Frequently asked questions
From what height do I choose 240W?
From about 10 metres. Below that, a 200W high bay usually gives enough light, with less risk of glare and a more even light.
One 240W or two 150W?
Fewer fittings means less mounting and cabling. With lower ceilings, more fittings at a lower wattage give more even light. Not sure? Request a quote and we will think along with you.
Which light colours are available?
The 240W models are available in 4000K (neutral white, standard for warehouse and production) and 6000K (cool white, more contrast). The DALI version comes in 5000K (daylight white). Help choosing a light colour
All versions and wattages can be found under LED high bays.
