LED Linear Highbays

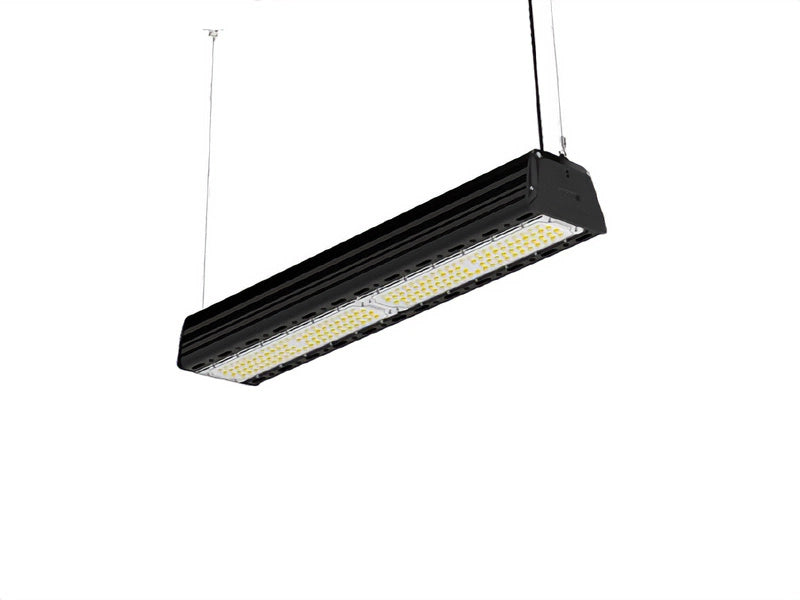

Linear LED high bays are elongated high bay lights for warehouses with racking aisles, production lines and fixed workstations. They direct the light along the aisle, so rack fronts and labels are well lit too. Five wattages from 50W (276 mm) to 250W (1,293 mm) with 7,500 to 37,500 lumens, all 150 lm/W, IP65 and 0-10V dimmable.

In stock and ordered before 2 pm on a working day? We ship the same day, with free shipping above your country's threshold. Business customers can buy on invoice with volume pricing; for larger quantities we are happy to prepare a custom quote.


Which wattage do you choose?

  • 50W (276 mm, 7,500 lumens): lower ceilings up to about 4 metres, workshops.
  • 100W (531 mm, 15,000 lumens): racking aisles up to about 8 metres.
  • 150W (785 mm, 22,500 lumens): warehouses and production from 6 to 10 metres.
  • 200W (1,040 mm, 30,000 lumens): high racking from 8 to 12 metres.
  • 250W (1,293 mm, 37,500 lumens): the highest halls, from 10 metres.

All wattages side by side, UFO and linear: 100W, 150W and 200W.

Linear or UFO?

Hang a linear high bay lengthwise above the aisle: the light then falls on the floor and on the rack fronts. In open halls without racking, a UFO high bay is usually better value per lumen.

Linear high bays: frequently asked questions

What is the difference between a linear high bay and a UFO high bay?

A linear high bay is elongated and produces a long, narrow beam, ideal for aisles and workstations. A UFO high bay is round and spreads the light widely in all directions, which suits open spaces better.

How do I hang a linear high bay?

On chains or steel cables lengthwise above the aisle, or with brackets against the ceiling. It connects to 230V and dims via 0-10V. Have the installation carried out by a qualified electrician.

Can I dim a linear high bay?

Yes, all linear high bays are dimmable via 0-10V. A standard phase dimmer will not work. View 0-10V dimmers

How many linear high bays do I need for an aisle?

Use lumens × 0.48 / required lux to get the area per fitting. For order picking, 200 to 300 lux is common. A 150W (22,500 lumens) covers about 54 m² at 200 lux, for example an aisle 3 metres wide and 18 metres long. Worked example for your hall

Do you supply for projects?

Yes. Volume pricing applies to larger quantities and business customers can buy on invoice. Request a quote and we will be happy to work out the numbers with you.

All shapes and wattages can be found under LED high bays.
