LED UFO Highbay | motion sensor | 150W | 150lm/W | Sosen Driver

In brief

• 70% energy saving compared to mercury vapor highbays
• With motion sensor
• Replaces 750W
• 22,500 lumen Very high light output
• IP65 Water resistant
• Ceiling height 8 meters
• Dimmable 1-10V
• Instant start, no flicker and no buzzing
• Average lifespan 13.5 years (10 hours per day)
• Environmentally friendly and lead free
• 5 Year warranty

Installation

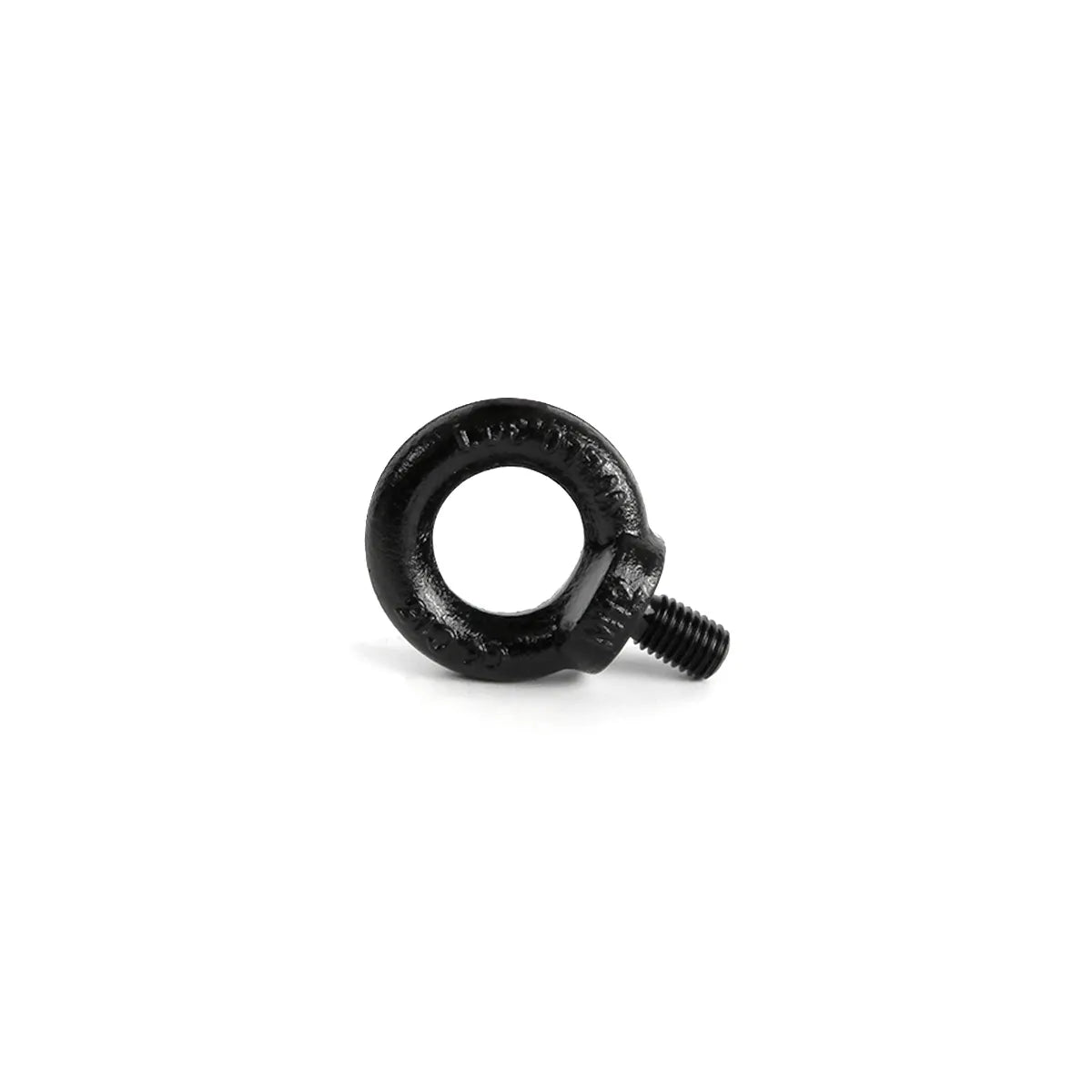

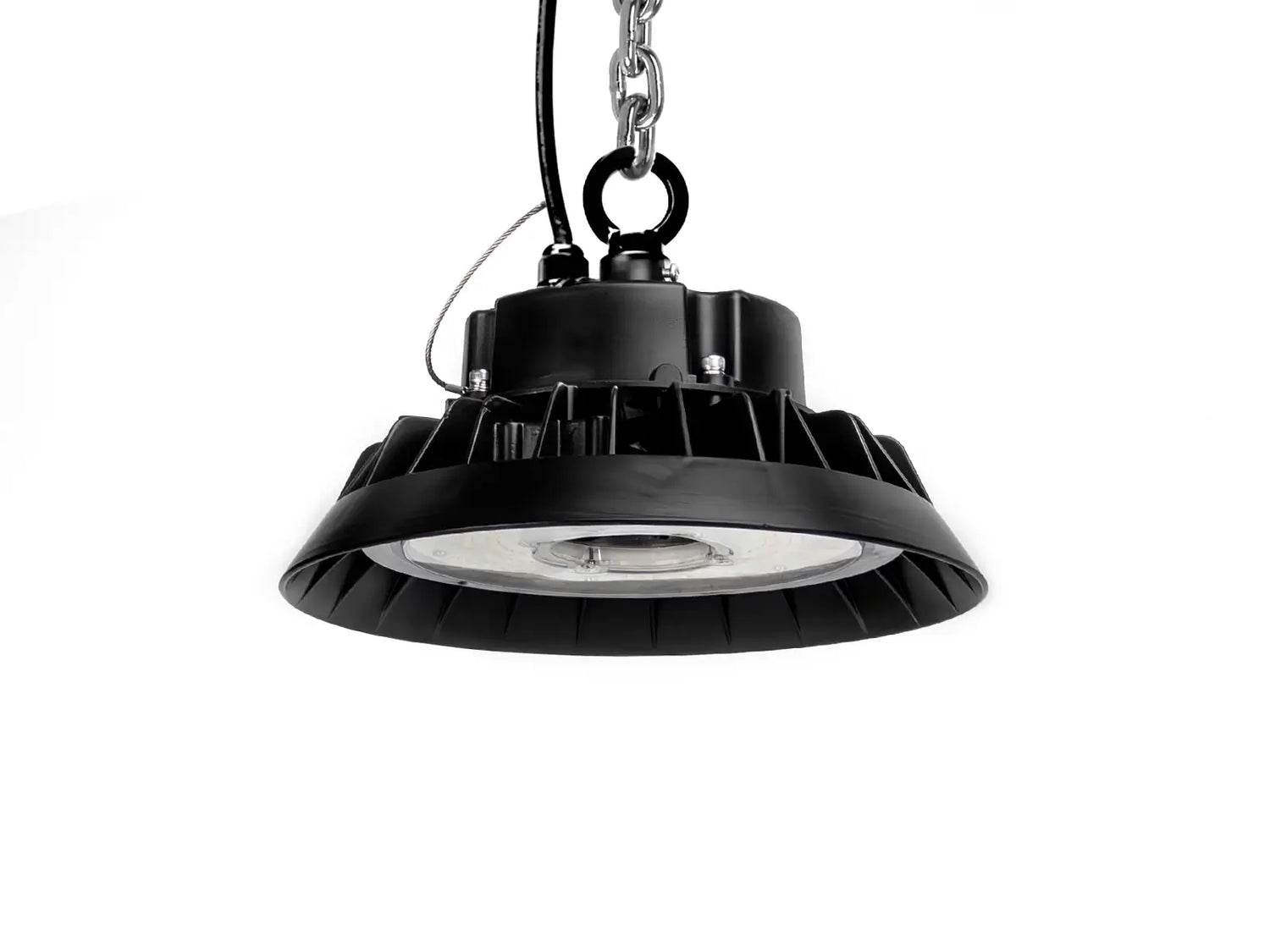

This LED Highbay provides strong and bright light and is suitable for ceiling heights between 6 and 8 meters. This LED highbay is therefore suitable for spaces where a lot of strong light is needed such as warehouses, storage halls, sports halls, factory halls, and garages. Due to its compact size, this LED UFO highbay is easy to place anywhere and can be directly connected to the power network with an input voltage of 220-240V AC. The highbay has a strong iron loop with a diameter of 30 mm at the top for hanging. With the 24 cm safety cable with carabiner, the highbay can be additionally secured; this cable can also be used to hang the highbay straight or to tilt it.

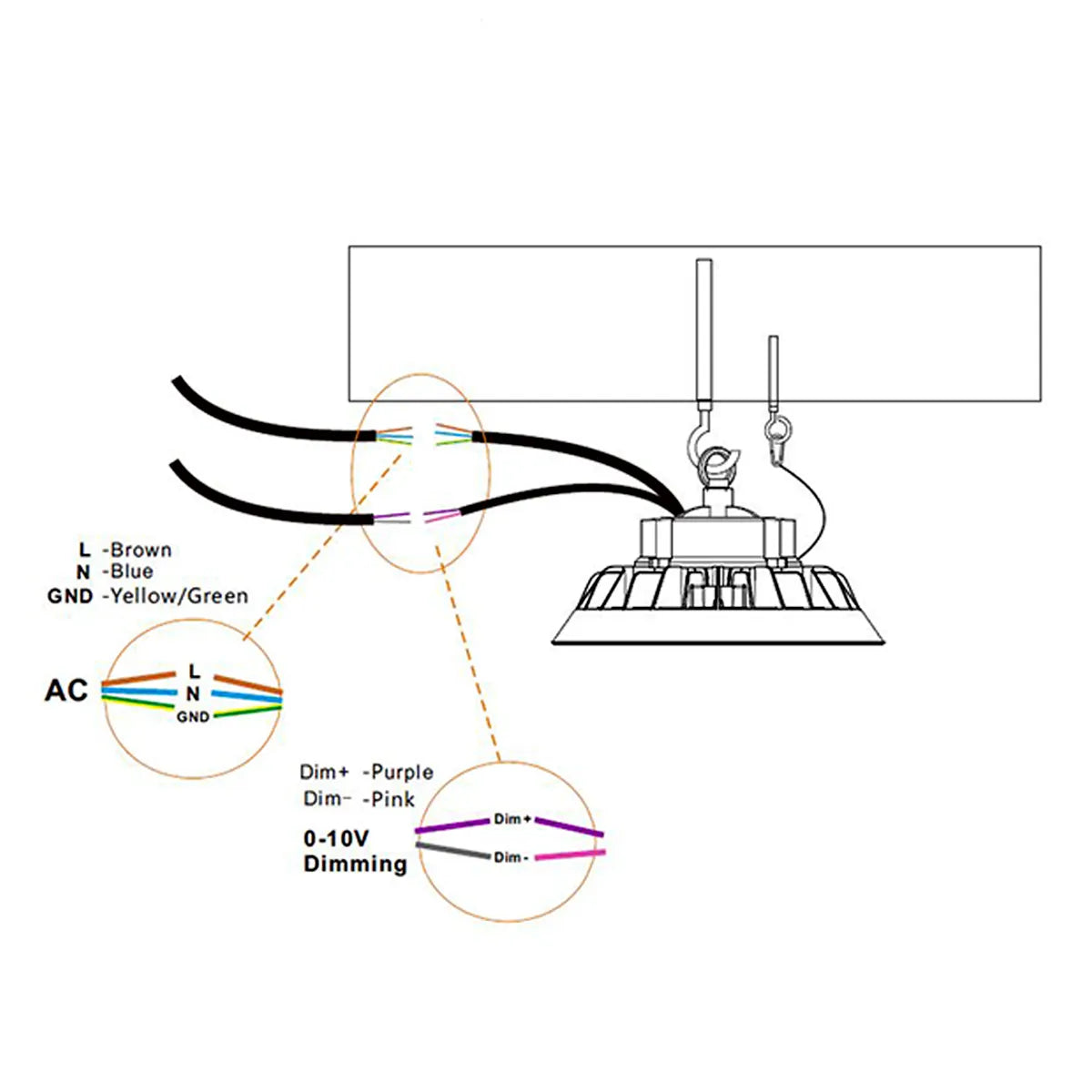

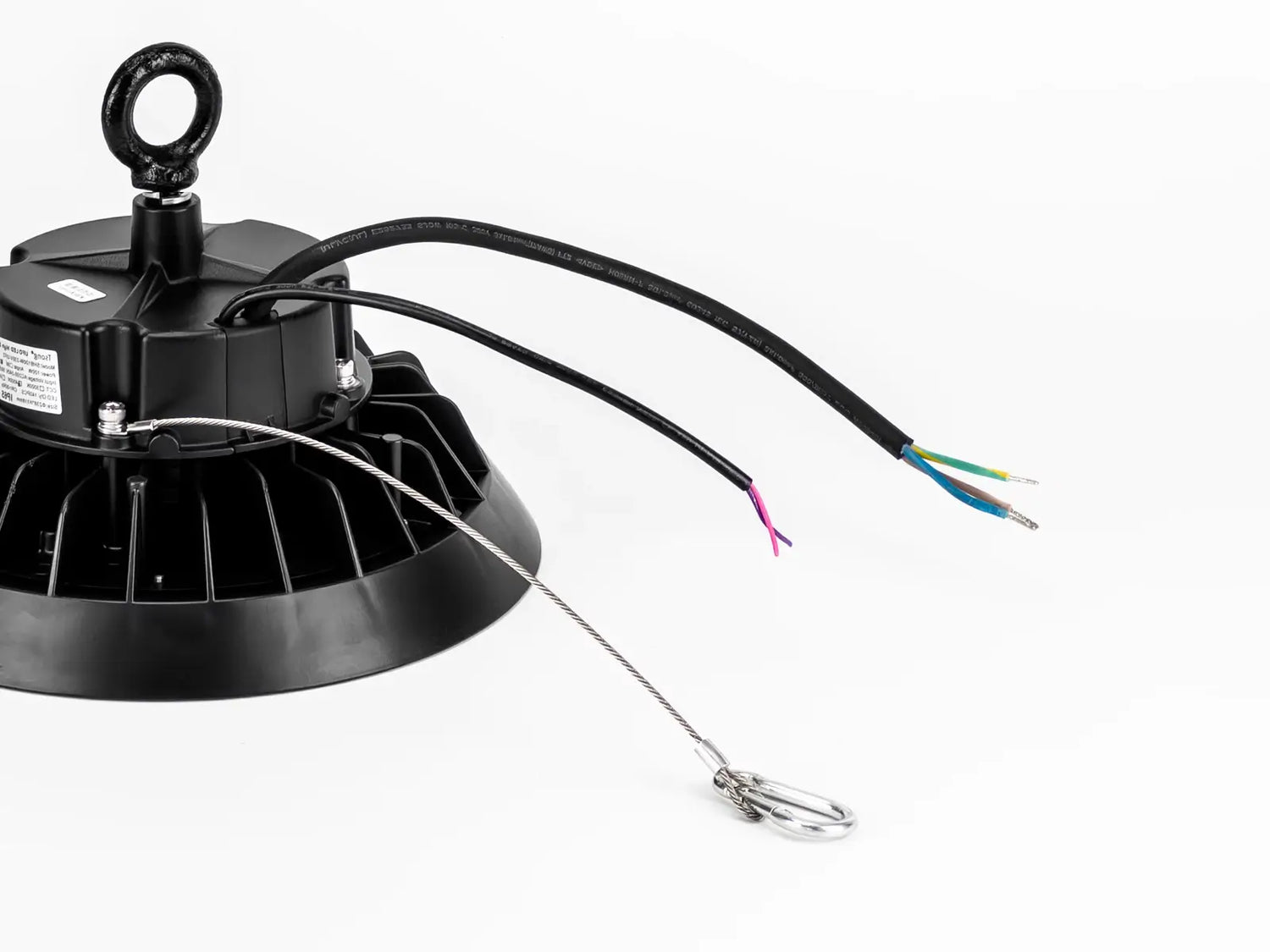

The highbay has 2 cables of 30 cm. The thick cable can be connected directly to the power network or with a power cord for a socket. The thin cable is for dimming the Highbay and can be connected to a 1-10V dimmer. Dimming is optional; if the dim cable is not used, we recommend sealing it with a (waterproof) terminal block or wire connector.

With motion sensor

The microwave sensor detects movement and works by means of radio waves, making it an extremely effective solution for controlling lighting in these spaces. Once the sensor detects movement, the LED UFO Highbay lighting will automatically switch on and distribute bright and even light. When no movement is detected anymore, the lighting will gradually dim or switch off.

The benefits are versatile. Firstly, it helps save energy by ensuring the lighting only operates when needed. This results in significant cost savings on the energy bill. Moreover, the automatic on/off system contributes to extending the lifespan of the LED lamps, reducing maintenance costs.

The microwave sensor also offers flexibility in lighting control. You can adjust settings to your specific needs, such as sensor sensitivity, delay time after detecting movement, and dim level during inactivity. This allows you to create a customized lighting solution that perfectly fits your space requirements and maximizes energy efficiency.

Go green and save

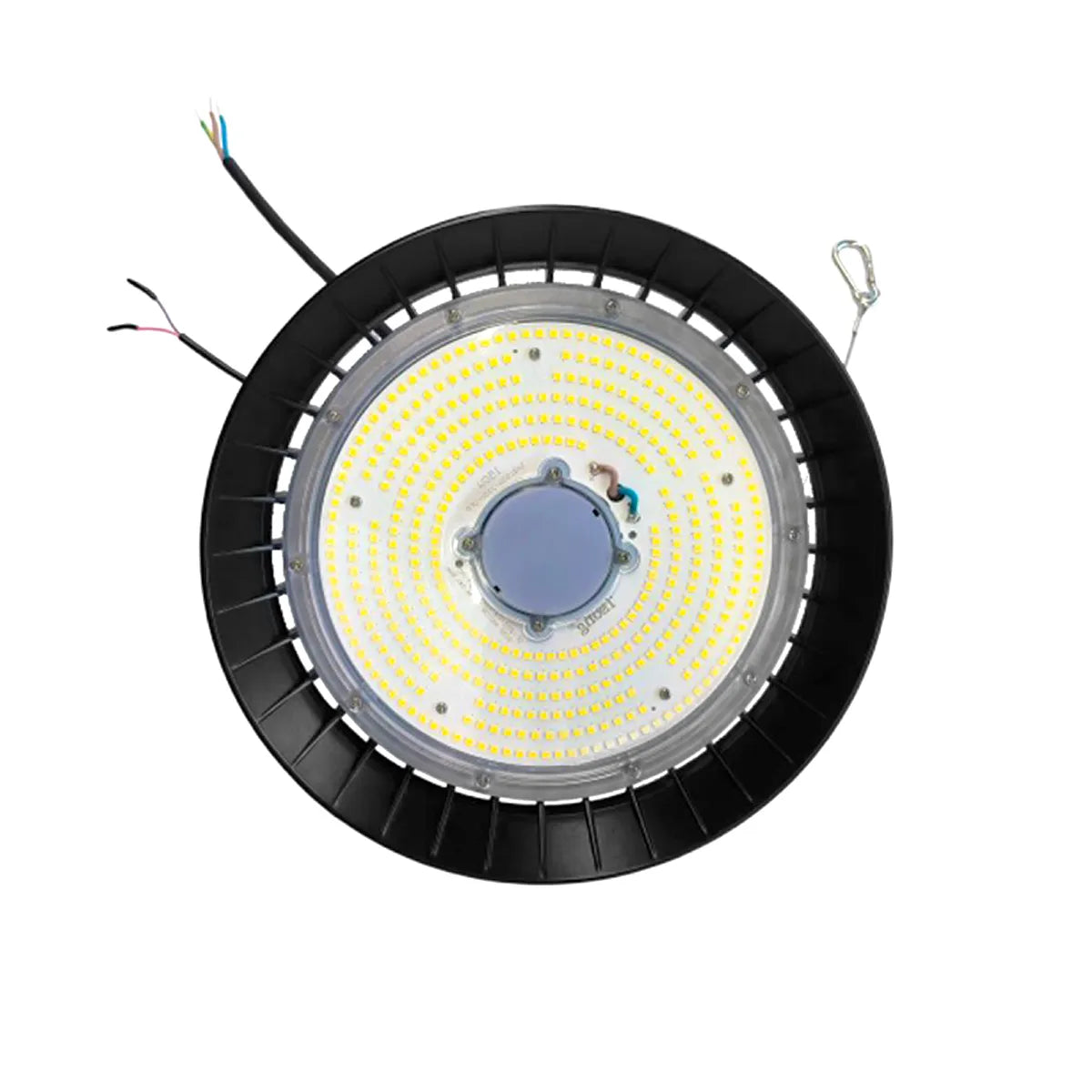

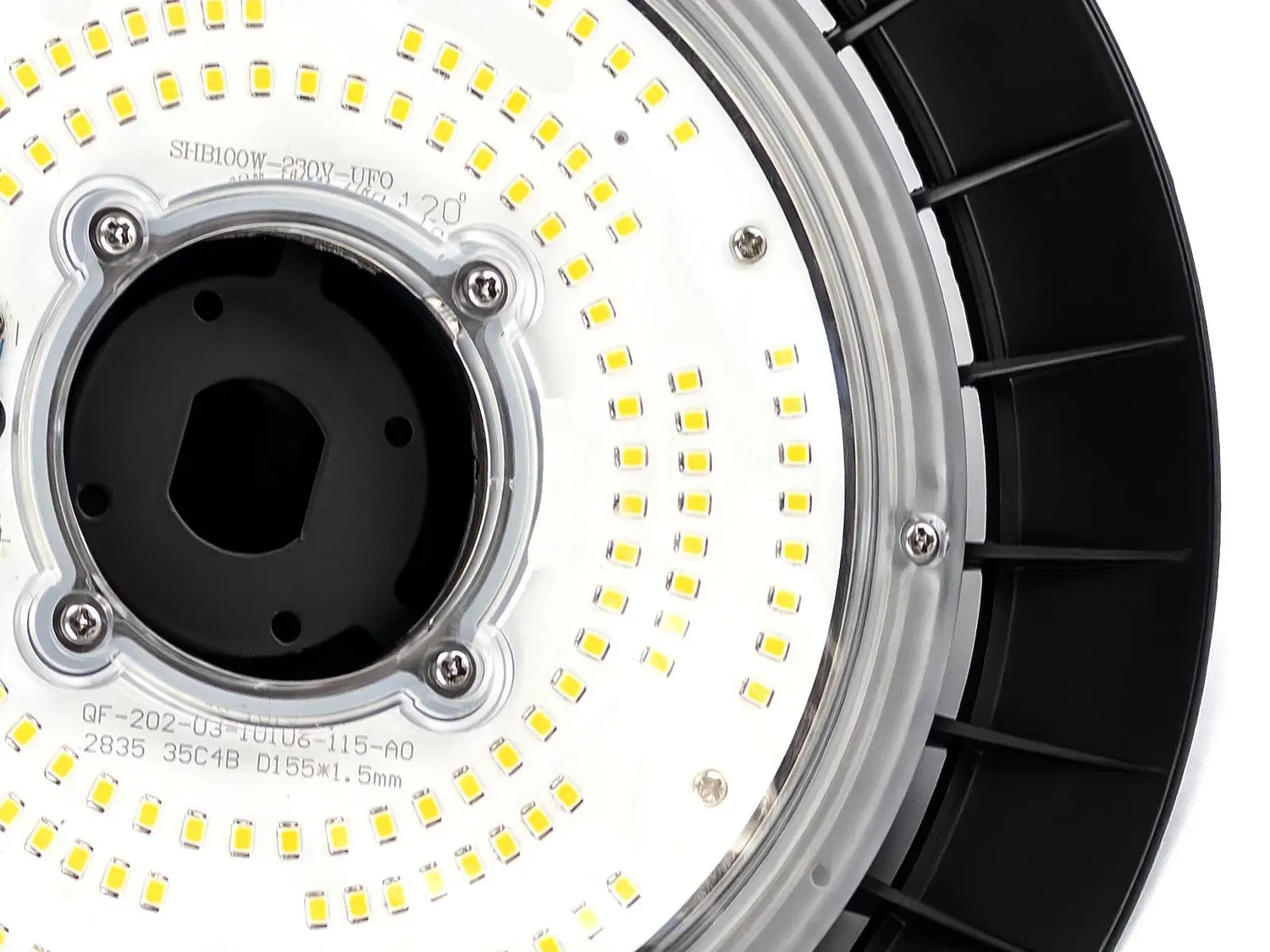

This UFO highbay replaces a conventional 750W mercury vapor lamp, allowing you to save up to 70% energy (and energy costs) without compromising the light output of the lamp. This Highbay has 210 High-lumen LED chips of the SMD3030 type with a lumen efficiency of 150 Lumens per watt. For this 150W highbay, this totals an impressive 22,500 Lumens.

Calculate how much you will save here

Dimmable

This UFO highbay is dimmable and contains a Sosen dimmable LED driver. You can set the light to the desired brightness. The Sosen LED driver requires a 1-10V LED dimmer. Note that a traditional (LED) dimmer does not work with this highbay and could cause a short circuit.

View all 1-10V LED Dimmers here

Water resistant

This LED highbay has an IP65 rating. This means it is dust tight and water resistant and can therefore be placed in humid spaces. The lamp is protected against water up to 100 liters per minute. A tap provides about 12-16 liters per minute, so it can handle quite a lot but cannot be submerged underwater.

Read more about IP ratings and lamp protection here

Light color

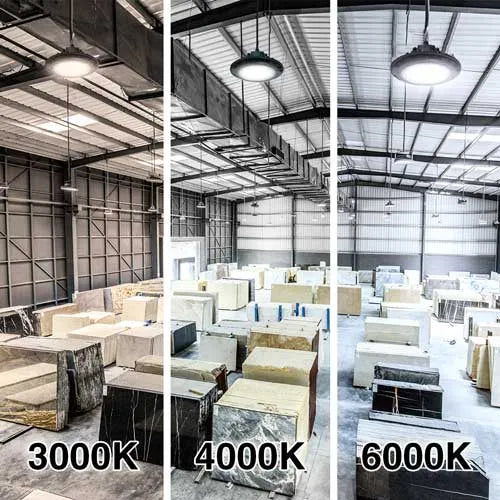

To determine the right light color, it is important to know what the light is used for. Below is a description of the most common uses for the different light colors.

• 3000K has a somewhat yellow/orange glow. Ideal for a cozy warm and relaxing atmosphere in living rooms, waiting areas, cafés, restaurants, corridors, and other general spaces.
• 4000K has a white/yellow glow. Ideal for a well-lit space where good visibility, focus, and a pleasant atmosphere are desired, for example in offices, classrooms, kitchens, hallways, shops, fitting rooms, hair salons, stairwells, or waiting areas.
• 6000K has a white/light blue glow. Ideal for a well-lit space where good visibility and concentration are needed, such as hospitals, laboratories, workshops, studios, and garages.

Click here for more information about light color
