LED UFO Highbay | motion sensor | 100W | 150lm/W | Sosen Driver

In brief

• 70% energy savings compared to mercury vapor highbays
• With motion sensor
• Replaces 500W-600W
• 15,000 lumen Very high light output
• IP65 Waterproof
• Ceiling height 6 meters
• Dimmable 1-10V
• Instant start, no flicker and no buzzing
• Lasts on average 13.5 years (10 hours per day)
• Environmentally friendly and lead-free
• 5 Year warranty

Installation

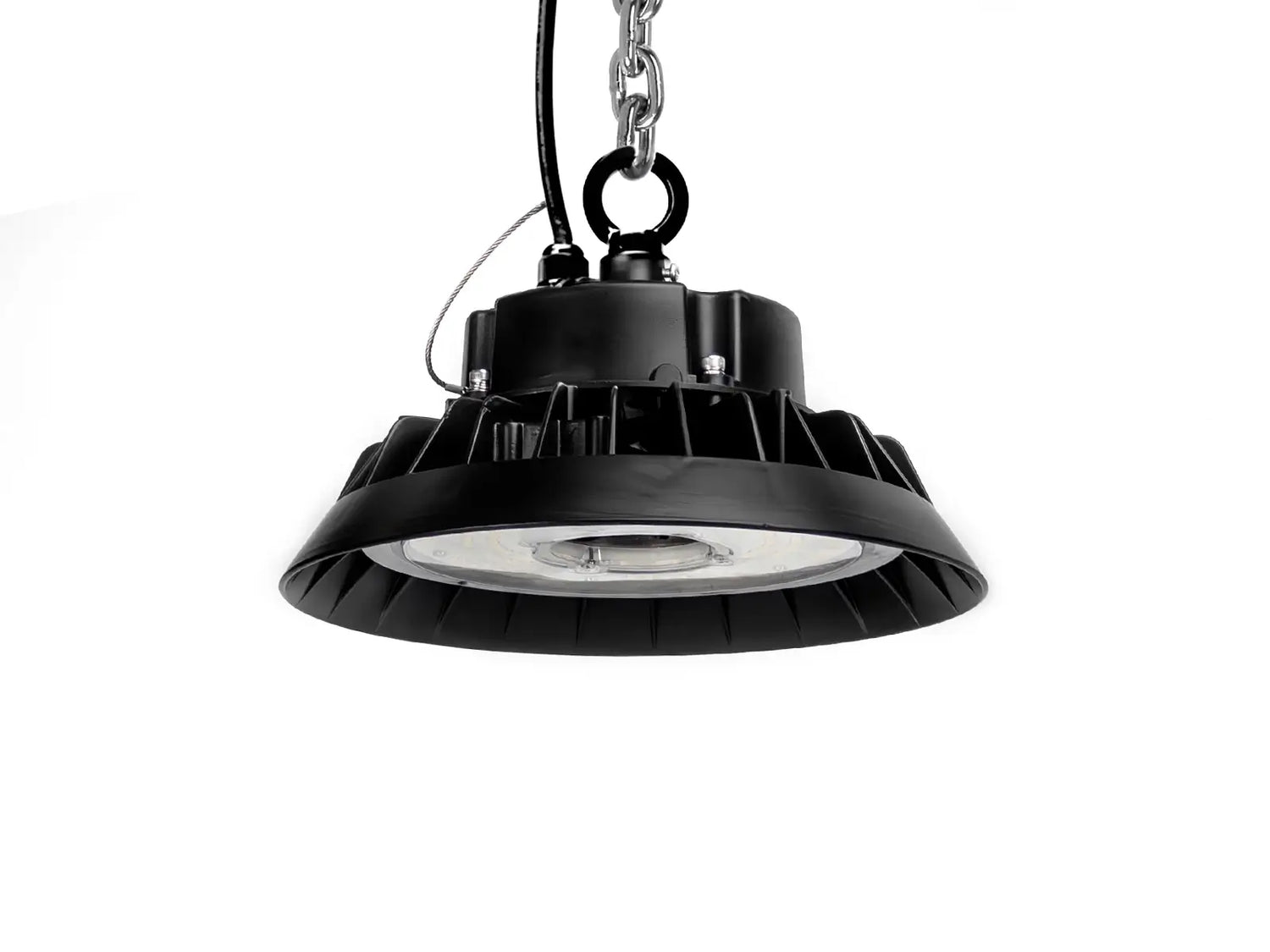

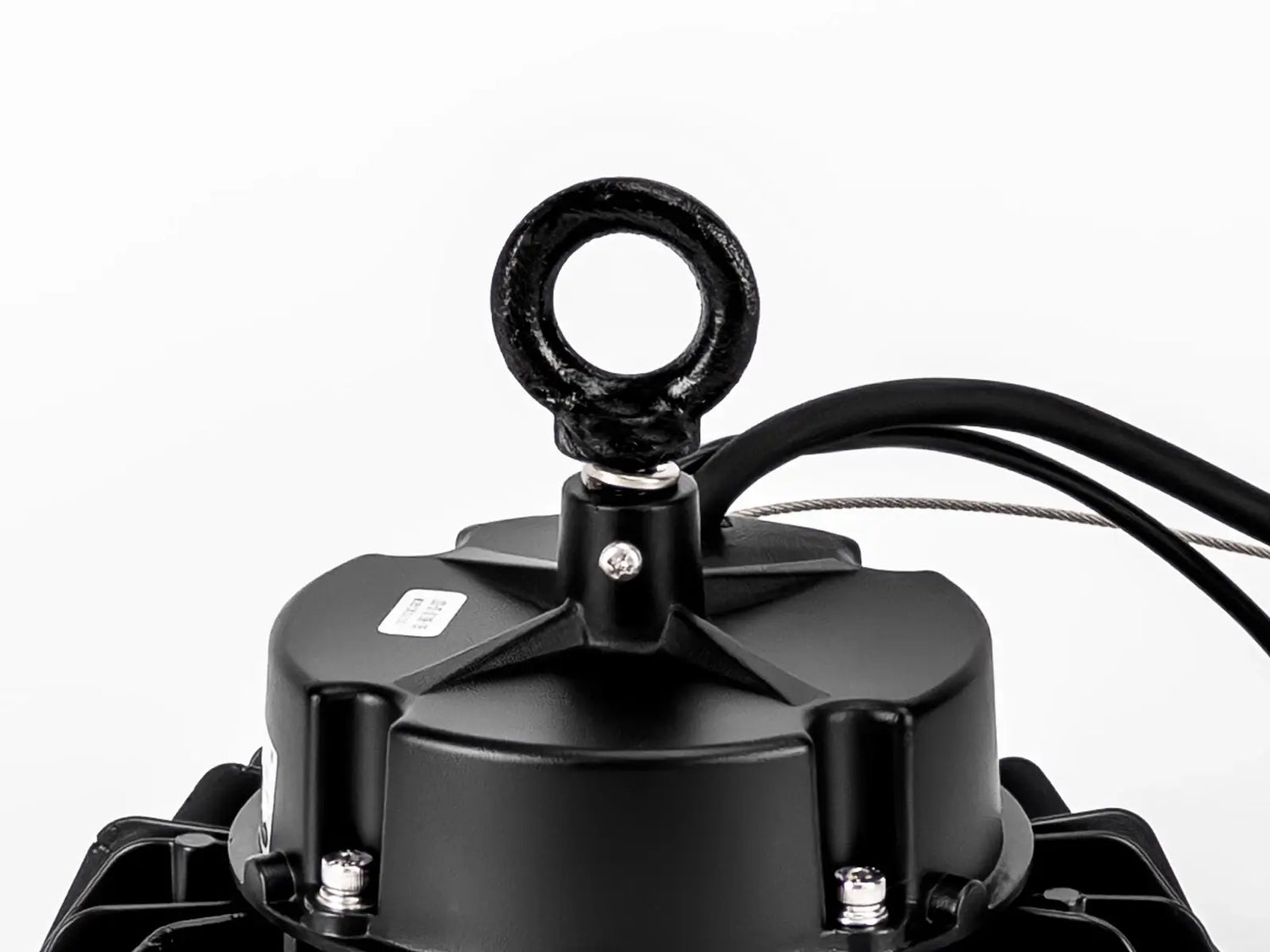

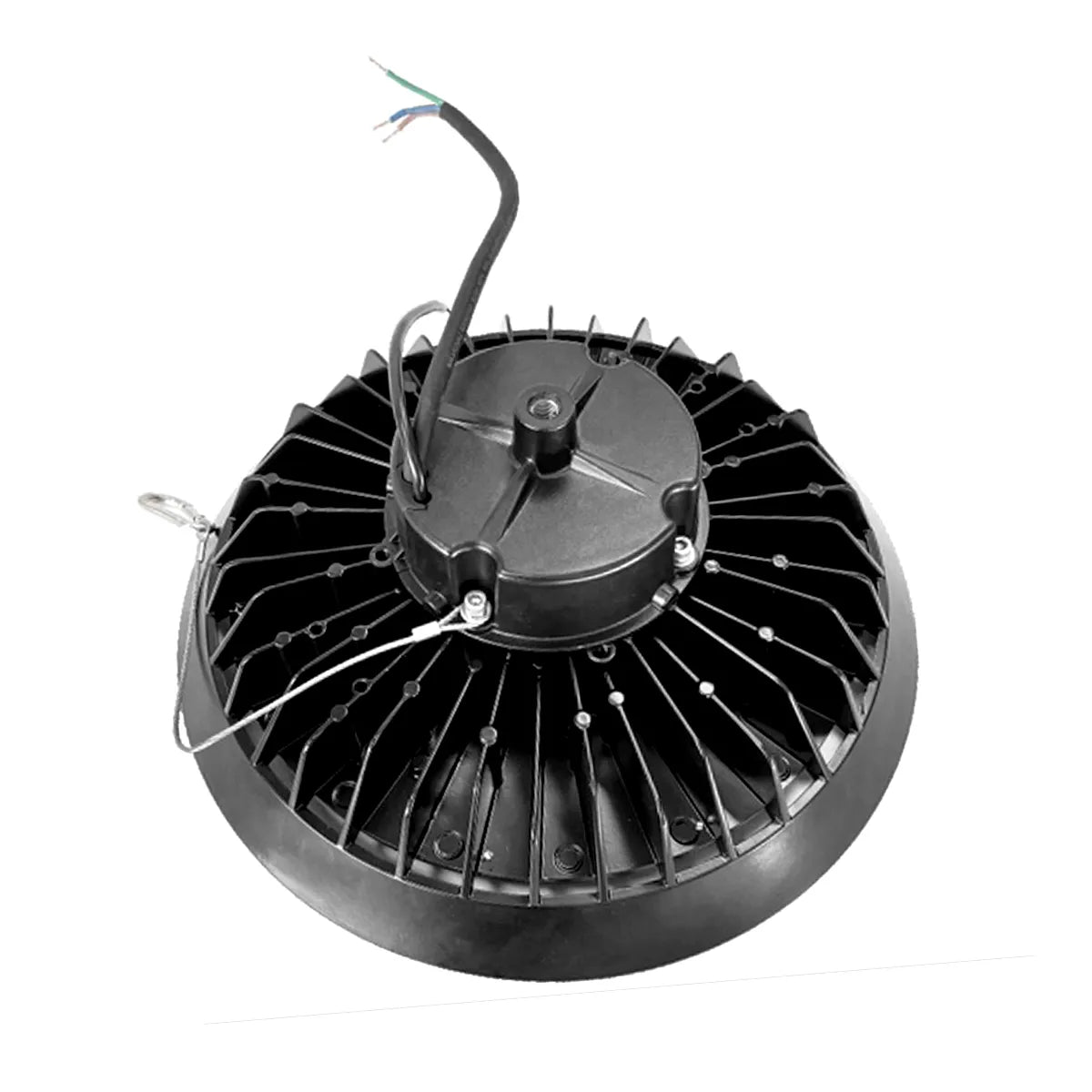

This LED Highbay provides strong and bright light and is suitable for ceiling heights between 4 and 6 meters. This LED highbay is therefore suitable for spaces where a lot of strong light is needed such as sheds, warehouses, sports halls, factory halls, and garages. Due to its small size, this LED UFO highbay is easy to place anywhere and can be connected directly to the power network with an input voltage of 220-240V AC. The highbay has a strong iron loop with a diameter of 30 mm at the top for hanging. The 24 cm safety cable with carabiner can be used to secure the highbay additionally; this cable can also be used to hang the highbay straight or tilt it.

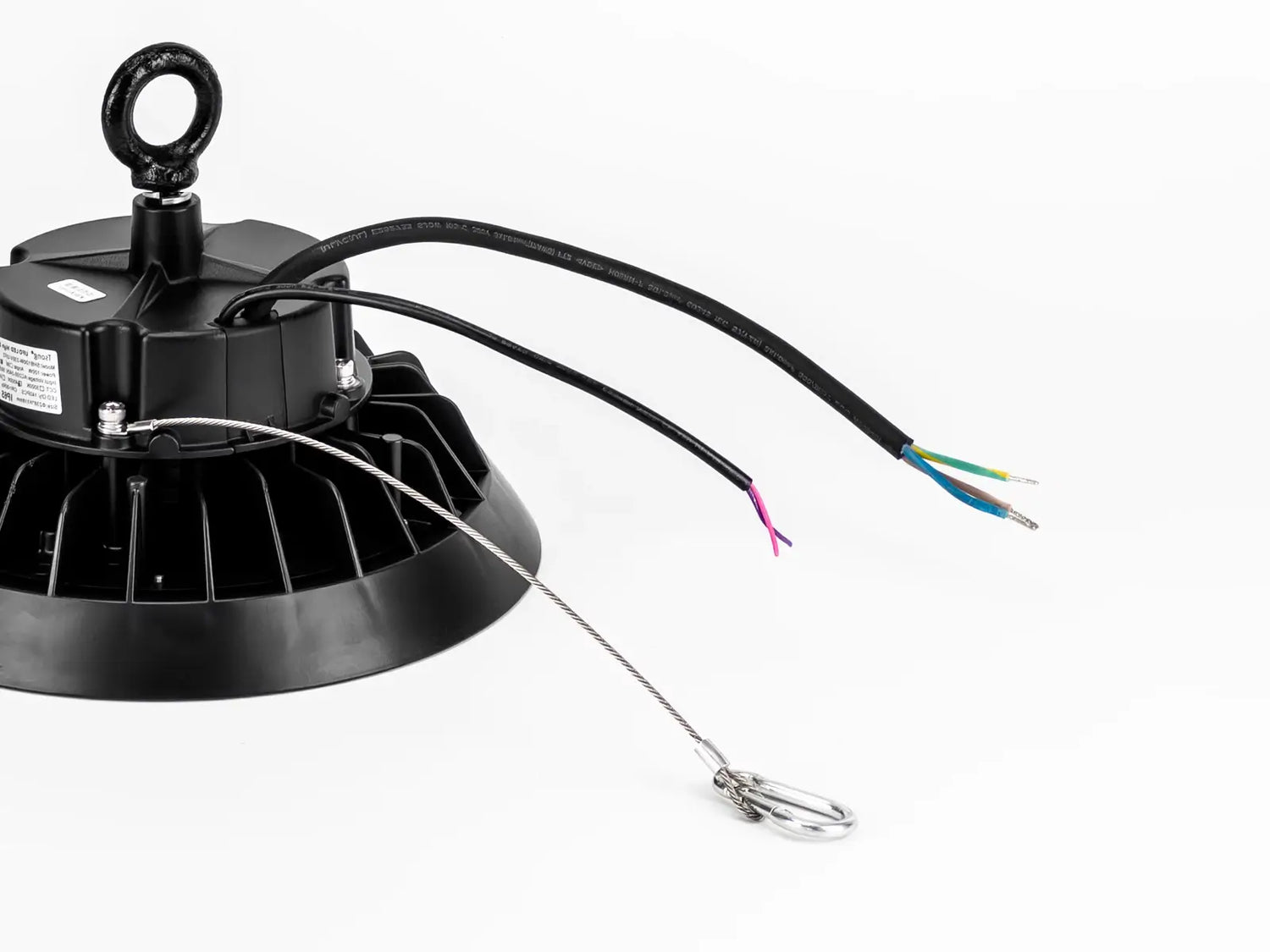

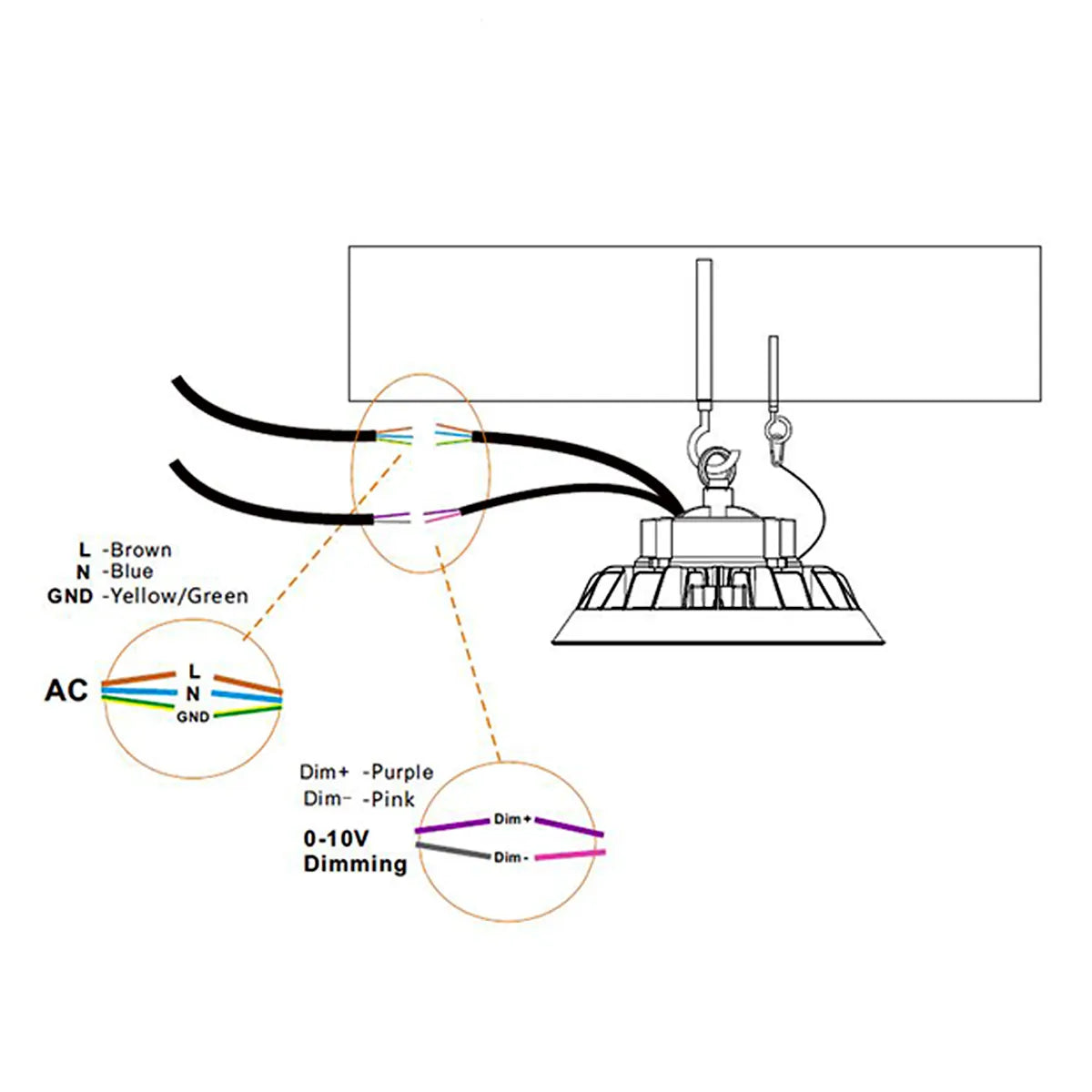

The highbay has 2 cables of 30 cm. The thick cable can be connected directly to the mains or with a power cord for a socket. The thin cable is for dimming the Highbay and can be connected to a 1-10V dimmer. Dimming is optional; if the dim cable is not used, we recommend sealing it with a (waterproof) terminal block or connector.

With motion sensor

The microwave sensor detects movement and works by means of radio waves, making it an extremely effective solution for controlling lighting in these spaces. As soon as the sensor detects movement, the LED UFO Highbay lighting will automatically switch on and spread bright and even light. When no movement is detected anymore, the lighting will gradually dim or switch off.

The benefits are versatile. Firstly, it helps save energy by ensuring the lighting only operates when needed. This results in significant cost savings on the energy bill. Moreover, the automatic on/off system contributes to extending the lifespan of the LED lamps, reducing maintenance costs.

The microwave sensor also offers flexibility in lighting control. You can adjust the settings to your specific needs, such as sensor sensitivity, delay time after detecting movement, and dim level during inactivity. This allows you to create a customized lighting solution that perfectly fits your space requirements and maximizes energy efficiency.

Make it durable and save

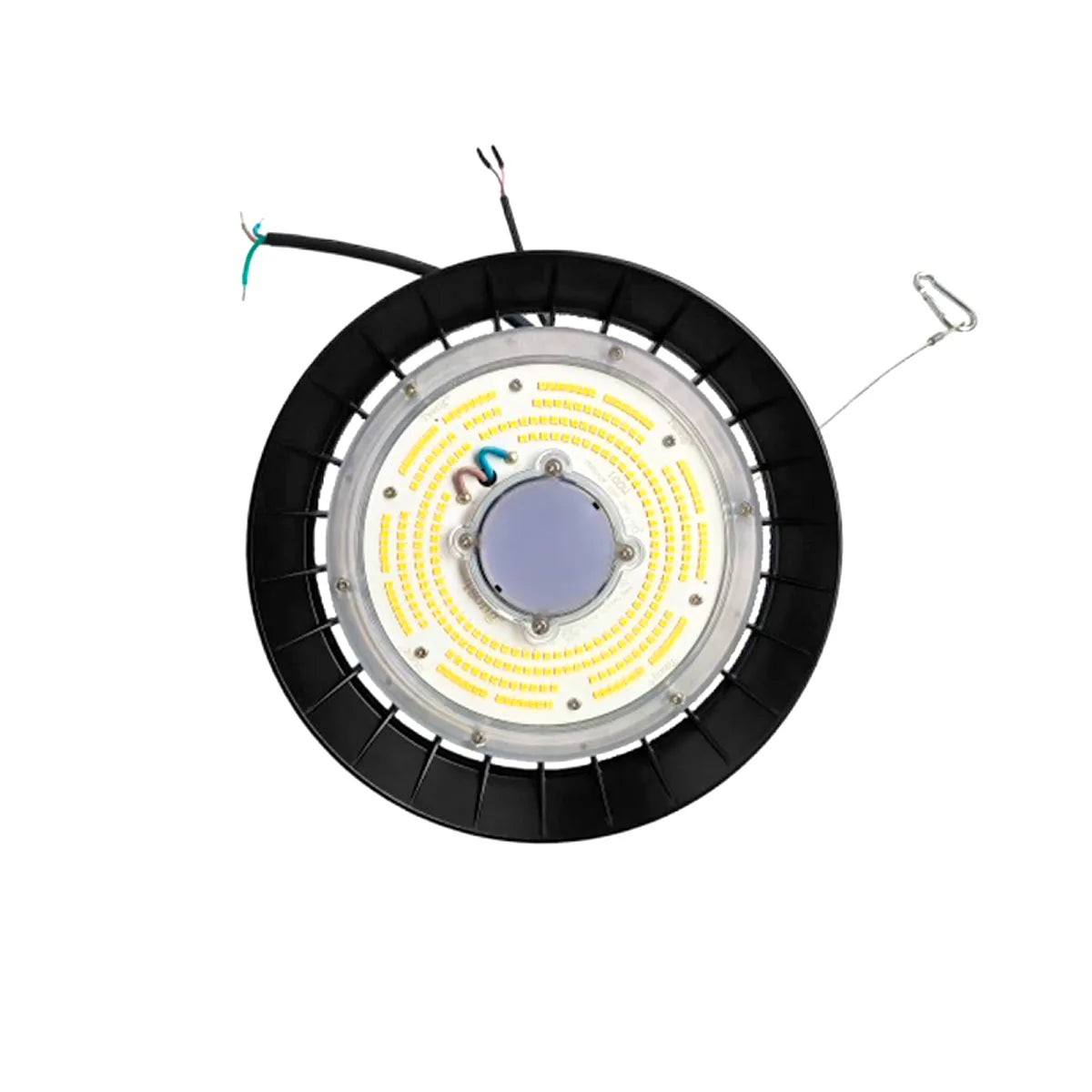

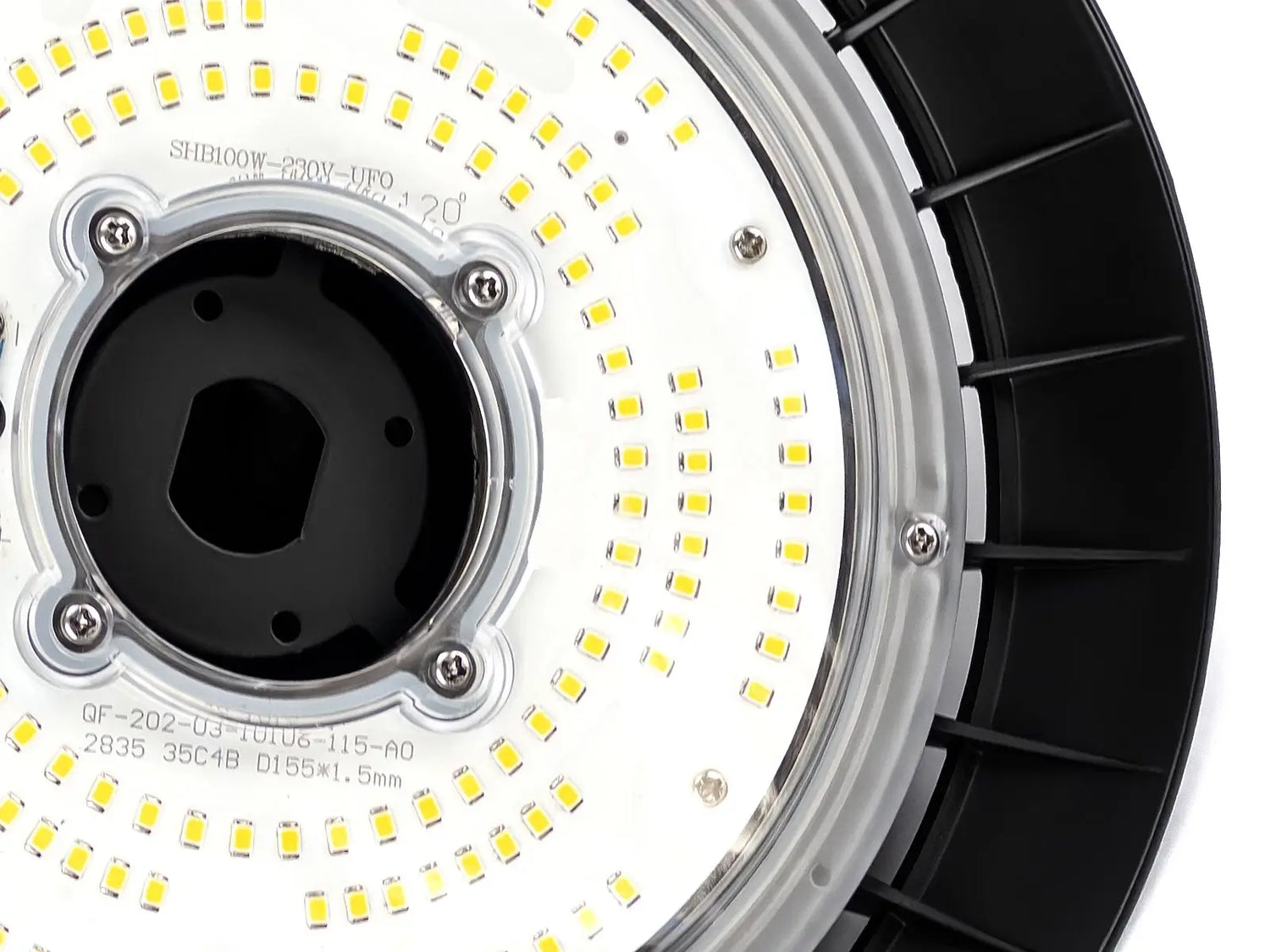

This UFO highbay replaces a conventional 500W-600W mercury vapor lamp, saving up to 70% energy (and energy costs) without compromising the lamp’s light output. This Highbay has 140 High-lumen LED chips of type SMD3030 with a lumen efficiency of 150 lumen per watt. For this 100W highbay, this totals an impressive 15,000 lumen.

Calculate here how much you will save

Dimmable

This UFO highbay is dimmable and contains a Sosen dimmable LED driver. You can set the light to the desired brightness. The Sosen LED driver requires a 1-10V LED dimmer. Note that a traditional (LED) dimmer does not work with this highbay and could cause a short circuit.

View all 1-10V LED Dimmers here

Waterproof

This LED highbay has an IP65 rating. It is dust-free and waterproof and can therefore be placed in damp spaces. The lamp is protected against water up to 100 liters per minute. A tap produces about 12-16 liters per minute, so it can handle quite a bit but cannot be submerged.

Read more about IP ratings and lamp protection here

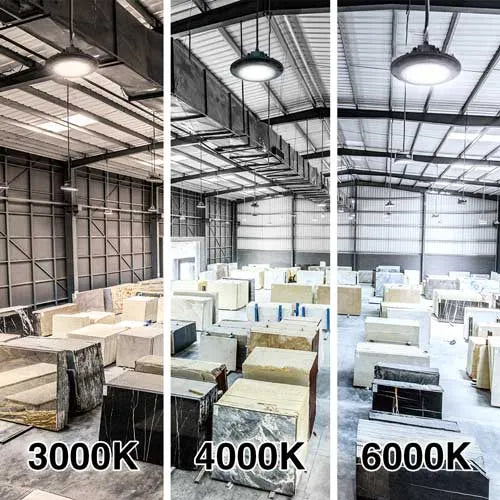

Colour temperature

To determine the right colour temperature, it is important to know what the light is used for. Below is a description of the most common uses for the different colour temperatures.

• 3000K has a slightly yellow/orange glow. Ideal for a cozy, warm, homely and relaxing atmosphere in, for example, living rooms, waiting rooms, cafés, restaurants, corridors, and other general spaces.
• 4000K has a white/yellow glow. Ideal for a well-lit space where good visibility, focus and a pleasant atmosphere are desired, for example in offices, classrooms, kitchens, hallways, shops, fitting rooms, hair salons, stairwells or waiting rooms.
• 6000K has a white/light blue glow. Ideal for a well-lit space where good visibility and concentration are desired, for example in hospitals, laboratories, workshops, studios and garages.
