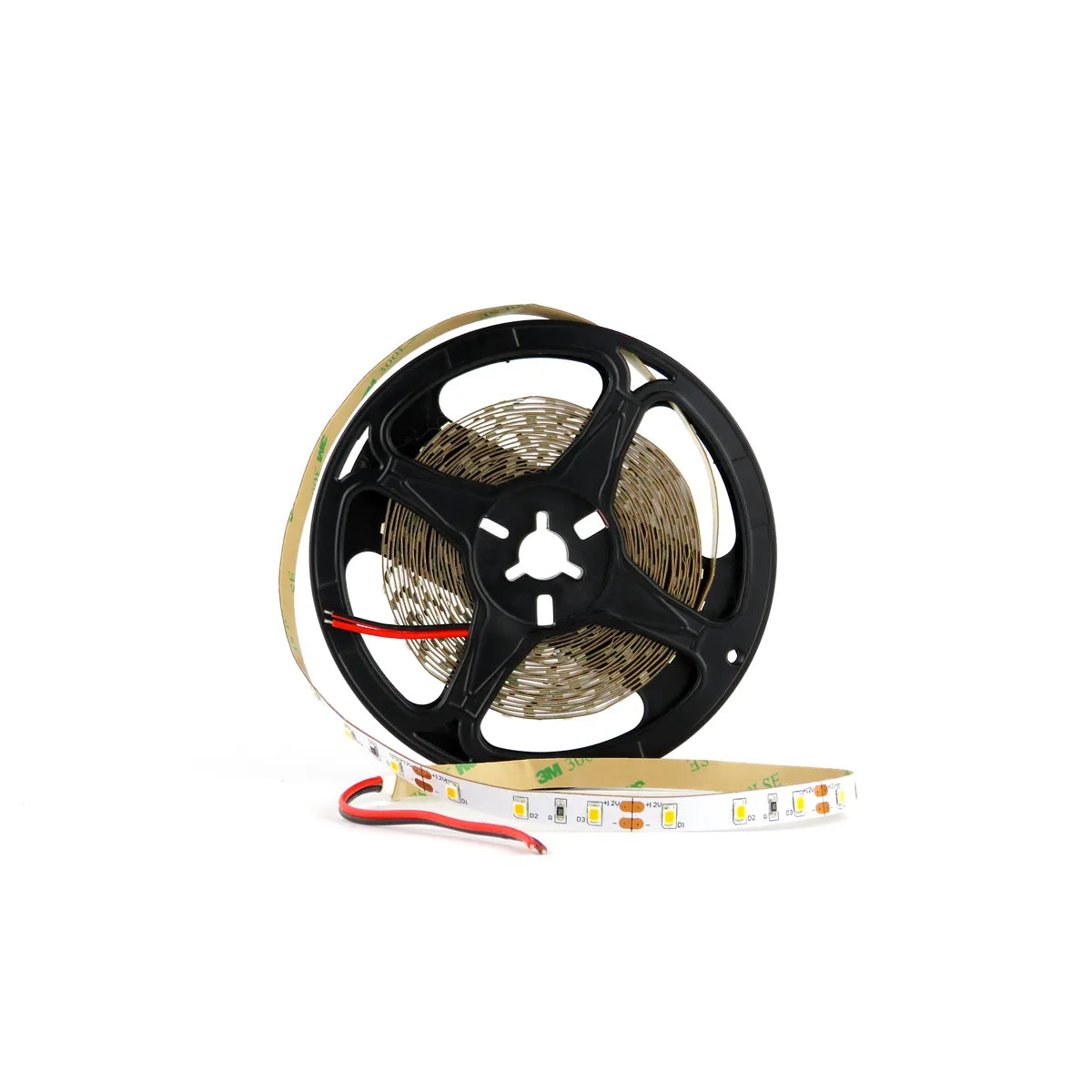

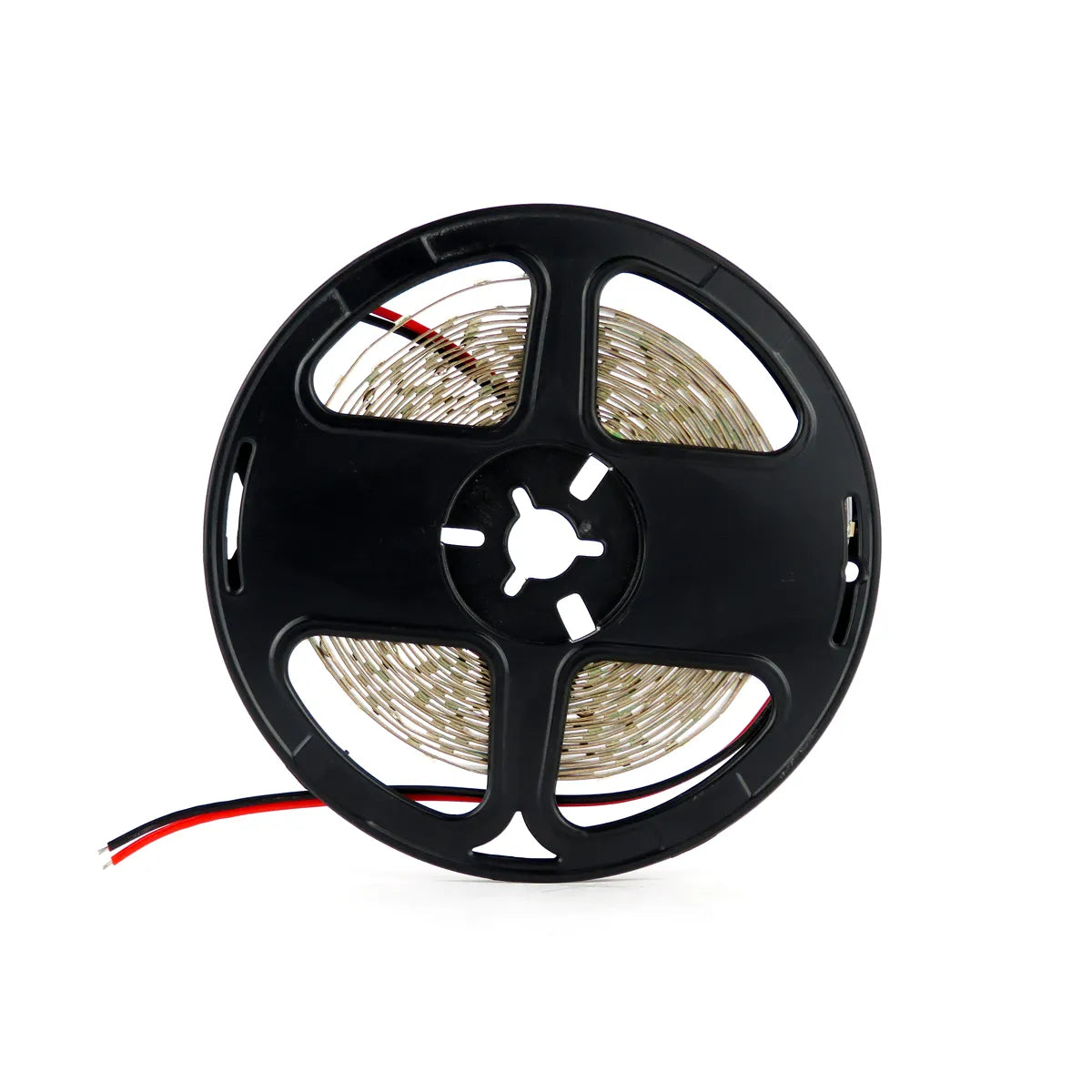

SMD2835 LED Strip 9.6W/m 120 LEDs/m 12V/24V | 5m

At a glance

• Easy cut or extend
• Extension: 12V max. 10m - 24V max. 20m
• High colour rendering - CRI>90
• Low energy consumption - 9.6W per m
• Light output: 960 lm per m
• 120 LED chips per m
• Dimensions: 5000 x 8 x 2.3 mm

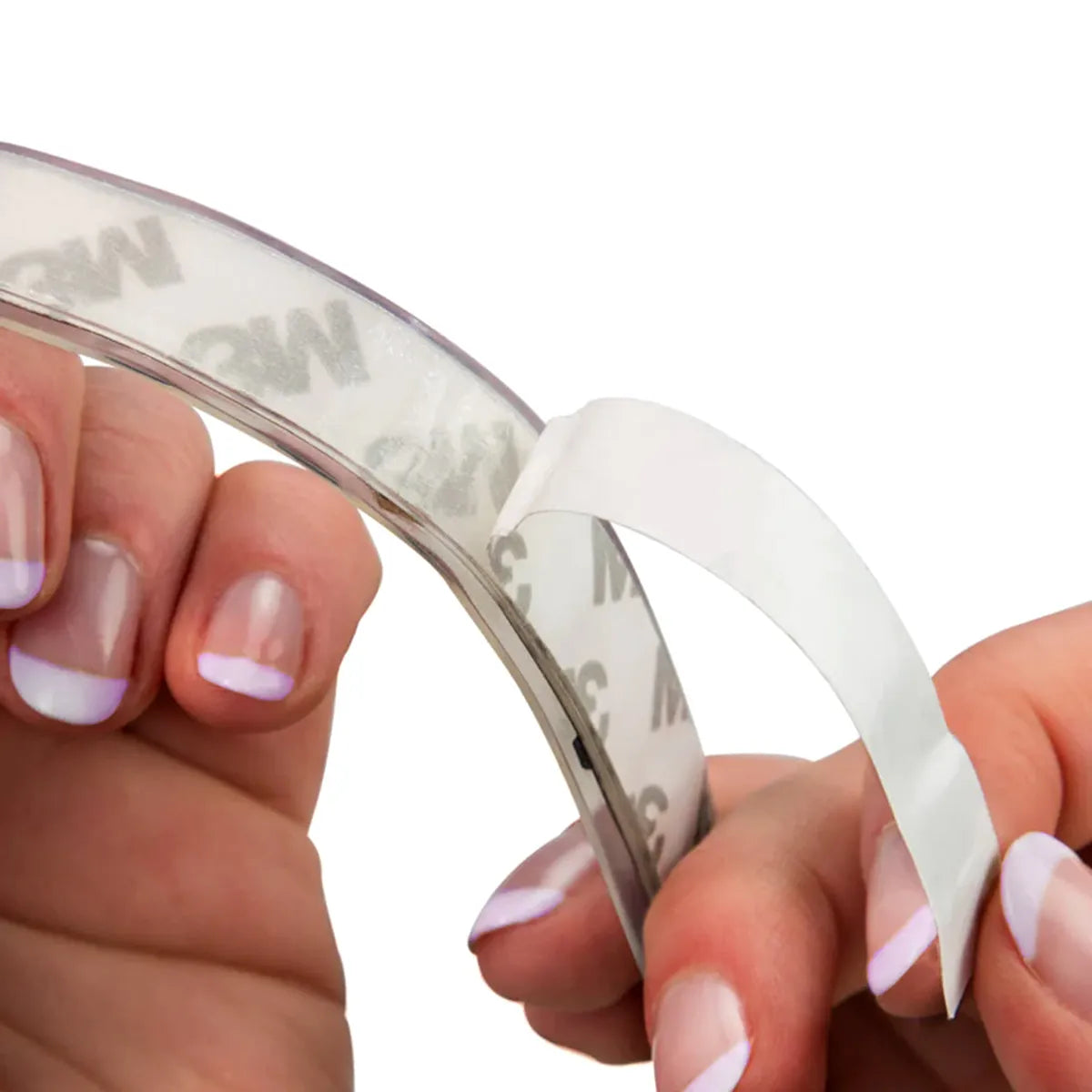

• Strong 3M adhesive backing for easy mounting
• Average lifetime of 13.5 years (10 hours per day)
• 3-year warranty

High quality

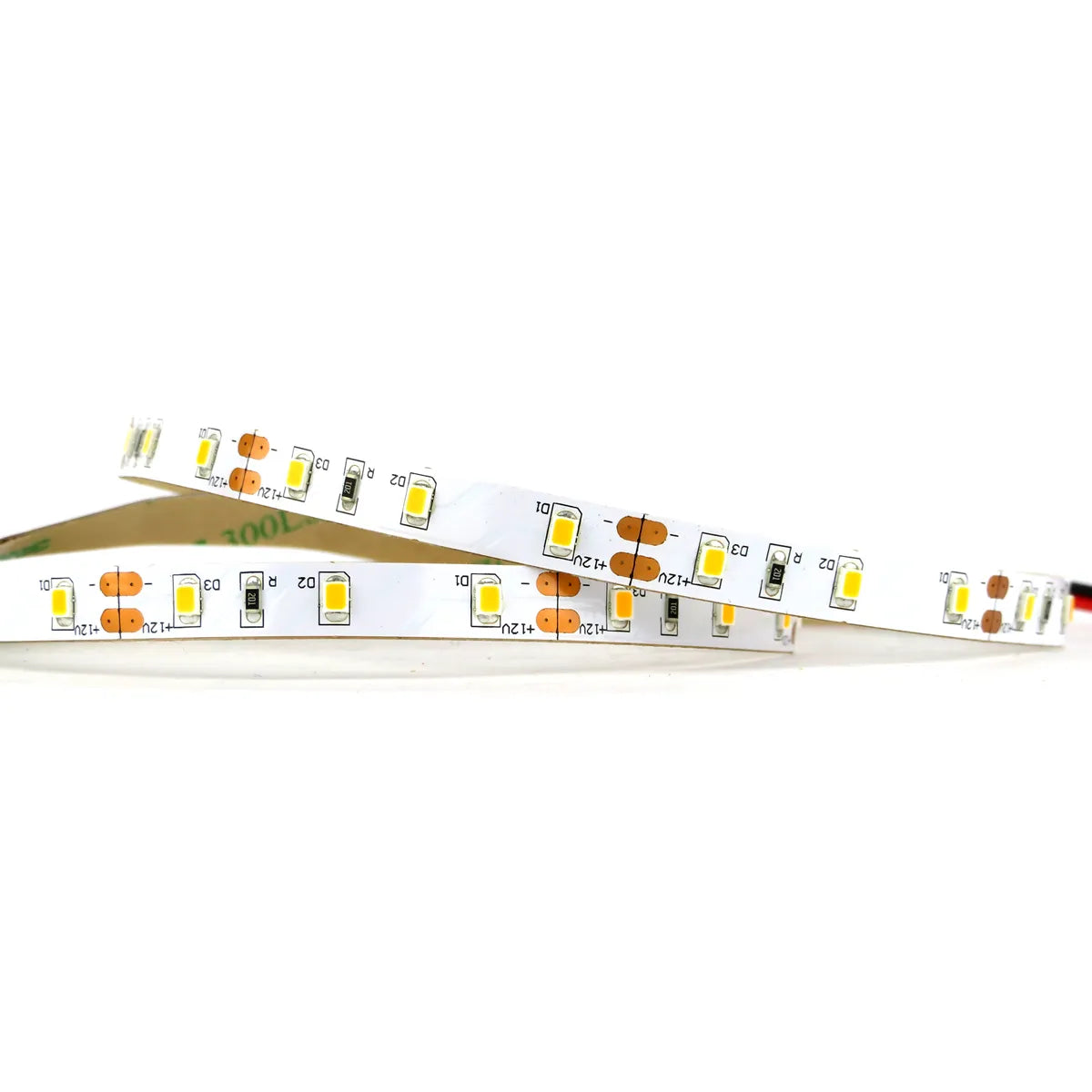

This SMD2835 LED strip is made from quality, flexible plastic with 3M adhesive backing. The standard 5-metre length can be cut or extended by joining strips. Its IP20 rating means it is not resistant to water or moisture, so use it only indoors between -25°C and 60°C. It can provide decorative or main lighting.

Extending or shortening an LED strip

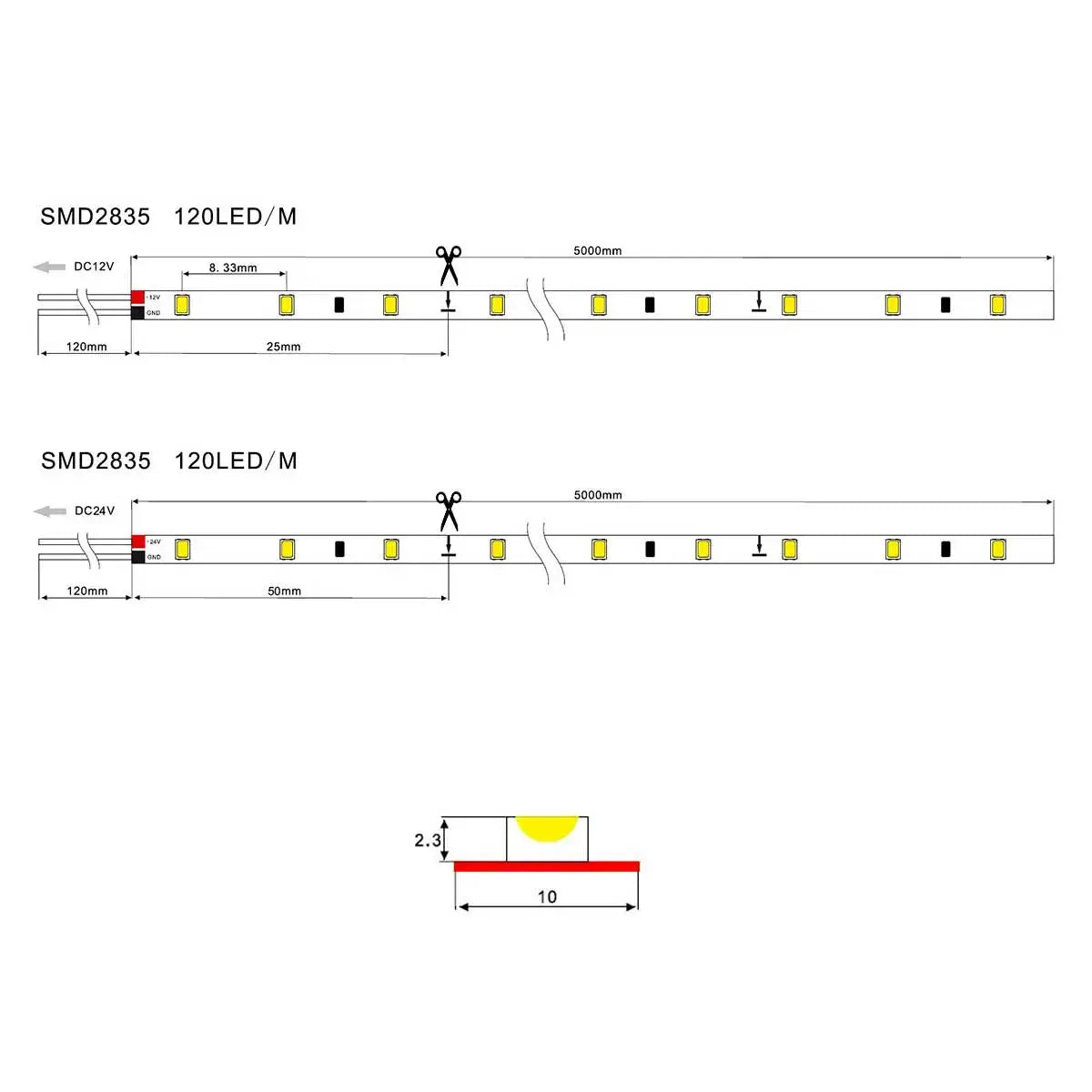

This LED strip is easy to cut or extend. Both 12V and 24V versions can be cut every 3 LEDs (5 cm). Cut through the centre of the copper pads marked + and -. The ends can be clipped into connectors or closed with a cap.

The following connectors are available for shaping the strip as required.

• Straight connector
• 90° corner connector
• T-connector

For connecting the strip, the following connectors are available.

• DC connector

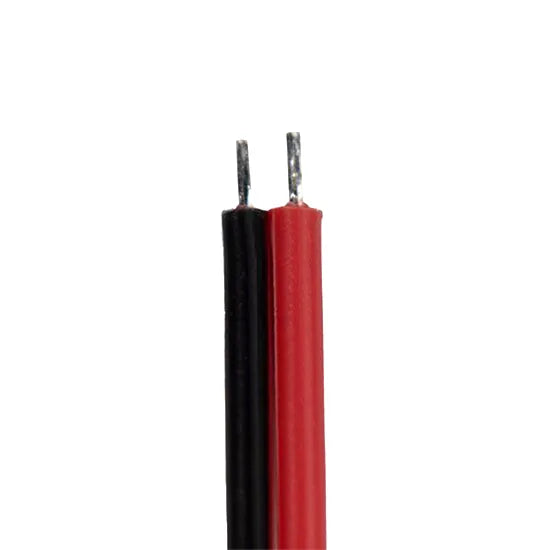

• End piece with short 2-pin wire

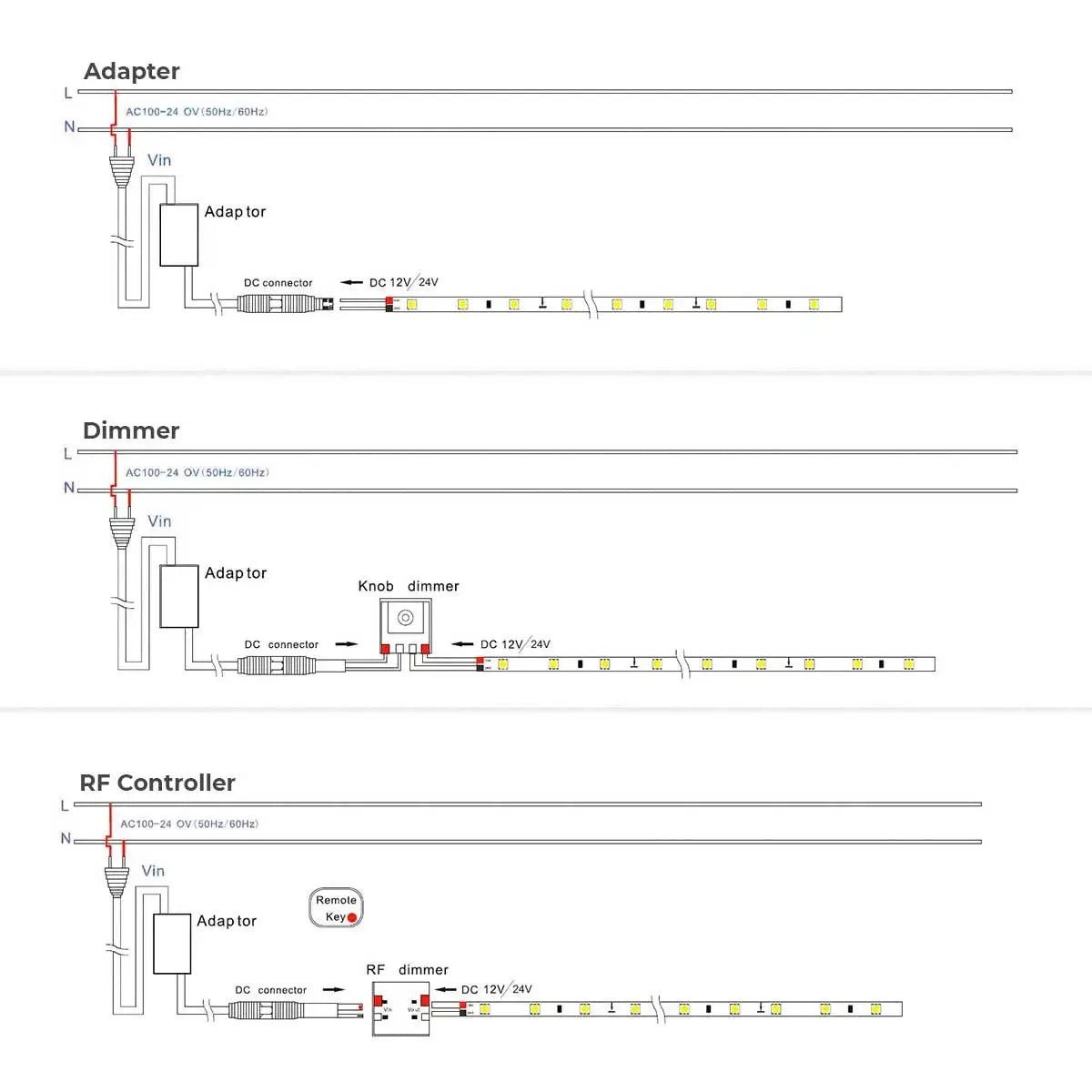

Choosing the right power supply

A power adapter is needed to connect this strip. It operates on 12V and requires a suitable adapter to convert the voltage. The correct adapter allows the intended performance and prevents insufficient power.

The adapter wattage must be higher than the strip wattage. Example: 5 metres = 48W, so a power adapter rated at least 48W is needed.

12V LED strip

• 1m-5m: Power adapter 12V 60W
• 5m-10m: Power adapter 12V 145W

24V LED strip

• 1m-5m: Power adapter 24V 60W
• 5m-10m: Power adapter 24V 145W
• 10m-15m: Power adapter 24V 200W
• 15m-20m: Power adapter 24V 230W

LED strip applications

This strip suits professional and domestic use, including offices, shops, cafés, restaurants, public transport, living rooms, bedrooms and bathrooms.

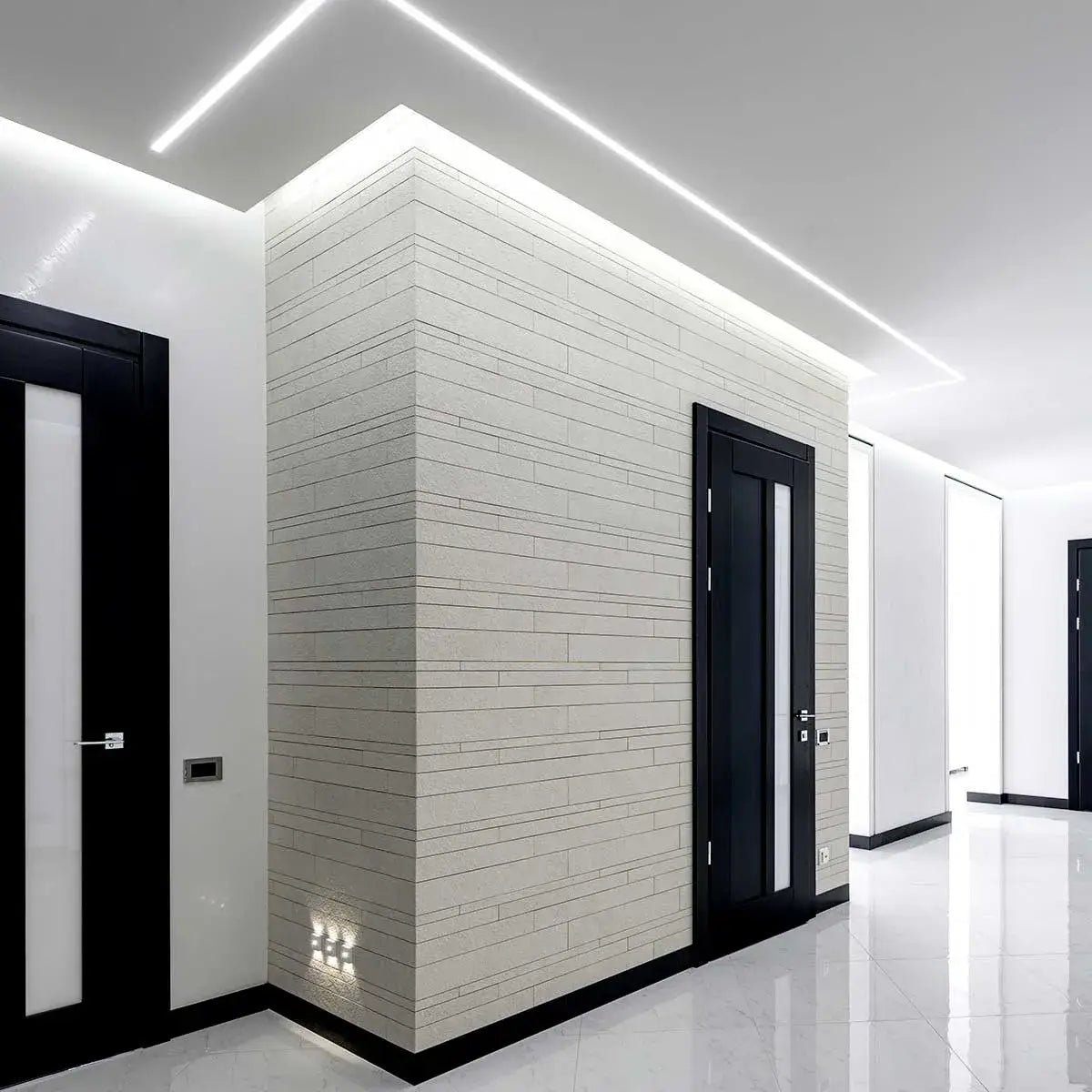

Other examples include lighting along stair treads, in cupboards or under a sofa or bed. Cafés often use LED strips to illuminate bars, while ceiling coves are another frequent application.

Light colour

Choose the colour temperature according to the purpose of the lighting. The usual uses for each colour are described below.

• 2400K has a soft orange glow, like candlelight or a late sunset. Suitable for a warm, homely and restful atmosphere in living rooms, cafés, restaurants and other spaces that do not need bright light.
• 3000K has a slightly yellow-orange glow and is brighter than 2700K while remaining warm. Suitable for comfortable lighting in living rooms, waiting areas, cafés, restaurants, corridors and general spaces.
• 4000K has a white-yellow tone. Suitable where visibility, concentration and comfort matter, including offices, classrooms, kitchens, corridors, shops, changing rooms, hairdressers, stairwells and waiting areas.
• 6000K has a white to pale-blue tone. Suitable for bright spaces requiring good visibility and concentration, such as hospitals, laboratories, workshops, studios and garages.
