SMD2835 LED Strip 9.6W/m 120 LEDs/m 24V | Set 10m

10m SMD2835 LED strip for a brighter light line

A long working area calls for light across its full width, not merely a decorative glow. With 120 LEDs per metre and approximately 960 lumens per metre, this 10m SMD2835 LED strip set provides bright illumination. The power supply and connectors are included for a fixed 24 V connection.

Key features

• LED technology: SMD2835, 120 LEDs per metre.
• Power: 9.6 W/m; approximately 96 W over 10 m, with a 145 W power supply.
• Light output: approximately 960 lumens per metre.
• Colour rendering: CRI >80.
• Strip width: 8 mm wide; IP20 for dry indoor areas.
• Warranty: 2 years on the complete set.

What is included in the set?

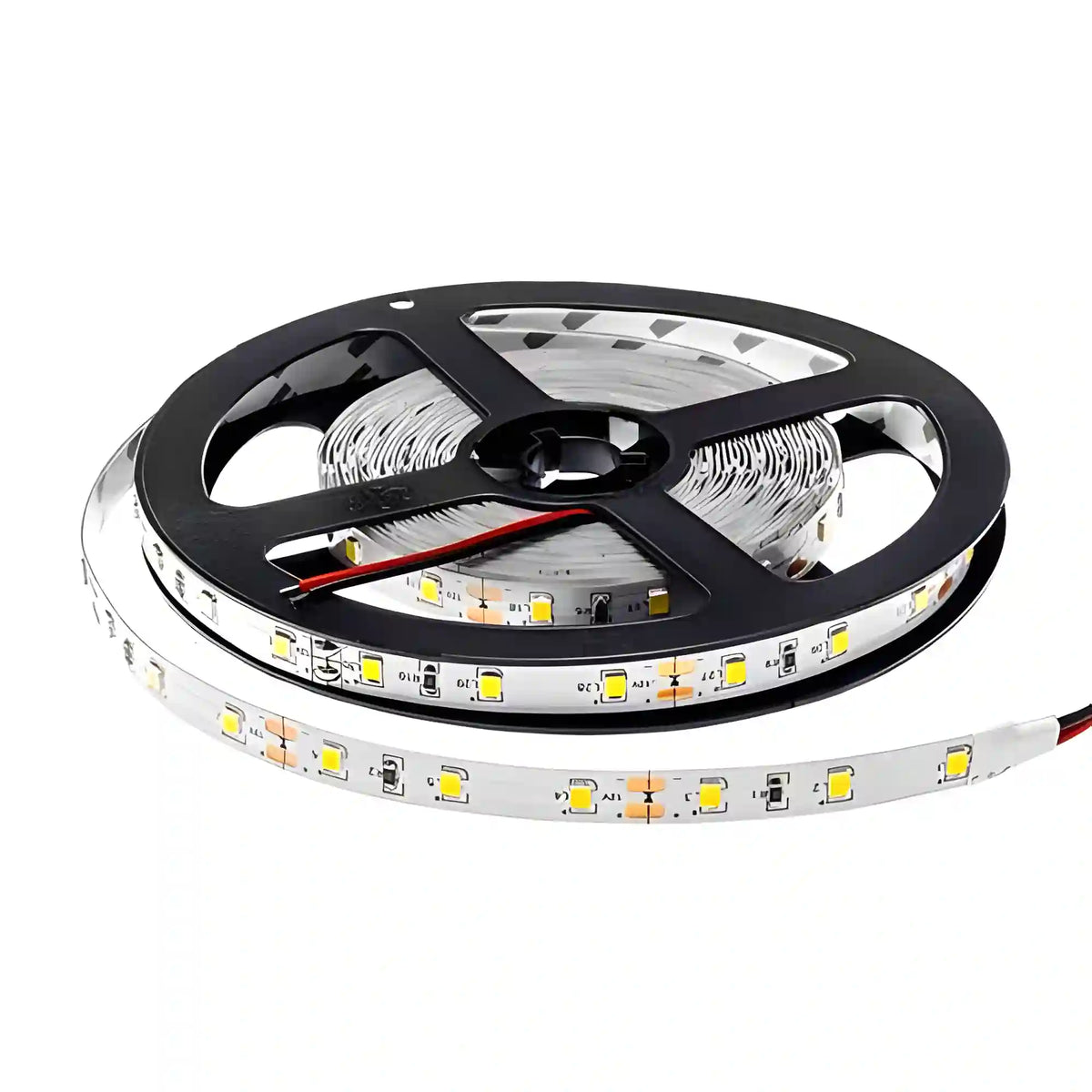

• 2x SMD2835 LED strips, 120 LEDs/m, 9.6 W/m, 5 m, 24 V, 8 mm wide, IP20

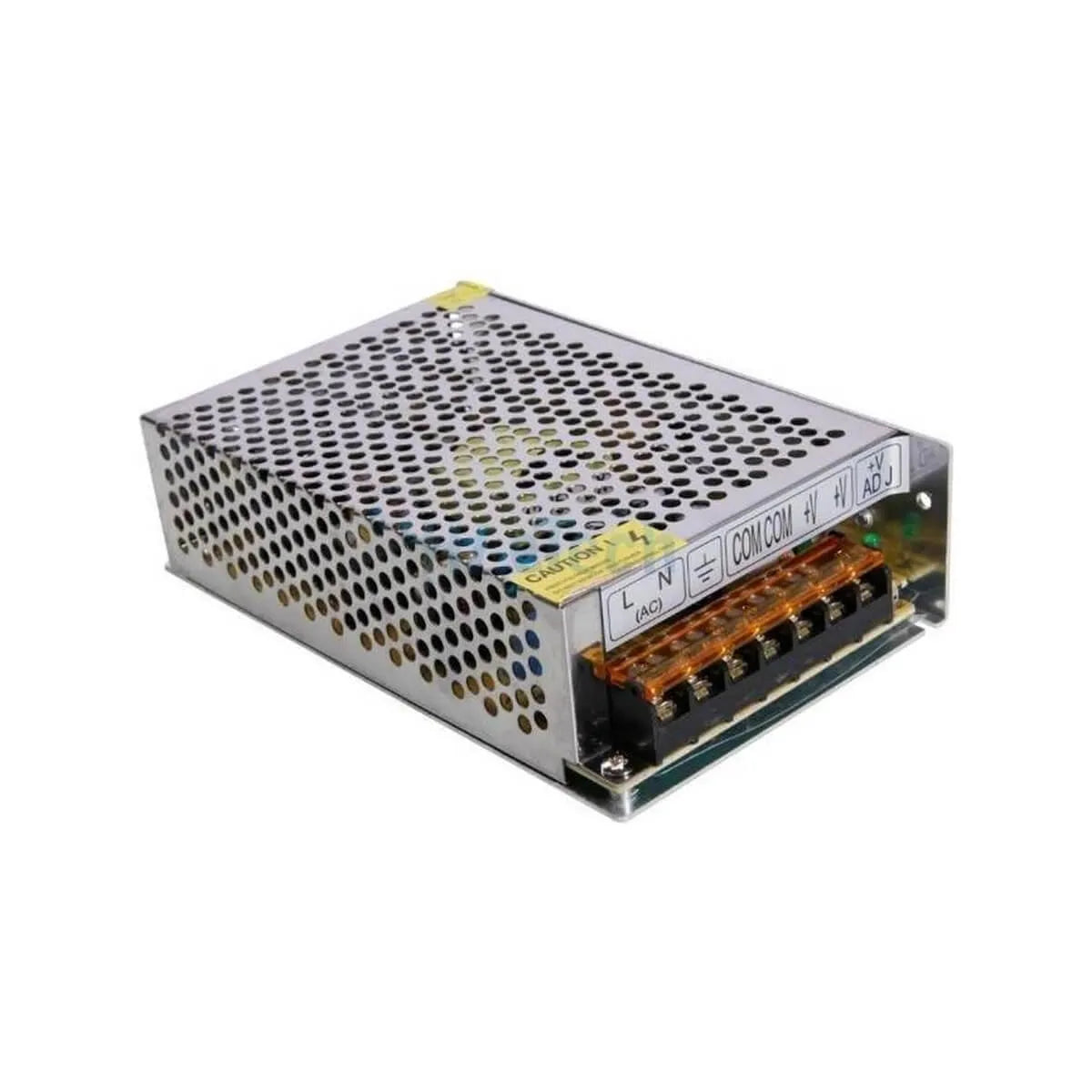

• 1x 24 V 145 W LED strip power supply with screw terminals (no plug)

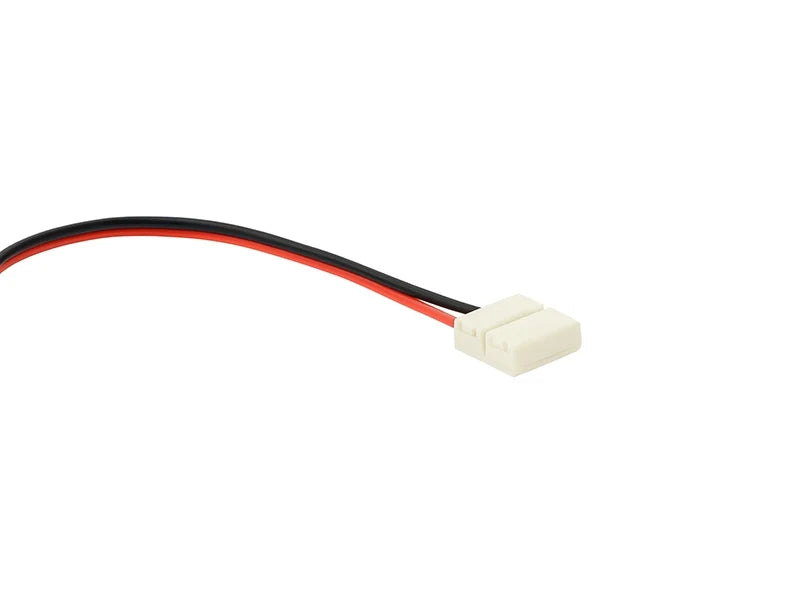

• 1x 8 mm SMD connector with cable (strip to power supply)

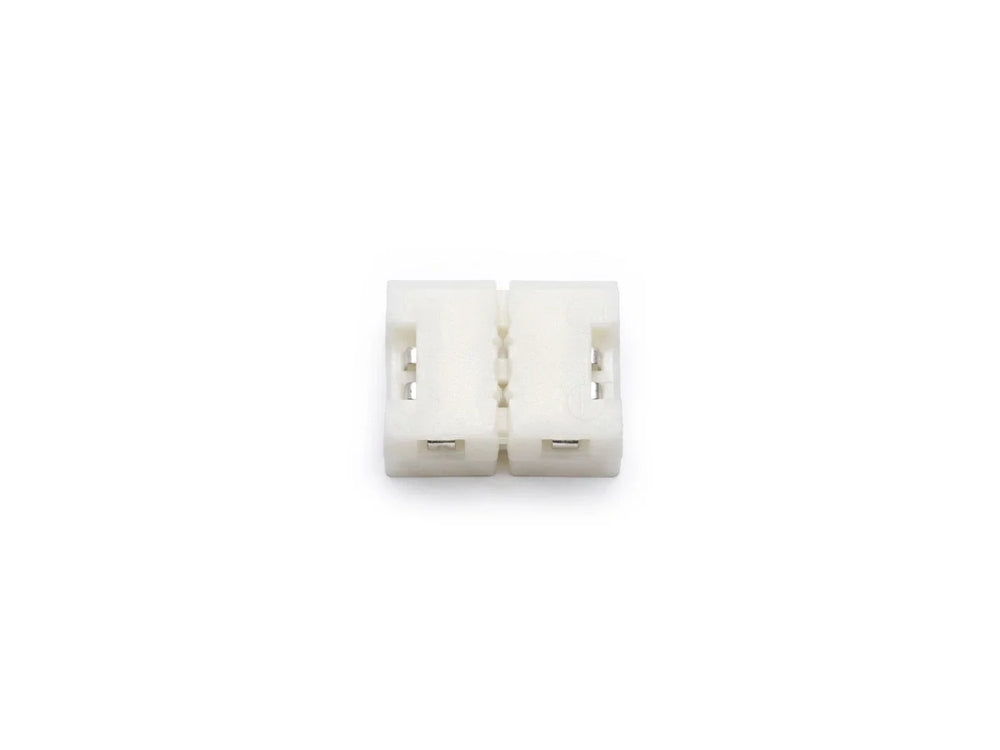

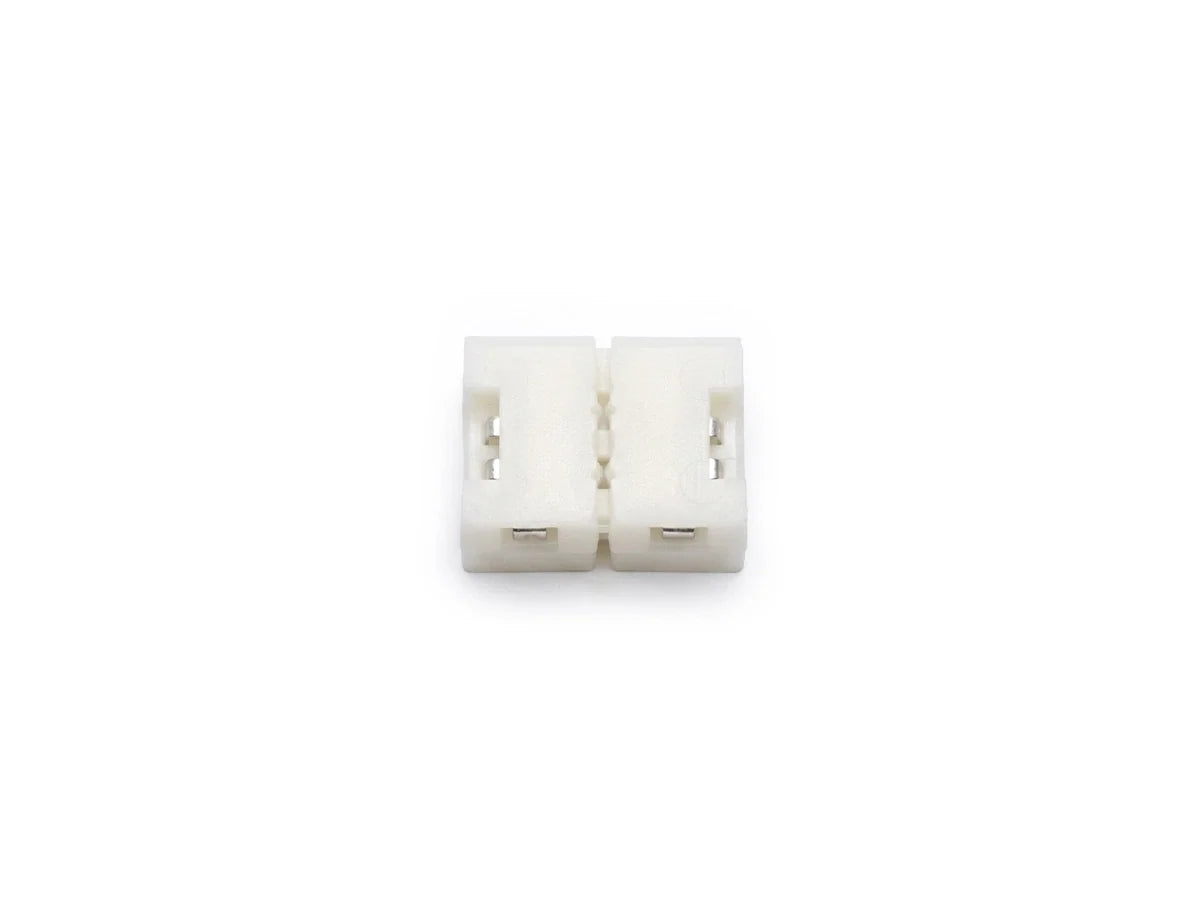

• 1x 8 mm SMD strip-to-strip connector

Connecting the two SMD strips to the power supply

The 230 V side of the supply requires permanent wiring through screw terminals; there is no plug. Consult an installer if unsure. On the 24 V side, connect the first strip with the cabled connector, then join the second strip after it, without soldering.

Lighting long work areas with 120 LEDs/m

Illuminate the length of a hobby worktop, a storage rack in a workshop or a long kitchen wall needing more brightness. Individual LED points remain visible when viewed directly.

When are 120 LEDs/m more useful than 60 LEDs/m?

At 120 LEDs per metre, the light points are more closely spaced and provide approximately 960 lumens per metre. The 60 LEDs/m set provides approximately 480 lumens per metre and uses less power, so it is better suited to a subtler accent.

White tones for different tasks

• 2400K Extra warm white: an extra warm accent by a sideboard.
• 3000K Warm white: warm white by a kitchen wall.
• 4000K Neutral white: neutral white for a worktable.
• 6000K Cool white: cool white in a dry garage.

From work lighting to a softer setting

Switch between task lighting and a calmer brightness level with the separately available Mi-Light single-colour LED strip controller, operated by the Mi-Light 4-zone remote control and connected between the supply and strip. Do not use a standard 230 V wall dimmer.
