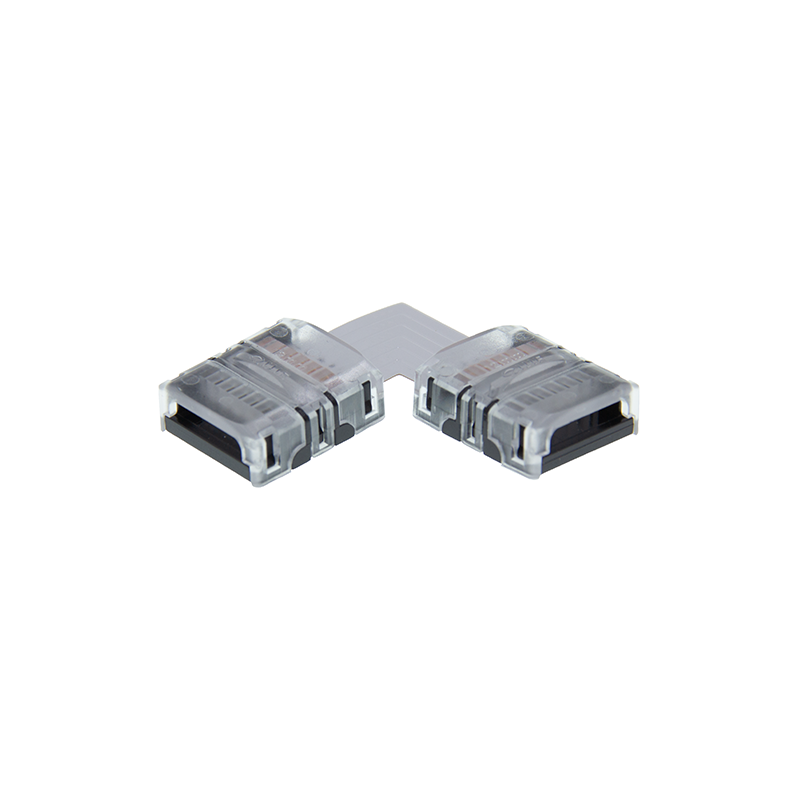

LED Strip Hippo Corner Connector | RGB+CCT 12mm

9.2/10 reviews Article no. ST1062

Hippo RGB+CCT corner connector 12mm for 6-pin light runs An RGB+CCT strip has more connections than a standard RGB strip: warm and cool white must be linked as well as the… View full description ↓

Six contacts for RGB+CCT
Hippo clamp for 12mm strips
24V up to a maximum 5A

€8²² Excl. VAT

€9⁹⁵ Incl. VAT

Over 100 in stock

Order before 3 pm, ships today

Grotere aantallen nodig? Vraag eenvoudig een offerte aan.

Secure and easy payment with the method you prefer.

Free shipping in NL & BE from €69.95
Available directly from stock
Rated 9.2/10 by customers
Up to 5 years warranty

Hippo RGB+CCT corner connector 12mm for 6-pin light runs

An RGB+CCT strip has more connections than a standard RGB strip: warm and cool white must be linked as well as the colour channels. This 12 mm RGB+CCT Hippo corner connector is designed for that layout. It joins two 6-pin strip sections around a corner without soldering.

Key features

6-pin: for RGB plus warm and cool white.
12 mm strip width: for compatible RGB+CCT strips.

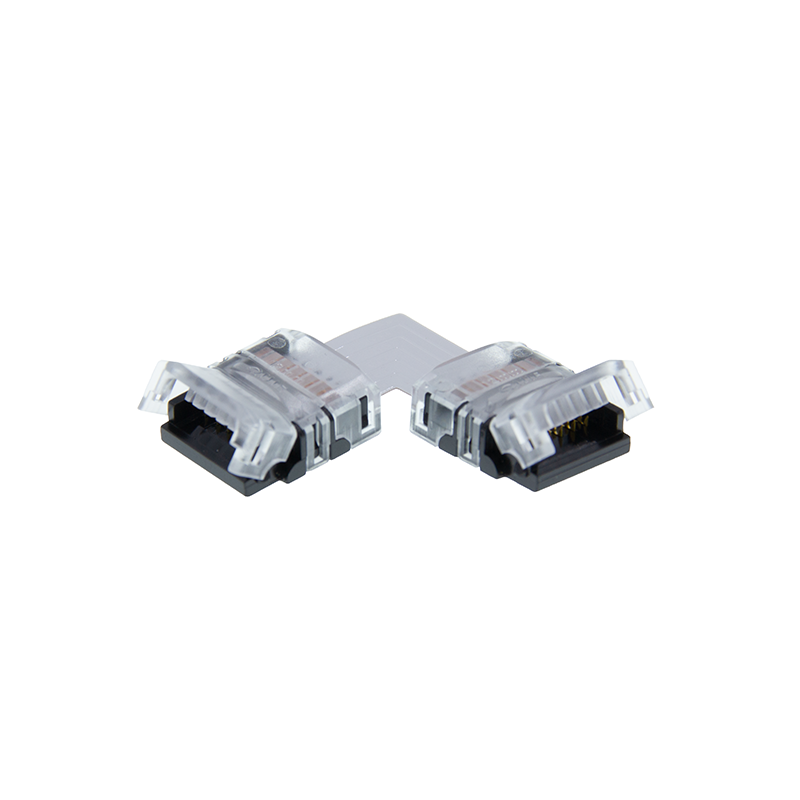

Hippo clamping system: secures the strip with a hinged lid.
24V, maximum 5A: specified rating.
FPC with copper: flexible printed circuit as the connection material.
IP20: for dry indoor installations.

Route an RGB+CCT light run around a corner

In a living room with an illuminated cabinet wall, RGB+CCT lighting may run along two perpendicular surfaces. The connector keeps both colour control and warm- and cool-white channels connected. There is no need to solder all six contacts individually.

Why a 6-pin connector?

A 4-pin RGB connector does not support separate white channels. A 5-pin RGBW connector has just one white channel. RGB+CCT with warm and cool white therefore needs the six connections on this model. The strip must also be 12 mm wide.
