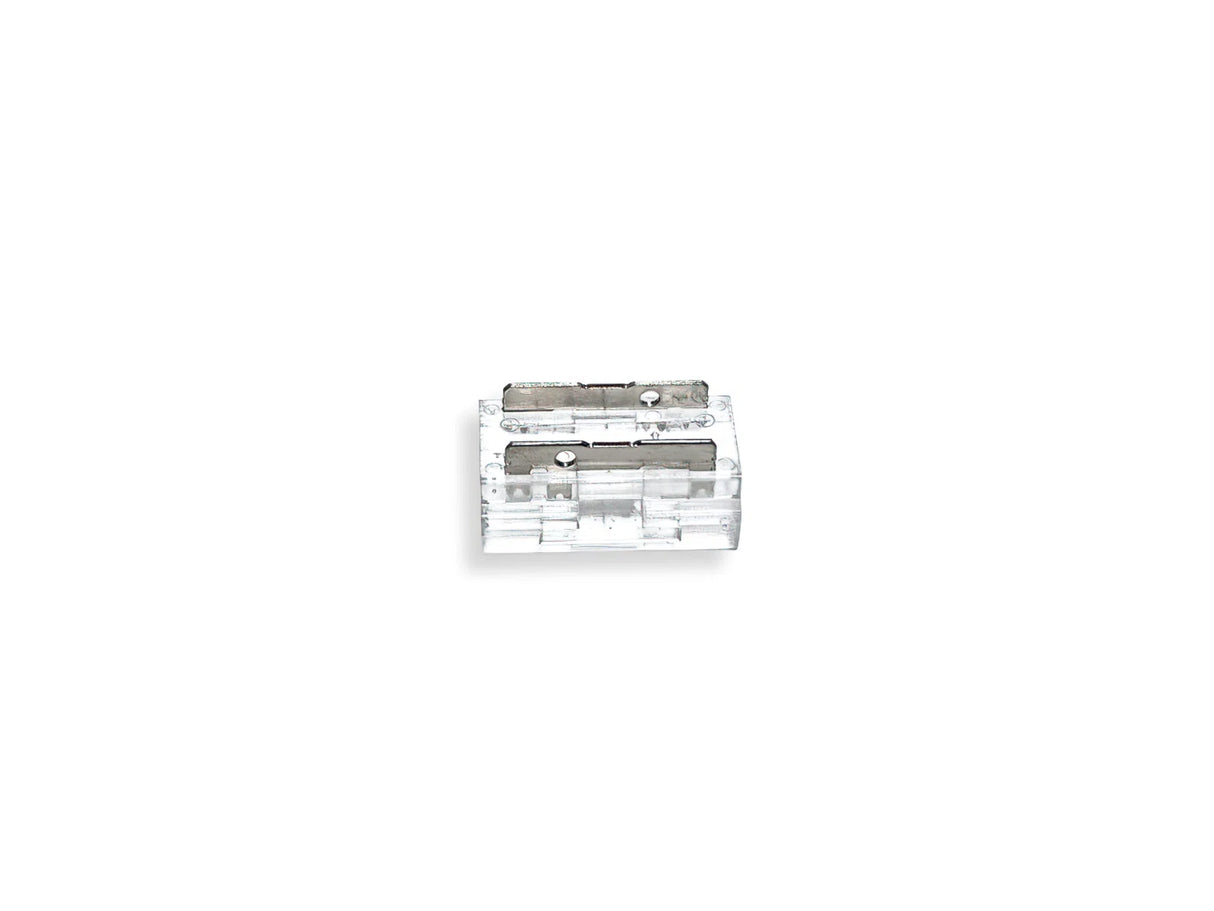

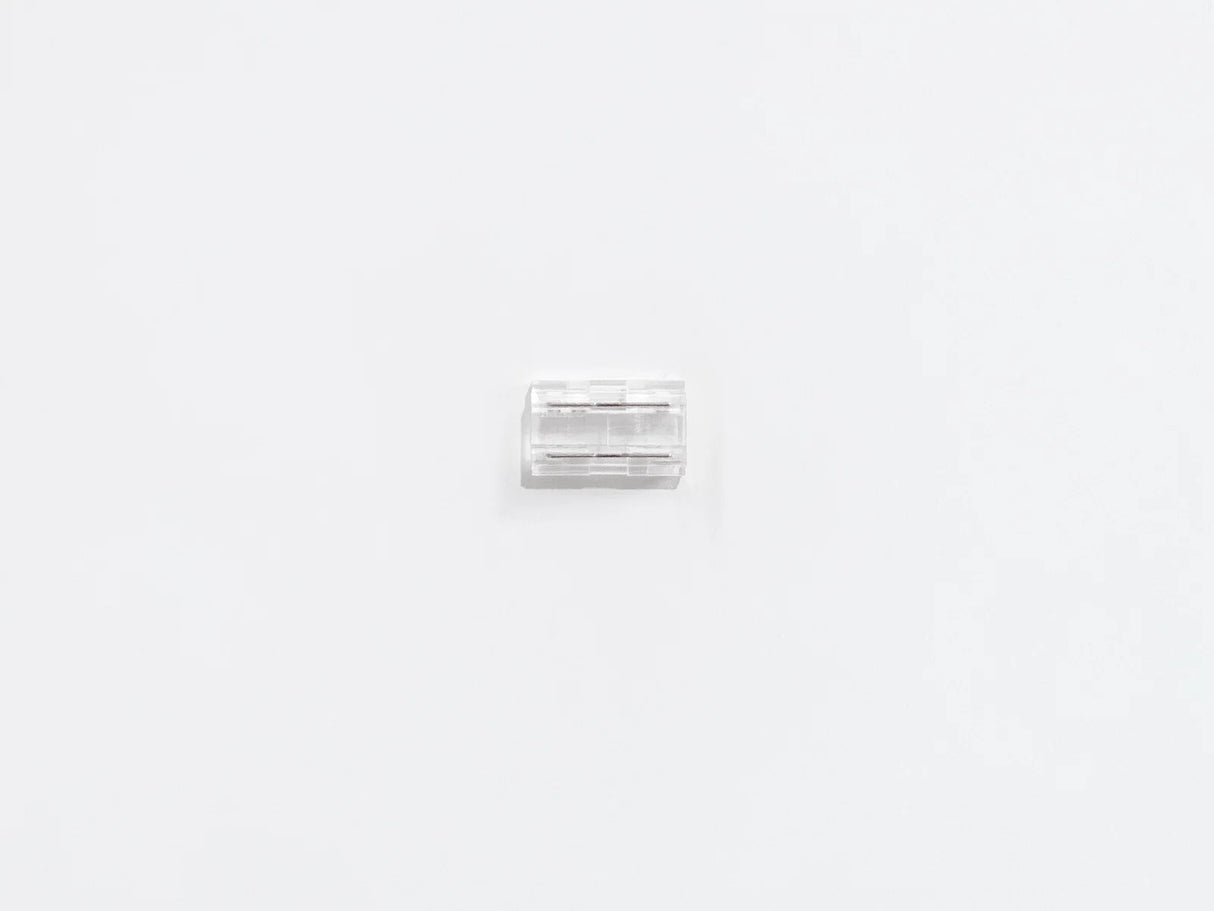

LED Strip COB Connector 9 in 1 for Essential and Advanced | 8mm

COB LED Strip Connector 9-in-1 | 8mm | For Essential & Advanced COB LED strips

With this versatile 9-in-1 COB LED strip connector, you can connect 8mm COB LED strips quickly, cleanly and completely without soldering. This connector is specifically designed for both COB Essential and COB Advanced LED strips and allows you to extend strips, create corners, make split connections or add a new power connection. One connector, multiple applications.

Main features

• Suitable for 8mm COB LED strips (Essential & Advanced)
• 9-in-1 multifunctional design for multiple connection options
• Solder-free installation with clamp contacts
• Secure mechanical fixation using press-in pins
• Compact size of 15.5 × 10 × 7.5 mm
• Ideal for extensions, repairs and custom installations

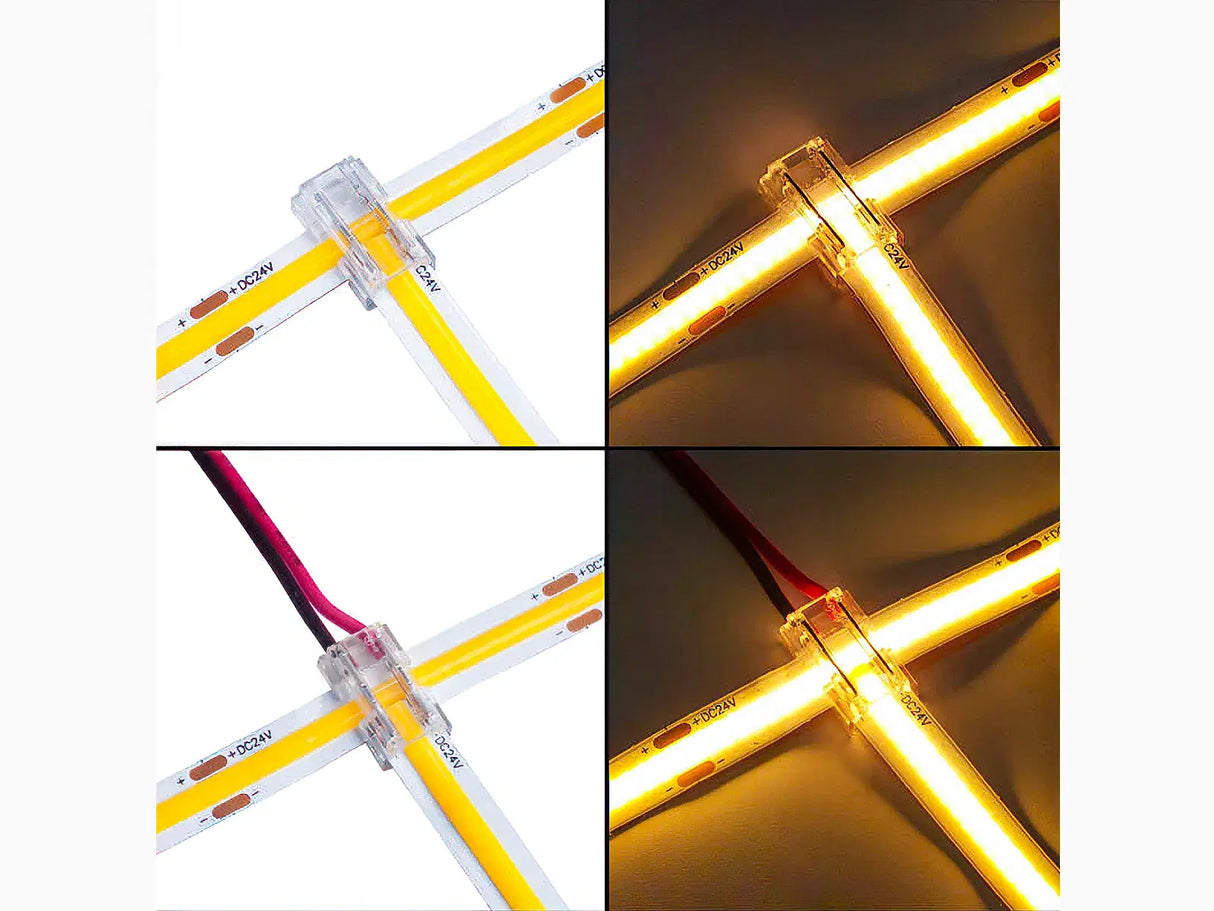

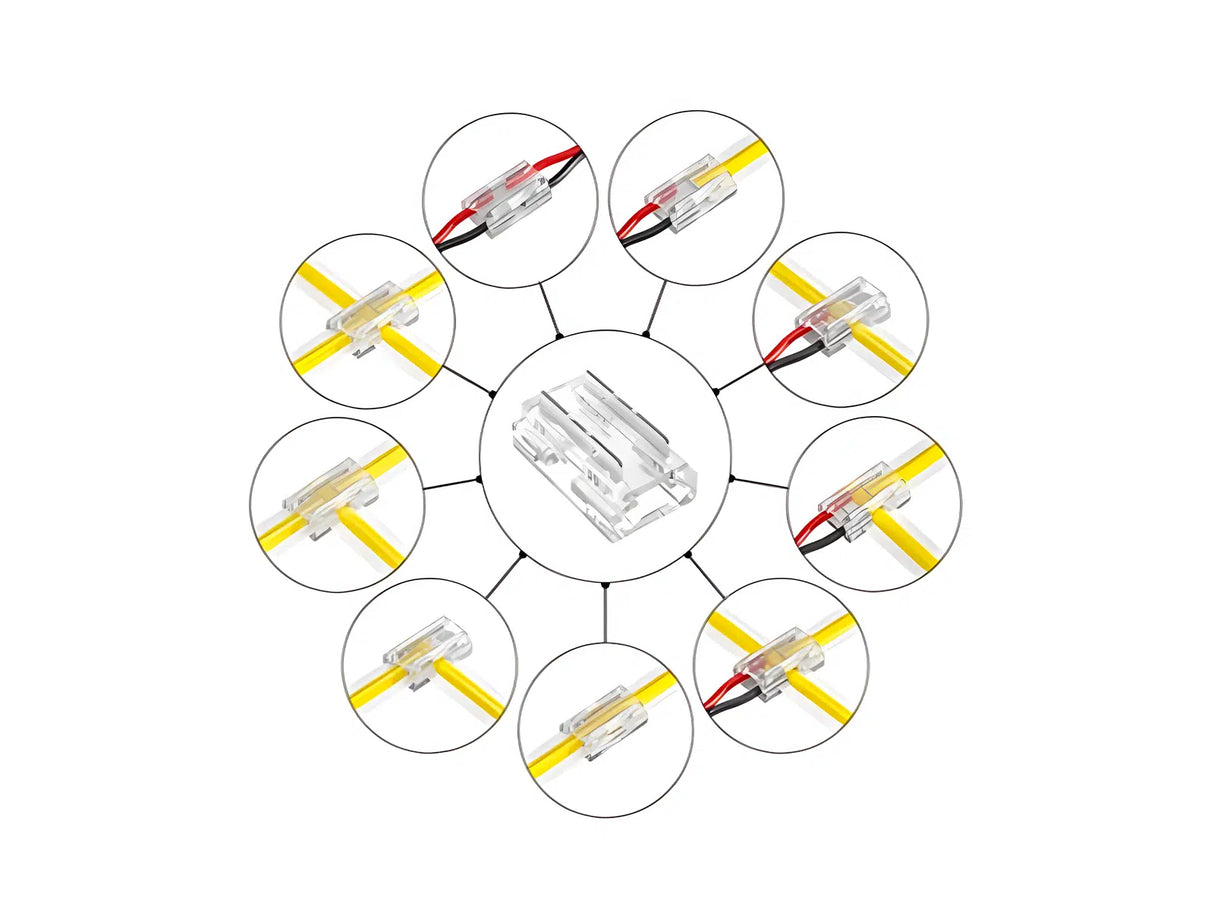

What does 9-in-1 mean exactly

This COB connector is designed as a universal solution for almost all standard connections within a COB LED strip installation. With a single connector you can:

• Extend strip-to-strip in a straight line
• Create 90° corners in furniture or coves
• Create T-split connections for multiple light lines
• Add new power feed points
• Repair damaged strip sections

This reduces the need for separate accessories and keeps your installation clean and professional.

How the COB click connector works

The connector uses mechanical contact pins that press directly onto the copper tracks of the COB LED strip. This creates a reliable electrical connection without soldering.

1. Insert the 8mm COB LED strip fully into the connector.
2. Check that the strip is straight and correctly positioned.
3. Carefully press down the metal pins using pliers or a flat tool.
4. The strip is now firmly clamped and electrically connected.

This method ensures a stable connection, even when installed inside profiles or under light tension.

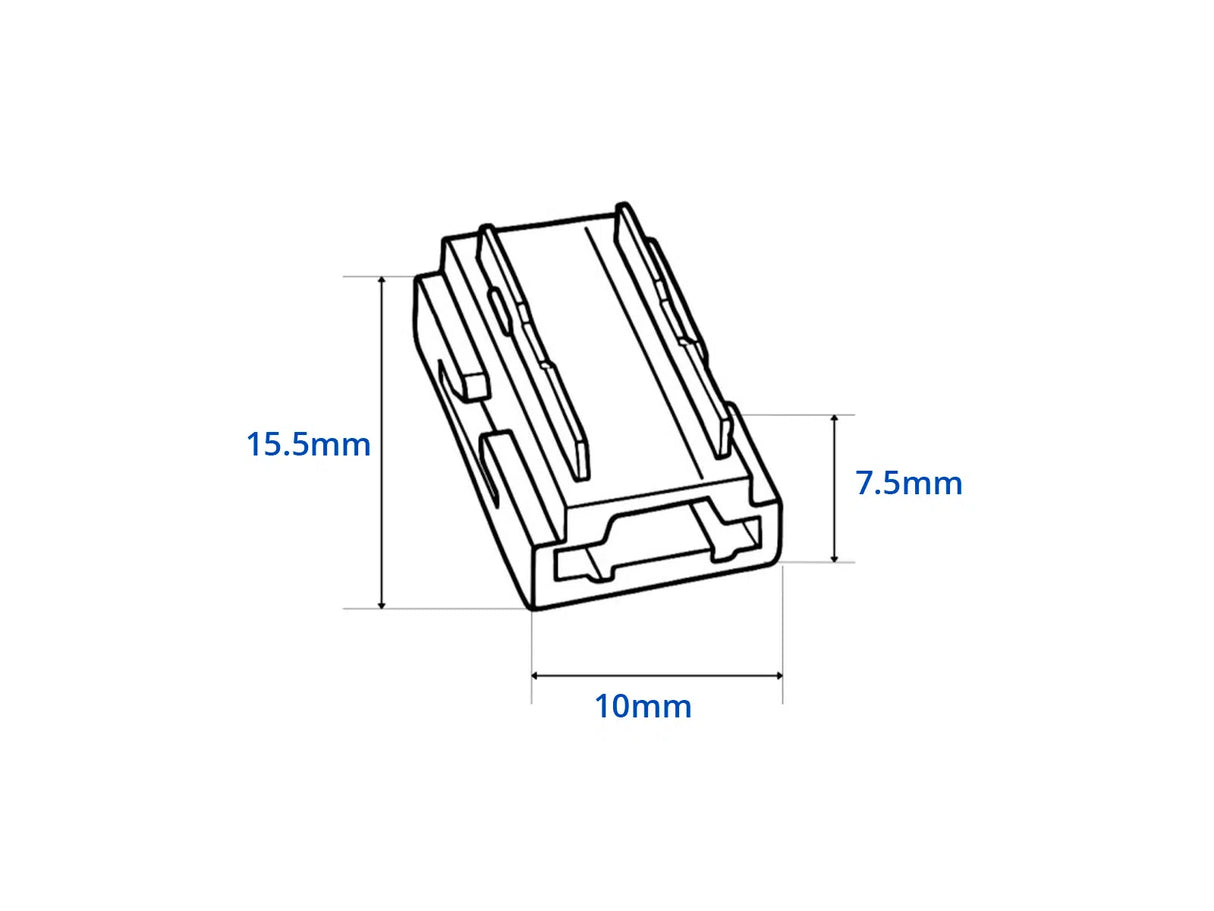

Compact size, maximum flexibility

With dimensions of just 15.5 mm x 10 mm x 7.5 mm, this connector is extremely compact. It fits easily into:

• LED aluminum profiles
• Coves and recessed constructions
• Furniture and cabinets
• Clean installations with limited space

Perfect for projects where aesthetics and functionality go hand in hand.

Applications

This COB LED strip connector is suitable for both residential and professional projects, including:

• Kitchen lighting under or above cabinets
• Cove lighting and indirect lighting
• Furniture and interior lighting
• Retail, hospitality and showroom installations
• Extension or repair of existing COB installations

Important notes

• Only suitable for 8mm COB LED strips
• Not suitable for standard SMD LED strips
• Use pliers for optimal fixation
• Always ensure the strip is fully inserted before pressing the pins

With this 9-in-1 COB LED strip connector, you create flexible, expandable and clean lighting installations without hassle. One connector, maximum freedom.
