COB LED Strip 8W/m Essential 24V | Set 20m

20m COB LED strip for lighting around larger rooms

A large living room or reception area may need 20 metres of light along several walls. This 20m Essential COB LED strip set gives a continuous, understated effect from one central power supply. The COB technology prevents individual LED dots from being visible.

Key features

• LED technology: COB, 320 chips per metre: an even light line without visible dots.
• Power: 8 W/m; approximately 160 W over 20 m, with a 200 W power supply.
• Light output: approximately 800 lumens per metre.
• Colour rendering: CRI >90.
• Cutting: every 5 cm.
• Strip width: 8 mm wide; IP20 for dry indoor areas.
• Warranty: 2 years on the complete set.

What is included in the set?

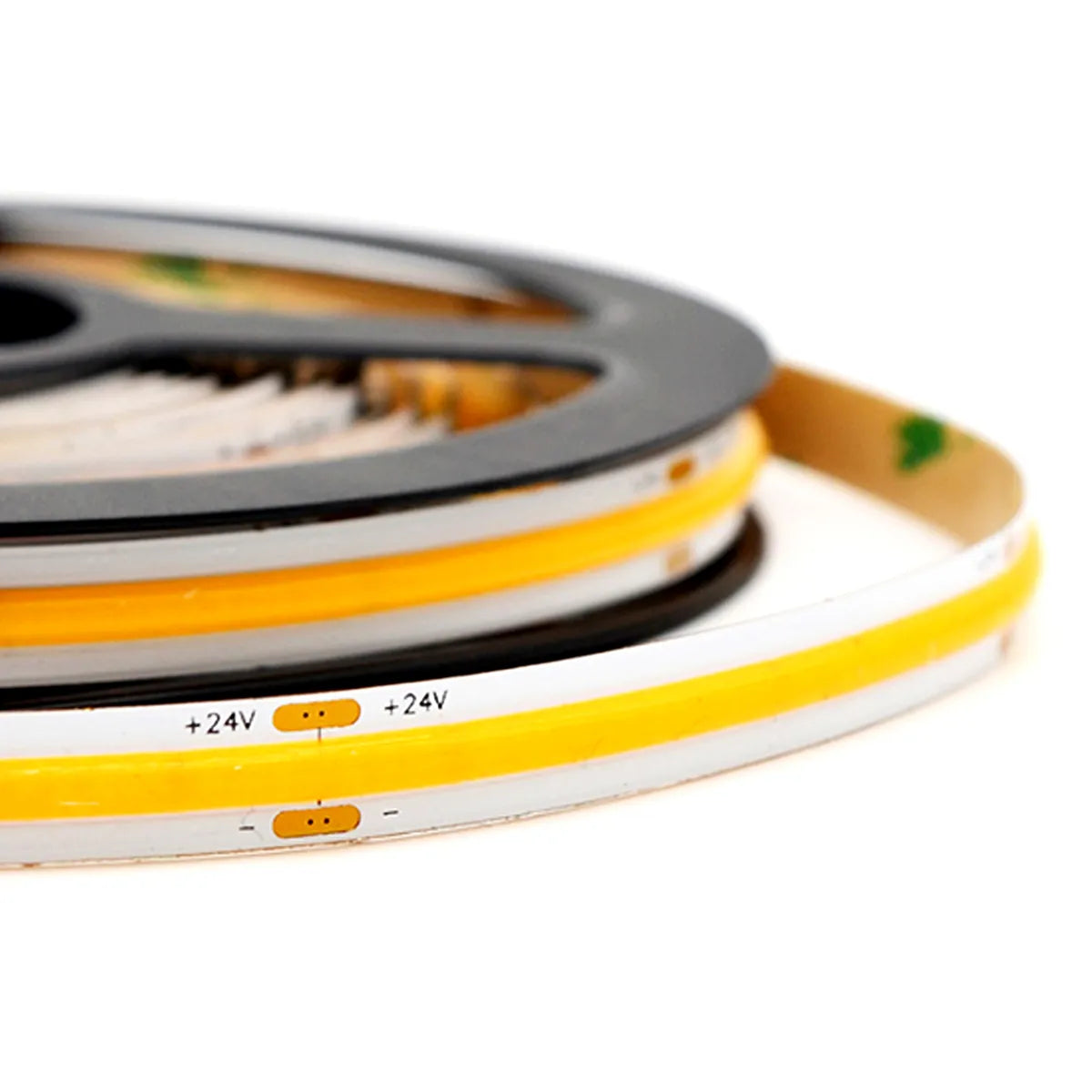

• 4x 5m COB LED strips 8 W/m Essential, 24 V, 8 mm wide, IP20

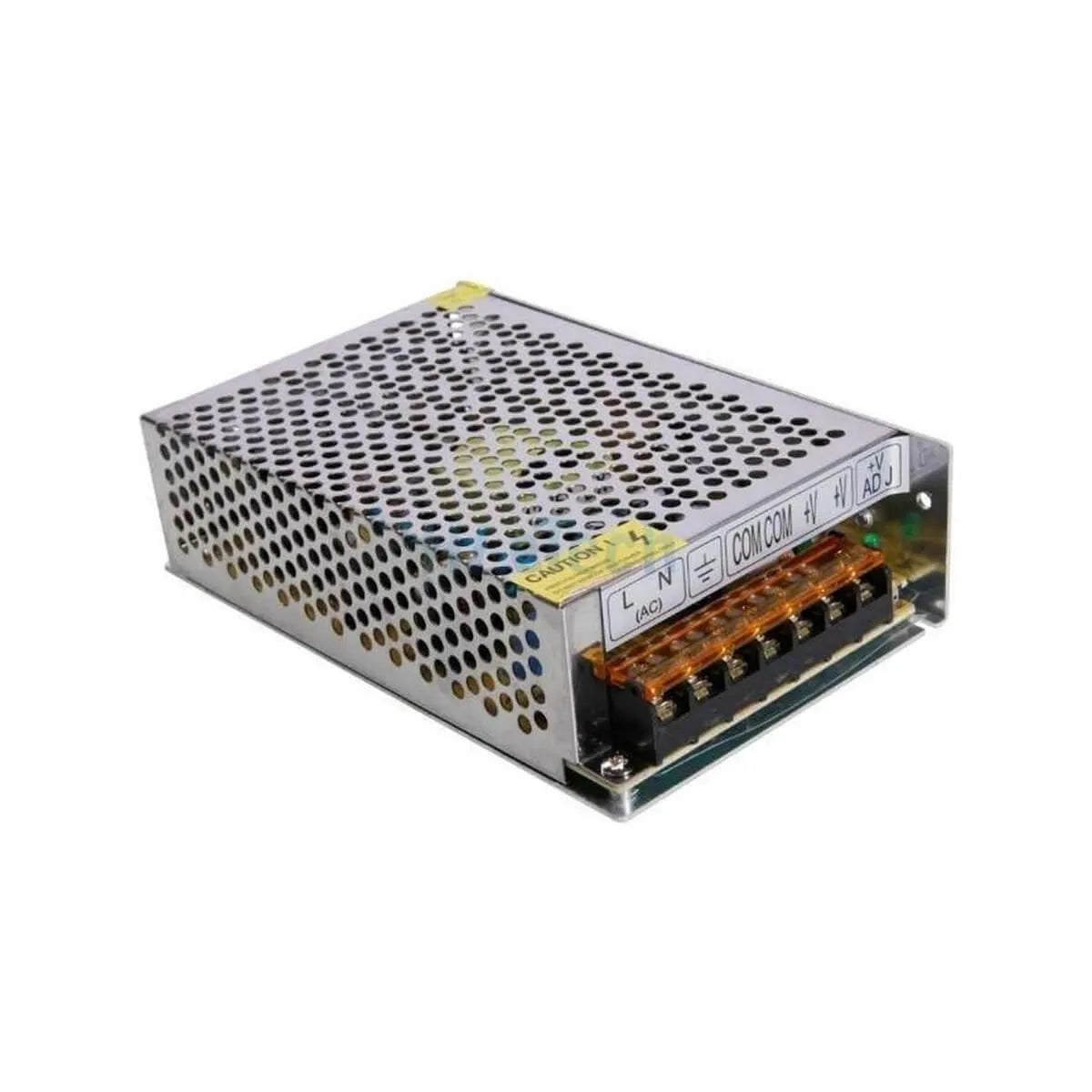

• 1x 24 V 200 W LED strip power supply with screw terminals (no plug)

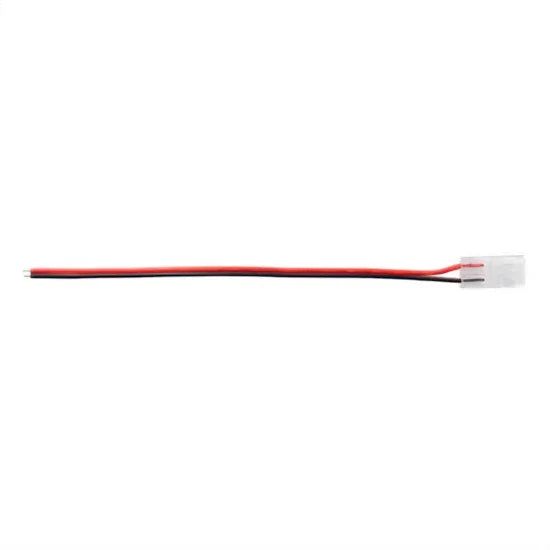

• 2x 8 mm COB connectors with cable (strip to power supply)
• 3x 8 mm COB strip-to-strip connectors (one spare)

One power supply for two 10m branches

The 230 V power supply is permanently wired through screw terminals and has no plug; consult an installer if you are unsure. Position it in the centre of the light line and feed two joined strips in each direction. This maintains even brightness along the length.

COB lighting around a large living or working space

Light the perimeter of a large seating area indirectly, run a strip along several sides of an office ceiling, or accent a long indoor hotel corridor. The layout can extend in two directions from the power supply.

One supply or two separate 10m lines?

This Essential version uses one 200 W power supply and provides approximately 800 lumens per metre. The 20m Advanced set delivers around 1,000 lumens per metre but consists of two separately powered 10m runs, which can also be installed in different locations.

Which white shade for 20m of COB?

• 2200K Extra warm white: warm accent lighting in a reception area.
• 2700K Warm white: subdued light around a reading corner.
• 3000K Warm white: warm light along a furniture edge.
• 4000K Neutral white: neutral task lighting beside a long row of cabinets.
• 6000K Cool white: a cooler atmosphere in a modern workspace.

Dimming 20m of ambient lighting

Dim the 20m COB light line using a Mi-Light single-colour LED strip controller installed between the power supply and strip, operated with the Mi-Light 4-zone remote control. A standard 230 V wall dimmer is not suitable.
