COB LED Strip 10W/m Advanced 24V | Set 20m

20-metre COB LED strip set with two power supplies for brighter lighting

For twenty metres of lighting in a large space, it can be useful to connect the light lines at different points. This Advanced COB LED strip set consists of two separate 10-metre lines, each with its own 24 V power supply. At approximately 1,000 lumens per metre, both lines provide brighter lighting.

Key features

• LED technology: COB, 480 chips per metre, creating an even light line without visible LED dots.
• Power: 10 W/m; approx. 200 W across 20 metres, shared between two 145 W power supplies (approx. 100 W each).
• Luminous flux: approximately 1,000 lumens per metre.
• Colour rendering: CRI >90.
• Cutting interval: every 5 cm.
• Strip width: 8 mm; IP20 for dry indoor areas.
• Warranty: 2 years on the complete set.

What's included in the set?

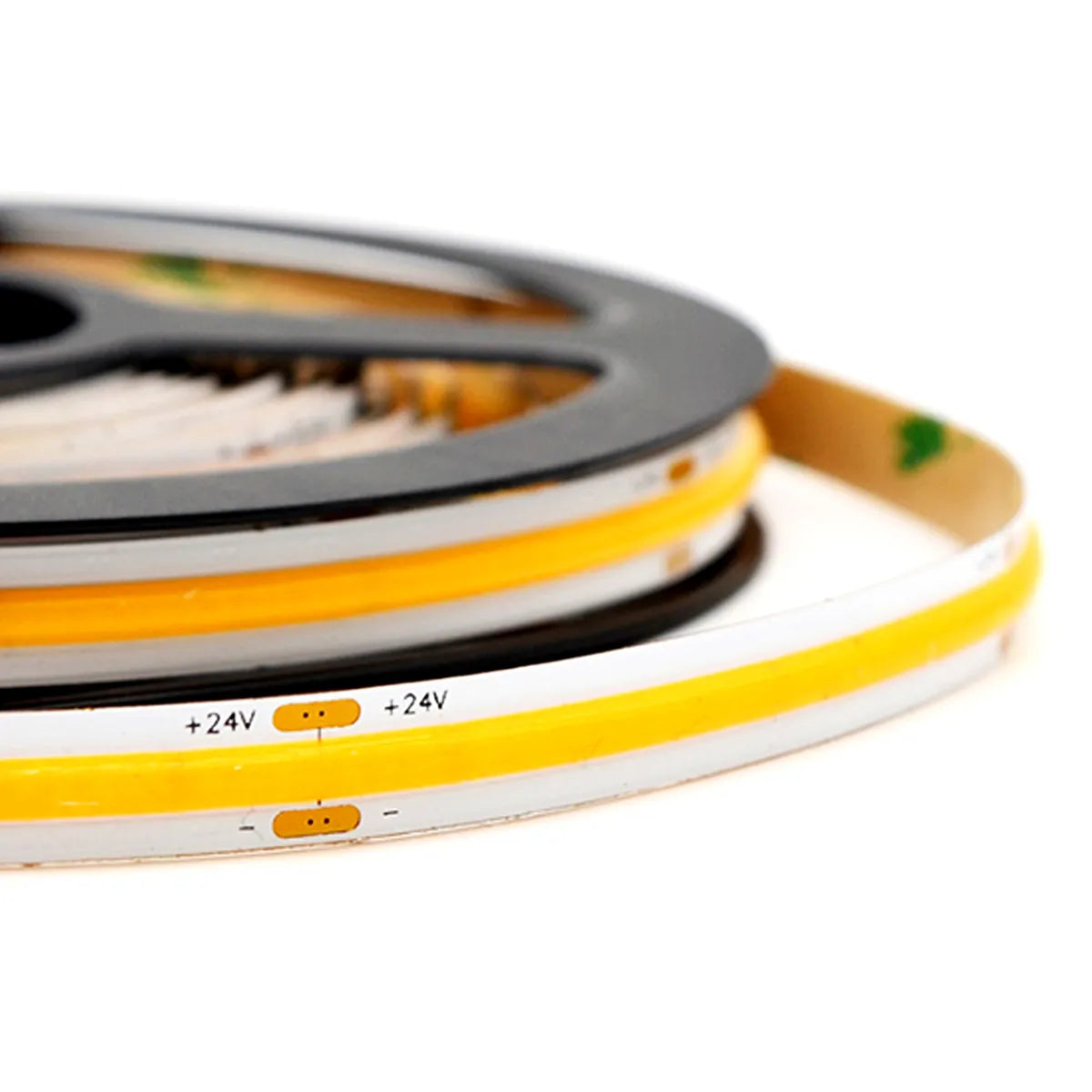

• 4x COB LED strips 10W/m Advanced, 5 metres each, 24 V, 8 mm wide, IP20

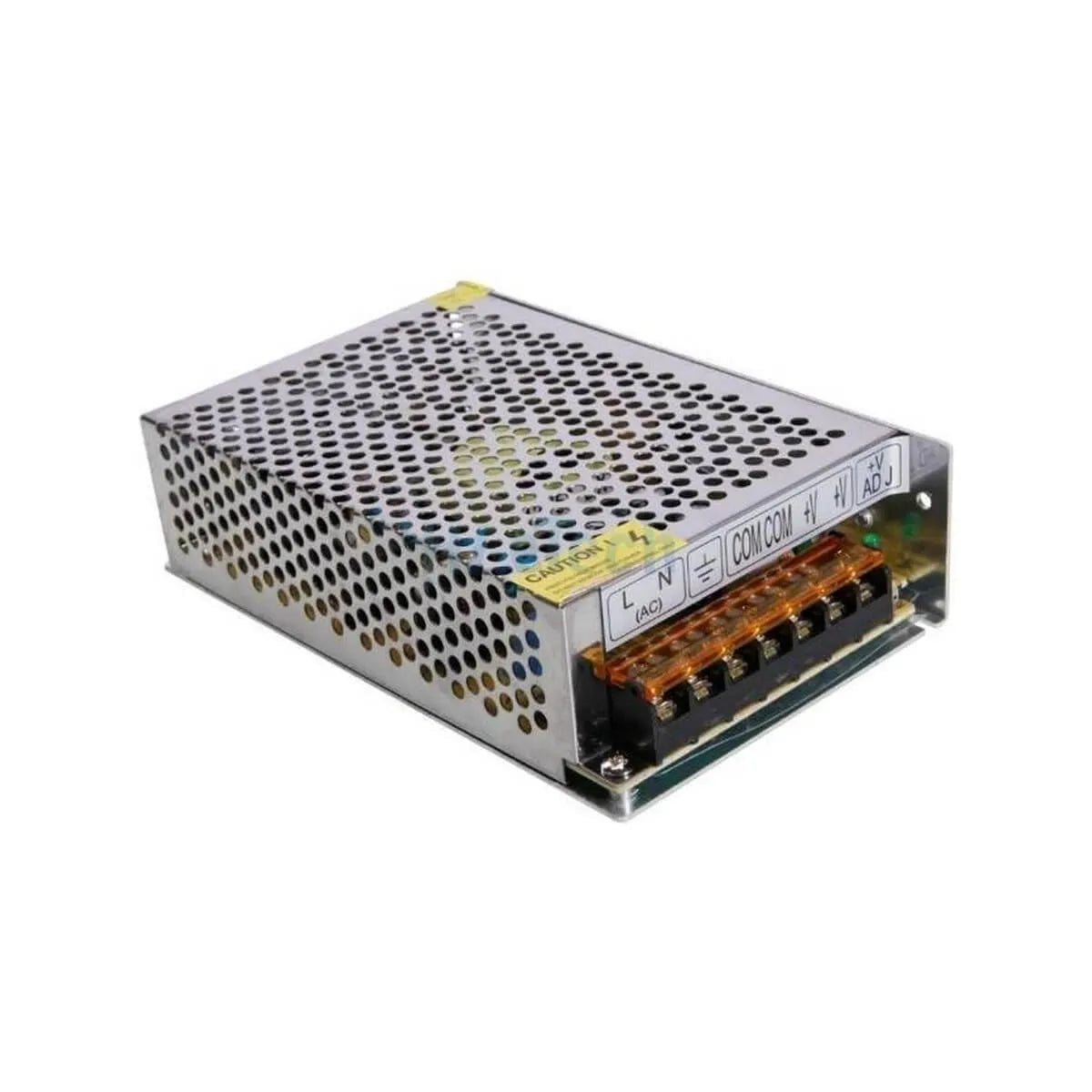

• 2x 24 V 145 W LED strip power supplies with screw terminals (no plugs)

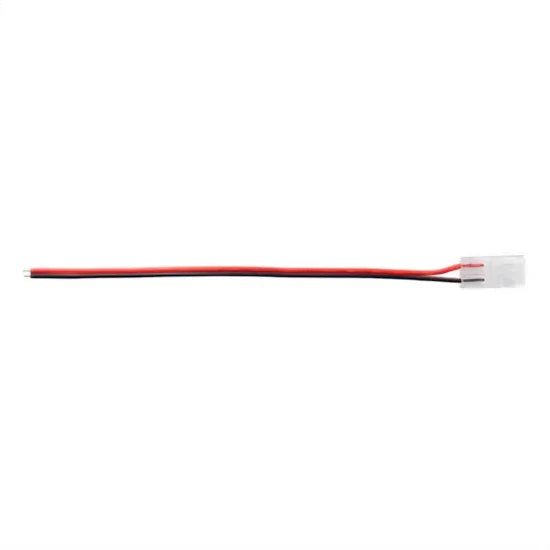

• 2x 8 mm COB connectors with cable (strip to power supply)

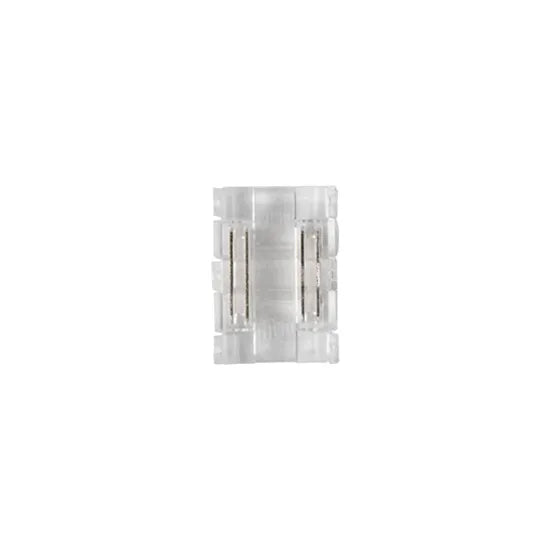

• 3x 8 mm COB strip-to-strip connectors (one spare)

Connecting the two separate power supplies

Each 230 V power supply requires a fixed connection via screw terminals and has no plug; consult an installer if in doubt. The set provides two separate 10-metre light lines, each with its own power supply and two connected strips. The lines can be installed in different locations.

Where two 10-metre light lines work well

Place one line along an open-plan kitchen and the other around the dining area, illuminate two long retail walls or distribute light across two office work zones. The strips are intended for dry indoor spaces.

Is one power supply or two more practical?

Choose this Advanced set if you need more light and want to position two 10-metre lines separately. The 20-metre Essential set uses one central 200 W power supply. At 8 W/m, it gives a softer, more energy-efficient lighting accent.

Light colours for two indoor zones

• 2200K Extra warm white: soft accent light in a hotel lounge.
• 2700K Warm white: gentle lighting beside a wardrobe.
• 3000K Warm white: comfortable light in a bookcase.
• 4000K Neutral white: bright light in a home office.
• 6000K Cool white: a crisp light colour in a workshop.

Dim each 10-metre line independently

For the two independently powered 10-metre lines, fit a separate Mi-Light single-colour LED strip controller between each power supply and strip. Both can be operated using a Mi-Light 4-group remote control. A standard 230 V wall dimmer will not work.
