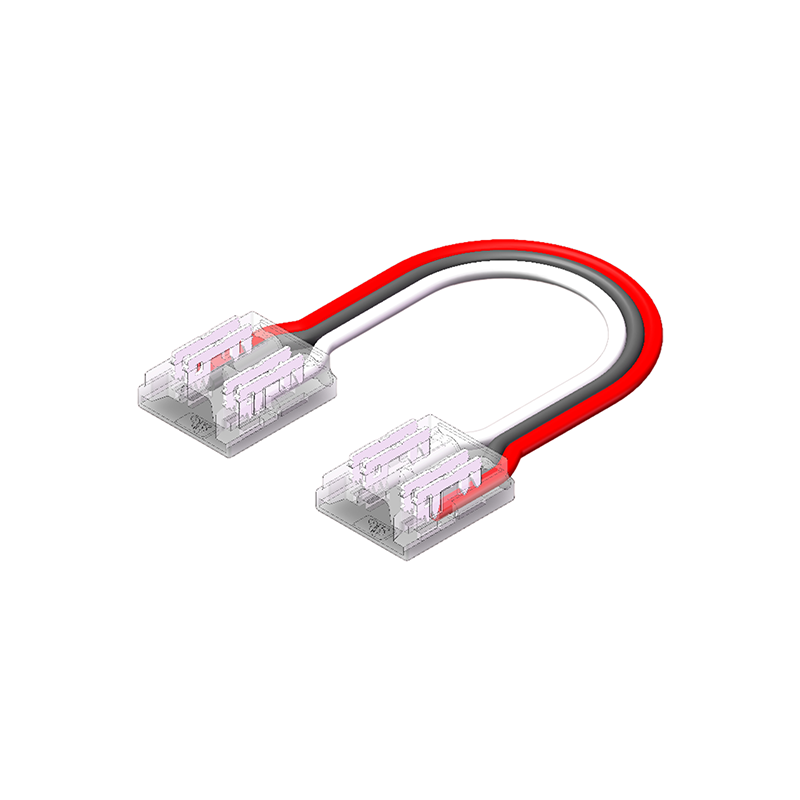

COB LED Strip Connector Strip-to-Strip 15cm | CCT 8mm

8 mm CCT COB LED strip connector for solder-free connections

Use this connector with a 15 cm cable to connect a CCT COB LED strip without soldering. It is suitable for 8 mm wide CCT COB strips and simplifies the connection between the strip and the controller or power supply.

Its three conductors are intended for the CCT channels: common connection, warm white and cool white. The IP20 version is suitable for dry indoor areas only.

Key features of this CCT connector

• For 8 mm CCT COB strips suitable for CCT strips with warm-white and cool-white channels
• 15 cm cable for flexible connections in profiles, corners and tight spaces
• Solder-free connection clips onto the strip contacts without soldering
• Maximum 4A current rating must not be exceeded
• IP20 version for dry indoor areas
• 3-year warranty

Where to use this COB LED strip connector

This connector is used with CCT COB LED strips in cabinets, furniture, cove lighting, kitchens, profiles and other indoor installations.

The 15 cm cable is useful when the strip cannot run straight through or when you want to hide the connection neatly.

Suitable for CCT strips 8 mm wide

CCT connection: only use this connector with CCT strips that have the matching contact arrangement. RGB, RGBCCT and single-colour strips require a different connector.

Strip width: check that the COB strip is 8 mm wide. Wider IP65 versions may not fit this connector.

Installation and connection

Cut the LED strip at an approved cutting point and clip the connector onto the contact pads. Check polarity and channel order before switching on the power supply.

Use the connector only in dry indoor areas and do not exceed its stated 4A current rating.

Why choose this CCT connector?

A quick, tidy solder-free connection for an 8 mm CCT COB LED strip.
