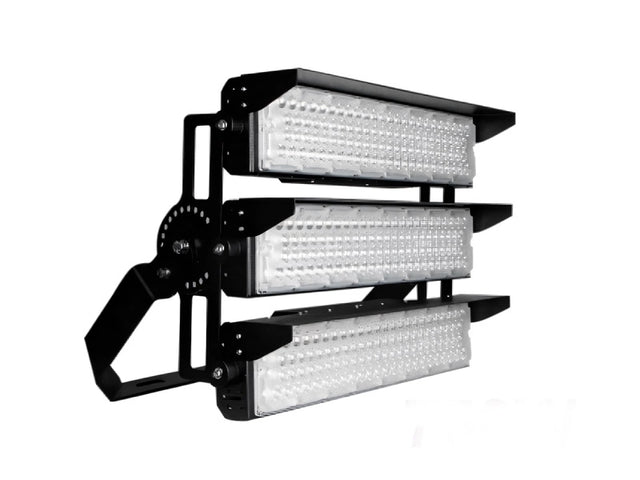

LED Sports Lighting 750W Adjustable Tilt 170lm/W with Philips Driver

In short

• Energy Efficient: Save up to 60% compared to traditional 1875W halogen lamps, consuming only 750W.
• High Output: Delivers 127,500 lumens with an efficiency of 170 lm/W.
• Durable Construction: IP66 rated, fully dust and water-resistant, suitable for outdoor use.
• Wide Temperature Range: Operates effectively from -20°C to +50°C.
• Adjustable Design: 90° tilt for flexible light direction.

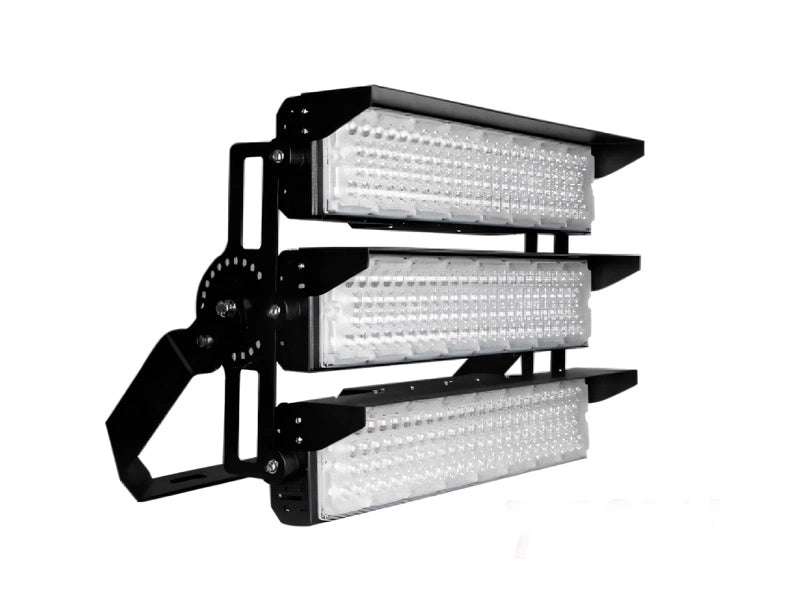

• Robust Housing: Made from die-cast aluminum with toughened glass for maximum durability.
• Instant Start: No warm-up time, flicker, or noise.
• Long Lifespan: Up to 50,000 hours (over 13 years with 10 hours/day use).
• 5-Year Warranty: Assurance of quality and performance.

Excellent Light Quality and Energy Efficiency

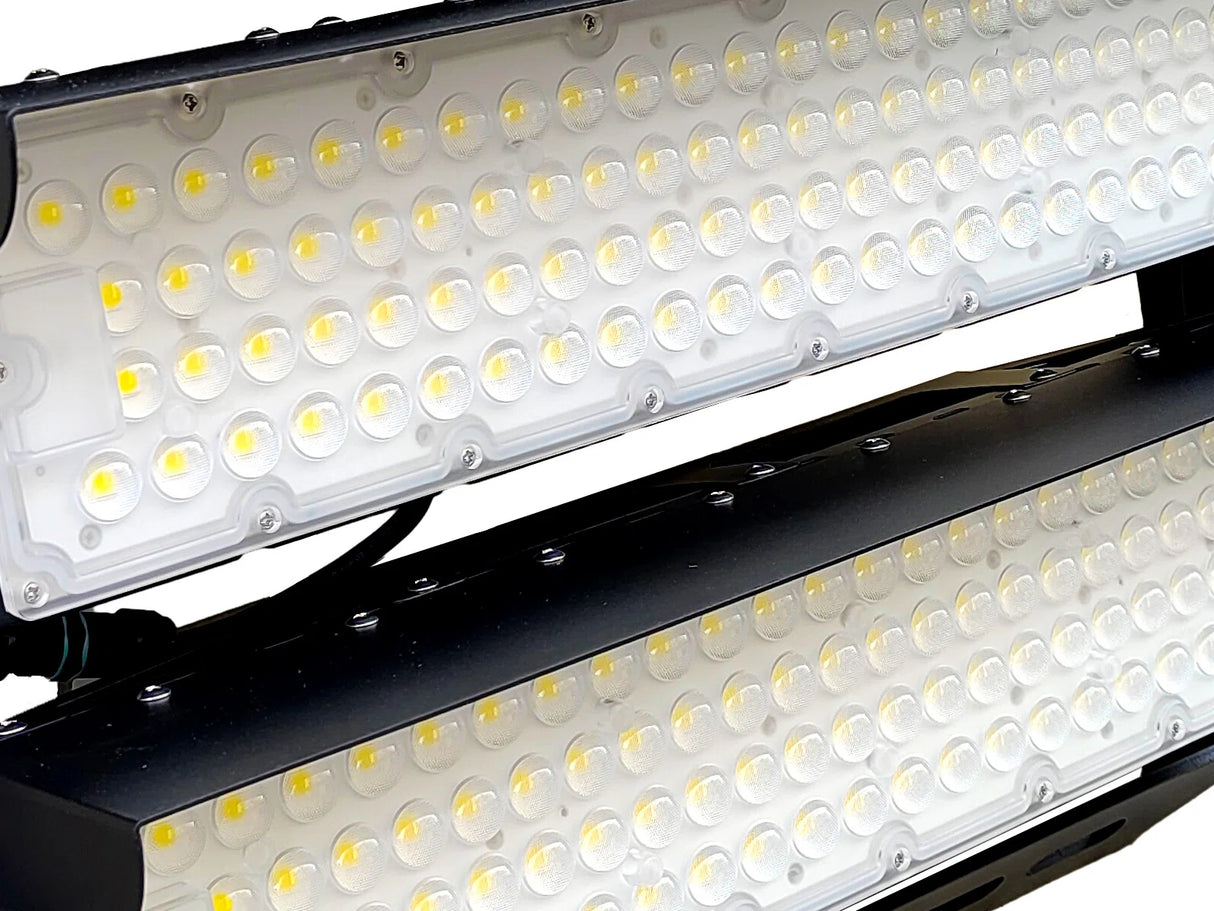

This 750W LED sports field lighting provides impressive illumination with 127,500 lumens, making it ideal for sports fields, athletic tracks, and parking areas. Utilizing SMD5050 LED chips, it achieves a high light output of 170 lumens per watt, ensuring powerful and efficient lighting.

With a color temperature of 5000K (neutral-cool white), this lighting solution delivers bright, evenly distributed light perfect for sports activities where maximum visibility and minimal glare are crucial.

The Philips Xitanium driver guarantees stable and reliable performance, even in extreme weather conditions, making this lamp a top choice for sports venues where consistency and durability are essential.

Applications and Installations

This LED sports field lighting is versatile and can be easily installed at various heights based on the location and required light levels.

Typical Applications:

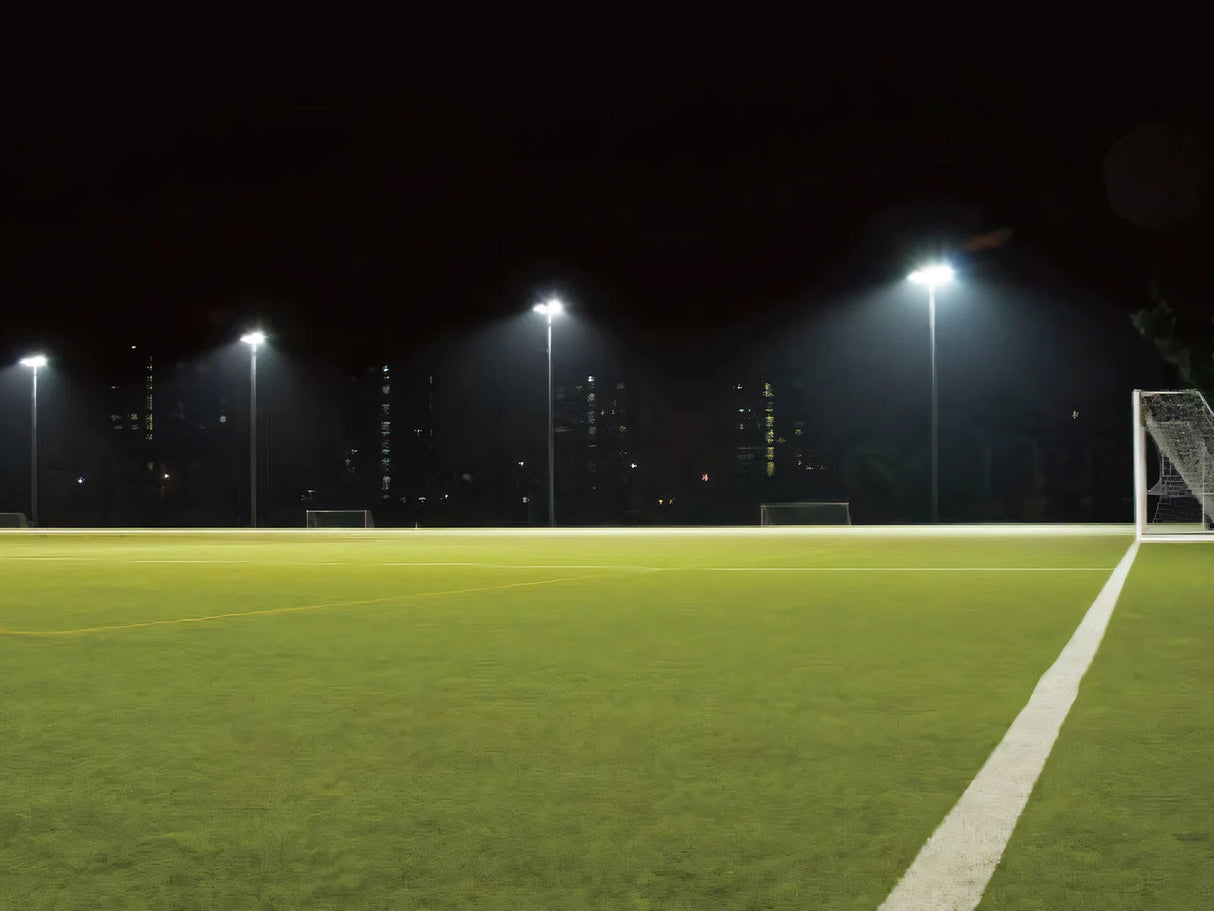

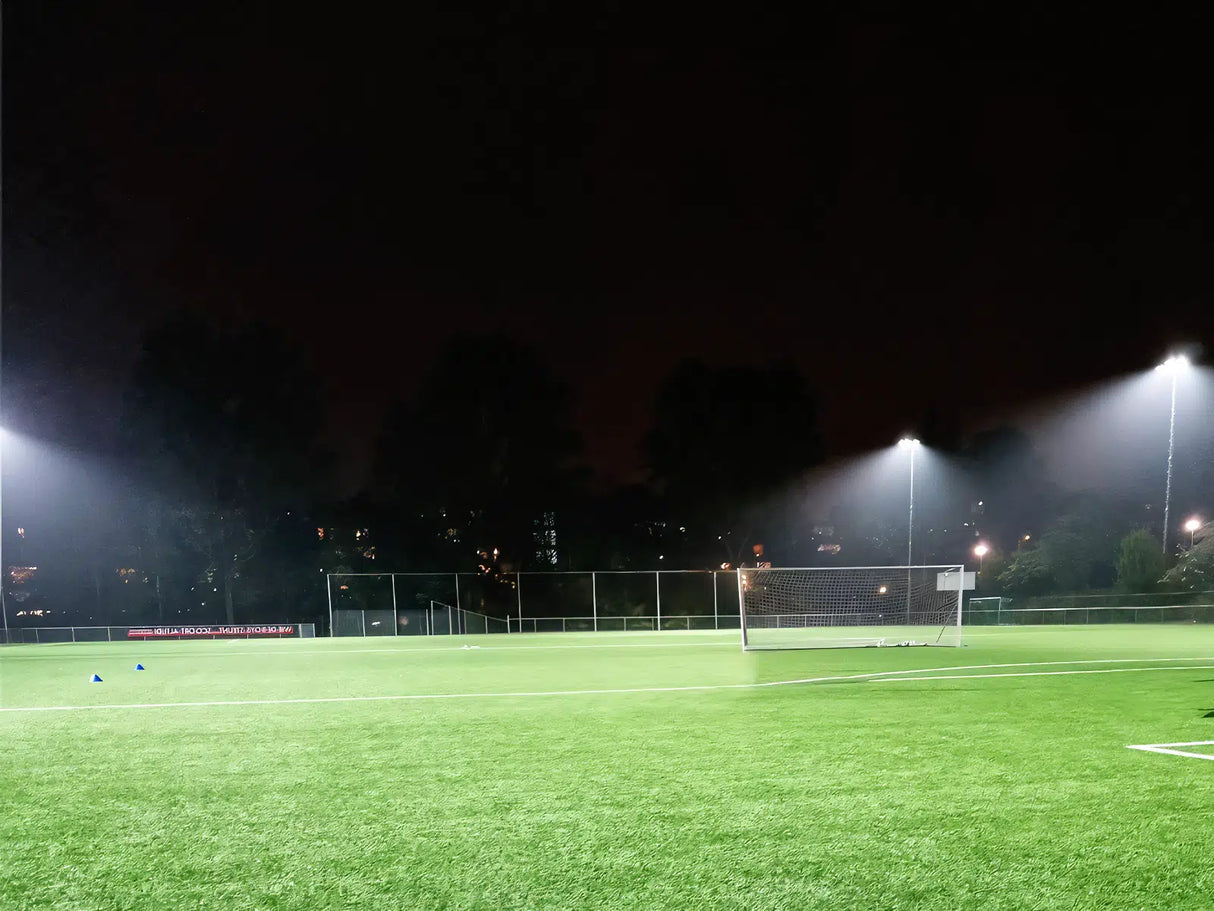

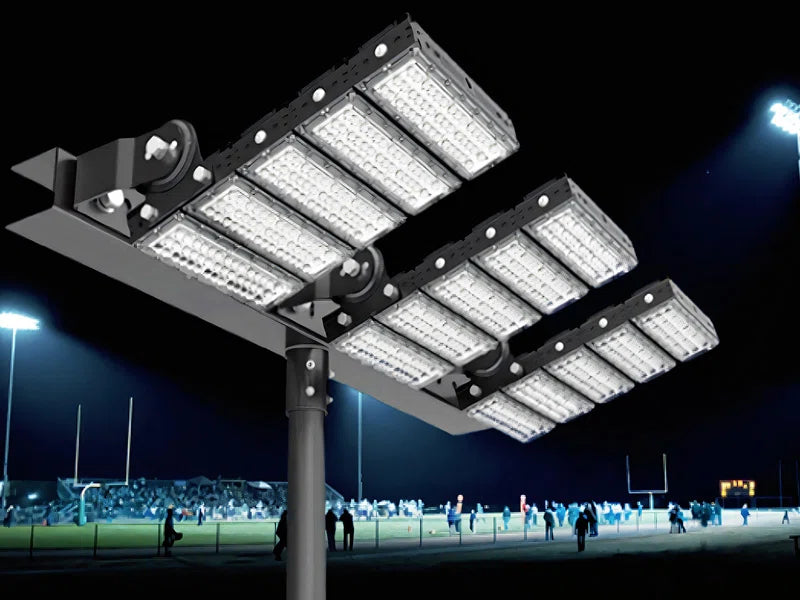

• Stadiums: Ideal for soccer fields, tennis courts, and basketball courts.
• Sports Parks: Perfect for illuminating recreational parks, athletic tracks, and sports complexes.
• Parking Lots: Brightens large areas with uniform coverage, eliminating dark spots.
• Industrial and Construction Sites: Ensures clear visibility in demanding outdoor conditions.

Recommended Mounting Heights:

• Mounting heights of 8 to 12 meters are ideal for tennis courts, smaller sports fields, and parking lots. At this range, the lamp maximizes the benefits of the 60° beam angle, ensuring balanced light distribution. This 750W lighting provides high intensity, reaching up to 7000 lux, improving player visibility and performance.

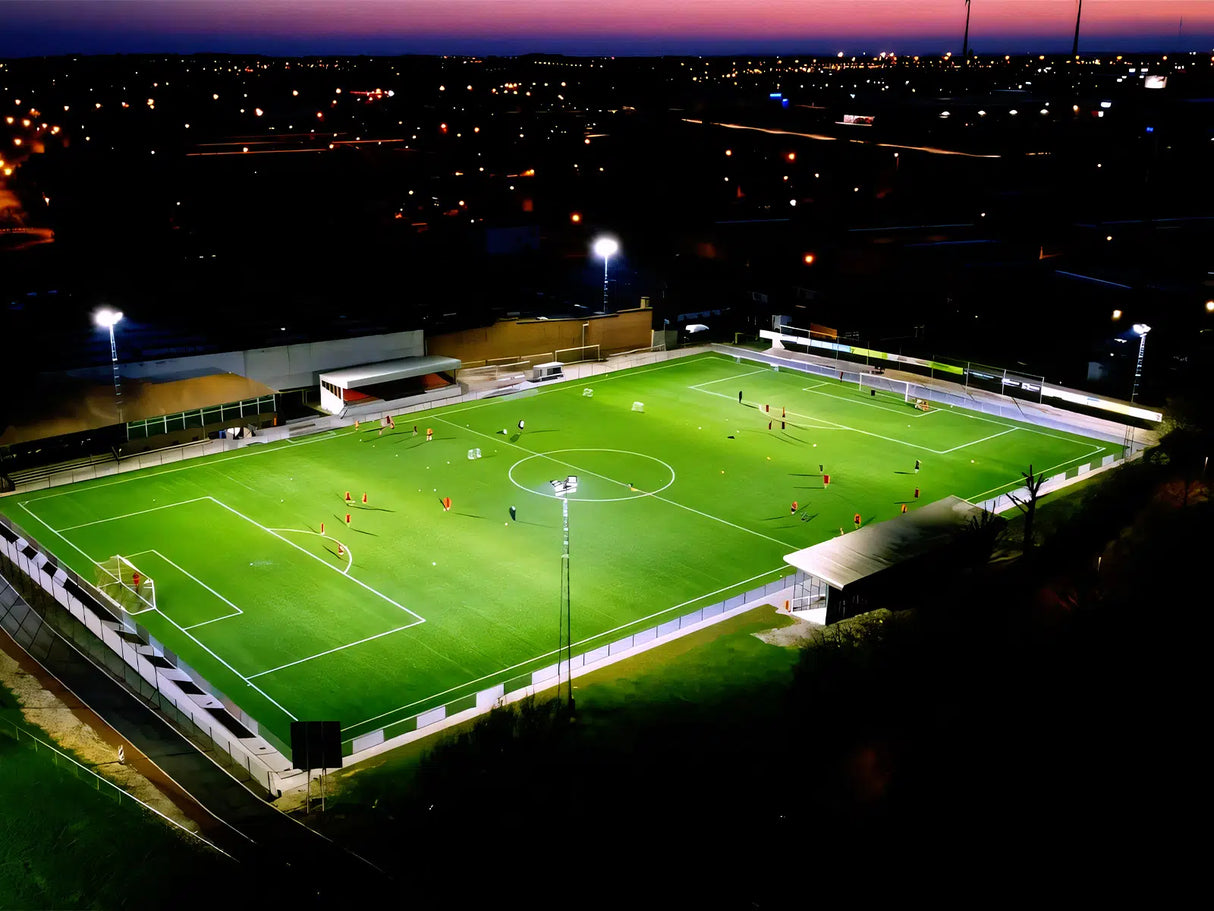

• For larger fields like soccer or athletics venues, heights between 12 and 20 meters are recommended. The 750W LED light ensures significant illumination, achieving up to 4000 lux at these elevations, offering excellent lighting conditions for both matches and training sessions.

• At lower installation heights (such as 5 meters), the lamp remains well-suited for outdoor environments, including workshops, garages, and smaller fields. At this level, it delivers impressive results, with up to 9000 lux measured, ensuring bright and effective lighting.

Installation

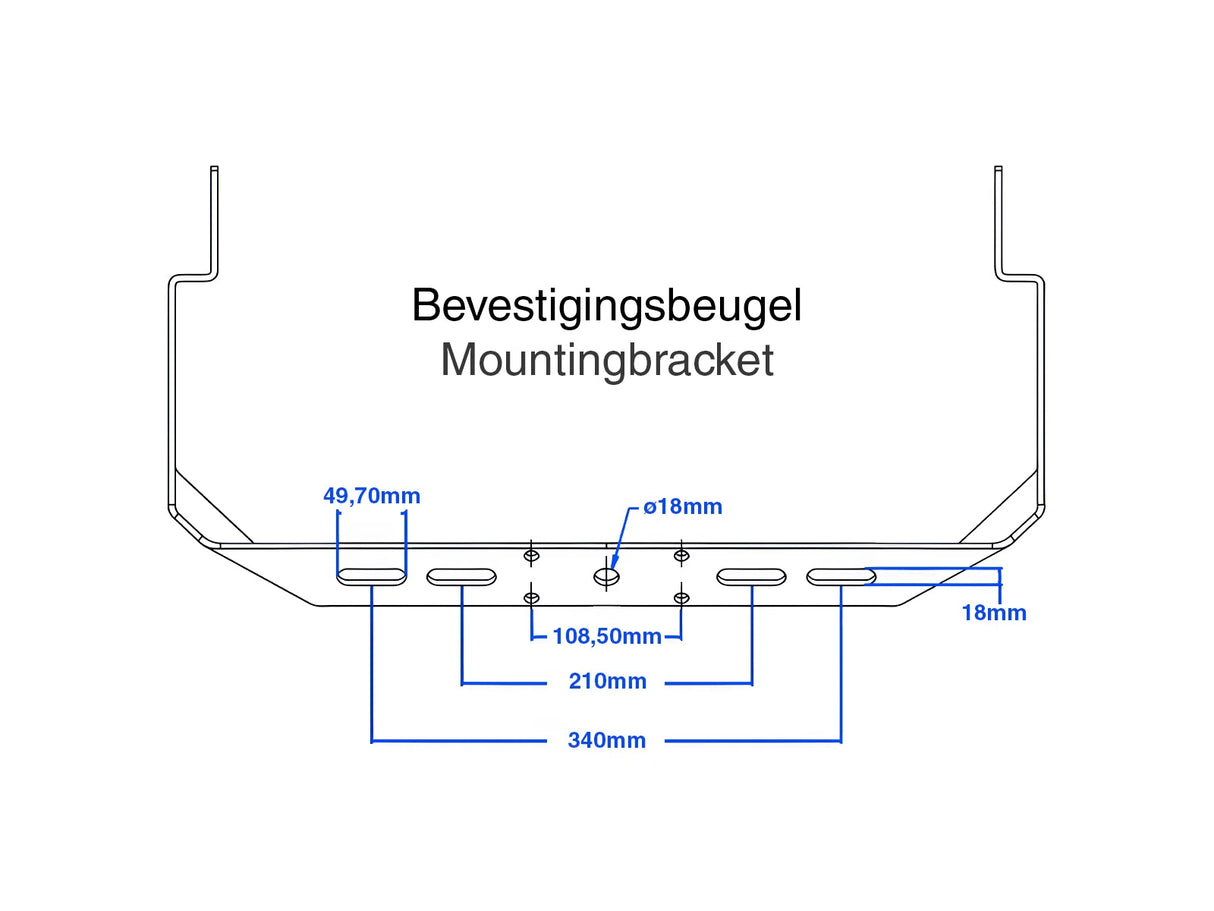

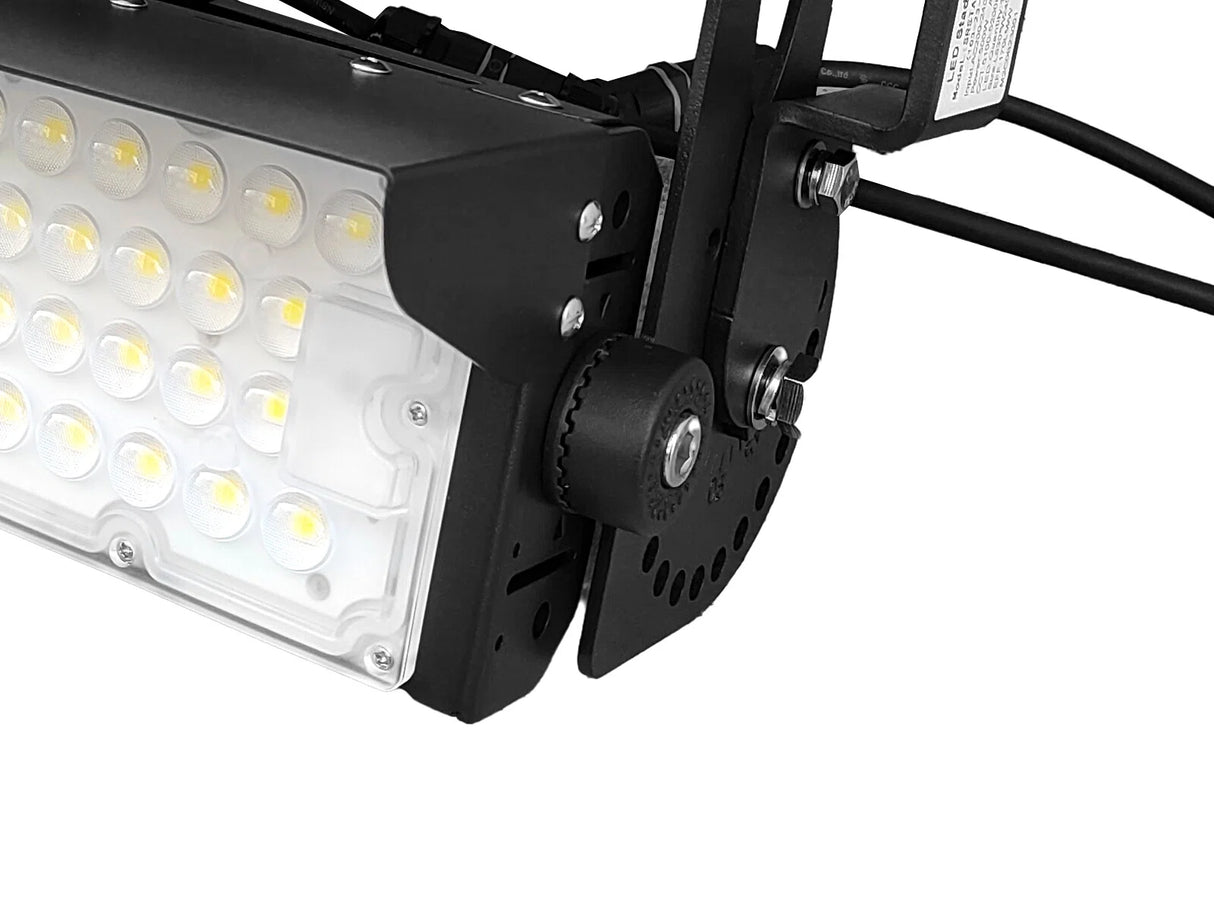

Designed for easy mounting on poles, walls, or ceilings, the 90° tiltable design allows for precise light direction—critical for sports fields and outdoor settings where uniform illumination is key.

Made from high-quality die-cast aluminum with toughened glass, the fixture is not only durable but also resistant to corrosion and wear under harsh outdoor conditions. Additionally, it provides instant full brightness without delay or flicker, essential for sports events requiring quick lighting.

Save Energy and Extend Lifespan

With an efficiency of 170 lm/W and a power factor of ≥0.95, this LED lighting offers significant energy savings, lowering both your electricity bills and carbon footprint. It replaces traditional 1875W halogen lamps while consuming only 750W, achieving a 60% energy reduction.

With a long lifespan of 50,000 hours, maintenance costs are minimized, which is especially important for sports clubs, stadiums, and industrial sites where lamp replacements can be challenging and costly.

Certifications and Reliability

This lamp is CE and RoHS certified, meeting high European standards for safety, quality, and environmental friendliness. Its housing provides excellent heat dissipation, maximizing LED lifespan and minimizing the risk of overheating.

High-Quality Technical Specifications for Optimal Performance

The 750W LED sports field lighting is engineered with advanced technology for reliable performance, even in demanding environments. With an input voltage of AC200-240V and a maximum current of 1.02A (per lamp), it provides stable, powerful illumination. The built-in constant current of 1.05A (per lamp) and power factor of ≥0.95 ensure optimal energy efficiency, saving up to 60% compared to traditional halogen lamps.

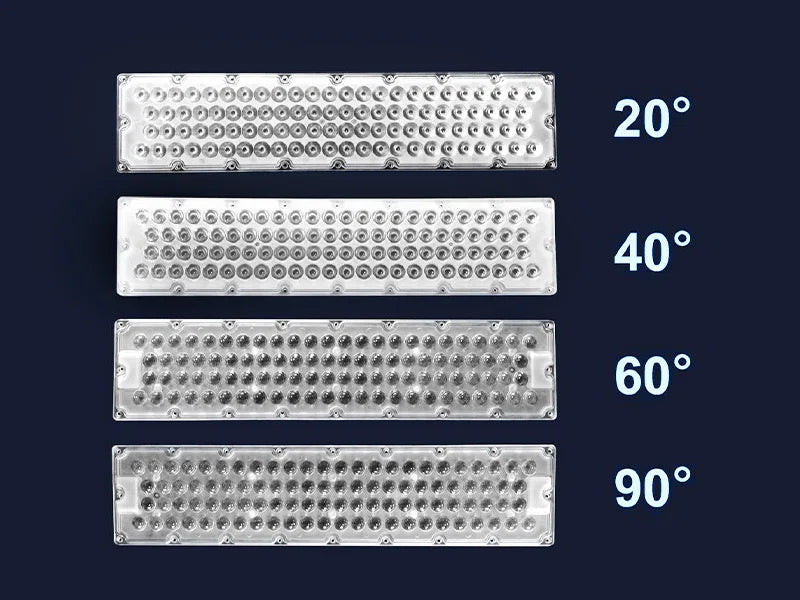

Featuring SMD5050 LEDs with a CRI of ≥70Ra, this lighting reproduces colors accurately, crucial for sports events and other outdoor activities. The 60° beam angle provides a focused light beam, perfect for illuminating specific areas without loss of brightness.
