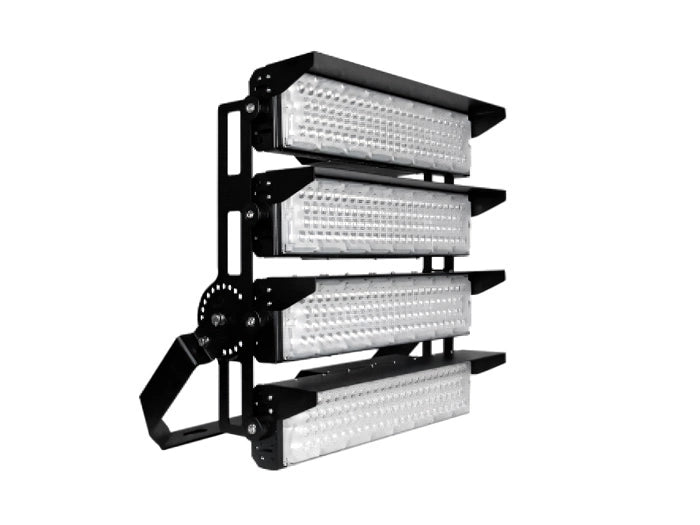

LED Sports Field Lighting 1000W Adjustable 170lm/W with Philips driver

In short

• 60% energy savings compared to traditional HID or halogen lamps
• Replaces 2500W halogen lighting with a consumption of 1000W
• 170,000 lumens light output with a high efficiency of 170 lm/W
• IP66 rating: completely dust and waterproof, suitable for outdoor environments
• Suitable for temperatures from -20°C to +50°C

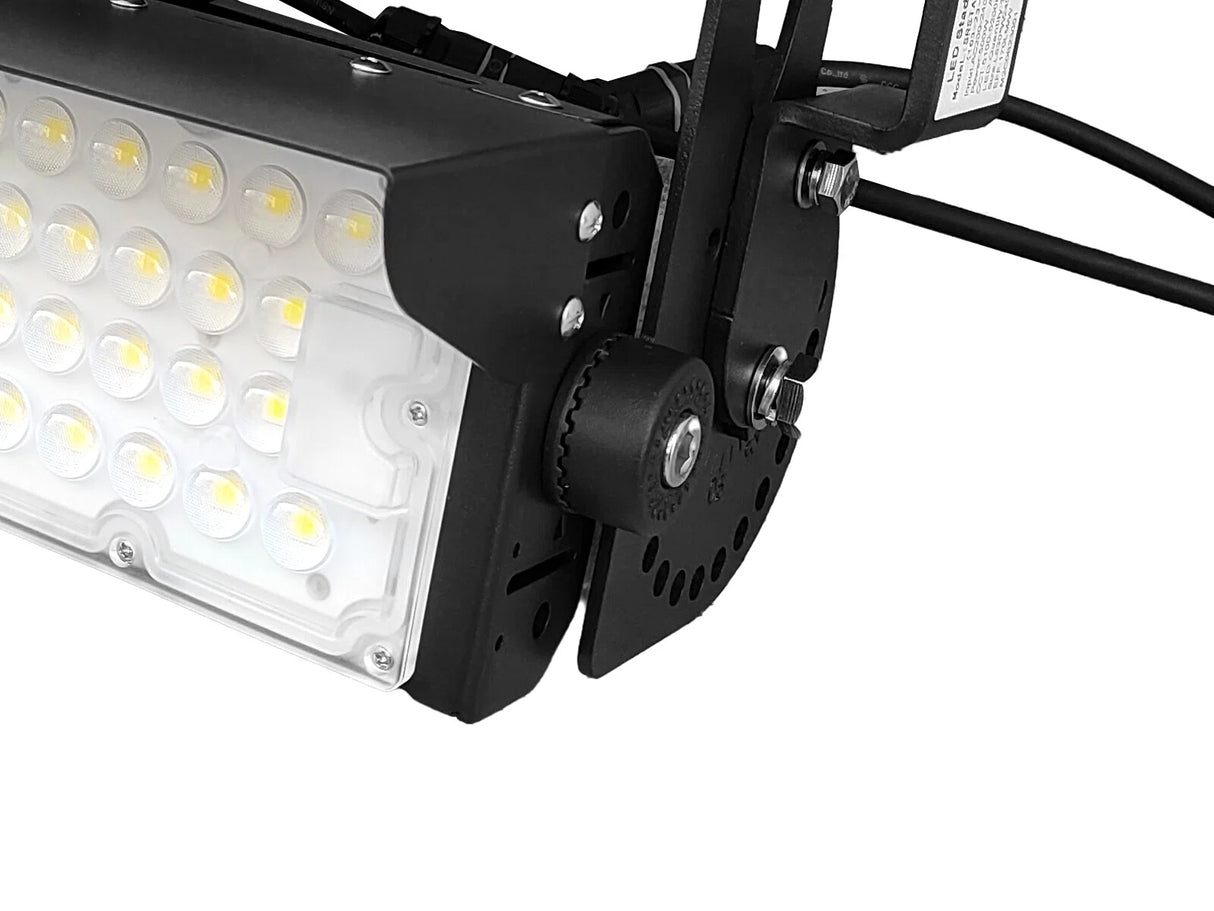

• 90° tiltable for flexible light direction settings
• Die-cast aluminum housing with hardened glass for maximum durability
• Instant start: no warm-up time, flickering, or noise
• Long lifespan of 50,000 hours (over 13 years at 10 hours of use per day)
• 5-year warranty

Excellent light quality and energy efficiency

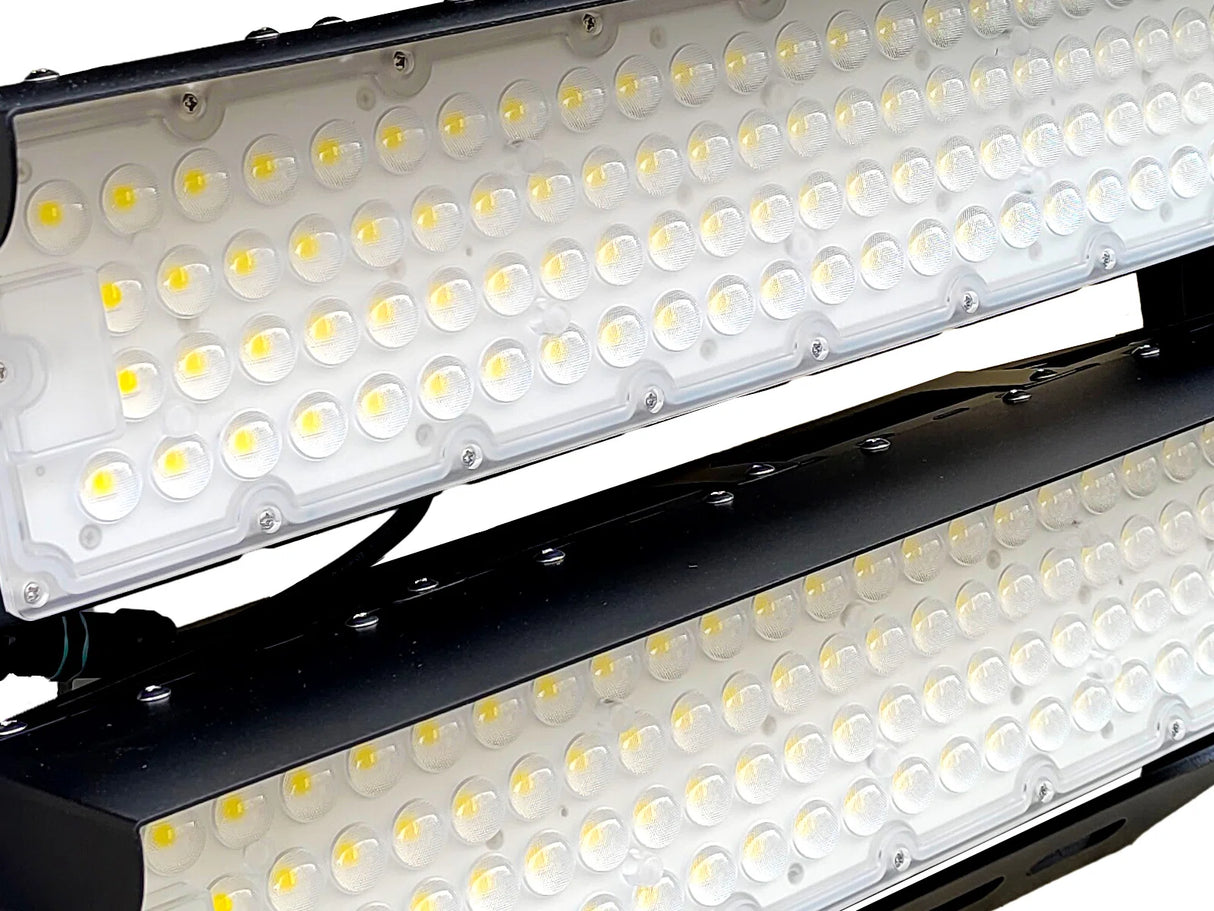

This 1000W LED sports field lighting delivers an impressive light output of 170,000 lumens, providing significant savings compared to conventional 2500W halogen or HID lamps. The lamp uses SMD5050 LED chips that ensure a light output of 170 lumens per watt, providing powerful and efficient lighting that is ideal for sports fields, athletic tracks, and parking lots.

With a color temperature of 5000K (Neutral-cool white), the lighting offers bright, well-distributed illumination that is perfect for sports activities where maximum visibility and minimal glare are essential.

The Philips Xitanium driver ensures stable and reliable operation, even in extreme weather conditions, making this lamp ideal for use in sports fields where consistency and durability are crucial.

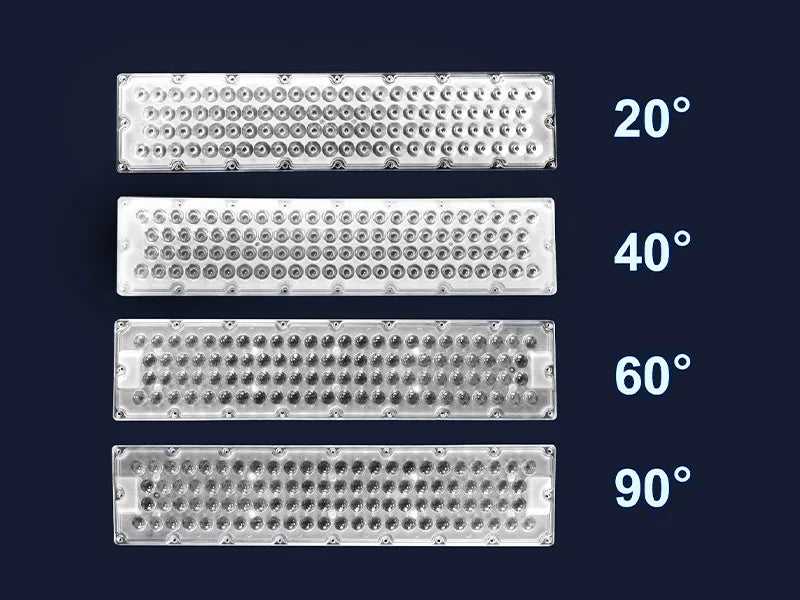

Optional lenses for precise light distribution. Maximum control and efficiency

For professional applications such as stadiums, industrial yards and large-scale commercial projects, optional lenses (20°, 40°, 60°) give you tighter control over the light distribution of your LED sports-field floodlights / commercial LED floodlights. Choosing a narrower beam angle enables you to optimise illuminance, reduce light spill and meet strict lighting standards (EN, IES), which is critical for contractors, installers and facility managers.

Why a lens is a valuable option

• Higher illuminance on the target area - a narrower beam concentrates light so you get higher and more consistent lux on the playing or working surface without increasing power consumption.
• Reduced light spill & light pollution - prevents unwanted light from reaching neighbouring areas, aiding environmental compliance and permitting.
• Lower project cost & material use - tighter beams can reduce the number of fixtures required or allow lower mast heights while achieving the same coverage.
• Accurate design & standards compliance - professional lighting designs commonly specify beam angle (Full-Width Half-Maximum, FWHM) and field angle (≈10% level) to ensure calculations and measurements align with EN and IES guidance.

Applications and installations

This LED sports field lighting is suitable for a wide range of applications and can be easily installed at various heights depending on the location and desired light level.

Typical applications:

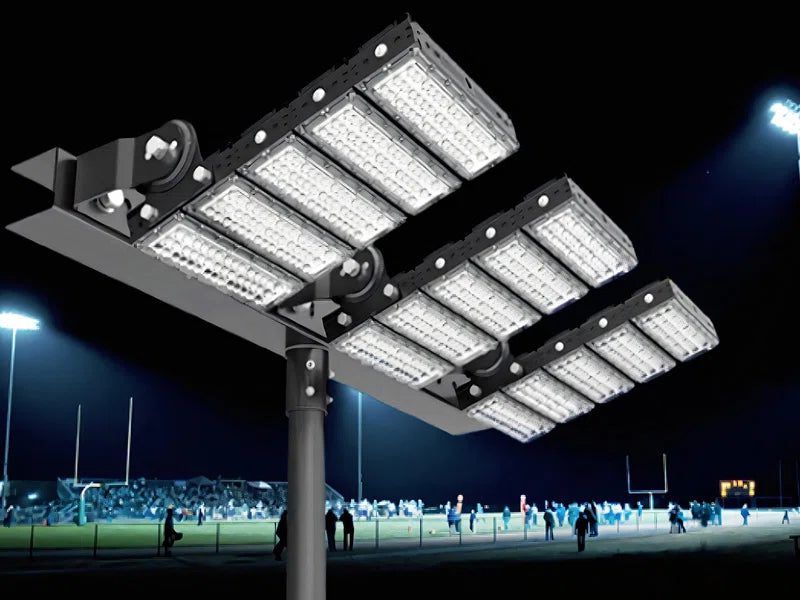

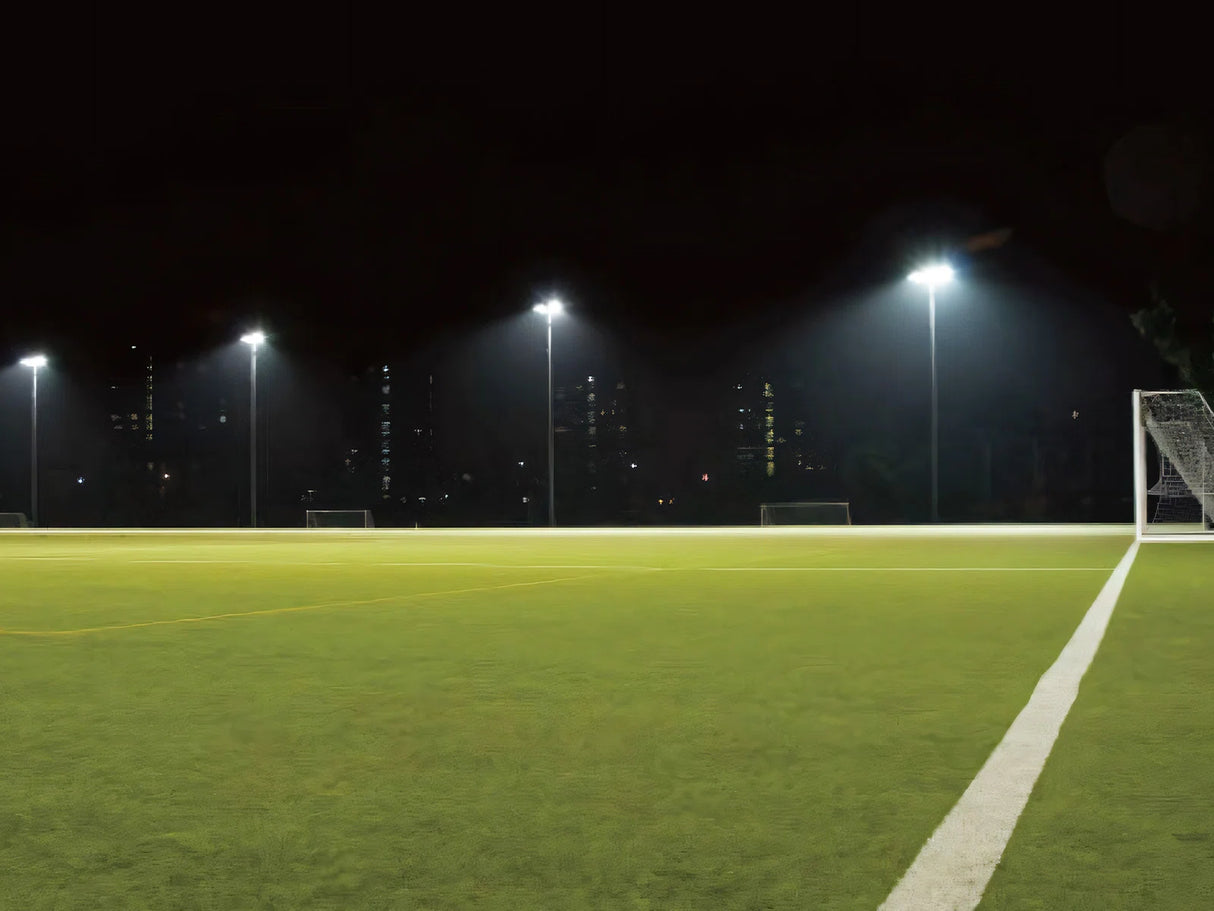

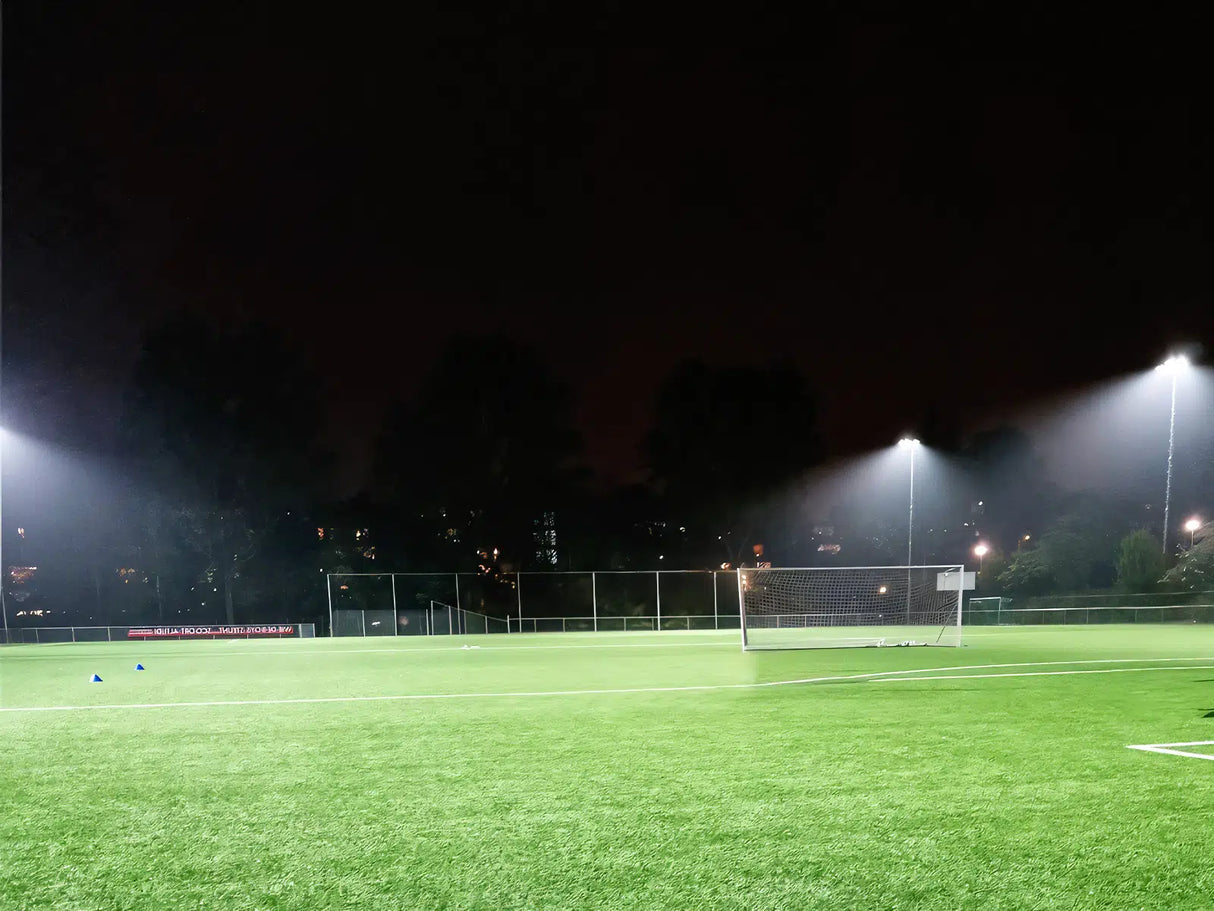

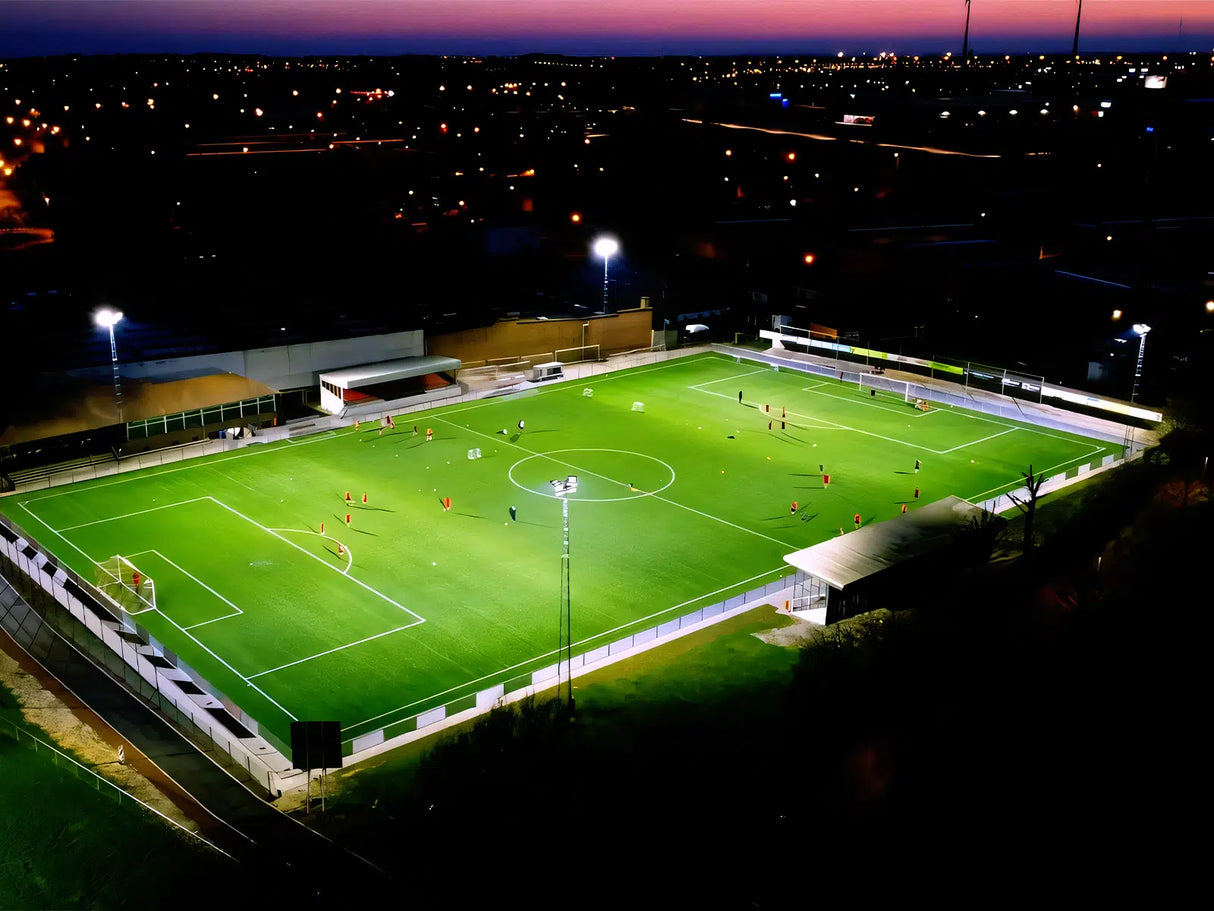

• Stadiums: Perfect for football fields, tennis courts, and basketball courts.
• Sports parks: Ideal for lighting recreational parks, athletic tracks, and sports complexes.
• Parking lots: Illuminates large areas with even coverage without dark spots.
• Industrial and construction sites: Provides clear visibility in industrial locations, even under difficult weather conditions.

Recommended installation methods:

• Mounting heights of 8 to 12 meters are perfect for sports facilities such as tennis courts, smaller athletic fields, and public parking lots. At this height, the lamp optimally benefits from the 90° beam angle, resulting in even and bright light distribution. This 1000W lighting generates an impressive light intensity of up to 9000 lux, contributing to better visibility and performance during sporting events, such as evening matches.

• For larger sports fields, such as football and rugby fields, a height of 12 to 20 meters is recommended. Here, the lamp can achieve a light intensity of up to 5000 lux, which is ideal for competitive training and events. This makes the lighting perfect for large sports tournaments, where brightness is essential for the safety of players and spectators.

• At lower mounting heights (for example, 5 meters), this lamp remains highly suitable for outdoor spaces such as warehouses, workshops, and multifunctional sports fields. At this height, the lamp offers an impressive light intensity of up to 12000 lux, ensuring a safe working environment and excellent visibility for various activities, from sports to other outdoor tasks.

Installation and setup

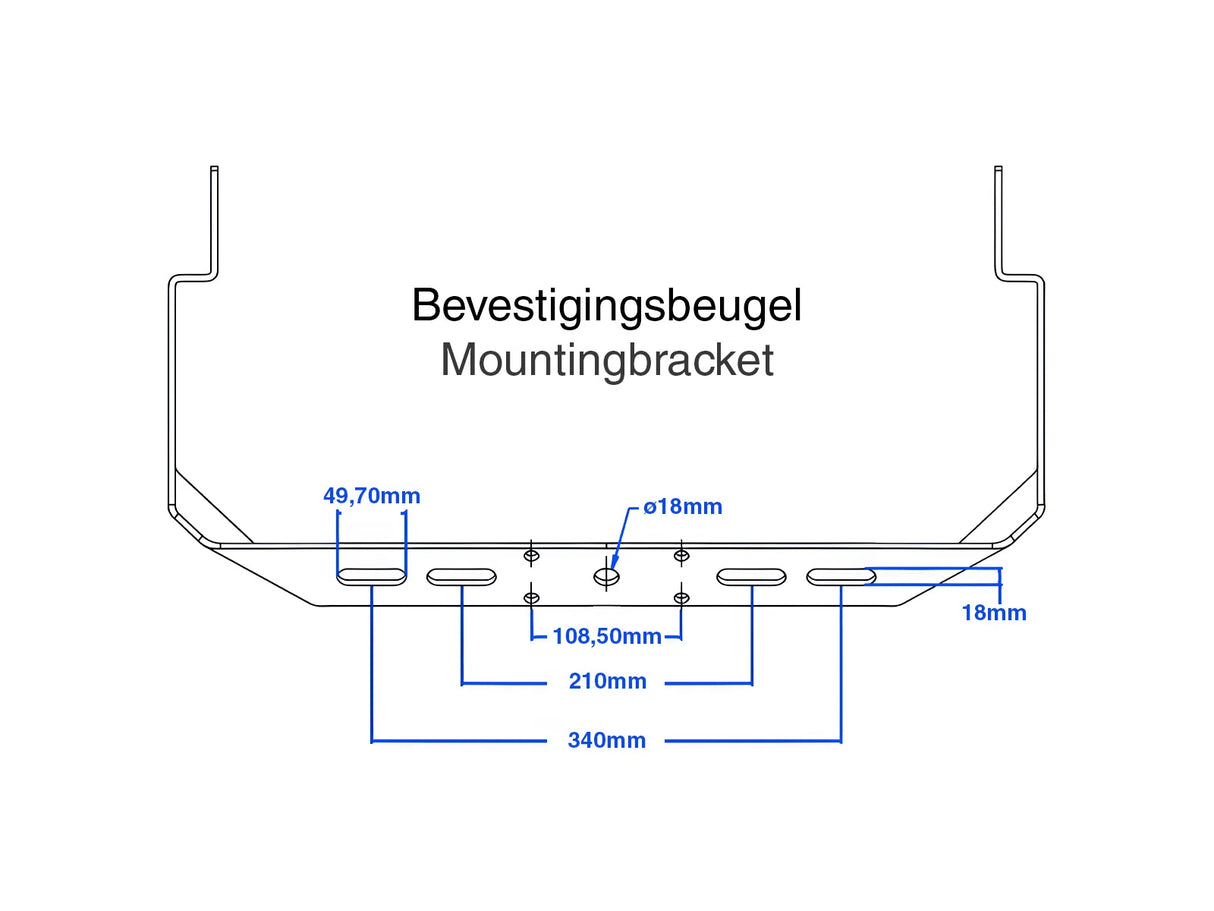

This LED lighting is designed for easy installation and can be mounted on poles, facades, or ceilings. Thanks to the 90° tiltable design, you can precisely direct the light, which is crucial for sports fields and outdoor environments where even lighting is essential.

The fixture is made of high-quality cast aluminum and features tempered glass, which not only guarantees durability but is also resistant to corrosion and wear in harsh outdoor conditions. Moreover, the light is at full strength immediately thanks to the direct start without delay or flickering, which is especially important for sporting events where quick lighting is required.

Save energy and extend lifespan

With an efficiency of 170 lm/W and a power factor of ≥0.95, this LED lighting offers significant energy savings, meaning you not only reduce your energy bill but also decrease your CO2 footprint. The lamp replaces traditional 2500W halogen lamps while consuming only 1000W, resulting in an energy saving of 60%.

The long lifespan of 50,000 hours means you will have no maintenance costs for years. This is especially important for sports clubs, stadiums, and industrial sites where lamp replacements can often be difficult and expensive.

Certifications and reliability

The lamp is CE and RoHS certified, meaning it meets the highest European standards for safety, quality, and environmental friendliness. The housing of the lamp provides excellent heat dissipation, maximizing the lifespan of the LEDs and minimizing the risk of overheating.

High-Quality Technical Specifications for Optimal Performance

The 1000W LED sports field lighting is designed with advanced technology to ensure reliable performance even in demanding environments. With an input voltage of AC200-240V and a maximum current of 1.02A (per lamp), this lamp delivers stable, powerful lighting. The built-in constant current of 1.05A and power factor of ≥0.95 ensure optimal energy efficiency, allowing you to save up to 60% energy compared to traditional halogen lamps.

Thanks to the SMD5050 LEDs with a CRI of ≥70Ra, the light is rendered accurately, which is essential for sporting events and other outdoor activities. The beam angle of 90° provides a focused light beam, perfect for illuminating specific areas without loss of brightness.
