LED Panel with round light plate ⌀60x60 cm 36W

Icon Image
Saves 60% on energy costs Replaces 90W Extra slim 9mm Luminous flux: 2160 lumens
Edge-lit  |  Barcode: 7423338629645
Regular price €5595
Tax included Shipping calculated at checkout.

Betaal veilig en gemakkelijk met de betaalmethode die jij wilt.

iDeal PayPal MasterCard Maestro Visa Bancontant Klarna Sofort Google Pay Apple Pay

Description

In short

  • 60% energy savings (compared to traditional light panels)
  • Unique Round design
  • 2160 lumen light output
  • Instant start, no flickering and no buzzing
  • Cover plate does not discolor (thanks to PMMA)
  • Extra thin (suitable for mounting frame and suspension set)
  • Suitable for ceiling tiles
  • Lasts on average 13.5 years (10 hours per day)
  • Environmentally friendly and lead-free
  • 5 Year warranty

Installation

This LED panel is suitable for installation in a suspended ceiling with tiles of 60x60cm. You can also mount it with a surface mount frame, install it with mounting clips, or hang it using a suspension kit. A LED driver is included as standard, which connects directly to the power grid. You can also choose to use a power cord to connect it to a socket.

Check out our range of mounting materials for LED Panels.

Sustain and save

With this LED panel, you save up to approximately 70% energy compared to traditional/halogen fluorescent panels. Due to its low energy consumption of 36W with a high light output of 60 lumens/Watt, these light panels are very energy efficient. By switching to LED lighting, you make your business or home more durable and save significantly on energy costs over a few years. Additionally, you reduce your CO2 footprint.

Calculate here how much you will save

Lighting per m²

The number of LED panels you need to illuminate your space depends on the height and size of the area.

At a height of approximately 2.7m, this panel illuminates about 6m². If the space is 60m², 10 panels would be sufficient.

Optional dimmable

This LED panel is optionally dimmable. If you want to make the panel dimmable, you will need a dimmable LED driver and a 1-10V LED dimmer. These can be ordered separately. A maximum of 17 LED panels can be connected to a 1-10V dimmer.

Edge-lit

The LED chips of an edge-lit panel are spread across the entire surface of the panel. This allows it to be illuminated all the way to the edges of the panel. Due to this distribution, the panel is flat and extra thin, measuring only 9mm. This makes edge-lit LED panels easy to install in surface-mounted frames. Both the outer edge and the back are made of high-quality aluminum, ensuring good heat conduction and distribution.

Light Color

To determine the right light color, it is important to know the purpose of the light. Below is a description of the different light colors and their most common uses.

  • 3000K has a somewhat yellow/orange glow. Ideal for creating a warm, cozy, and calming atmosphere in places like living rooms, waiting areas, cafés, restaurants, corridors, and other common spaces.
  • 4000K has a white/yellow glow. Ideal for a well-lit space where good visibility, focus, and a pleasant atmosphere are desired, such as in offices, classrooms, kitchens, hallways, shops, fitting rooms, hair salons, stairwells, or waiting areas.
  • 6000K has a white/light blue glow. Ideal for a well-lit space where good visibility and concentration are required, such as in hospitals, laboratories, workshops, studios, and garages.

Click here for more information about light color

Advice

If you want to install multiple panels in one room, we recommend ordering them all at once. Unfortunately, we cannot guarantee that separate orders will have precisely the same light color. Therefore, it is also advisable to order extra spare panels. We also cannot guarantee that the light from LED panels with the same color temperature, but different sizes, will match 100%. The panels are produced in batches, so the light color may vary slightly between batches, which involves very small color differences.

Specifications

  • EAN
    7423338629645

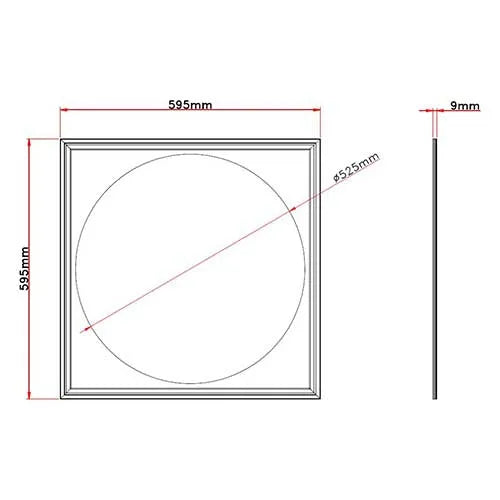

  • Dimensions (lxbxh)
    595x595x9 mm
  • Built-in-depth
    9 mm
  • Wattage
    36
  • Lumen
    60 lm/W
  • Dimmable
    Optional
  • IP Value
    IP41
  • Beam angle
    120°
  • Power Factor
    0.95
  • LED type
    SMD 4014
  • Material
    Aluminum - PMMA
  • CRI Value
    >80
  • Rated lifespan
    50
  • Working temperature
    -20°C / +50°C
  • Humidity
    10-80% RH
  • Outpur current
    800mA
  • Input current
    220-240V AC
  • Certifications
    CE - RoHS - TÜV
