LED UFO Highbay 150W 190lm/W Dimmable Sosen LED Driver

Icon Image
Application: 8-10 meters Saves 70% on energy costs Replaces 1000W Aluminum housing Ultra high light output - 28 500 lumens
Sosen LED Driver  |  Barcode: 6090550356379
Regular price €8990
Tax included Shipping calculated at checkout.

Betaal veilig en gemakkelijk met de betaalmethode die jij wilt.

iDeal PayPal MasterCard Maestro Visa Bancontant Klarna Sofort Google Pay Apple Pay

Description

In short

  • 70% energy savings compared to mercury vapor highbays
  • Replaces 1000W
  • 28,500 lumens Very high light output
  • IP65 Water resistant
  • Ceiling height up to 10 meters
  • Dimmable 1-10V
  • Instant start, no flickering and no buzzing
  • Lasts on average 13.5 years (10 hours per day)
  • Environmentally friendly and lead-free
  • 5 Years warranty

Installation

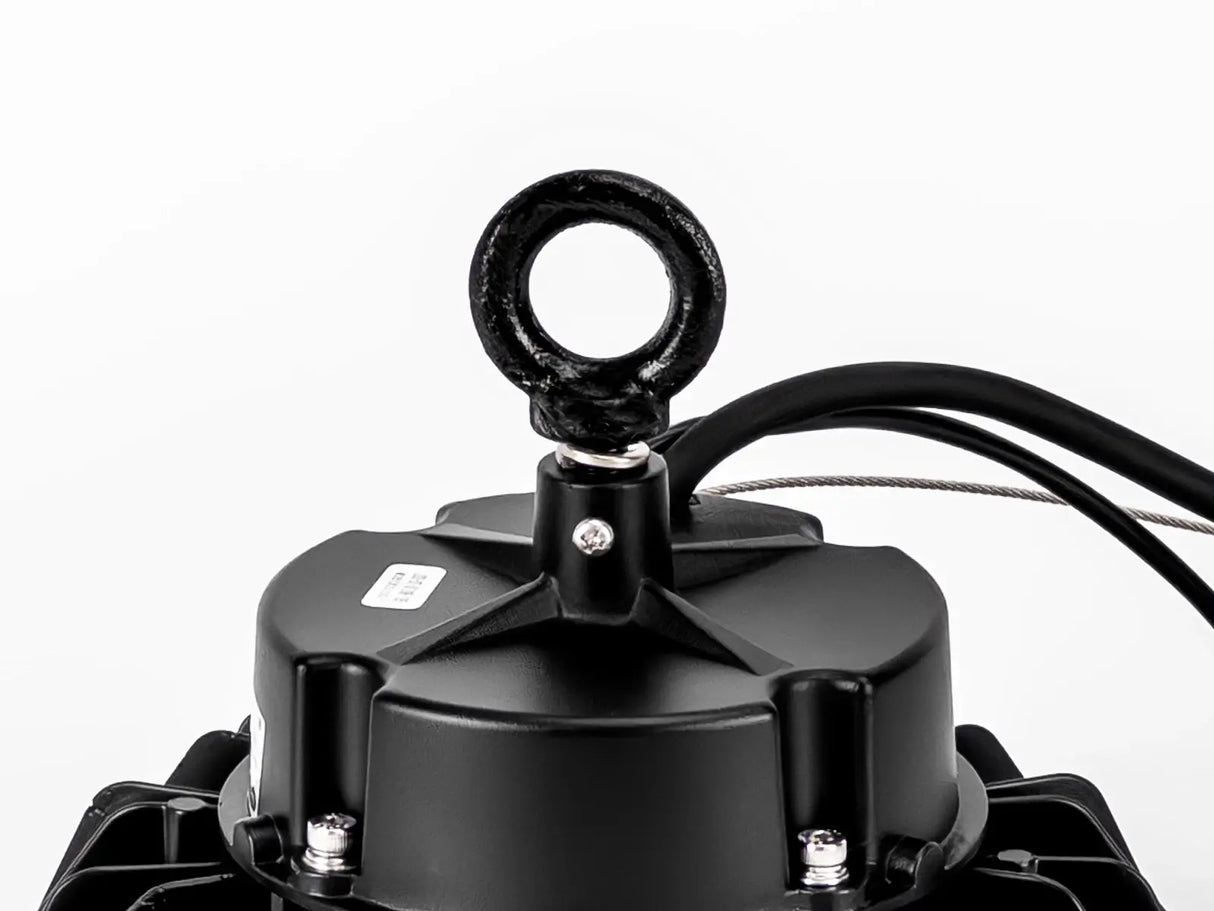

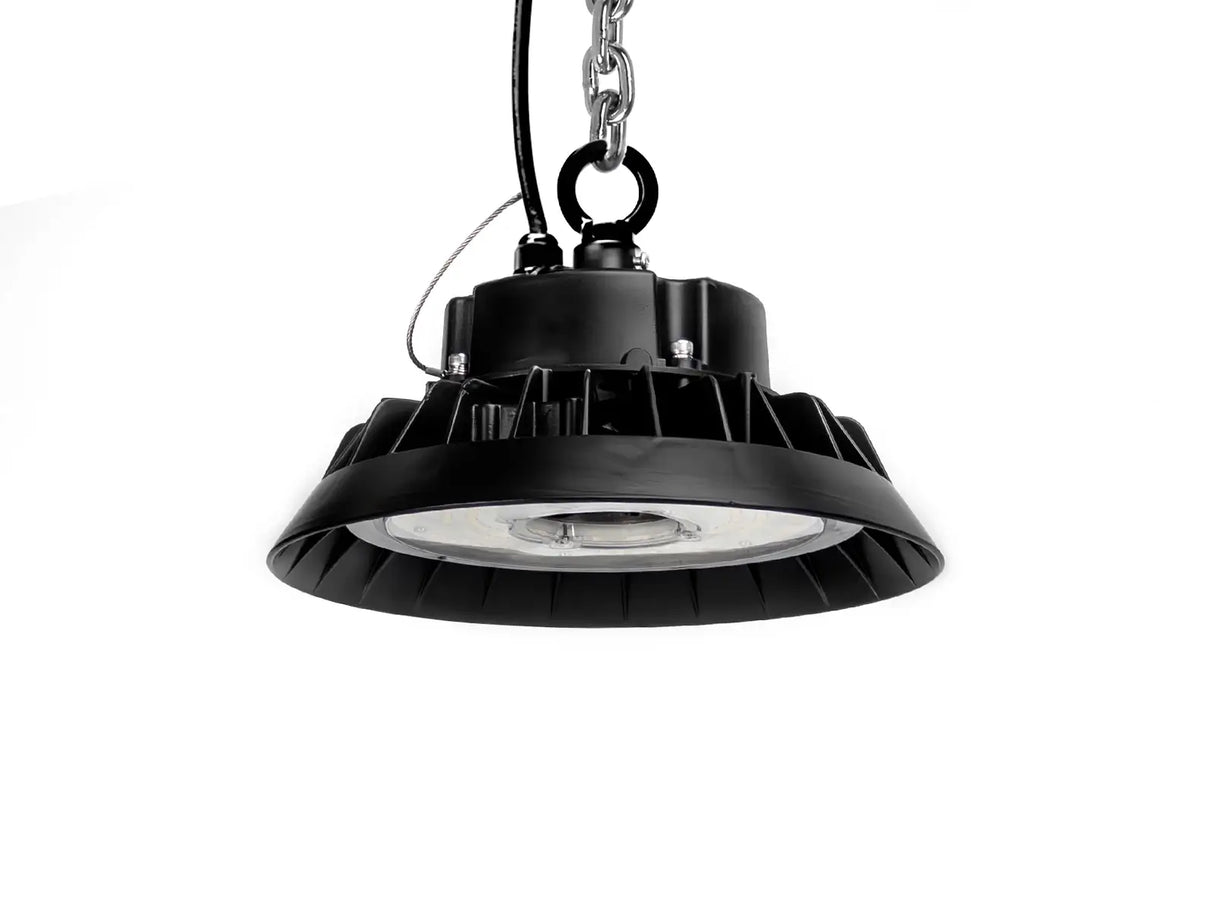

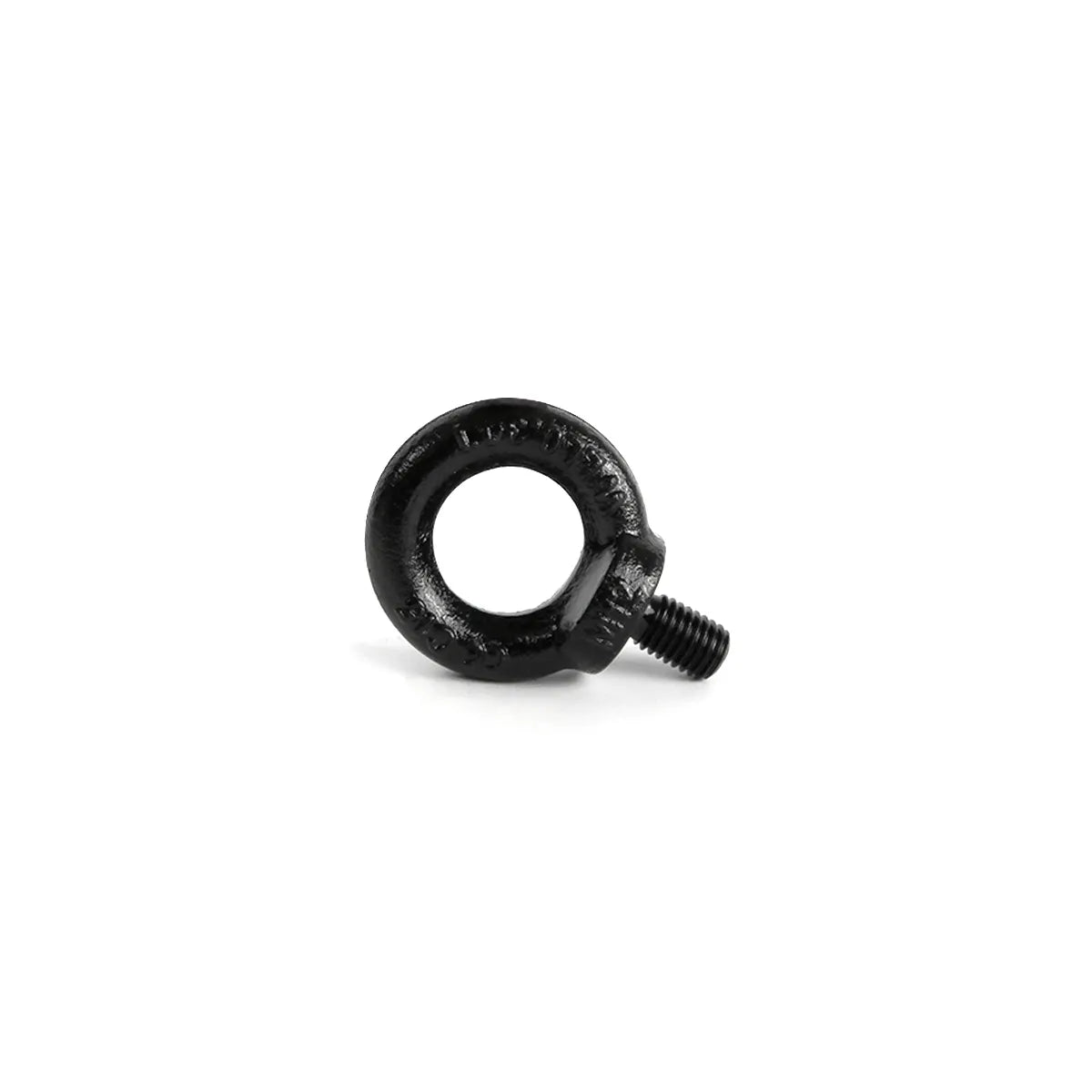

This LED Highbay provides strong and bright light and is suitable for ceiling heights between 8 and 10 meters. This LED highbay is therefore suitable for spaces where a lot of strong light is needed such as; warehouses, storage rooms, sports halls, factory halls, and garages. Due to its small size, this LED UFO highbay can be easily placed anywhere and is directly connectable to the power network with an input voltage of 220-240V AC. The highbay has a strong iron loop with a diameter of 30 mm at the top to which it can be hung. With the 24 cm safety cable with carabiner hook, the highbay can be additionally secured; this cable can also be used to hang the highbay straight or tilt it.

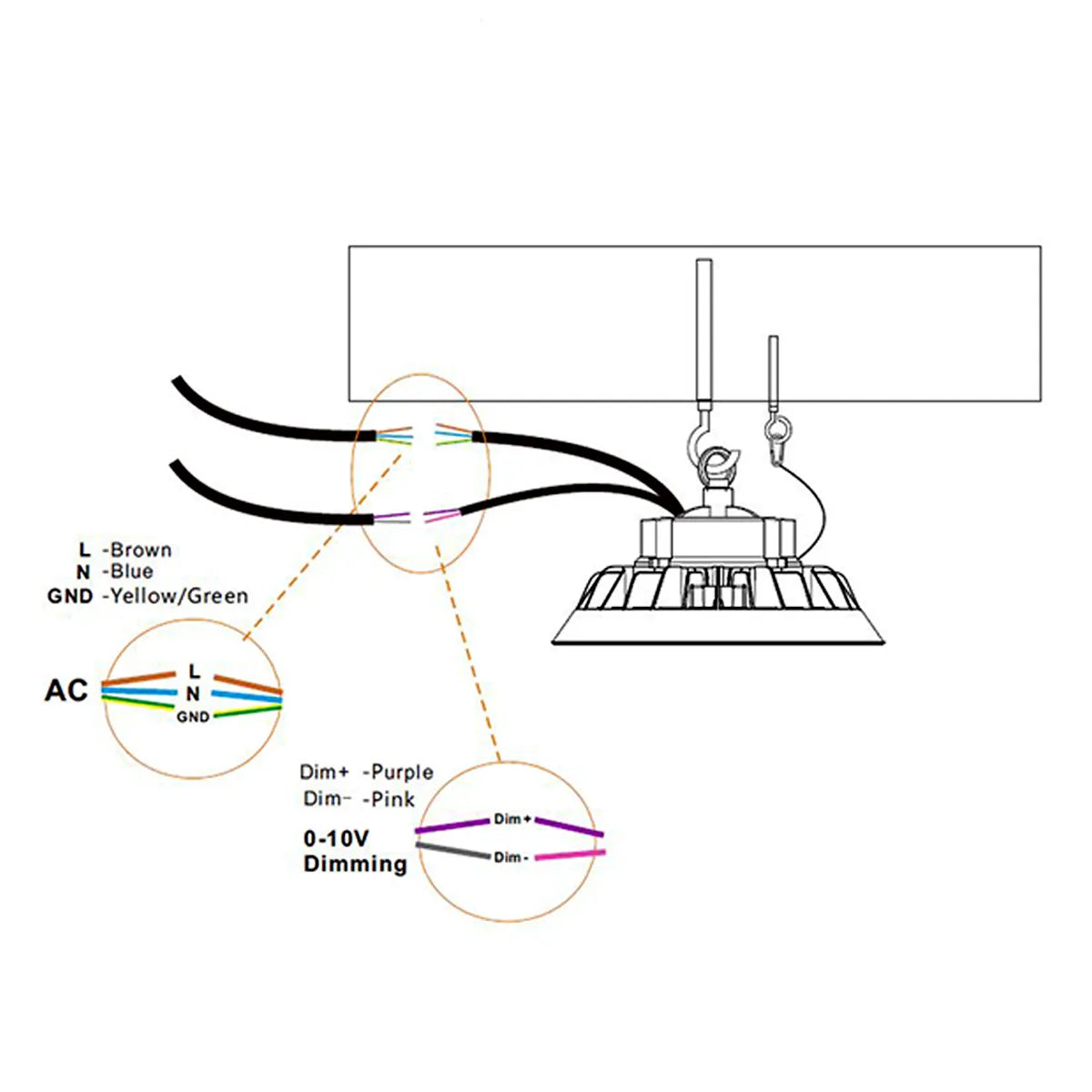

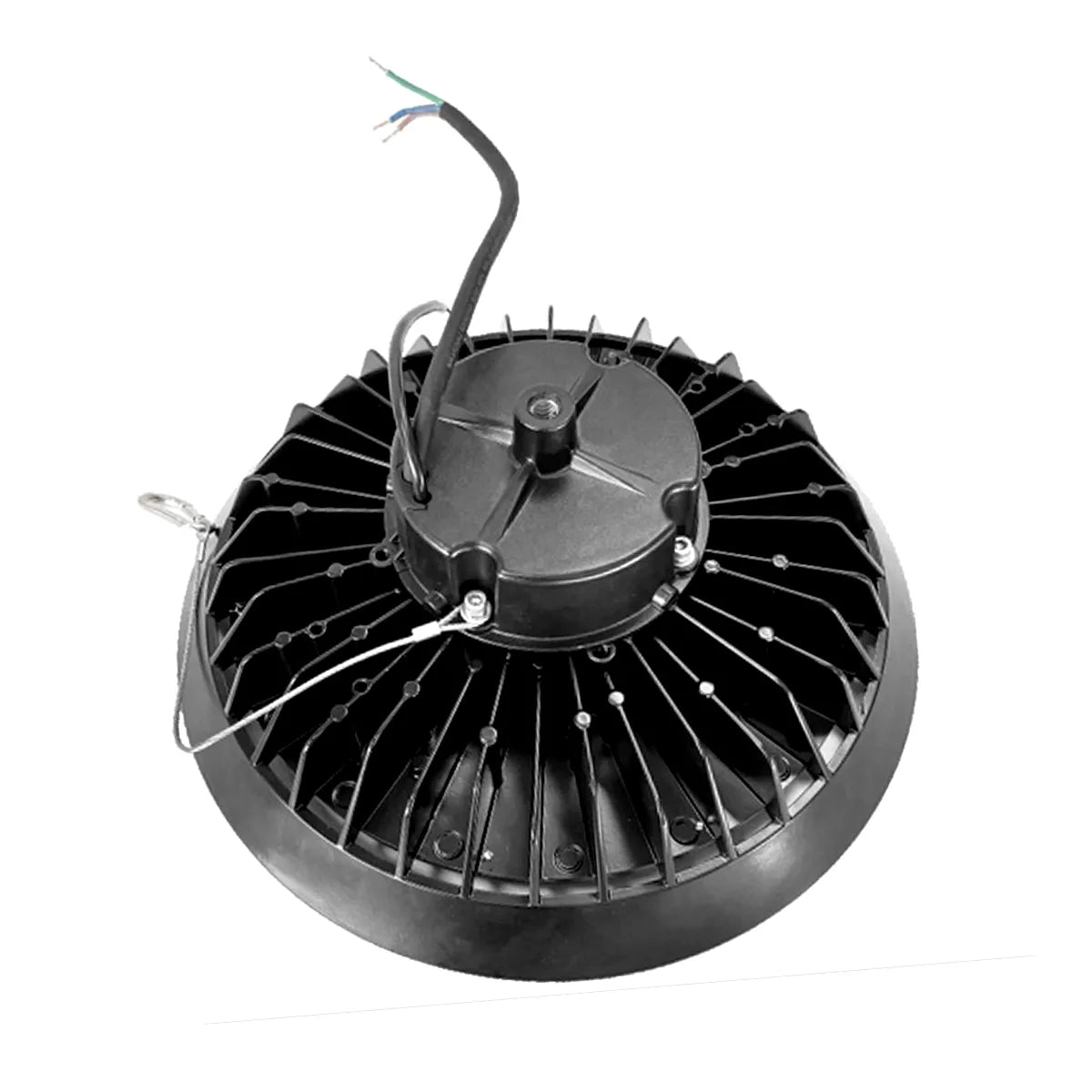

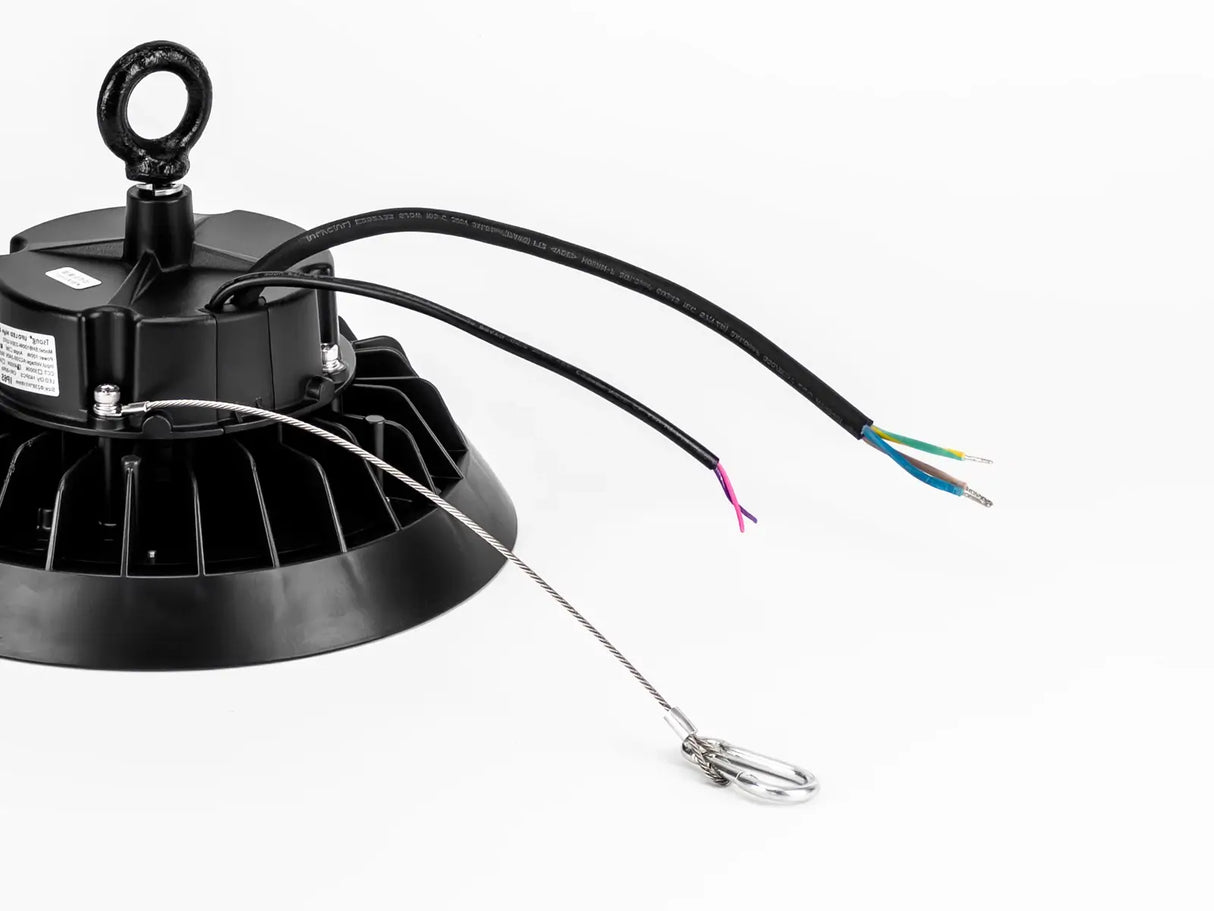

The highbay has 2 cables of 30 cm. The thick cable can be connected directly to the power grid or with a power cord for a socket. The thin cable is for dimming the Highbay and can be connected to a 1-10V dimmer. Dimming is optional; if the dim cable is not used, we recommend terminating it with a (waterproof) terminal block or connector.

Extra high lumen 190lm/w - Sustain and save

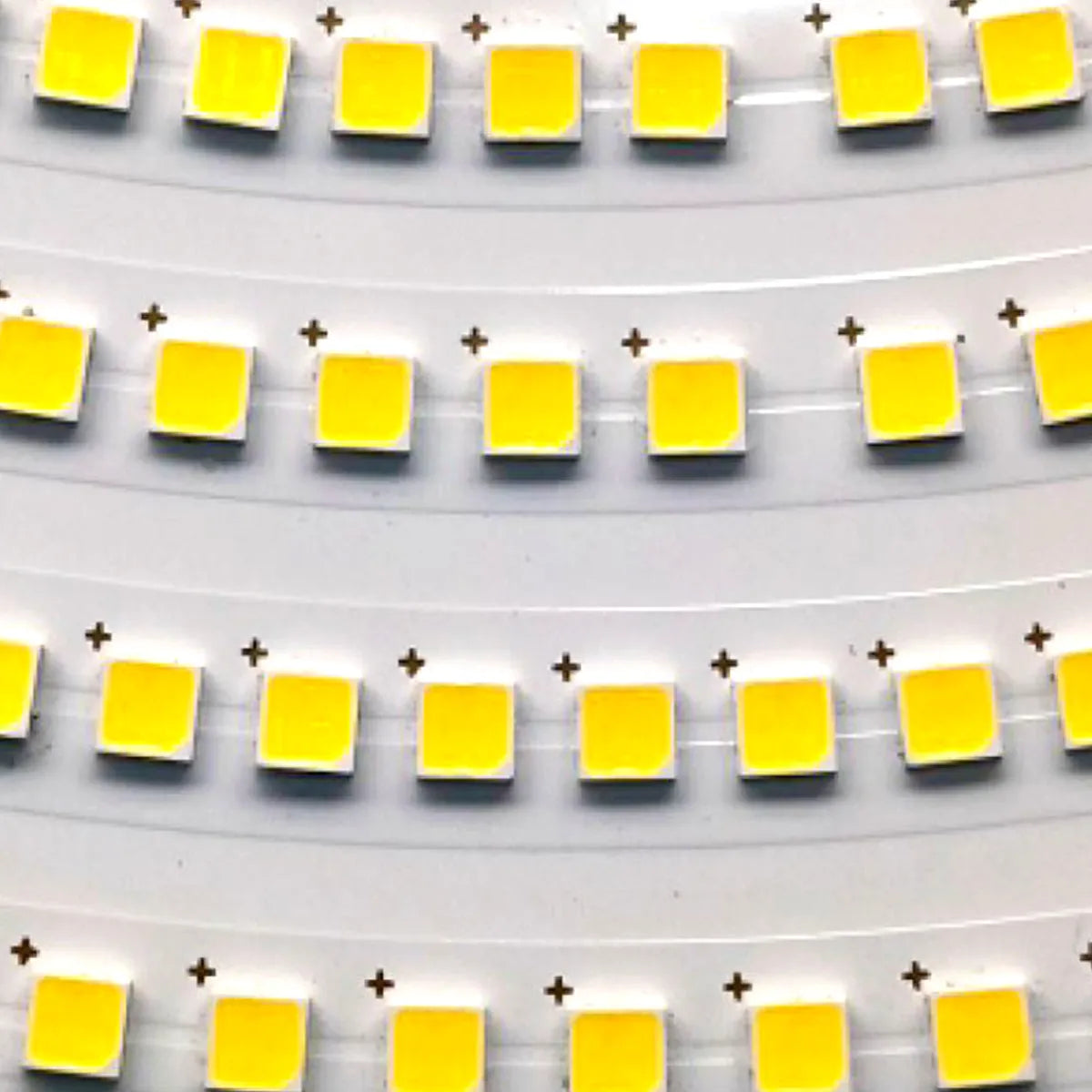

This UFO highbay is a replacement for a conventional 1000W mercury vapor lamp, allowing you to save up to 70% on energy (and energy costs) without compromising on the light output of the lamp. This Highbay has 420 high-lumen LED chips of the SMD3030 type with a lumen efficiency of 190 lumens per watt. For this 150W highbay, this totals an impressive 28,500 lumens.

Calculate here how much you will save

Dimmable

This UFO highbay is dimmable and contains a Sosen dimmable LED driver. You can set the light to the desired brightness. The Sosen LED driver requires a 1-10V LED dimmer. Note that a traditional (LED) dimmer does not work with this highbay and could cause a short circuit.

View all 1-10V LED Dimmers here

Water resistant

This LED highbay has an IP65 rating. It is dustproof and water-resistant, making it suitable for installation in humid environments. The lamp is protected against water up to 100 liters per minute. A tap delivers about 12-16 liters per minute, so it can handle quite a bit but cannot be submerged.

Read more about IP values and lamp protection here

Reflector cap

Do you want to illuminate specific surfaces or objects particularly well? Then this lamp can be extended with a reflector cap. This allows you to create a smaller light angle of 75°.

Light color

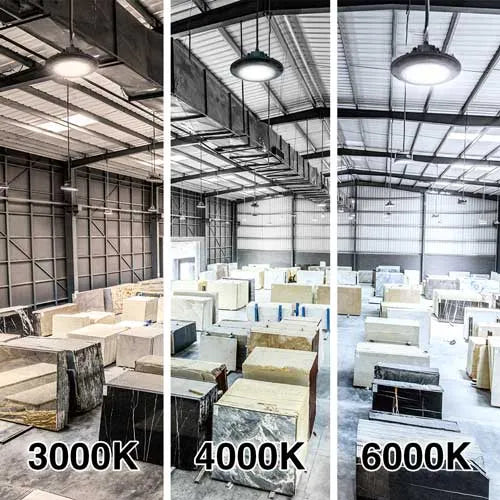

To determine the right light color, it is important to know what the light is for. Below is a description of where the different light colors are most commonly used.

  • 4000K has a white/yellow glow. Ideal for a well-lit space where good visibility, focus, and a pleasant atmosphere are desired, for example in offices, classrooms, kitchens, corridors, shops, fitting rooms, hair salons, stairwells, or waiting areas.
  • 6000K has a white/light blue glow. Ideal for a well-lit space where good visibility and concentration are desired, for example in hospitals, laboratories, workshops, studios, and garages.

Click here for more information about light color

Specifications

  • EAN
    6090550356379

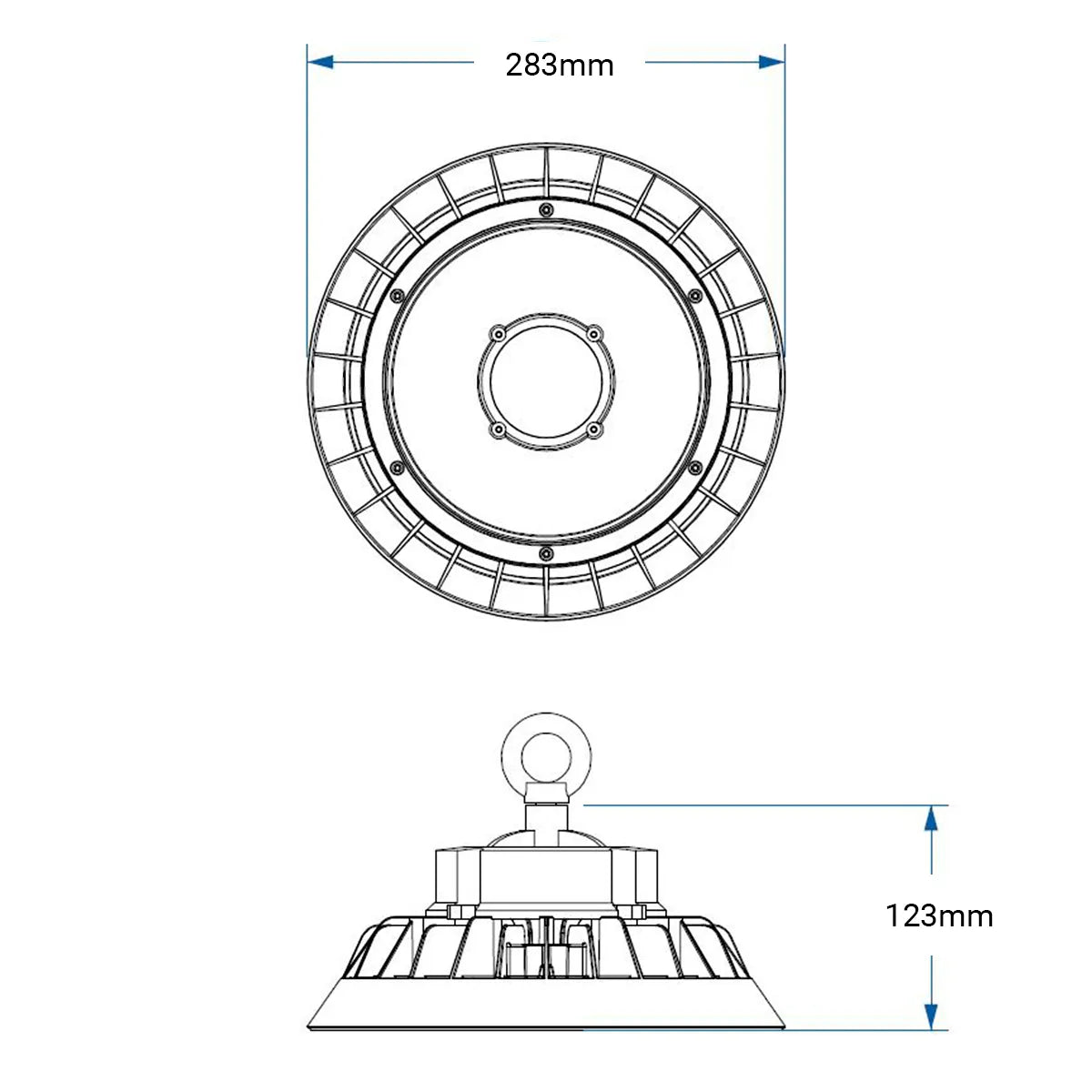

  • Dimensions (lxbxh)
    283x283x123 mm
  • Diameter
    283 mm
  • Wattage
    150
  • Lumen
    190 lm/W
  • Dimmable
    Yes
  • IP Value
    IP65
  • Beam angle
    120°
  • Power Factor
    0.95
  • Application height
    8-10 meters
  • LED type
    SMD 3030
  • Material
    Aluminium - PC
  • Color
    Black
  • CRI Value
    >80
  • Rated lifespan
    50
  • Working temperature
    -20°C / +50°C
  • Humidity
    10-80% RH
  • Input current
    220-240V AC
  • Certifications
    CE - RoHS
