LED Panel hollow 62x62 cm 36W

Icon Image
Saves 70% on Energy Costs Replaces 120W Extra slim 16mm Luminous flux: 3600 lumens Unique design
LEDWINKEL-Online  |  Barcode: 6097649913956
Regular price €2995
Tax included Shipping calculated at checkout.

Betaal veilig en gemakkelijk met de betaalmethode die jij wilt.

iDeal PayPal MasterCard Maestro Visa Bancontant Klarna Sofort Google Pay Apple Pay

Description

Transform any office into a place you love!

This stylish LED panel with a unique open design is an elegant upgrade for any space. Energy-efficient and stylish: perfect for a pleasant work atmosphere.

In brief

  • 70% energy savings (compared to traditional light panels)
  • 3600 lumens light output
  • Includes flicker-free LED driver (dimmable option available)
  • Instant start, no flickering and no buzzing
  • Cover plate does not discolor (thanks to PMMA)
  • Extra thin (suitable for surface mounting frame and suspension set)
  • Suitable for ceiling tiles
  • Average lifespan of 13.5 years (10 hours per day)
  • Environmentally friendly and lead-free
  • 5 Year warranty

Installation

This LED panel is suitable for installation in a ceiling grid with tiles of 62x62cm. You can also mount it with a surface mounting frame or suspend it with a suspension set. A standard LED driver is included, which connects directly to the power grid. You can also choose to use a power cord to connect to an outlet.

Check out our range of installation materials for LED Panels.

Sustain and save

With this LED panel, you save up to approximately 70% energy compared to traditional/halogen fluorescent panels. With a low energy consumption of 36W and a light output of 100 lumens/Watt, these light panels are highly energy-efficient. By switching to LED lighting, you make your business or home more durable and save significantly on energy costs over a few years. Additionally, you reduce your CO2 footprint.

Illuminated edge

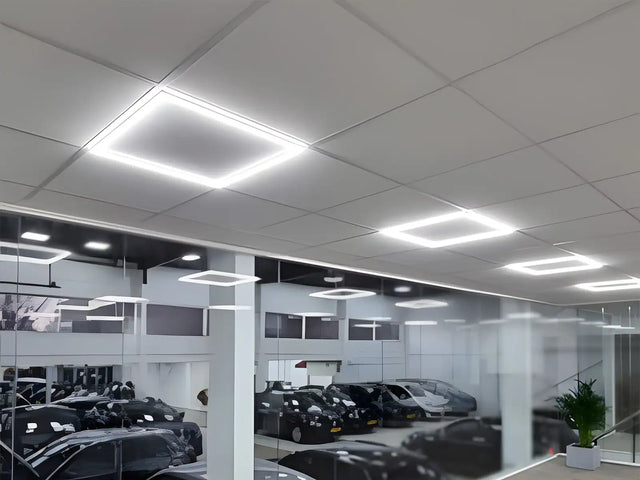

This LED panel is actually not a panel because it consists only of an edge that is fully illuminated. It has a slim frame of 16mm high. This new model looks sleek and is a lamp that you don't see often.

Optional dimmable

This LED panel is optionally dimmable (triac). If you want to make the panel dimmable, you will need a Triac LED dimmer for this. These can be ordered separately.

Light color

To determine the right light color, it is important to know what the light is for. Below is a description of where the different light colors are most commonly used.

  • 3000K has a somewhat yellow/orange glow. Ideal for a cozy warm and calming atmosphere in living rooms, waiting areas, cafés, restaurants, hallways, and other common areas.
  • 4000K has a white/yellow glow. Ideal for a well-lit space where good visibility, focus, and a pleasant atmosphere are desired, such as in offices, classrooms, kitchens, hallways, shops, fitting rooms, hair salons, stairwells, or waiting areas.
  • 6000K has a white/light blue glow. Ideal for a well-lit space where good visibility and concentration are desired, such as in hospitals, laboratories, workshops, studios, and garages.

Click here for more information about light color

Advice

If you want to use multiple panels in one space, we recommend placing them in one order. Unfortunately, we cannot guarantee that separate orders will have the same light color. Therefore, it is recommended to order extra spare panels. We also cannot guarantee that the light from LED panels with the same color temperature, but of different sizes, will match 100%. The panels are produced in batches, and the light color may vary slightly between batches, resulting in very small color differences.

Specifications

  • Dimensions (lxbxh)
    620x620x16 mm
  • Built-in-depth
    16 mm
  • Wattage
    36
  • Lumen
    100 lm/W
  • Dimmable
    Optional
  • IP Value
    IP20
  • Beam angle
    120°
  • Power Factor
    0.95
  • LED type
    SMD 2835
  • Material
    Aluminium - PC
  • CRI Value
    >80
  • Rated lifespan
    50
  • Working temperature
    -20°C / +50°C
  • Humidity
    10-80% RH
  • Outpur current
    800mA
  • Input current
    220-240V AC
  • Certifications
    CE - RoHS
