LED UFO Highbay 200W 150lm/W Dimmable Sosen LED Driver

Icon Image
Application: 8-10 meters Saves 70% on energy costs Replaces 1000W Aluminum housing Extra high light output - 30 000 lumens
Sosen LED Driver  |  Barcode: 6090551568504
Regular price €7490
Tax included Shipping calculated at checkout.

Betaal veilig en gemakkelijk met de betaalmethode die jij wilt.

iDeal PayPal MasterCard Maestro Visa Bancontant Klarna Sofort Google Pay Apple Pay

Description

In short

  • 70% energy savings compared to mercury vapor highbays
  • Replaces 1000W
  • 30,000 lumens Very high light output
  • IP65 Waterproof
  • Ceiling height up to 10 meters
  • Dimmable 1-10V / Dali
  • Direct start, no flickering and no buzzing
  • Lasts on average 13.5 years (10 hours per day)
  • Environmentally friendly and lead-free
  • 5 Year warranty

Installation

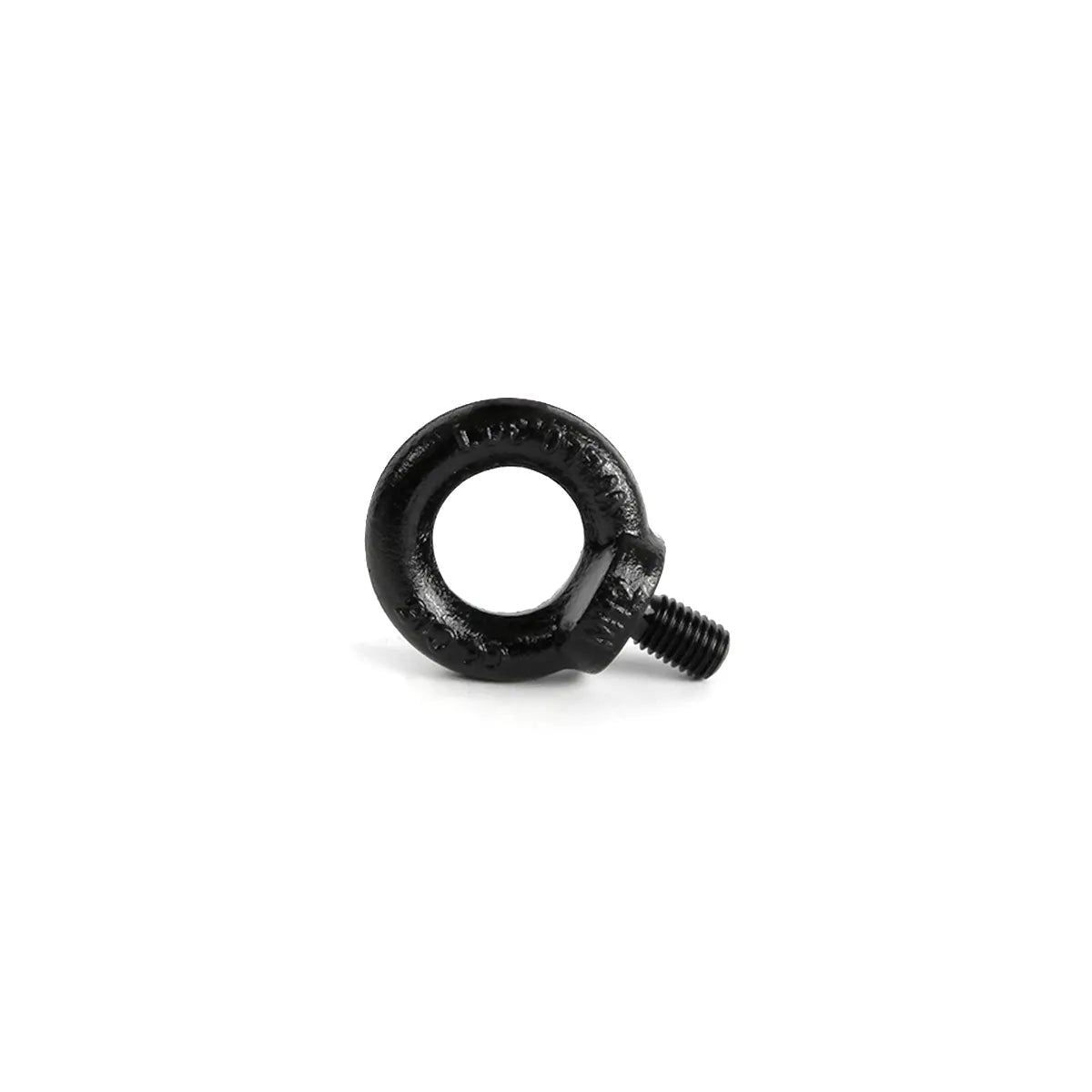

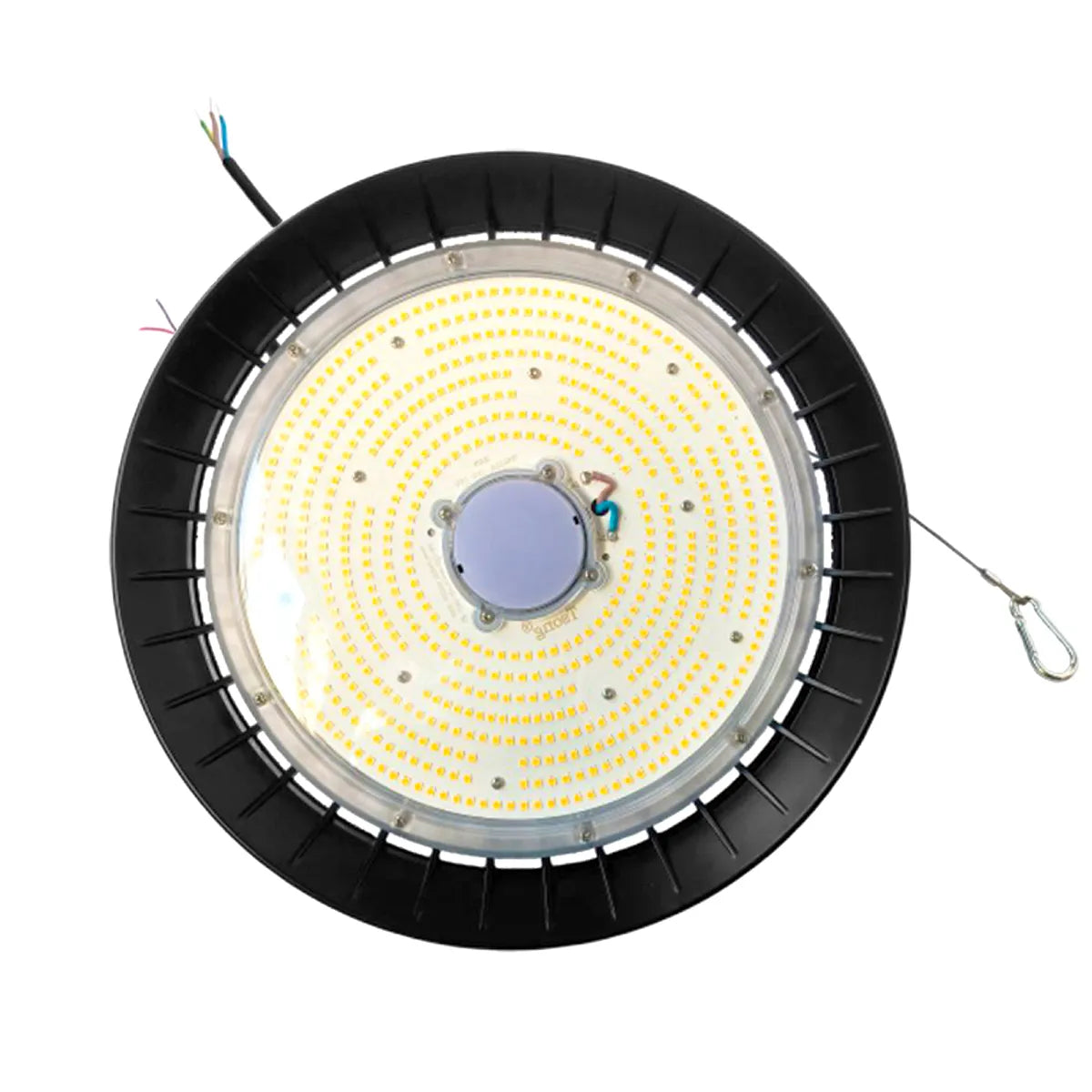

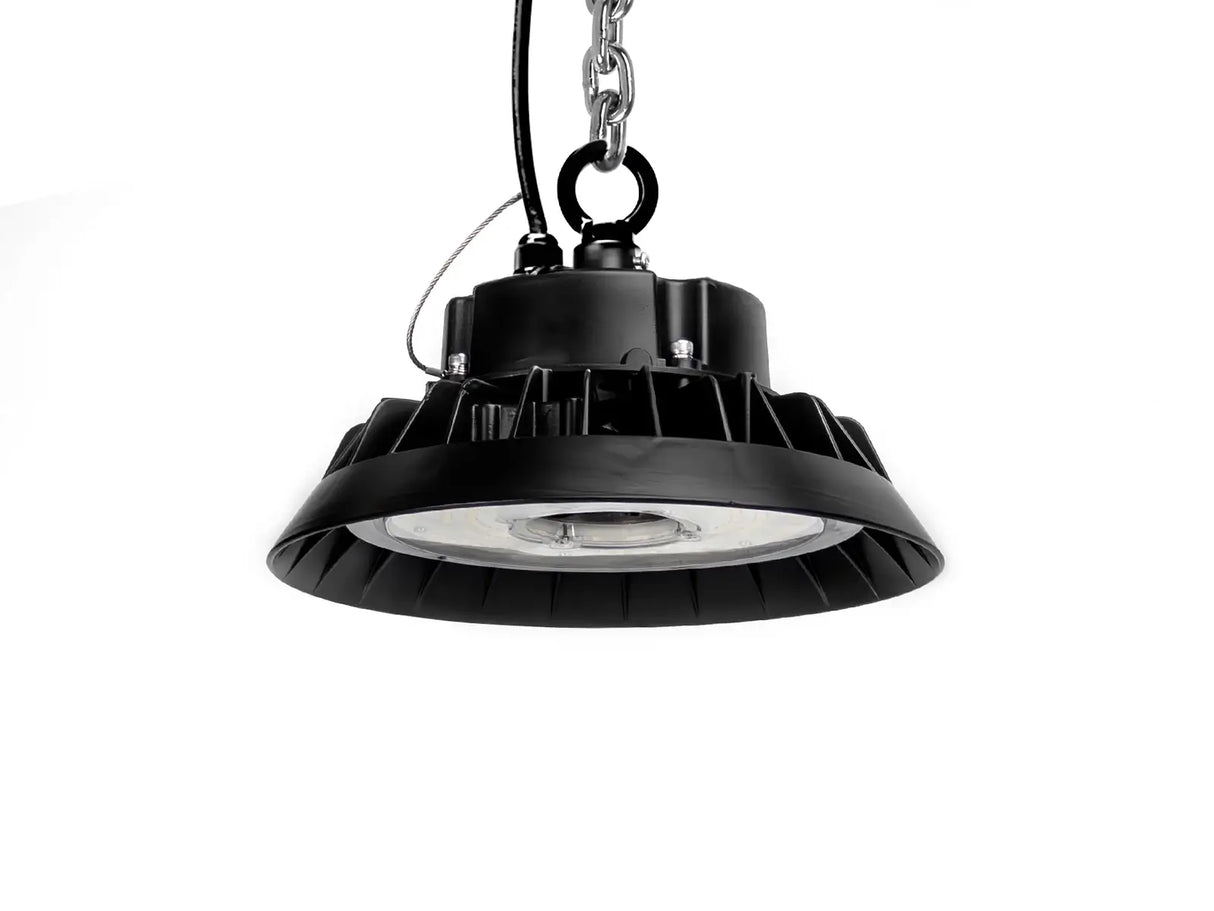

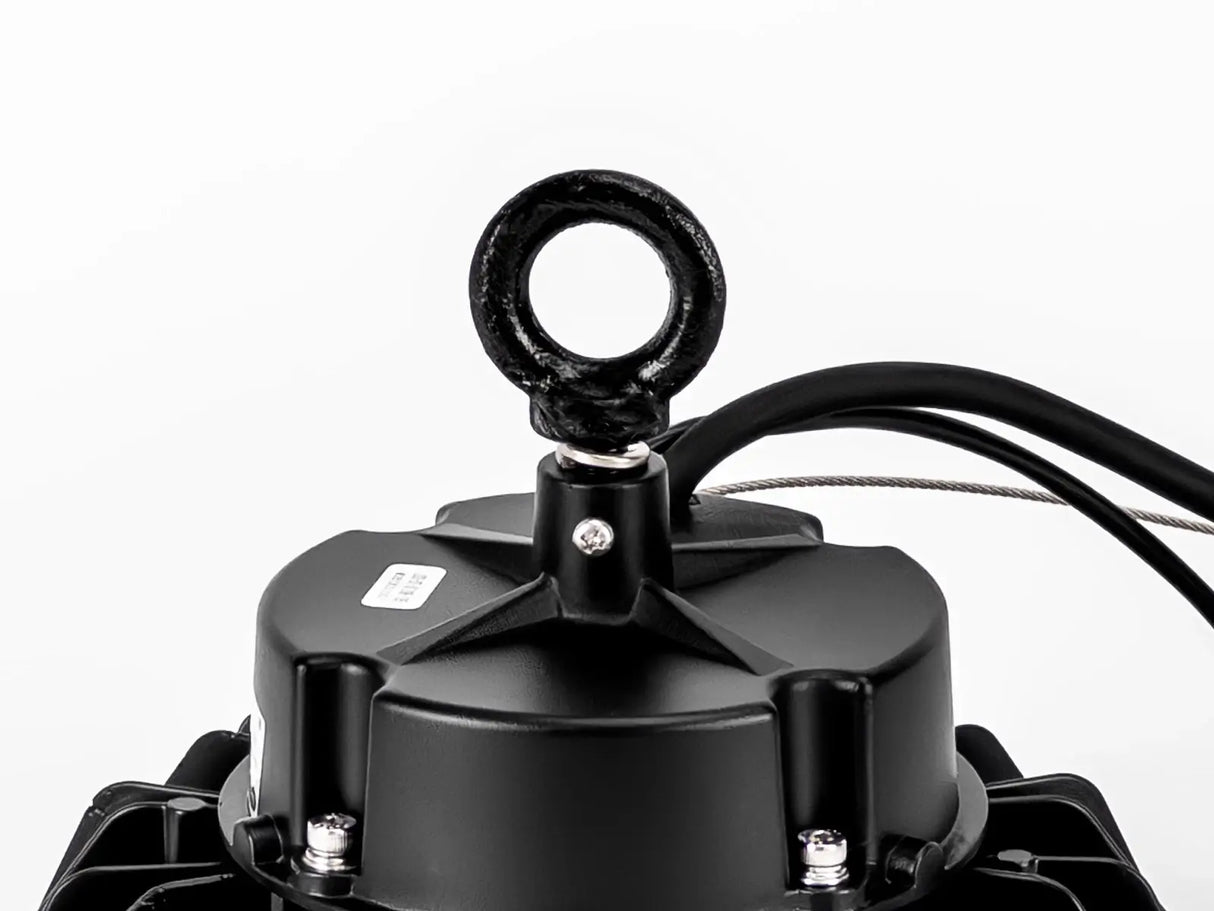

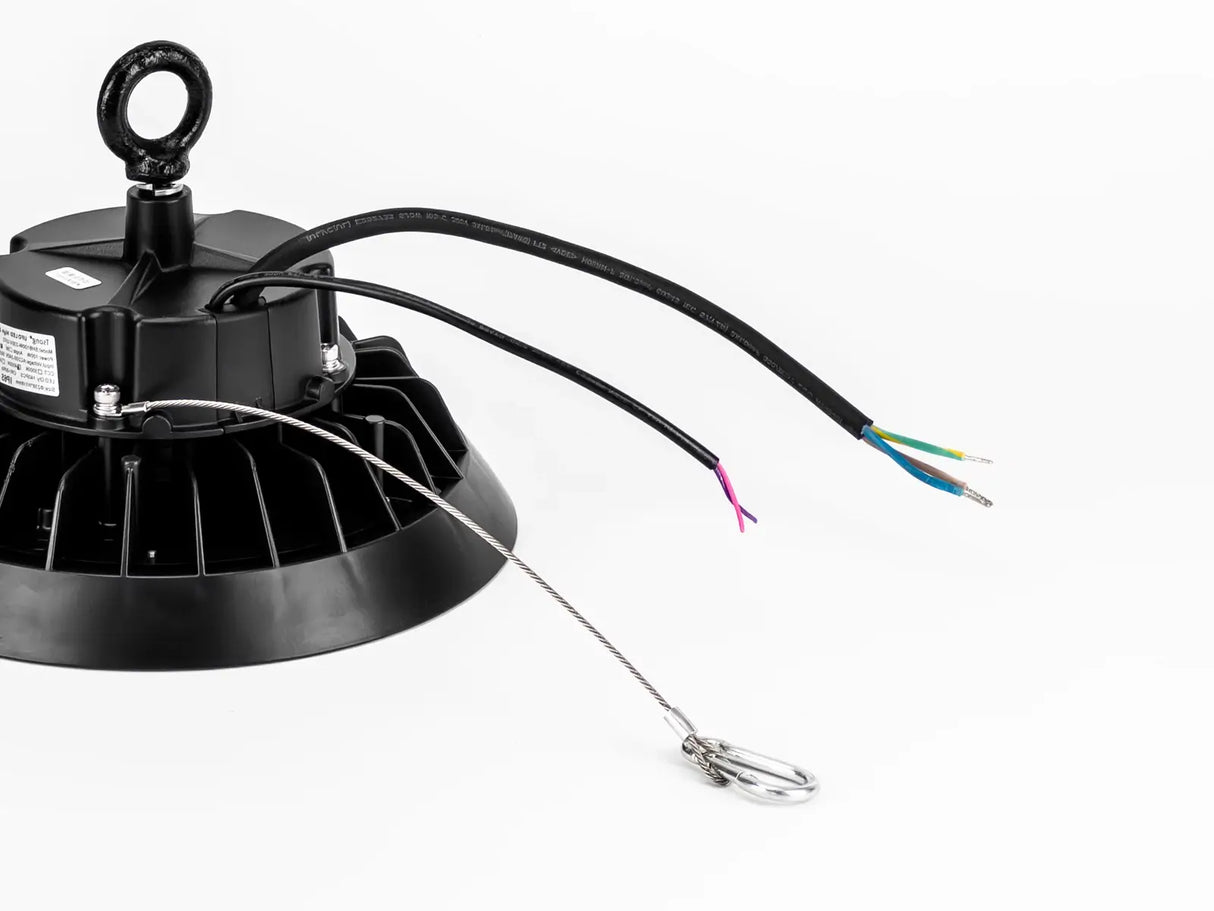

This LED Highbay provides strong and bright light and is suitable for ceiling heights between 8 and 10 meters. This LED highbay is therefore suitable for spaces where a lot of strong light is needed, such as warehouses, sports halls, factory halls, and garages. Due to its small size, this LED UFO highbay can be easily placed anywhere and can be directly connected to the power network with an input voltage of 220-240V AC. The highbay has a strong iron loop with a diameter of 30 mm at the top to which it can be hung. With the 24 cm safety cable with carabiner hook, the highbay can be additionally secured; this cable can also be used to hang the highbay straight or tilt it.

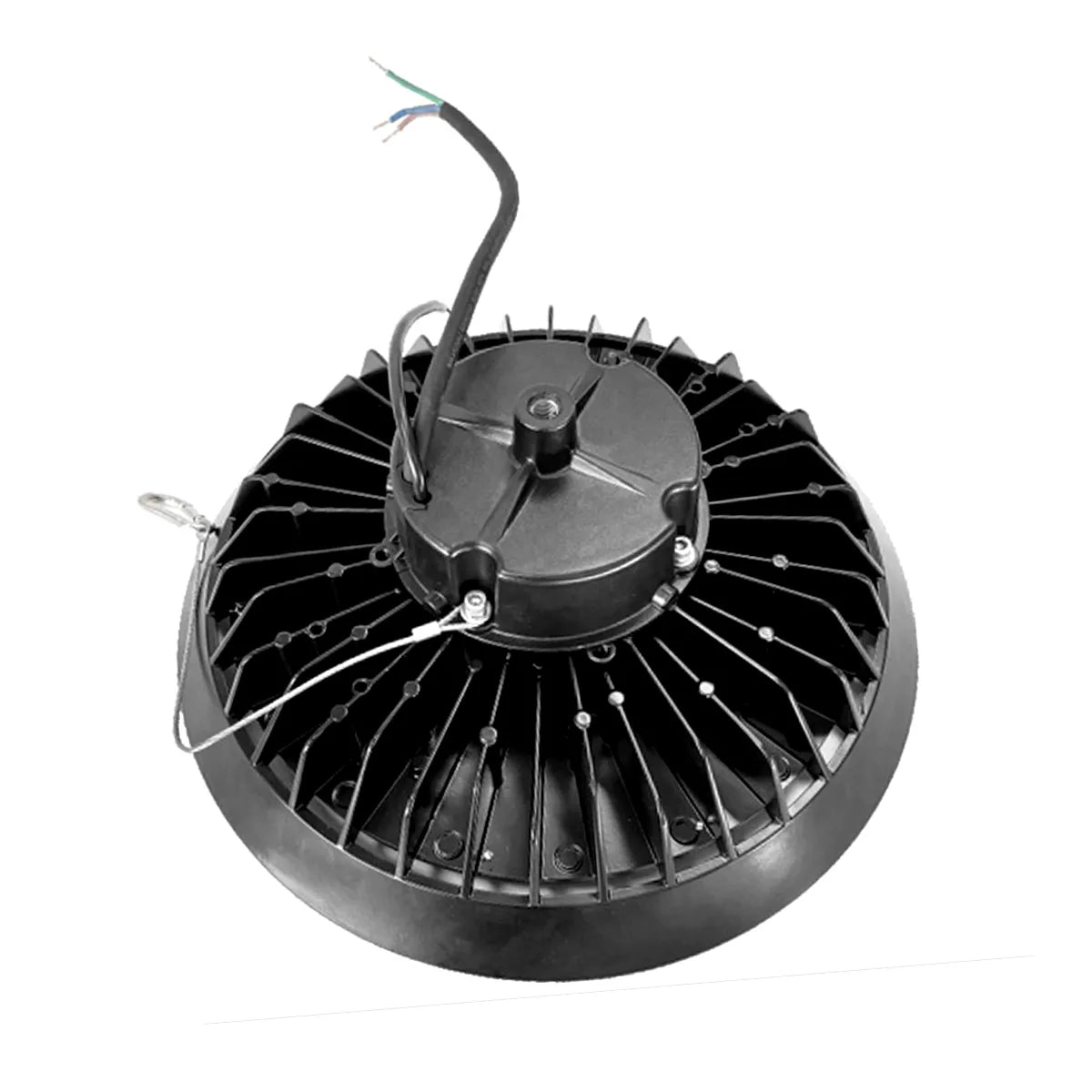

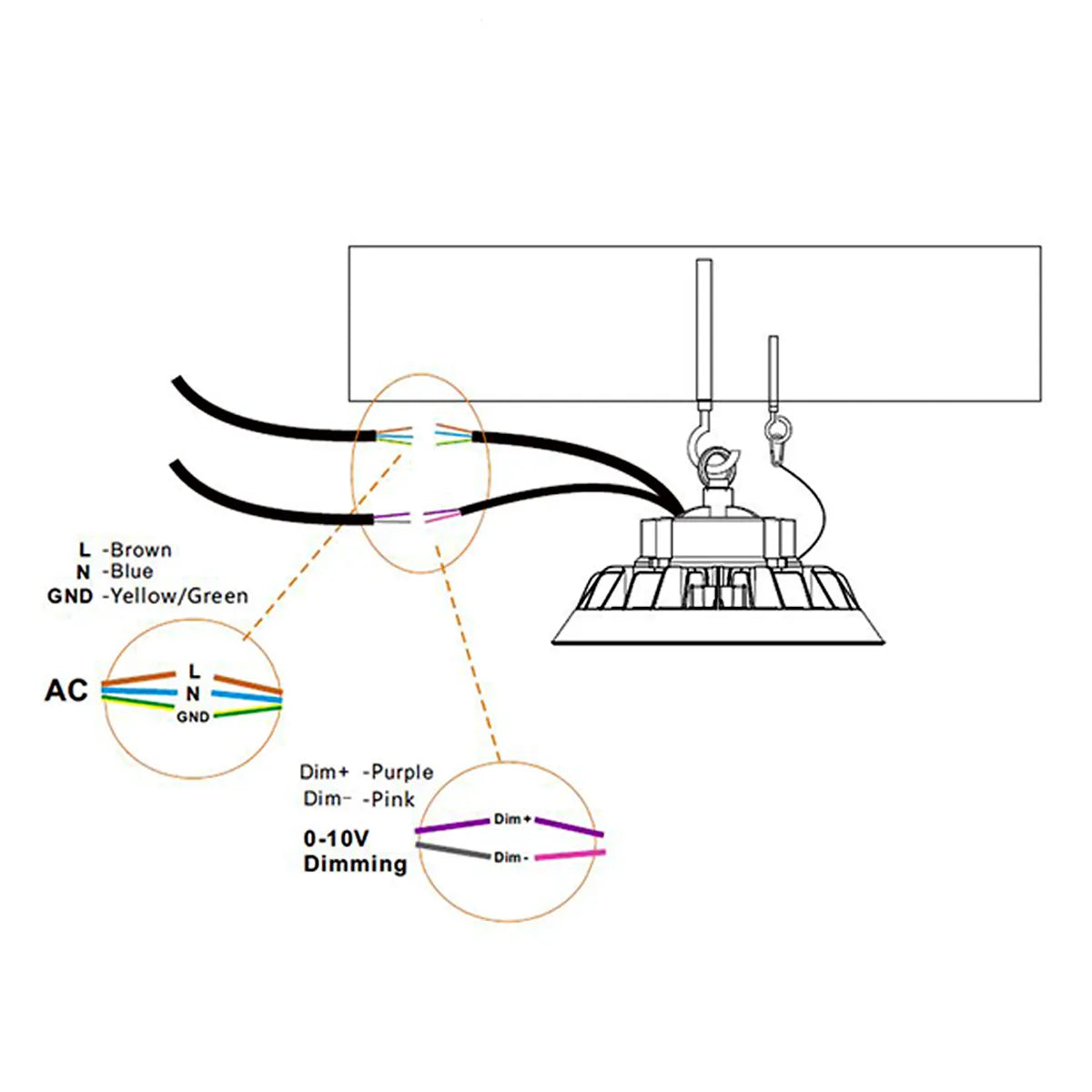

The highbay has 2 cables of 30 cm. The thick cable can be connected directly to the power grid or with a power cord for a socket. The thin cable is for dimming the Highbay and can be connected to a 1-10V dimmer. Dimming is optional; if the dim cable is not used, we recommend terminating it with a (waterproof) terminal block or connector.

Sustain and Save

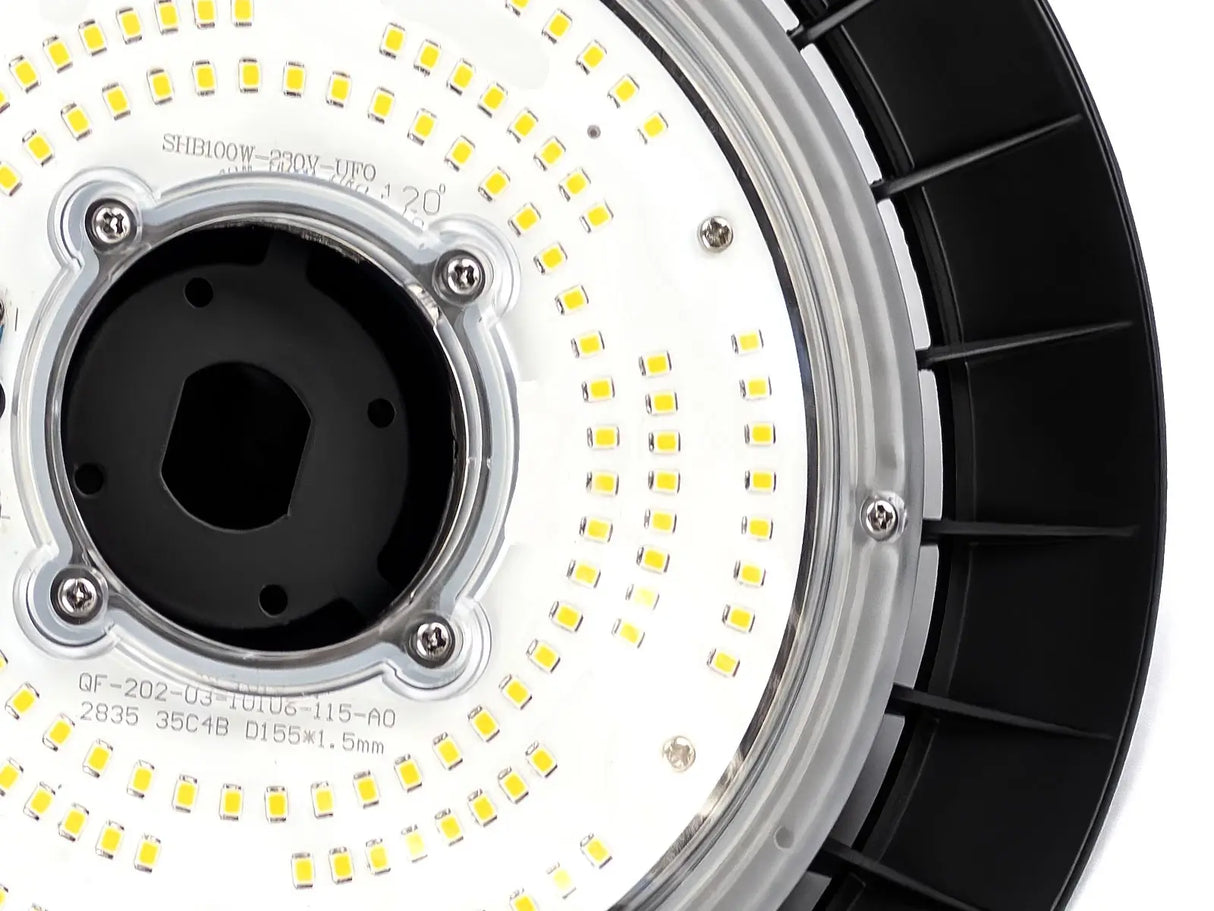

This UFO highbay replaces a conventional 1000W mercury vapor lamp, allowing you to save up to 70% on energy (and energy costs) without compromising on the light output of the lamp. This Highbay has 280 high-lumen LED chips of the SMD3030 type with a lumen efficiency of 150 lumens per watt. For this 200W highbay, this totals an impressive 30,000 lumens.

Calculate how much you will save here

Dimmable 1-10 / Dali

This UFO highbay is dimmable and comes standard with a Sosen 1-10V LED driver. Optionally, you can choose a dimmable Dali LED driver. The 1-10V dimmable LED driver requires a 1-10V LED dimmer, while the Dali driver requires a Dali dimmer. Please note that a traditional (LED) dimmer does not work with this highbay and could cause a short circuit.

View all 1-10V LED Dimmers here

Water Resistant

This LED highbay has an IP65 rating. It is dust-tight and water-resistant, making it suitable for installation in humid environments. The lamp is protected against water up to 100 liters per minute. A faucet delivers about 12-16 liters per minute, so it can handle quite a bit, but it cannot be submerged in water.

Read more about IP values and lamp protection here

Reflector Cap

Do you want to illuminate specific surfaces or objects more effectively? Then this lamp can be extended with a reflector cap. This allows you to create a narrower beam angle of 75°.

Light Color

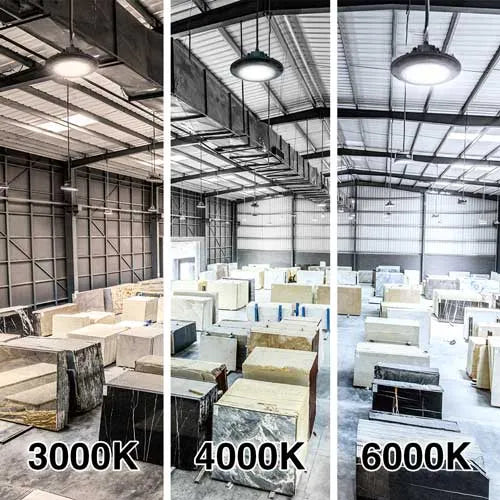

To determine the right light color, it is important to know the purpose of the light. Below is a description of the different light colors and their most common uses.

  • 3000K has a somewhat yellow/orange glow. Ideal for creating a warm, cozy, and calming atmosphere in living rooms, waiting areas, cafés, restaurants, hallways, and other common spaces.
  • 4000K has a white/yellow glow. Ideal for a well-lit space where good visibility, focus, and a pleasant atmosphere are desired, such as in offices, classrooms, kitchens, hallways, shops, fitting rooms, hair salons, stairwells, or waiting areas.
  • 6000K has a white/light blue glow. Ideal for a well-lit space where good visibility and concentration are required, such as in hospitals, laboratories, workshops, studios, and garages.

Click here for more information about color temperature

Specifications

  • EAN
    6090551568504
  • Dimensions (lxbxh)
    350x350x120 mm
  • Diameter
    350 mm
  • Wattage
    200
  • Lumen
    150 lm/W
  • Dimmable
    Yes
  • IP Value
    IP65
  • Beam angle
    120°
  • Power Factor
    0.95
  • Application height
    8-10 meters
  • LED type
    SMD 3030
  • Material
    Aluminum - PC
  • Color
    Black
  • CRI Value
    >80
  • Rated lifespan
    50
  • Working temperature
    -20°C / +50°C
  • Humidity
    10-80% RH
  • Input current
    220-240V AC
  • Certifications
    CE - RoHS
