LED Dimmer 200W 1-10V with glass touchscreen RF 2.4g

In brief

• Suitable for LED lighting with 1-10V dimmable drivers
• 256 levels smooth dimming without flicker
• 86x86x33 mm (lxbxh) - Recessed dimension
• Touchscreen cover plate: Scratch-resistant crystal glass
• Phase cut or phase control dimming via dip switch
• Compatibility with RF 2.4G dim remote control or wifi relay
• Protected against overheating & overload
• Dimming range: 0 - 100%
• RF control distance: 30m
• Environmentally friendly and recyclable materials
• 2 Years warranty

Dimming LED lighting 1-10V

This LED dimmer is made of high quality and offers protection against voltage spikes and interference signals. This ensures optimal dimming capability and light stability.

What is 1-10V dimming?

1-10V dimming is a way to dim LED lighting. In 1-10V dimming, an alternating current signal of 1 to 10 volts is used to control the brightness of the LED lamps.

How does 1-10V dimming work?

In a 1-10V dimmer, there is a transformer that converts the alternating current signal from the power grid into an alternating current signal of 1 to 10 volts. This signal is then sent to the LED lamps. The LED lamps use this signal to regulate the brightness.

Advantages of 1-10V dimming

1-10V dimming offers several advantages over other dimming techniques:

• High light quality: 1-10V dimming provides high light quality, without flickering or other unwanted effects.
• Long lifespan: 1-10V dimming has a long lifespan, as it does not stress the LED lamps.
• Flexible: 1-10V dimming is flexible, as it can be used with different types of LED lamps.

Control of the LED dimmer

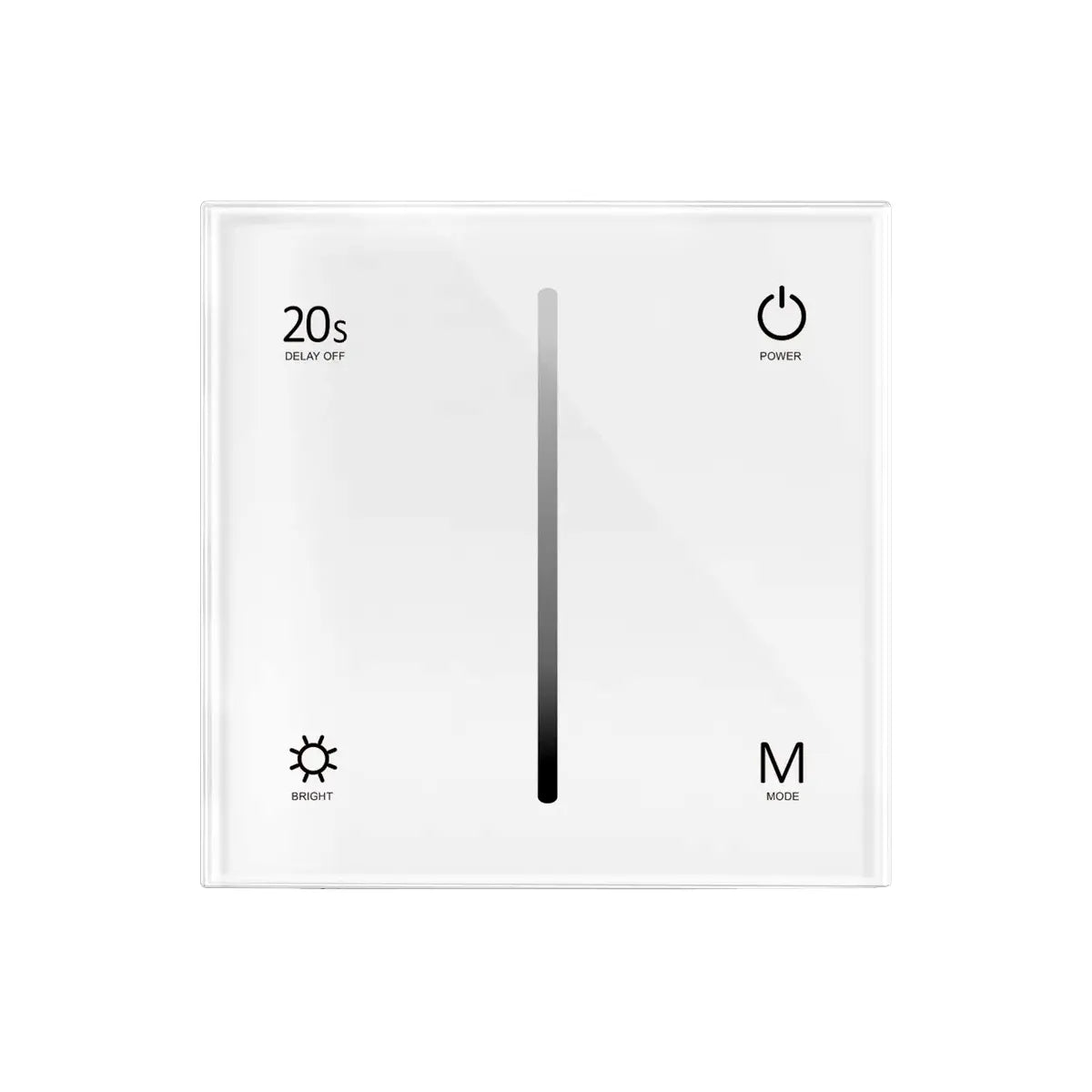

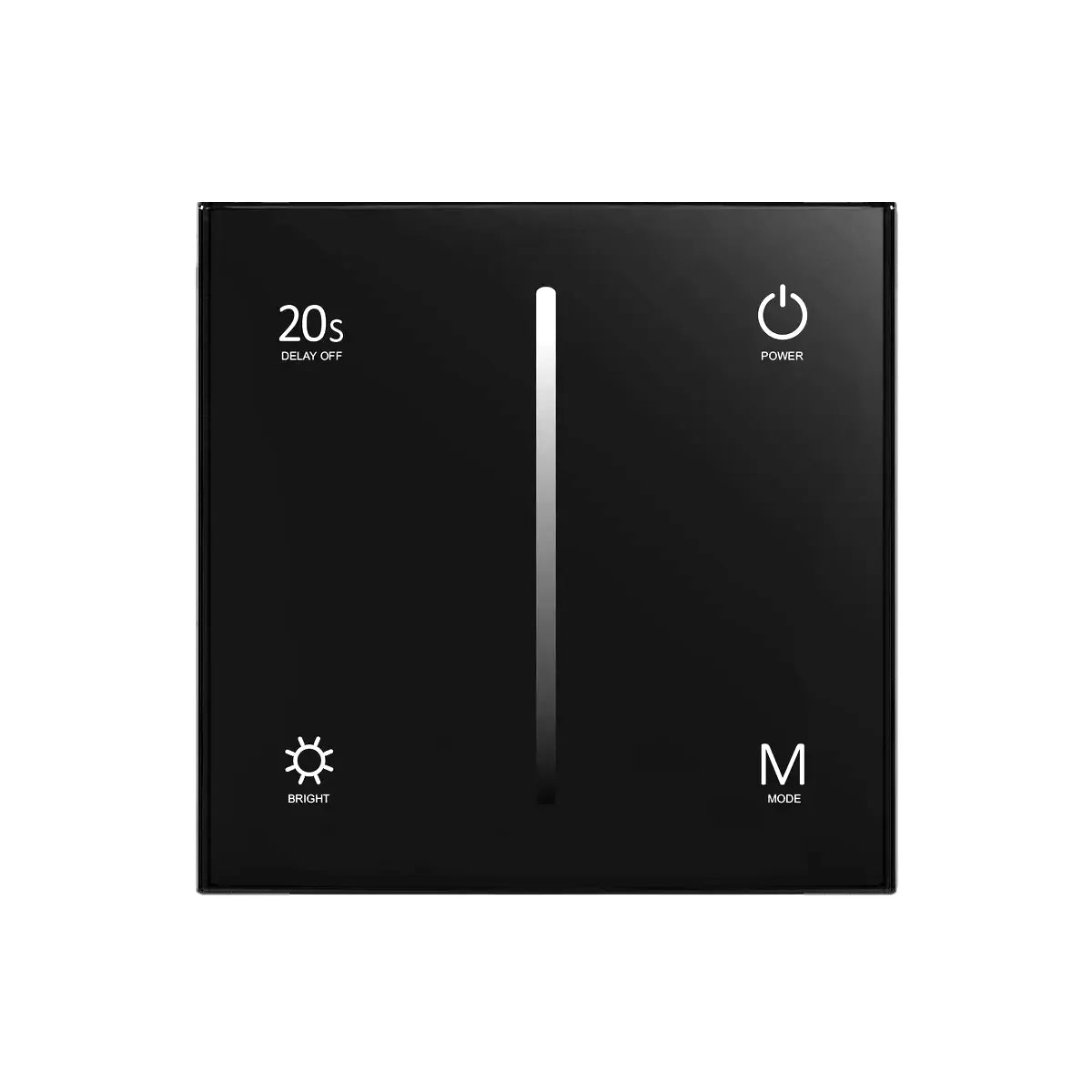

The dimmer has a touch glass panel with an ultra-sensitive touch slider and backlighting. With the slider, you can gradually dim or brighten the lighting up to 100%. The panel is made of strong glass and has a modern appearance.

The dimmer features 256 levels of smooth dimming without flicker. This means you can adjust the lighting very precisely. You can use the dimmer to create a cozy atmosphere or to adjust the lighting to the occasion.

Compatible with RF 2.4G dim remote control

The dimmer is compatible with RF 2.4G dim remote control or wifi relay. This allows you to control the dimmer from another room.

With the RF 2.4G dim remote control, you can wirelessly control the dimmer from any room in your home or business. The remote control has a range of 30 meters, so you can also control the lighting from the garden or balcony.

With the wifi relay, you can control the dimmer with your smartphone or tablet via a smart lighting app. You can then control the lighting remotely, even when you are not at home.

These features make the dimmer very flexible and user-friendly. You can control the lighting anytime and anywhere, so you can always create the perfect atmosphere.

Protection against overheating and overload

The dimmer is equipped with overheating/overload protection. This means that the dimmer automatically shuts off if it gets too hot or if too much current is requested.

This protection offers the following benefits:

• Safety: The dimmer prevents overheating or short circuits. This protects your lighting and your home from damage.
• Reliability: The dimmer is less sensitive to malfunctions and therefore works more reliably.
• Convenience: You do not have to worry about overheating or overload. The dimmer ensures that it continues to operate safely.

Installing the LED touch dimmer 1-10V

The connection wires of a 1-10V dimmer are usually colored:

• Line wire: This wire is connected to the light source.
• Load wire: This wire is connected to the switch.

The line wire must be connected to the terminals of the 1-10V dimmer labeled "L" or "Line". The load wire must be connected to the terminals of the 1-10V dimmer labeled "W" or "Load".

To pair your Touch Dimmer Switch with the devices, follow these steps:

1. Turn off the controller.
2. Turn on the controller.
3. Within 3 seconds, press the on/off button (to control 1 zone) or the zone button 3 times (for multiple zones).
4. If the light blinks 3 times, the pairing was successful.

To unpair the controller, follow these steps:

1. Turn off the controller.
2. Turn on the controller.
3. Within 3 seconds, press the on/off button (for controlling 1 zone) or the zone button 5 times (for multiple zones).
4. If the light blinks 5 times, all pairings have been successfully cleared.

The LED dimmer can also be used for traditional and halogen lighting.
