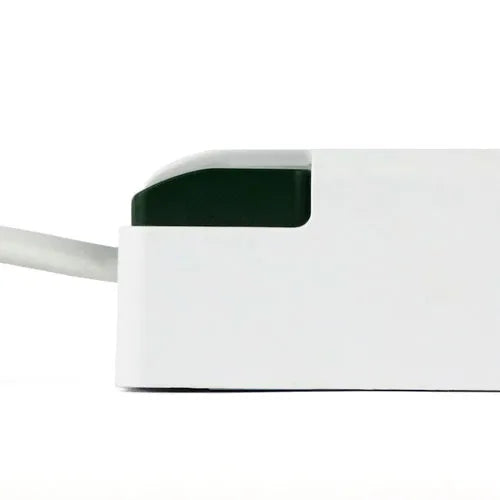

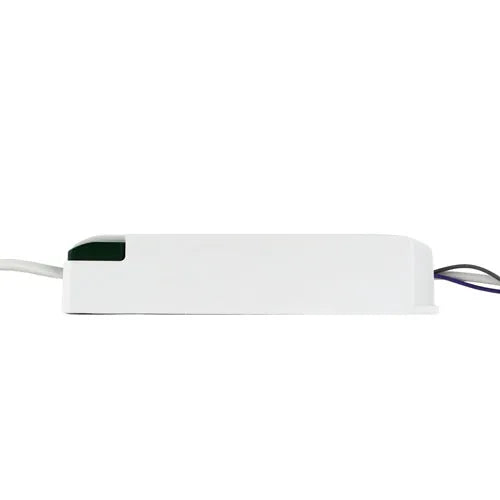

LED Driver dimmable 0-10V 34W 800mA / 38W 900mA / 44W 1060mA

In short

• 34W 800mA / 38W 900mA / 44W 1060mA
• Dimmable 0-10V
• No flickering for photography
• Easy connection

• Constant current
• DC connector
• 50,000 hours
• 2 Years warranty

0-10V Dimmable LED driver

This 0-10V dimmable LED driver is suitable for LED panels, among others. The driver must be connected to a 1-10V dimmer. You can also use this LED driver to make other types of LED lighting dimmable if the specifications match and the lamp has a DC connector.

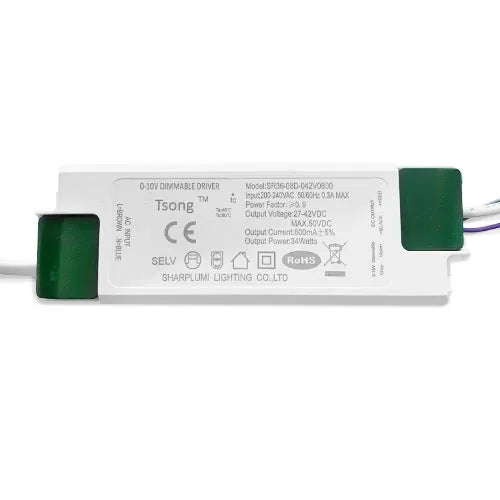

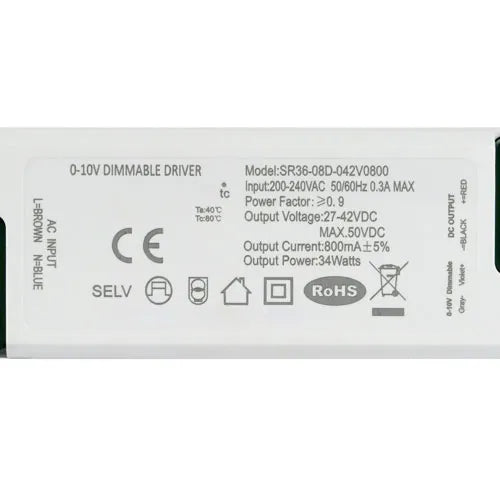

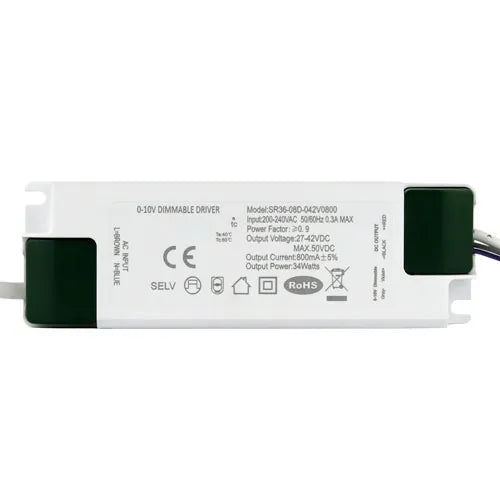

Dimmable LED driver 34W

This external LED driver has an output voltage of 800mA and is suitable for LED panels that have an output voltage of 700-800mA. You can also use this LED driver for other types of LED lighting.

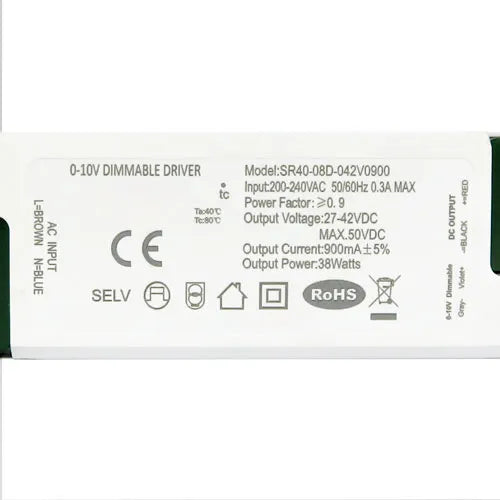

Dimmable LED driver 38W

This external LED driver has an output voltage of 900mA and is suitable for LED panels that have an output voltage of 850-900mA. You can also use this LED driver for other types of LED lighting.

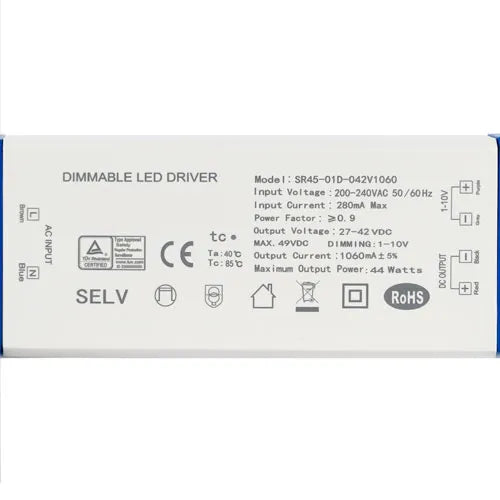

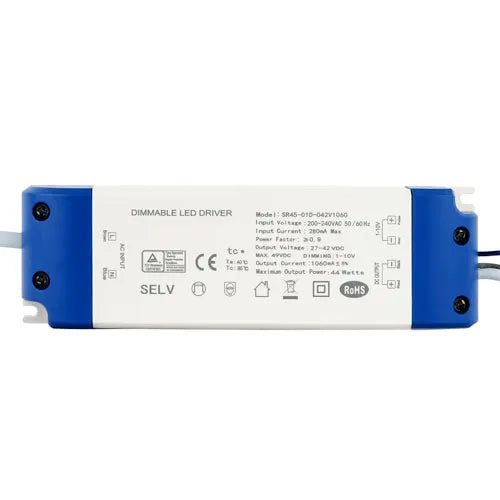

Dimmable LED driver 44W

This external LED driver has an output voltage of 1060mA and is suitable for LED panels that have an output voltage of 950-1050mA. You can also use this LED driver for other types of LED lighting.

Check the specifications of your lamp to see if it is (optionally) dimmable. The number of mA of the lamp and the driver must match. The number of mA of the LED driver can be slightly higher than that of the lighting.

Connection

This driver is easy to connect. Always ensure that you are working without power when connecting a driver.

This dimmable LED driver has 4 wires: one L and N wire, one + and - dim wire, and a DC connector.

1. The L and N wires are connected directly to the mains, which you can do safely and quickly with  terminal blocks . You use one for each wire, so you need 2 in this case.
2. The + and - wires are connected directly to your LED dimmer. Keep in mind that the wires almost always need to be extended; you can use simple extension wires for this. If you are extending, you will also need 2 Wago connectors for this.
3. Finally, click the DC connector onto the LED panel. Now the LED panel is fully dimmable.
