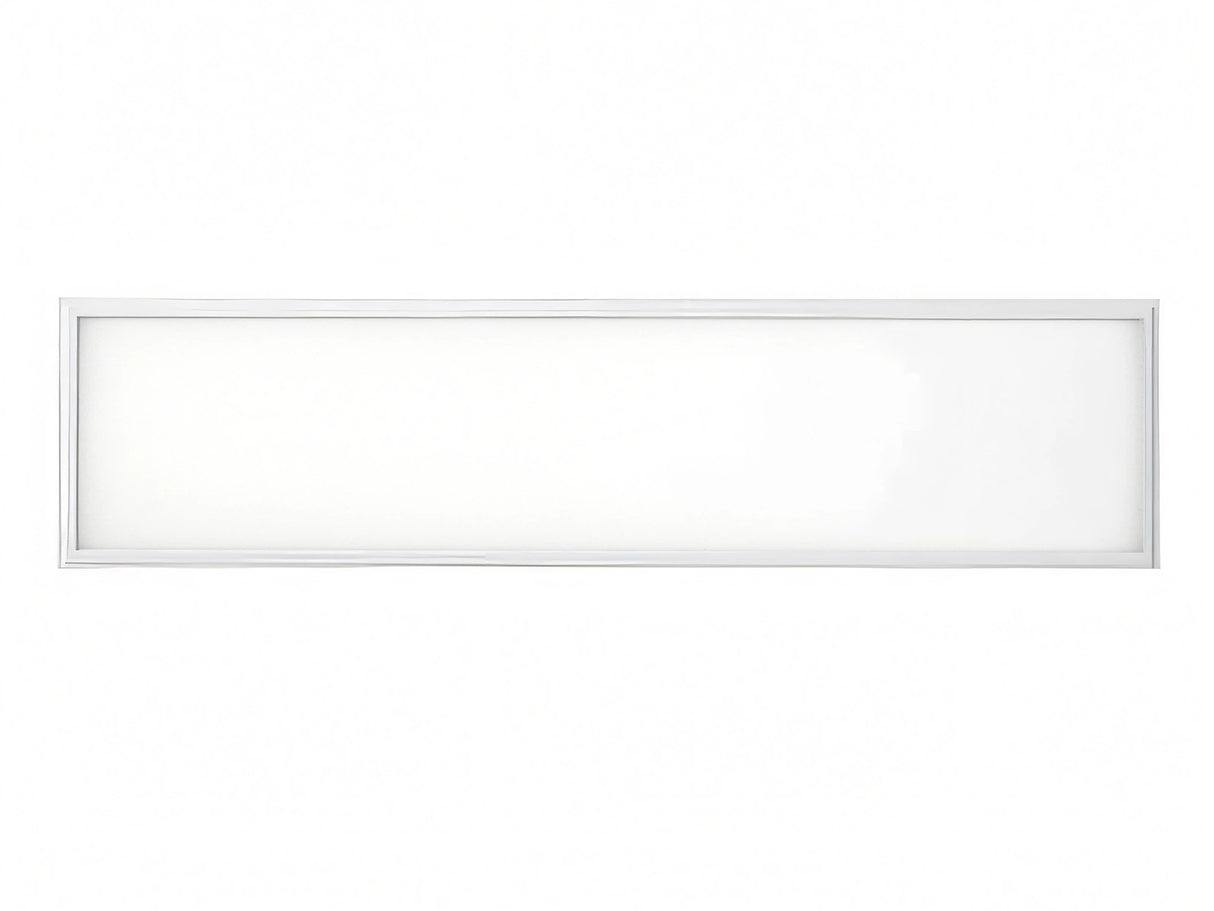

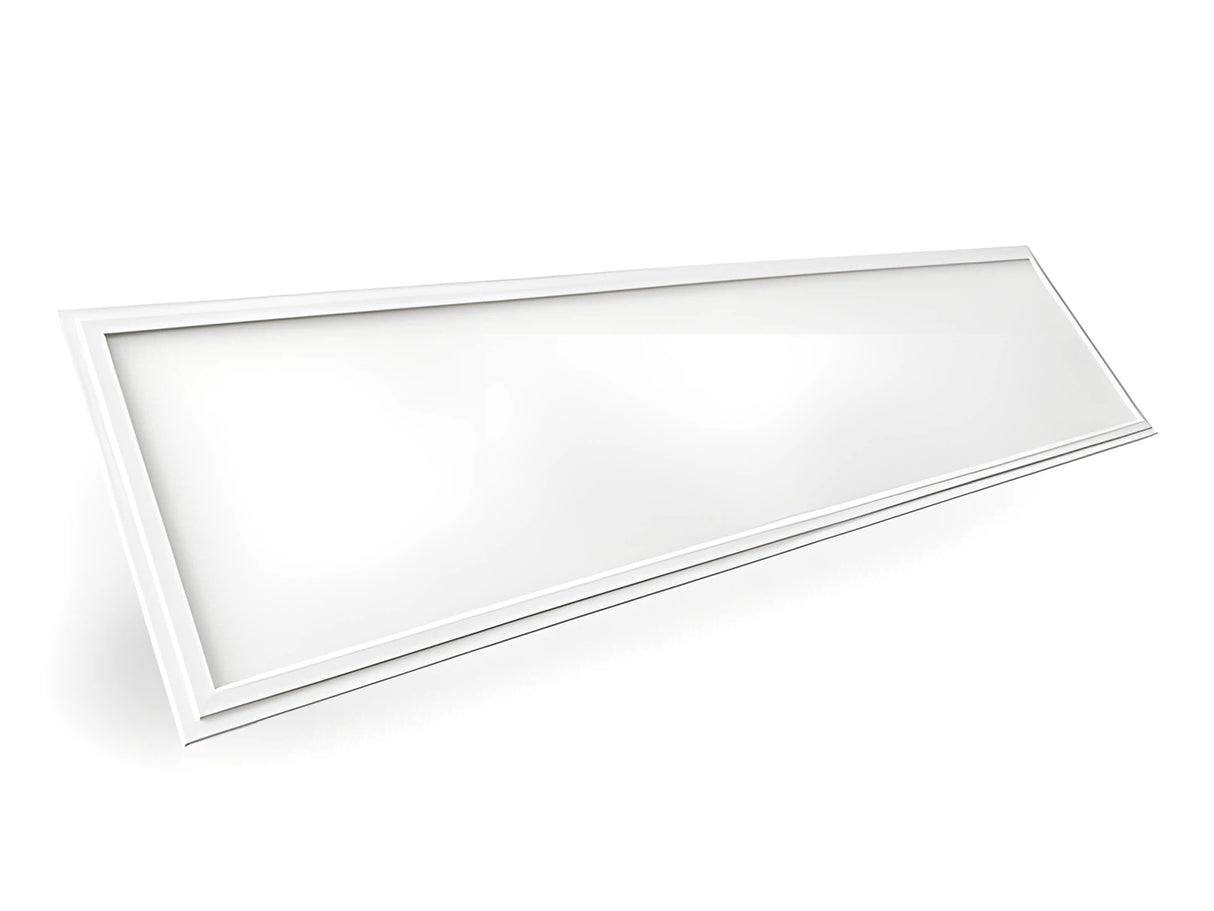

LED Panel 30x120cm UGR<19 28W 140lm/W

Professional LED Panel with Low Energy Consumption and Comfortable Lighting

This high-quality 30x120 cm LED panel combines low power usage with powerful, comfortable illumination. Consuming just 28W and producing 3920 lumens (140 lm/W), it’s the smart choice for those who want to save energy without compromising on lighting quality or visual comfort.

Main Features

• Up to 70% energy savings compared to traditional light panels
• Extremely low power consumption: only 28W
• 140 lumens per watt – highly efficient
• 3920 lumens total output
• UGR <19: minimal glare for better comfort
• Instant start-up, no flickering, no buzzing
• Average lifespan: 13.5 years (based on 10 hrs/day)
• Eco-friendly and lead-free
• 5-year warranty

Installation

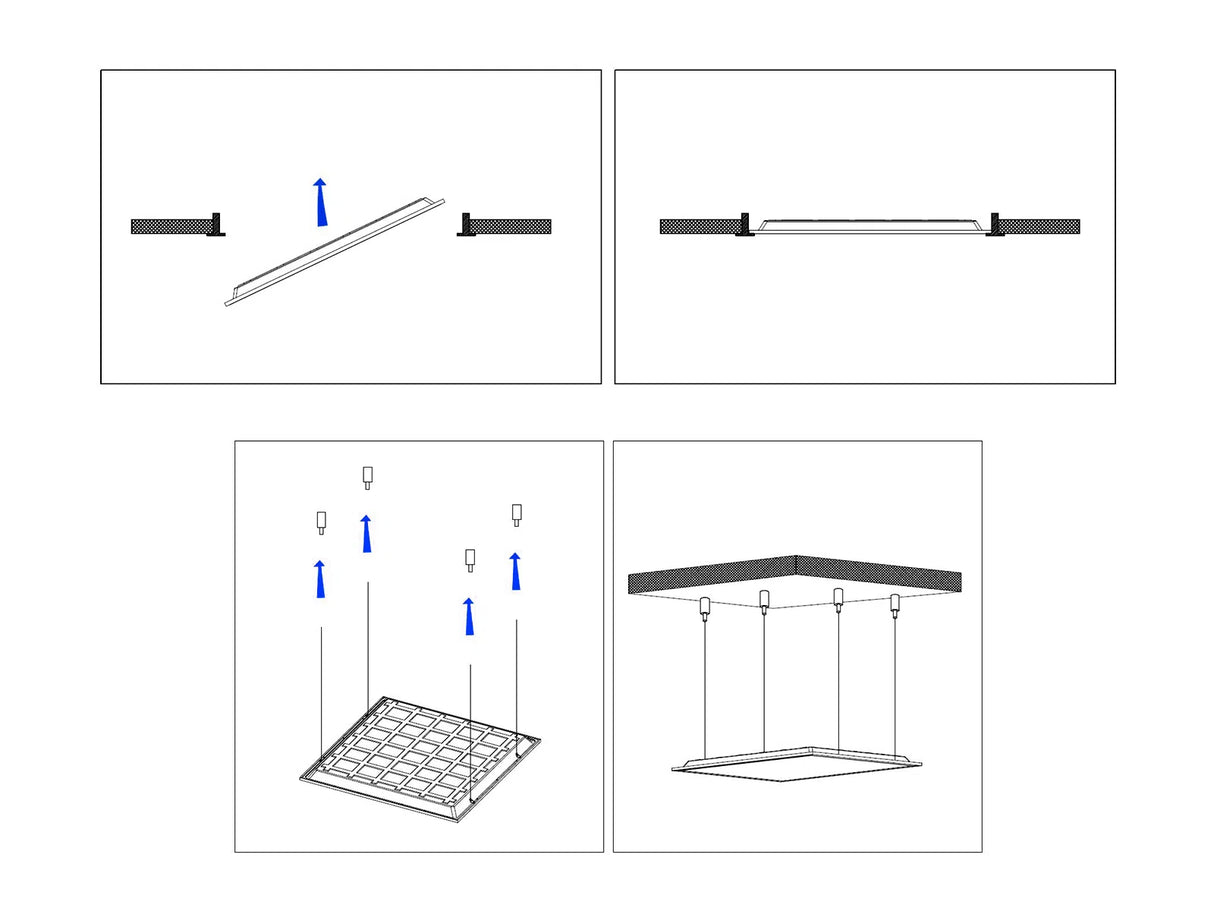

This LED panel fits perfectly into suspended ceilings with 30x120 cm tiles. It comes with a compatible LED driver that connects directly to mains power. Prefer plug-and-play? Simply add a power cable for connection to a socket outlet.

UGR <19: Glare-Free Comfort

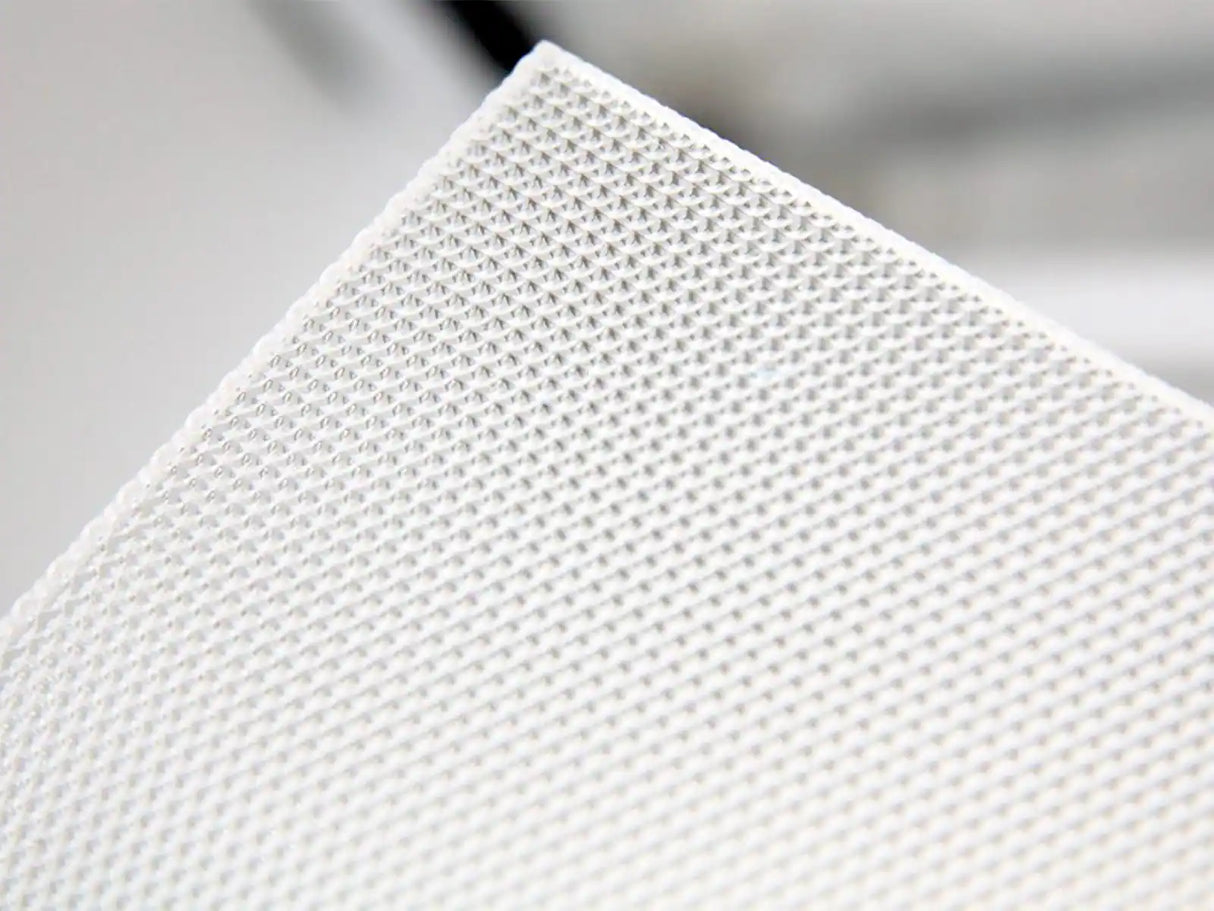

Equipped with a microprismatic diffuser, this panel distributes light evenly while reducing glare. Thanks to this design, it achieves a low Unified Glare Rating (UGR) of under 19 – meaning the light is easy on the eyes and ideal for extended use in work environments.

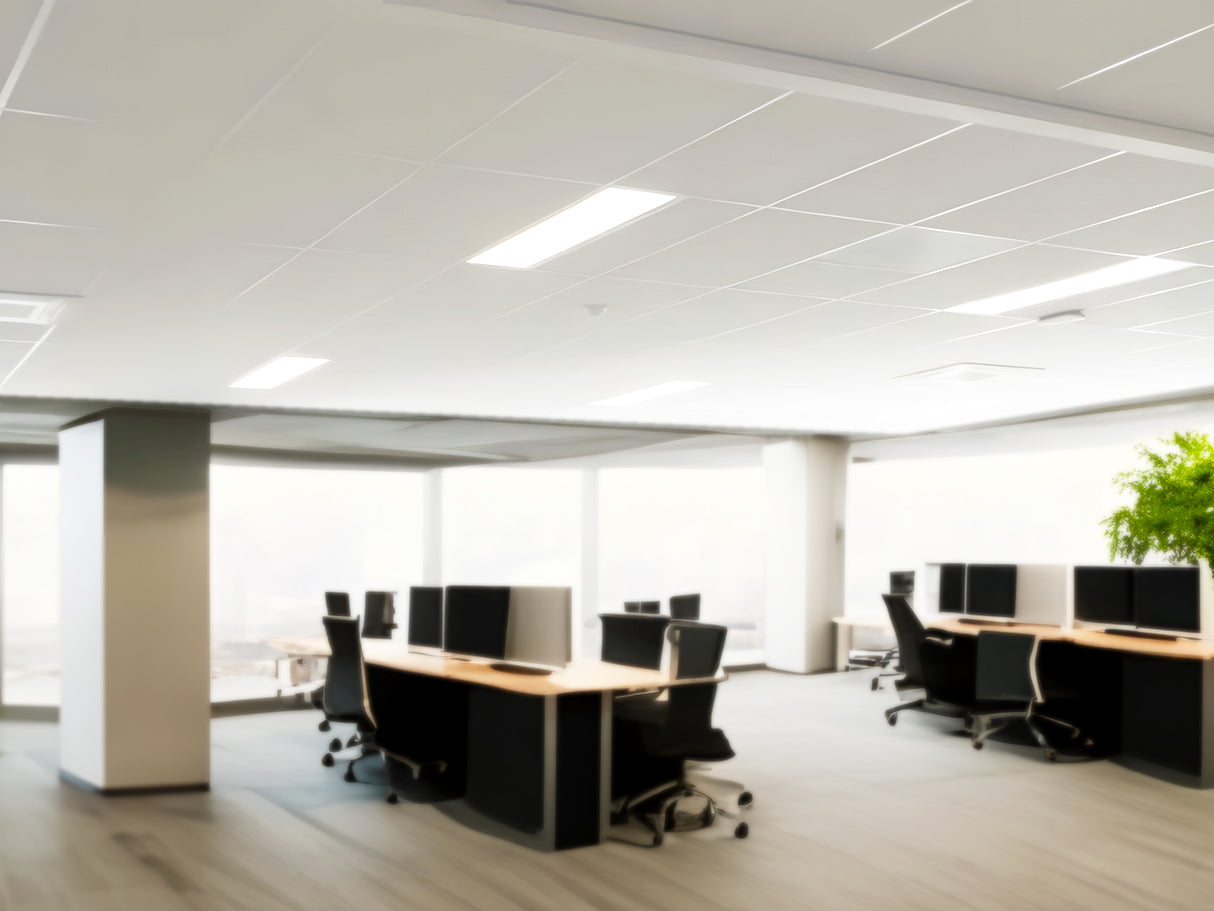

A UGR below 19 meets the standard for office and classroom lighting, supporting focus, well-being, and visual comfort. It also enhances the ambiance in public and commercial settings by providing a calm, professional lighting experience.

Too much glare or flickering light can cause:

• Headaches
• Fatigue
• Dry or itchy eyes
• Shortened attention span
• Increased stress or irritability

Save Energy and Reduce Costs

Despite using only 28W, this LED panel delivers an impressive 3920 lumens, resulting in a remarkable 140 lm/W efficiency. This saves up to 70% energy compared to fluorescent panels – good for your energy bill and the environment.

Lighting Coverage per m²

At a ceiling height of 2.7 metres, this panel illuminates approximately 6 m². For a 60 m² space, around 10 panels provide balanced, comfortable lighting.

Optional Dimming

Want adjustable brightness? This panel is dimmable with a compatible 1–10V LED driver and dimmer. One dimmer can control up to 17 panels simultaneously. Both the dimmer and dimmable driver are available separately.

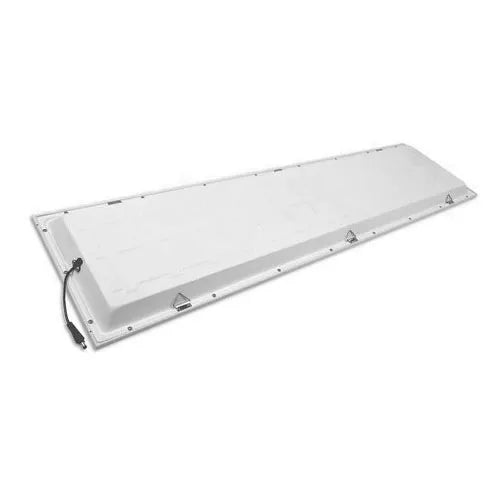

Back-Lit Design

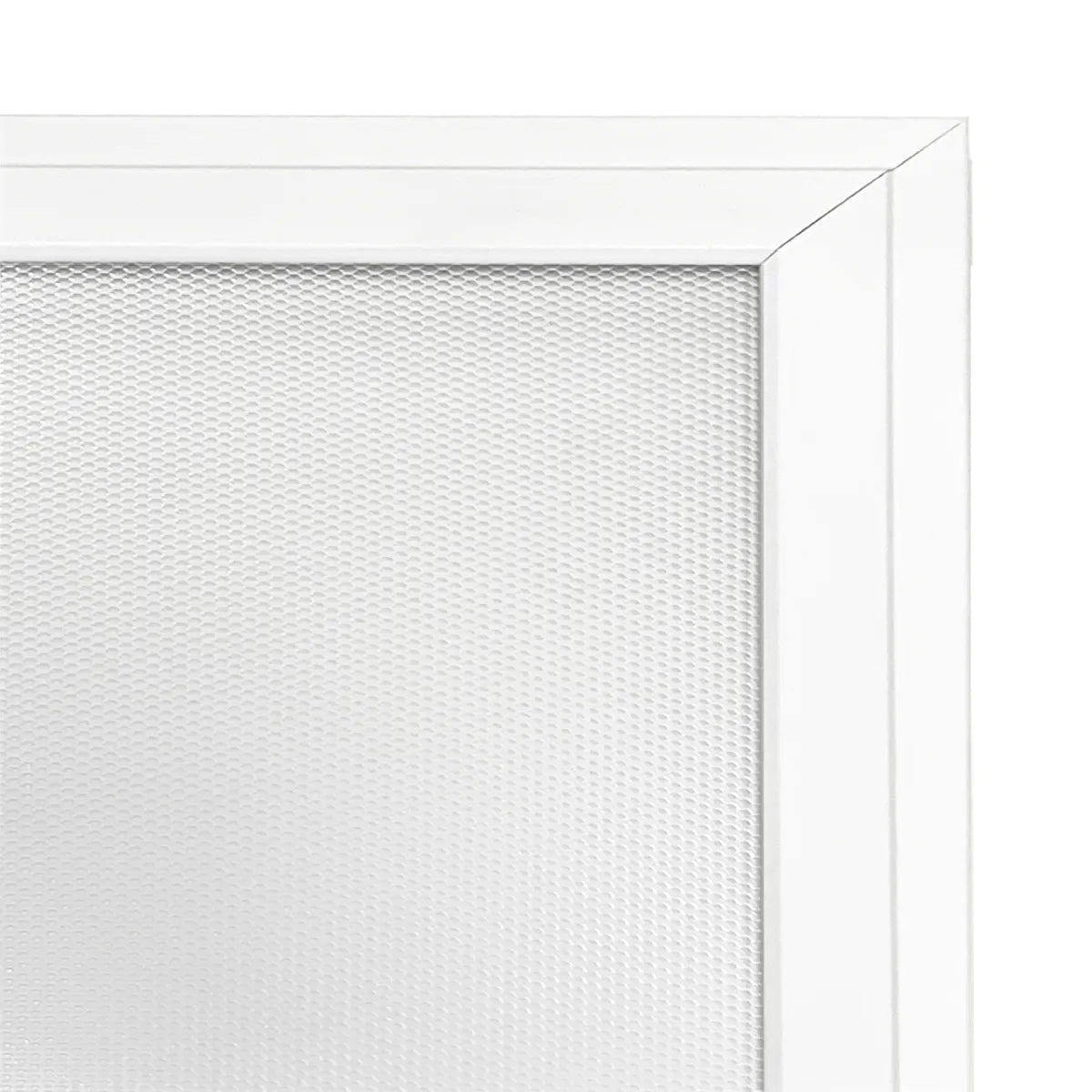

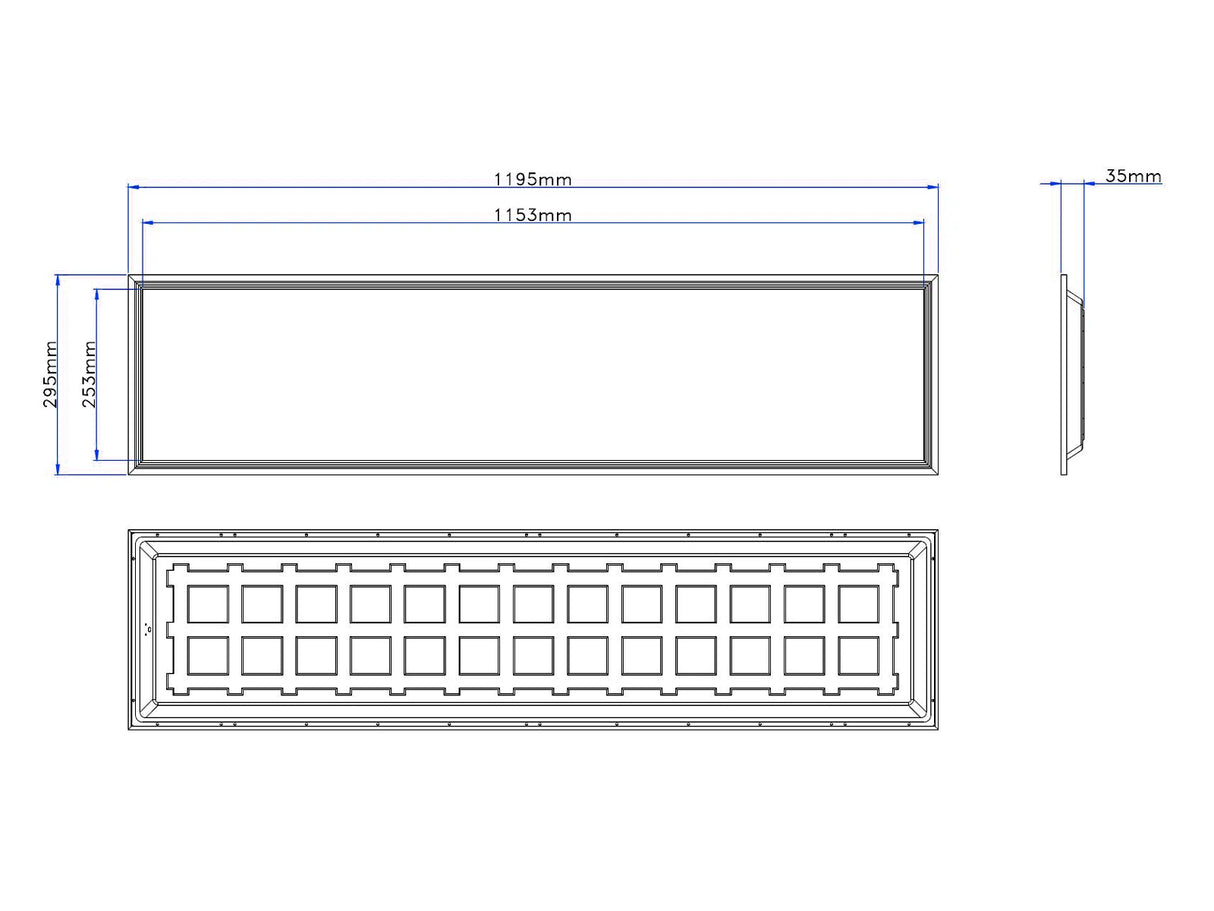

With back-mounted LEDs, this panel provides uniform light distribution with no dark spots. It is 35 mm thick, with a durable 10 mm aluminium frame and lightweight plastic back – ideal for fast and easy installation.

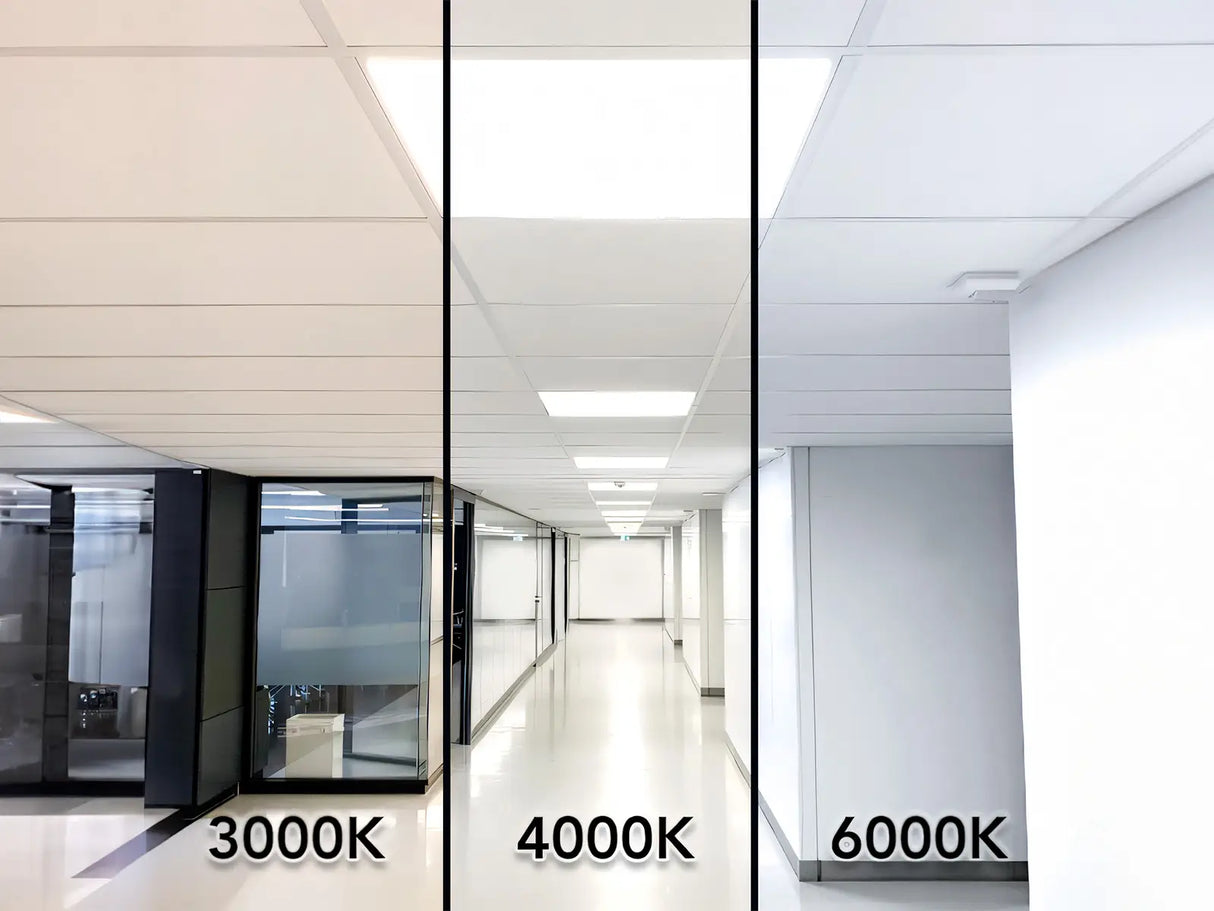

Choose Your Colour Temperature

Select the right lighting for your space:

• 3000K: Warm white – ideal for relaxed atmospheres like living rooms, waiting areas, or restaurants
• 4000K: Neutral white – best for offices, classrooms, shops, and corridors
• 6000K: Cool white – suited for workshops, laboratories, or garages that require maximum brightness
