Dimmable LED Driver Triac 28W 700mA

1 5
Energy-efficient & durable Constant current DC connector (male) Suitable for e.g. LED Panels Triac dimmable
€1995
Tax included
Power
Grotere aantallen nodig? Vraag eenvoudig een offerte aan.

Description

In short

  • 28W 700mA
  • Triac Dimmable
  • No flickering
  • Easy connection
  • Constant current
  • DC connector
  • 50,000 hours
  • 2 Years warranty

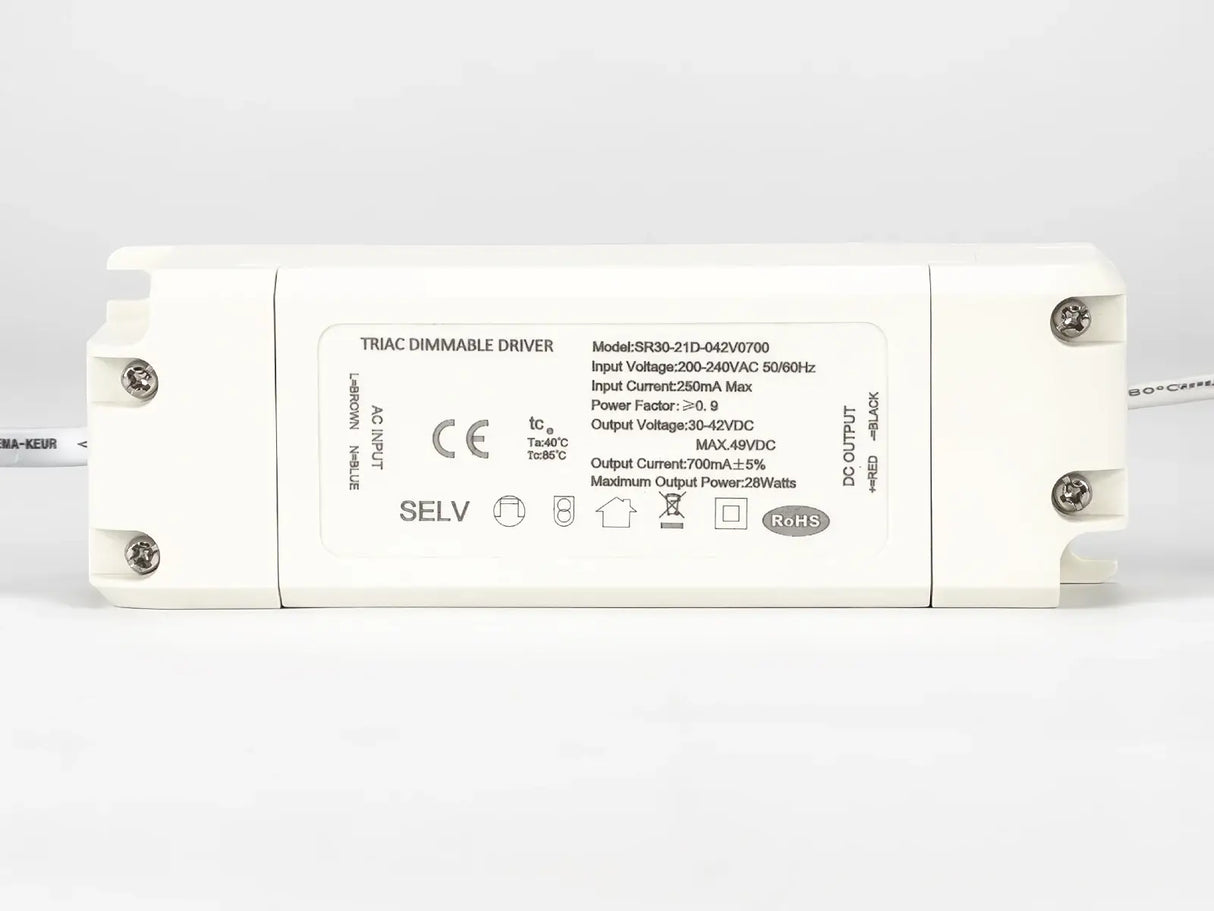

    Triac Dimmable LED driver

    This 700mA triac dimmable LED driver is suitable for LED panels, among others. The driver must be connected to an LED dimmer. You can also use this LED driver to make other types of LED lighting dimmable if the specifications match and the lamp has a DC connection.

    Connection

    This driver is easy to connect. Always ensure that you are working without power when connecting a driver.

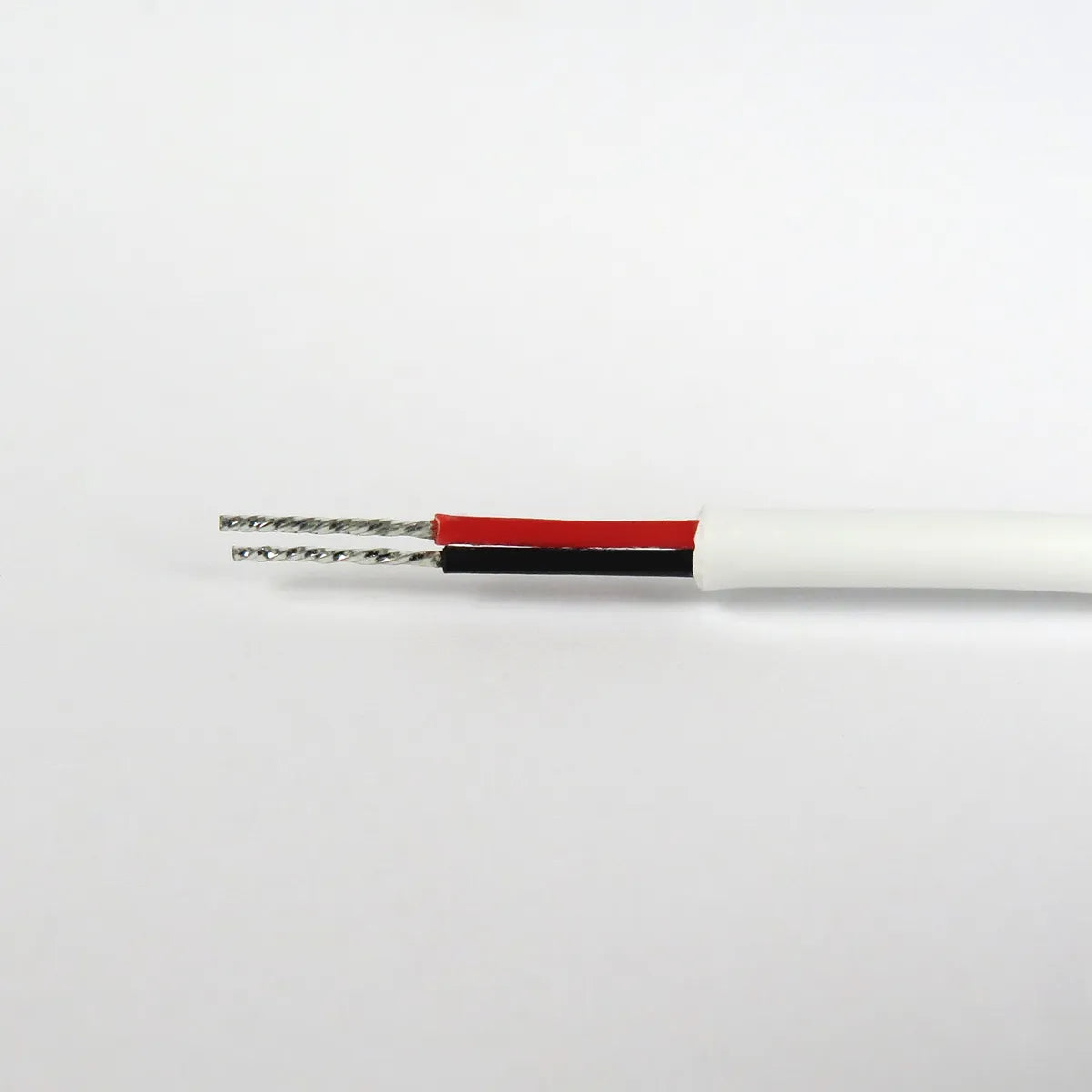

    This dimmable LED driver has 3 wires: one L and N wire and a DC connector.

    1. The L and N wires are connected directly to the mains, which you can safely and quickly do with  terminal blocks/junction boxes . For each wire, you use 1, so in this case, you need 2.

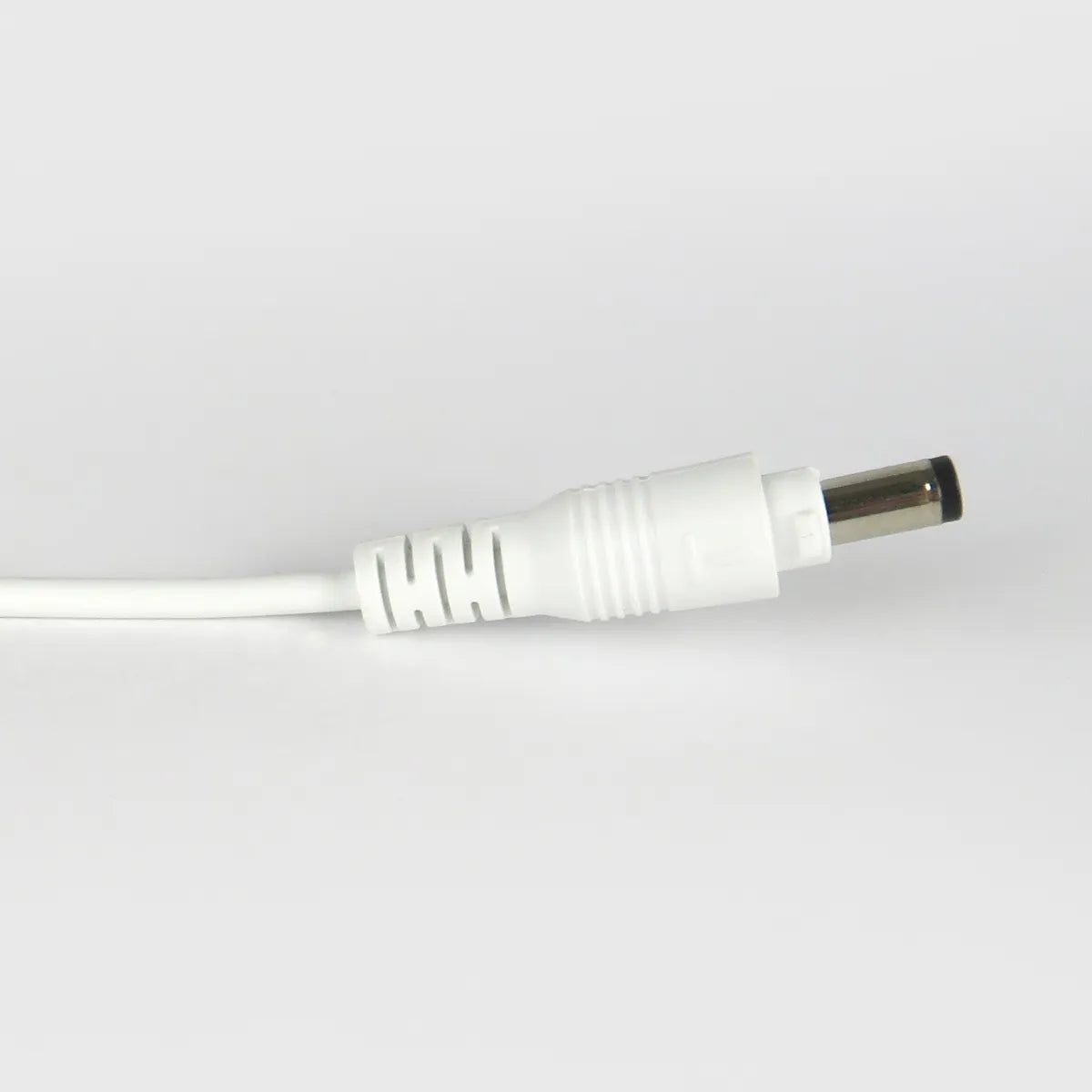

    2. Click the DC connector onto the lamp.

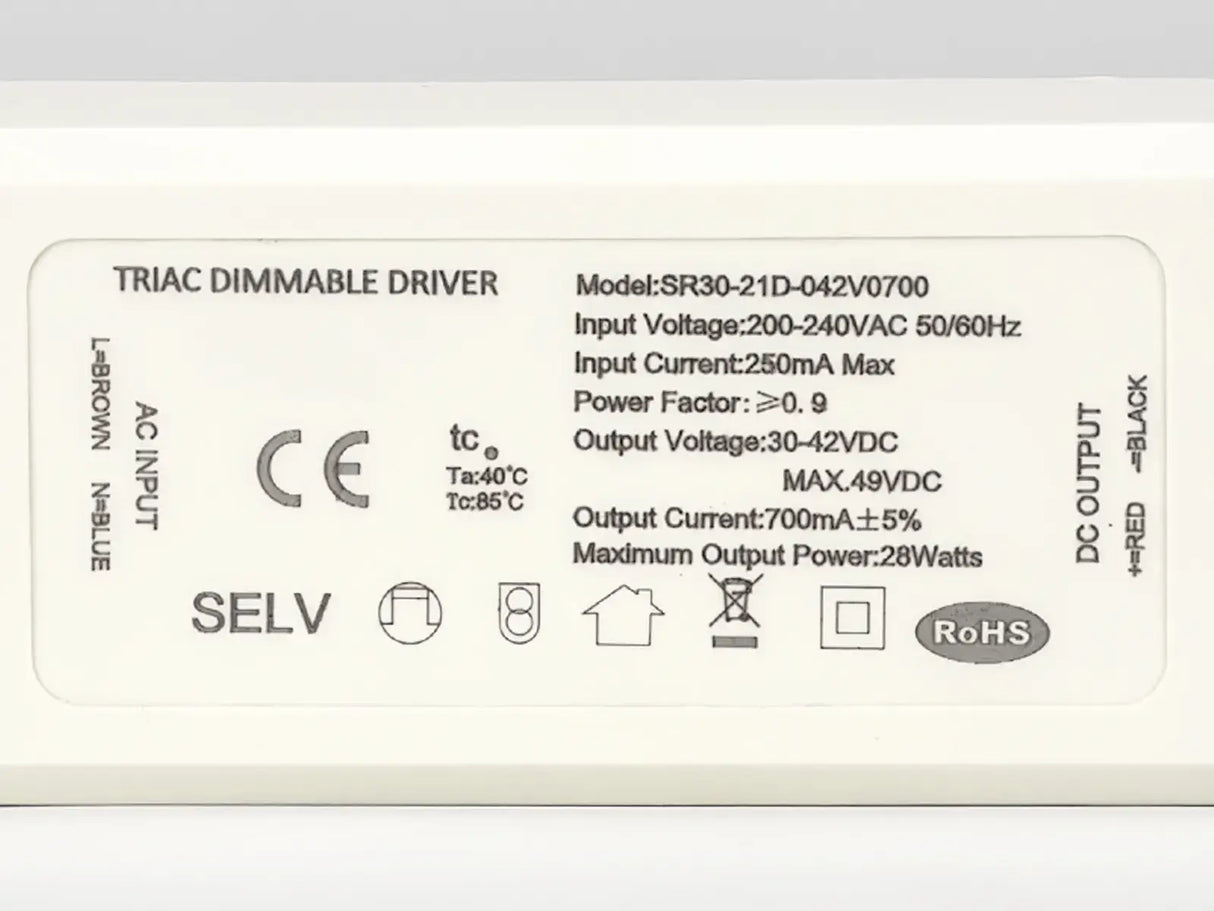

    Specifications
    • EAN
      7423338642637
    • Wattage
      28W
    • Dimmable
      Yes
    • Dim technology
      Triac
    • Power Factor
      0.9
    • Material
      PC
    • Rated lifespan
      50
    • Working temperature
      -40°C / +85°C
    • Input current
      200-240V AC
    • Certifications
      CE - ENEC - TÜV - RoHS
