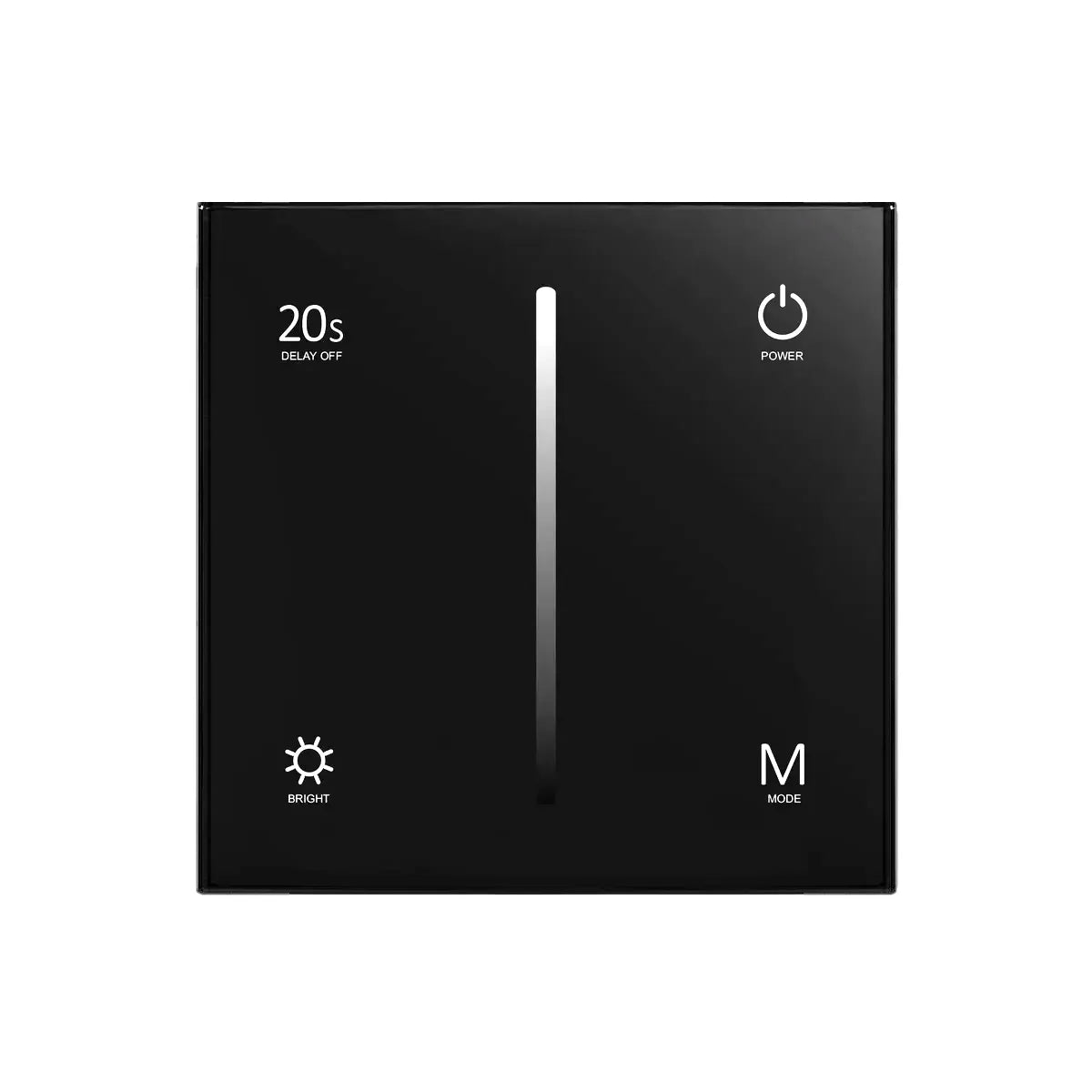

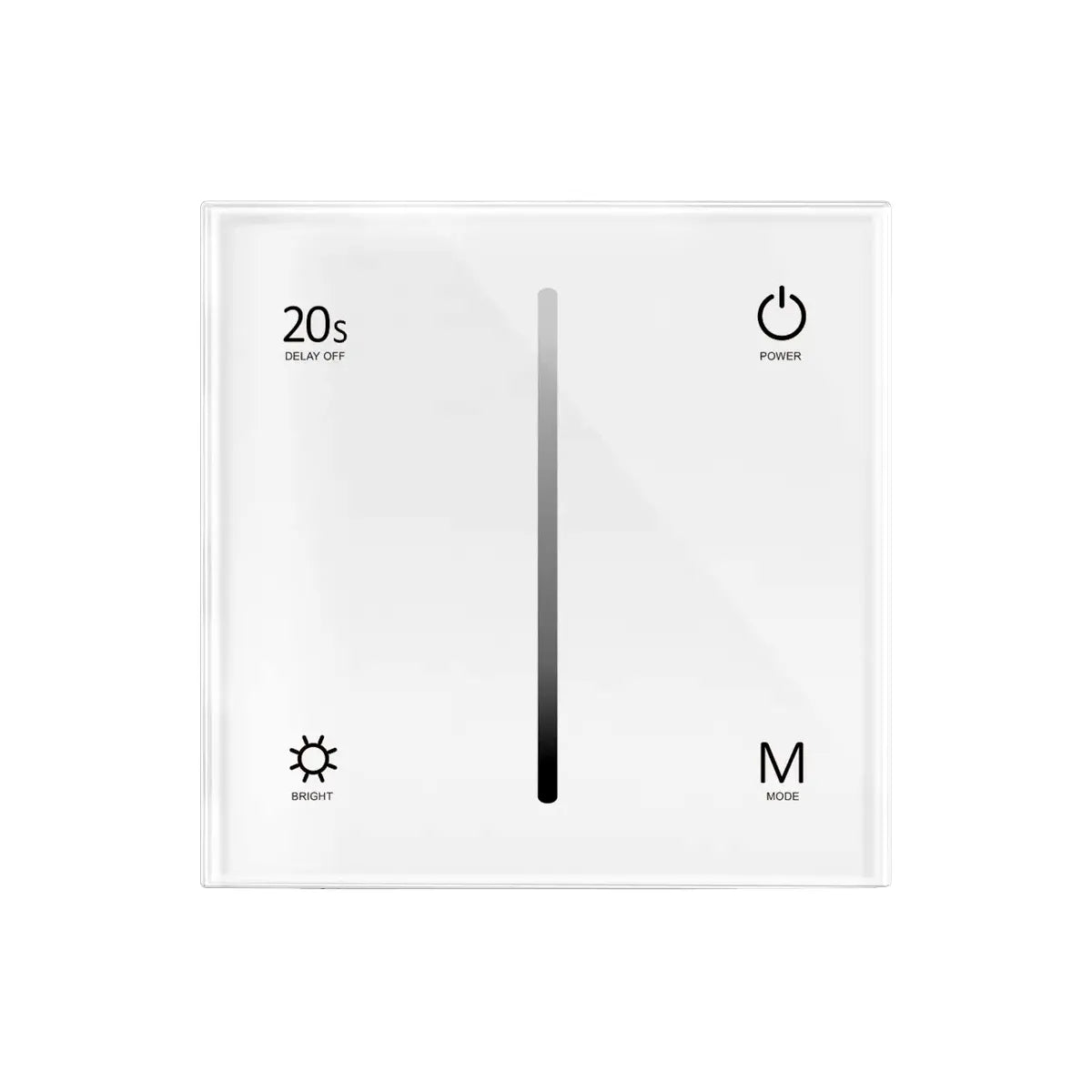

LED Dimmer 200W Triac with glass touchscreen with RF2.4G

In short

• Suitable for LED lighting or halogen
• 256 levels smooth dimming without flicker
• 86x86x33 mm (lxbxh) - Built-in dimensions
• Touchscreen cover plate: Scratch-resistant crystal glass
• Phase-cut or trailing-edge dimming via dipswitch
• Compatibility with RF 2.4G dimming remote control or wifi relay
• Protected against overheating & overload
• Dimming range: 0 - 100%
• RF control range: 30m
• Environmentally friendly and recyclable materials
• 2 Years warranty

Dimming LED lighting

This LED dimmer is made of high quality and provides protection against voltage spikes and interference signals. This ensures optimal dimming capability and light stability.

Operation of the LED dimmer

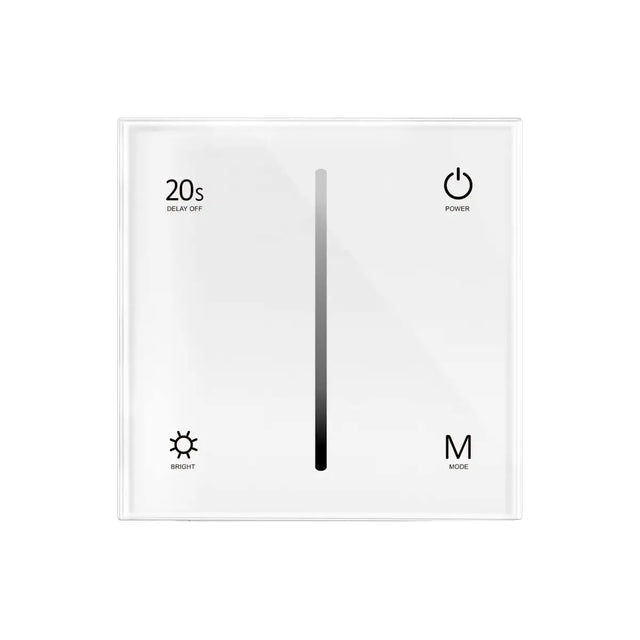

The dimmer features a touch glass panel with an ultra-sensitive touch slider and backlighting. With the slider, you can gradually dim or brighten the lighting up to 100%. The panel is made of strong glass and has a modern appearance.

The dimmer is equipped with 256 levels of smooth dimming without flicker. This means you can adjust the lighting very precisely. You can use the dimmer to create a cozy atmosphere or to adjust the lighting to suit the occasion.

Compatible with RF 2.4G dim remote control

The dimmer is compatible with RF 2.4G dim remote control or Wi-Fi relay. This allows you to control the dimmer from another room.

With the RF 2.4G dim remote control, you can wirelessly operate the dimmer from any room in your home or business. The remote control has a range of 30 meters, allowing you to control the lighting even from the garden or balcony.

With the Wi-Fi relay, you can control the dimmer with your smartphone or tablet via a smart lighting app. You can then operate the lighting remotely, even when you are not at home.

These features make the dimmer very flexible and user-friendly. You can control the lighting anytime and anywhere, allowing you to always create the perfect atmosphere.

Overheating and overload protection

The dimmer is equipped with overheating/overload protection. This means that the dimmer automatically shuts off if it gets too hot or if too much current is drawn.

This security offers the following benefits:

• Safety: The dimmer prevents overheating or short circuits. This protects your lighting and your home from damage.
• Reliability: The dimmer is less sensitive to malfunctions, making it more reliable.
• Convenience: You don't have to worry about overheating or overload. The dimmer ensures it operates safely on its own.

LED dimmer for hotel and cross-switching

Additionally, the LED dimmer is suitable for switching (hotel switching) and cross-switching. With the switching function, you can dim an LED lamp from different locations in a house or office. For example, you can connect multiple of these LED dimmers to one LED lamp.
The LED dimmer also features a trim screw. This ensures that low wattage LED lamps can be dimmed perfectly.

Installing the LED touch dimmer

To connect your Touch Dimmer Switch to the devices, follow these steps:

1. Turn off the controller.
2. Turn on the controller.
3. Within 3 seconds, press the on/off button (to control 1 zone) or the zone button 3 times (for multiple zones).
4. If the light blinks 3 times, the pairing was successful.

To disconnect the controller, follow these steps:

1. Turn off the controller.
2. Turn on the controller.
3. Within 3 seconds, press the on/off button (to control 1 zone) or the zone button 5 times (for multiple zones).
4. If the light blinks 5 times, all pairings have been successfully cleared.

The LED dimmer can also be used for traditional and halogen lighting.
