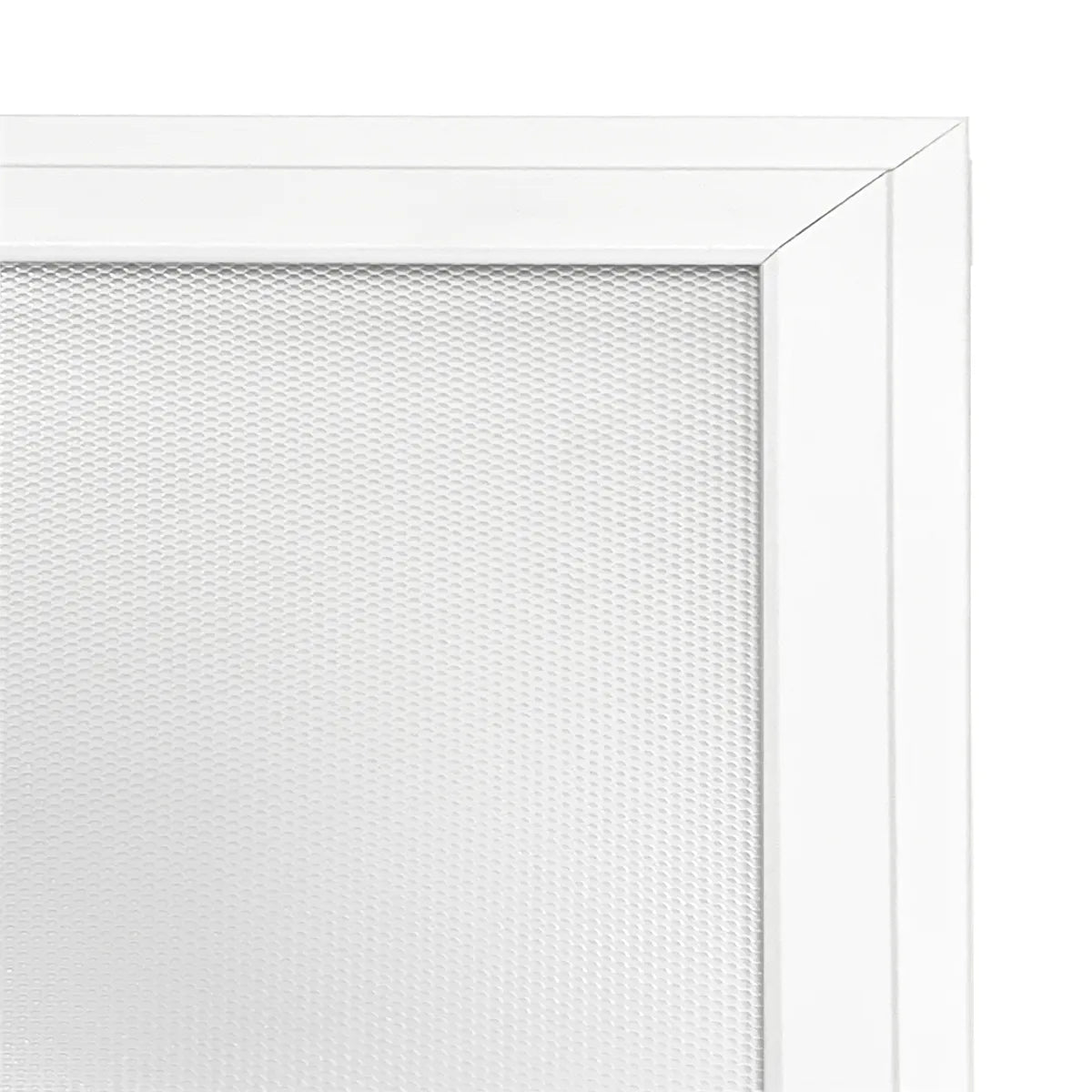

LED Panel 62x62cm UGR<19 28W 140lm/W

Efficient LED lighting with balanced comfort and brightness

With only 28W consumption and a light output of 3920 lumen (140 lm/W), this LED panel offers exceptionally energy-efficient and glare-free light. Perfect for those who want to save without compromising on quality or comfort – ideal for suspended ceilings in offices, shops, or healthcare facilities.

Main features

• Up to 70% energy saving compared to traditional light panels
• Extremely low consumption: only 28W
• 140 lumens per watt – very high efficiency
• 3920 lumen light output
• UGR <19: minimal glare
• Instant start, no flicker and no buzzing
• Suitable for suspended ceilings (62x62 cm)
• Average lifespan of 13.5 years (at 10 hours per day)
• Environmentally friendly and lead-free
• 5 years warranty

Installation

This LED panel is suitable for installation in a suspended ceiling with 62x62 cm tiles. A matching LED driver is included as standard and connects directly to the mains. Prefer to use a plug? Then use a power cord to connect the panel to a socket.

UGR <19: comfortable light without glare

Thanks to the microprismatic shielding, this panel has a low UGR value (<19), meaning the light is not disturbing or uncomfortable for the eyes. This makes the panel ideal for spaces where focused work is done, such as offices and classrooms. The smart light distribution prevents glare, flicker, and restless light.

Lighting with too much glare or light disturbance can cause complaints such as:

• Headaches
• Fatigue
• Irritated or itchy eyes
• Short concentration span
• Irritated or tense mood

Go durable and save

With a consumption of only 28W and a light output of 3920 lumen, this panel is extremely energy-efficient. This results in savings of up to 70% compared to traditional fluorescent lighting. Less power consumption means lower energy costs and a smaller ecological footprint.

Lighting per m²

At a ceiling height of approximately 2.7 meters, this panel illuminates about 6 m². For a 60 m² room, on average 10 panels are needed for an even and pleasant light distribution.

Optional dimmable

This panel is optionally dimmable with a suitable LED driver and a 1–10V LED dimmer. This allows you to adjust the light intensity as desired. One dimmer can control up to 17 panels simultaneously. The driver and dimmer are sold separately.

Back-lit design

In back-lit LED panels, the LEDs are placed on the rear side. This ensures uniform light distribution without shadow spots. The panel is 35 mm thick, with a sturdy aluminium frame (10 mm) and a lightweight plastic back – ideal for easy installation.

Light colour

Choose the colour temperature that suits your space:

• 3000K: warm white – suitable for waiting areas, restaurants, or general spaces
• 4000K: neutral white – ideal for offices, shops, and classrooms
• 6000K: cool white – perfect for workshops, laboratories, and healthcare environments
