LED Driver Basic 36W 800mA / 40W 900mA / 45W 1050mA

In brief

• 36W 800mA / 40W 900mA / 45W 1050mA
• Easy connection

• Constant current
• DC connector
• 50,000 hours
• 2 Years warranty

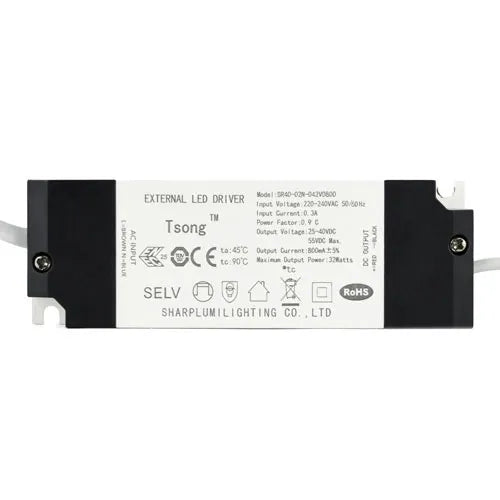

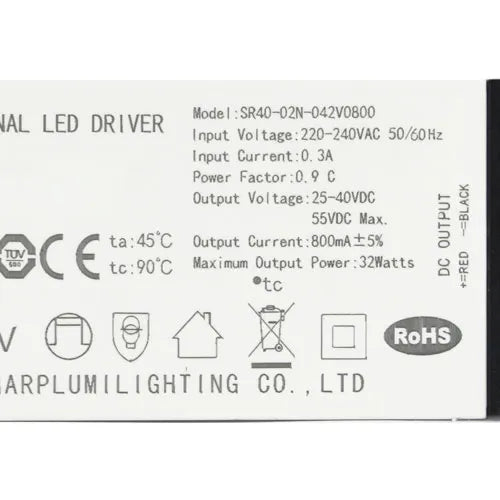

LED driver 36W

This external LED driver has an output voltage of 800mA and is suitable for LED panels that have a 700-800mA output voltage. You can also use this LED driver for other types of LED lighting.

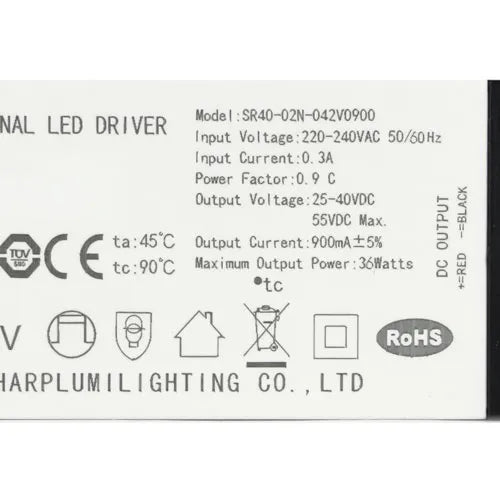

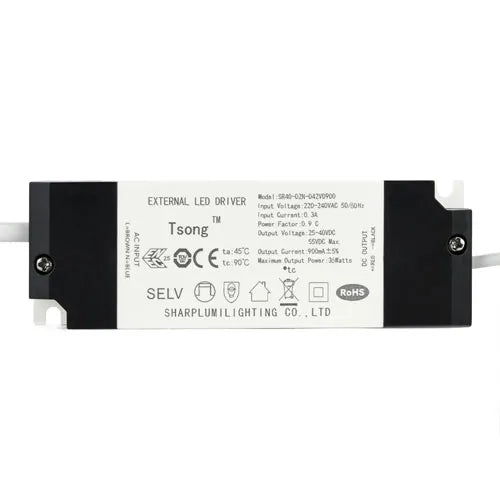

LED driver 40W

This external LED driver has an output voltage of 900mA and is suitable for LED panels that have an 850-900mA output voltage. You can also use this LED driver for other types of LED lighting.

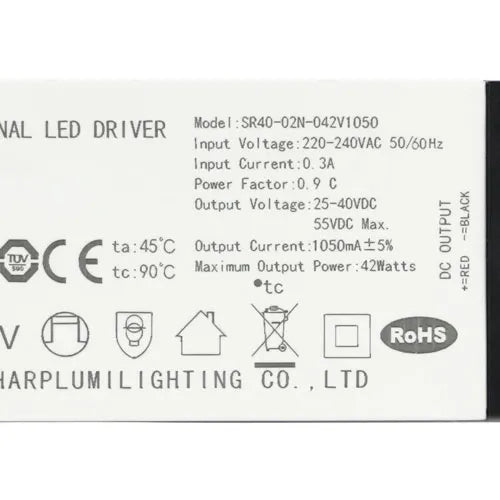

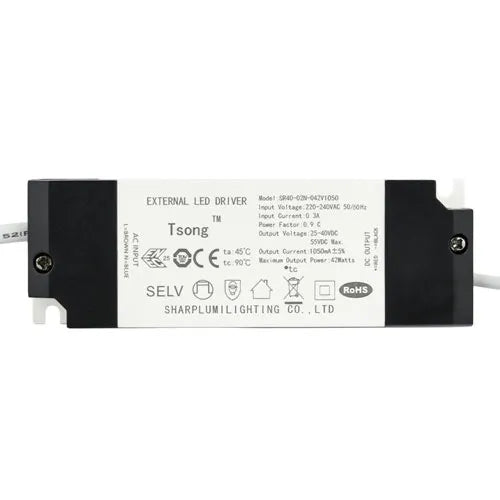

LED driver 45W

This external LED driver has an output voltage of 1050mA and is suitable for LED panels that have a 950-1050mA output voltage. You can also use this LED driver for other types of LED lighting.

Always check the specifications of your lamp to see if the mA matches between the lamp and the driver. The mA of the LED driver may be slightly higher than that of the lighting.

Connecting the LED driver

This driver is easy to connect to, for example, an LED panel. Always ensure that you are working without power when connecting a driver.

This driver has 3 wires: one L and N wire, and a DC connector.

1. The L and N wires are connected directly to the mains, which you can do safely and quickly with terminal blocks/junction boxes. You need one for each wire, so in this case, you need 2.
2. Finally, click the DC connector onto the LED panel.
