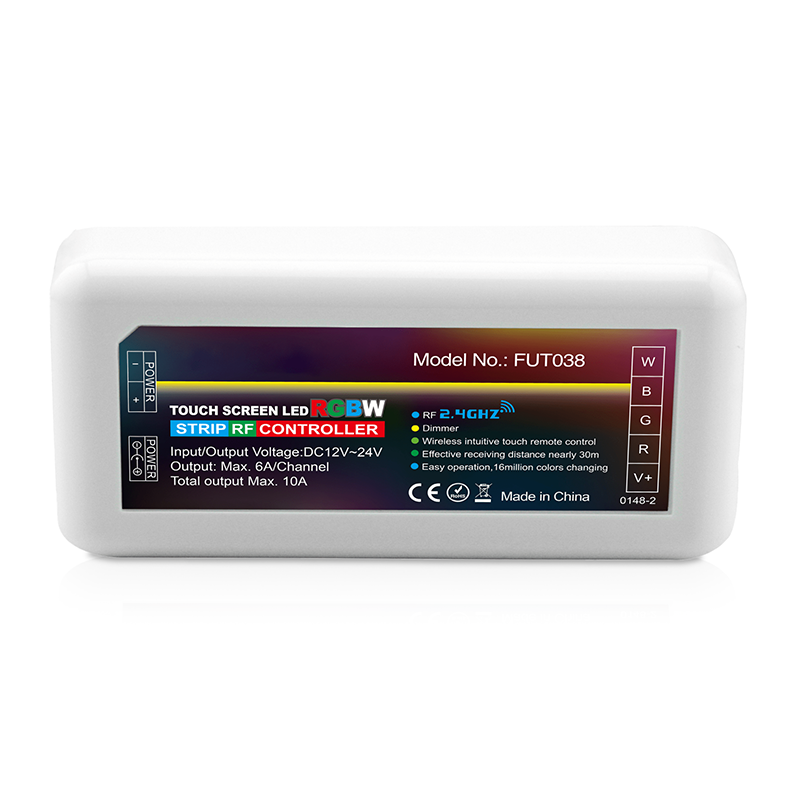

Mi-Light LED Strip Controller 12-24V | RGBW

Mi-Light RGBW LED strip controller for 12V and 24V color lighting

For wireless control of RGBW LED strips, use this controller on 12V and 24V. The controller is suitable for RGB+White strips and has a maximum load of 240W.

The controller is supplied without remote control. For operation, use a suitable RGBW 4-zone remote control or a suitable WiFi module for app control.

Main features of this RGBW controller

• RGBW control suitable for LED strips with red, green, blue and white channel
• 12-24V DC input and output for low-voltage LED strip installations
• Maximum 240W suitable within the specified load limit
• Dimmable output brightness and color settings adjustable via suitable controls
• Compact size housing of 85 x 45 x 22.5 mm
• 2-year warranty

Where to use this RGBW LED strip controller

This controller is used with RGBW LED strips in living spaces, hospitality, shops, showrooms, counters and other applications where color and white light need to be controlled separately.

It is also suitable for expanding existing RGBW installations with extra LED strips or additional zones.

Which control is needed

Remote control: a suitable RGBW 4-zone remote control is needed for direct operation. This allows zones to be controlled separately when the installation is set up for this.

App control: with a suitable WiFi module, the lighting can be controlled via iOS or Android.

Installation and connection

Connect the controller between a 12V or 24V LED power supply and a suitable RGBW LED strip. Check the connection order of red, green, blue, white and the common connection in advance.

For separate rooms or zones, use one controller per room or zone. Keep the total load within a maximum of 240W.

Why choose this RGBW controller

This controller is suitable when RGBW LED strips need to be controlled or expanded with wireless control, zone function and app option via an additional WiFi module.
