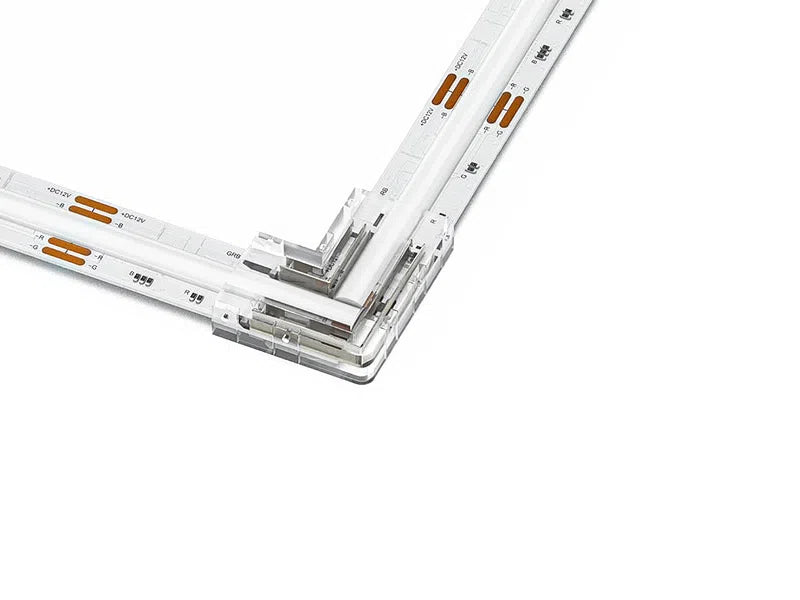

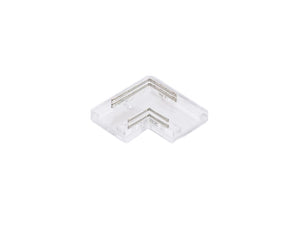

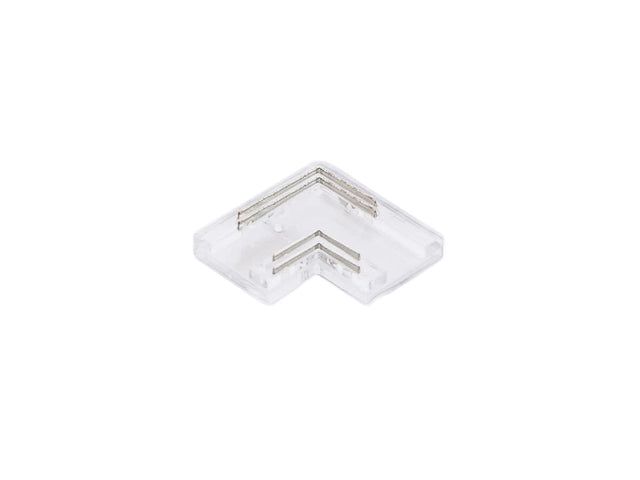

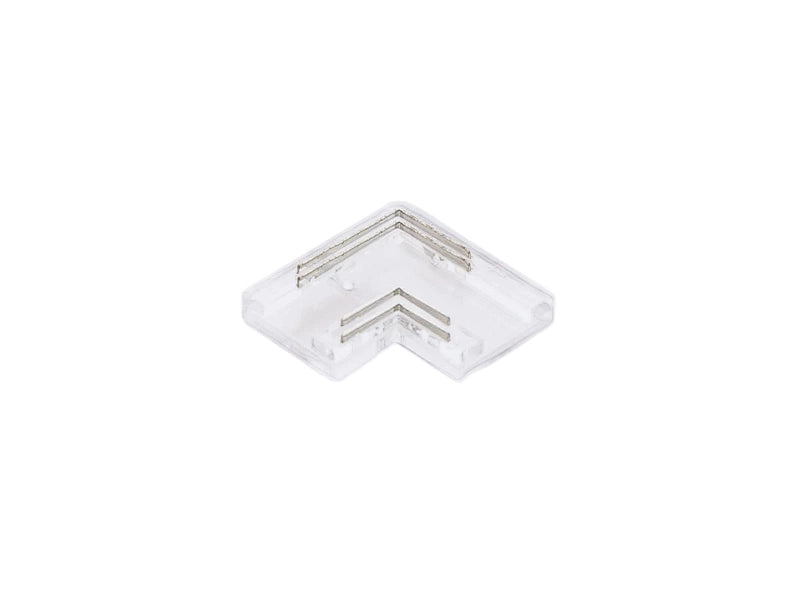

LED Strip COB corner connector for RGB | 10mm

LED Strip COB RGB Corner Connector 90° | 10mm | Solder-free connector

With this COB RGB LED strip corner connector (90 degrees), you can easily create clean corners in your 10mm RGB COB LED strip without soldering. This connector is specifically designed for dotless RGB COB LED strips and ensures a neat, reliable connection in corners of furniture, coves and profiles. Ideal for installations where flexibility and a professional finish are important.

Main features

• Suitable for 10mm RGB COB LED strips
• 90 degree corner connector for clean angles
• Easy installation using mechanical clamp contacts
• Reliable RGB connection via metal contact pins
• Compact size of 3.5 x 19 x 19 mm
• IP20 suitable for dry indoor areas
• Perfect for custom projects and extensions

How this RGB COB corner connector works

The connector uses fixed metal contact pins that press directly onto the copper tracks of the RGB COB LED strip. This creates a stable electrical connection without soldering.

1. Insert the 10mm RGB COB LED strip fully into the connector.
2. Make sure the strip is straight and correctly positioned.
3. Carefully press the metal pins down using pliers or a flat tool.
4. The strip is now securely fixed and forms a clean 90 degree corner.

This method ensures a reliable connection, even when the strip is installed in a profile or under slight tension.

Versatile use in RGB COB installations

This corner connector is an essential component when building flexible RGB COB light lines. It can be used for:

• Corners in furniture such as cabinets and TV units
• Cove lighting with clean inner corners
• Right-angle bends in aluminum LED profiles
• RGB light lines along walls and ceilings

Combined with straight connectors, T-splitters and power connectors, you can easily build complete custom RGB COB installations.

Compact design for a clean finish

Thanks to its compact height of just 3.5 mm, this connector fits easily into most LED profiles and coves. This keeps the light line clean and discreet, without visible interruptions.

Important notes

• Only suitable for 10mm RGB COB LED strips
• Not suitable for standard RGB SMD LED strips
• Preferably use pliers for optimal fixation
• Always check correct positioning before pressing down

With this COB RGB LED strip 90 degree corner connector, you can create professional, clean and expandable RGB lighting installations without soldering.
