LED Strip COB RGB Connector with Cable | 10mm

LED Strip COB RGB Connector with Cable | 10mm | 4-Pin Connection for RGB Controllers

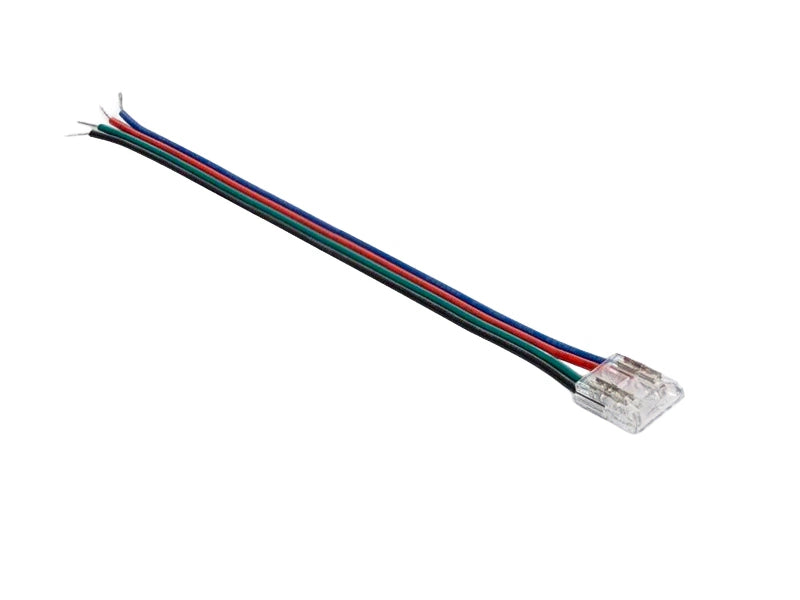

With this COB RGB LED strip connector with cable, you can easily connect a 10mm RGB COB LED strip to an RGB controller, such as a WiFi controller, RF remote control, or DMX controller. The connector features a 4-pin RGB cable of 15 cm and allows for a quick, neat connection without loose wire assembly. Ideal for situations where flexibility, range, and a professional finish are important.

Main Features

• Suitable for 10mm RGB COB LED strips
• 4-pin RGB cable (±15 cm) for direct connection to controllers
• Fast and secure mounting with mechanical pressure pins
• Reliable RGB signal transmission via metal contact points
• Compact coupling piece measuring 10 × 10 × 3 mm
• IP20 suitable for dry indoor spaces
• Ideal for custom work and expansions

What is this COB RGB cable connector used for?

This connector is specially designed to flexibly connect an RGB COB LED strip to an external control unit. It is used for:

• Connection to WiFi RGB controllers for app control
• Connection with RF or IR RGB controllers
• RGB dimmers and color controllers
• Situations where the controller is not directly next to the strip
• Neatly concealing wiring in furniture, coves, or profiles

The fixed cable provides extra movement space and prevents strain on the LED strip itself.

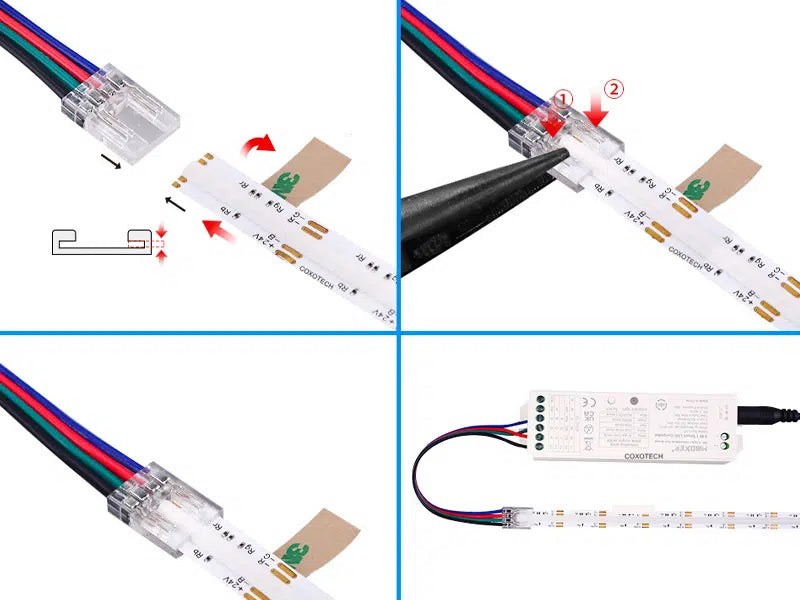

How does this RGB COB connector with cable work?

The connector uses mechanical contact pins that press directly onto the copper tracks of the RGB COB LED strip. This ensures a stable and reliable electrical connection.

1. Slide the 10mm RGB COB LED strip fully into the coupling piece.
2. Check that the strip is straight and correctly aligned.
3. Carefully press the metal pins down with pliers or flat tools.
4. Connect the 4-pin RGB cable to the desired controller.

The strip is now ready for immediate use and fully controllable.

Compact design for neat installations

Thanks to the compact size of the coupling piece (10 × 10 × 3 mm), this connector fits effortlessly into:

• LED aluminium profiles
• Covings and niches
• Furniture and cabinets
• Sleek RGB light lines

The low build height prevents visible bulges and ensures a clean final result.

Important notes

• Only suitable for 10mm RGB COB LED strips
• Not suitable for RGB SMD LED strips
• Preferably use pliers for optimal fixation
• Ensure correct RGB alignment when connecting to the controller

With this COB RGB LED strip connector with cable, you make RGB installations flexible, organized, and professional. The perfect solution for anyone who wants to combine RGB COB LED strips with smart or external controllers without complicated assembly.
