LED Sports Field Lighting 1500W Adjustable 170lm/W with Philips Driver

In Brief

• 60% Energy Savings compared to traditional HID or halogen lamps
• Replaces 3750W halogen lighting with a consumption of 1500W
• 255,000 Lumens light output with a high efficiency of 170 lm/W
• IP66 Rating: completely dust and waterproof, suitable for outdoor environments
• Suitable for temperatures from -20°C to +50°C
• 90° Tiltable for flexible light direction settings

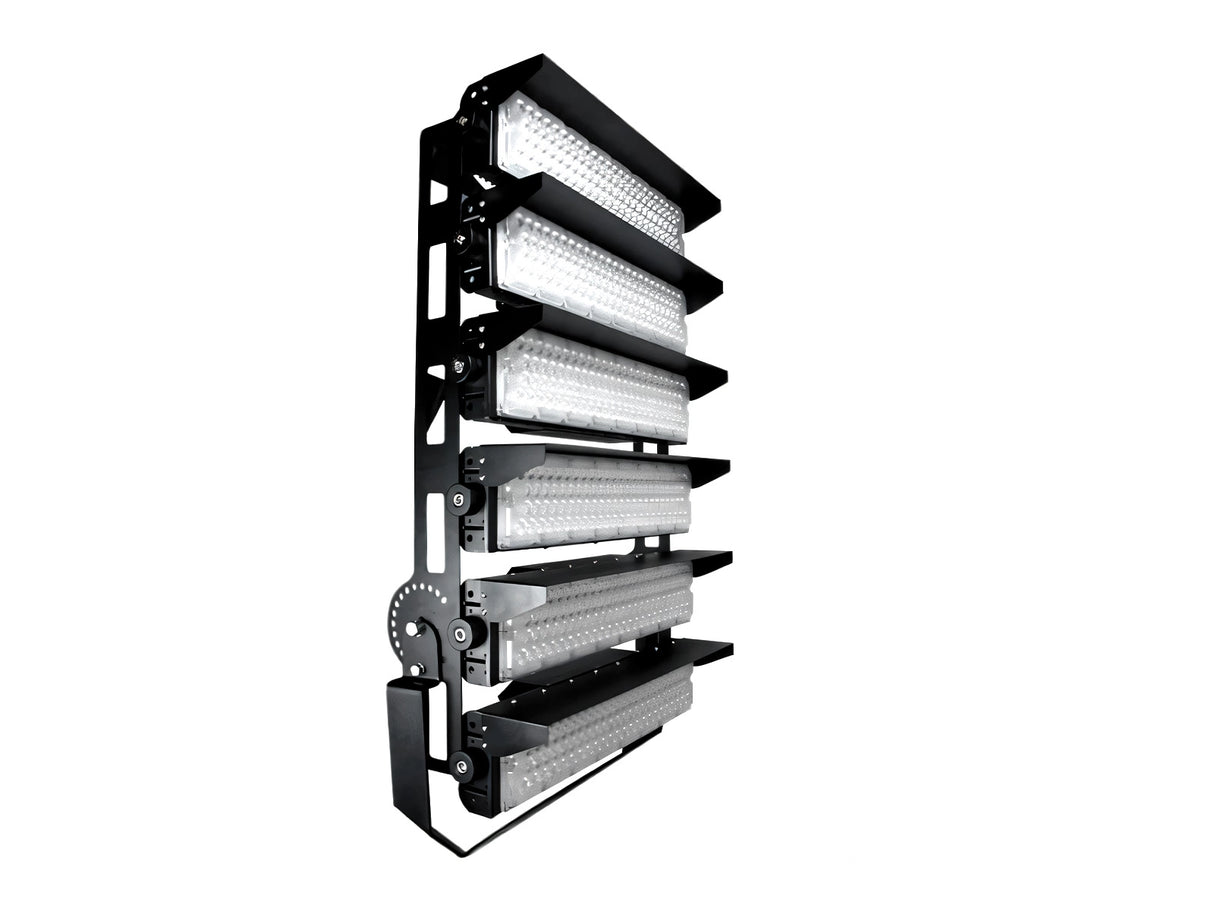

• Die-cast aluminum housing with tempered glass for maximum durability
• Direct start: no warm-up time, flickering, or noise
• Long lifespan of 50,000 hours (over 13 years at 10 hours of use per day)
• 5-year warranty

Excellent light quality and energy efficiency

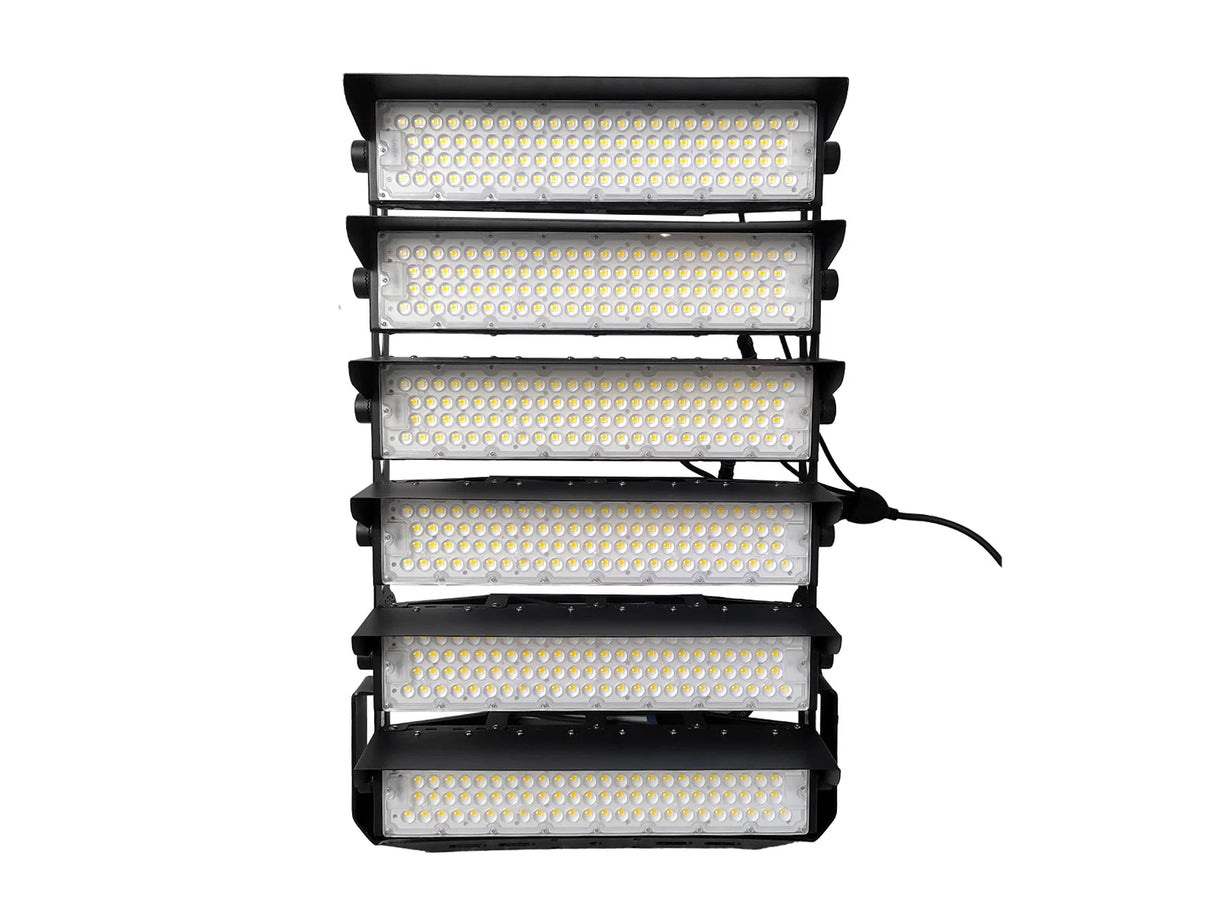

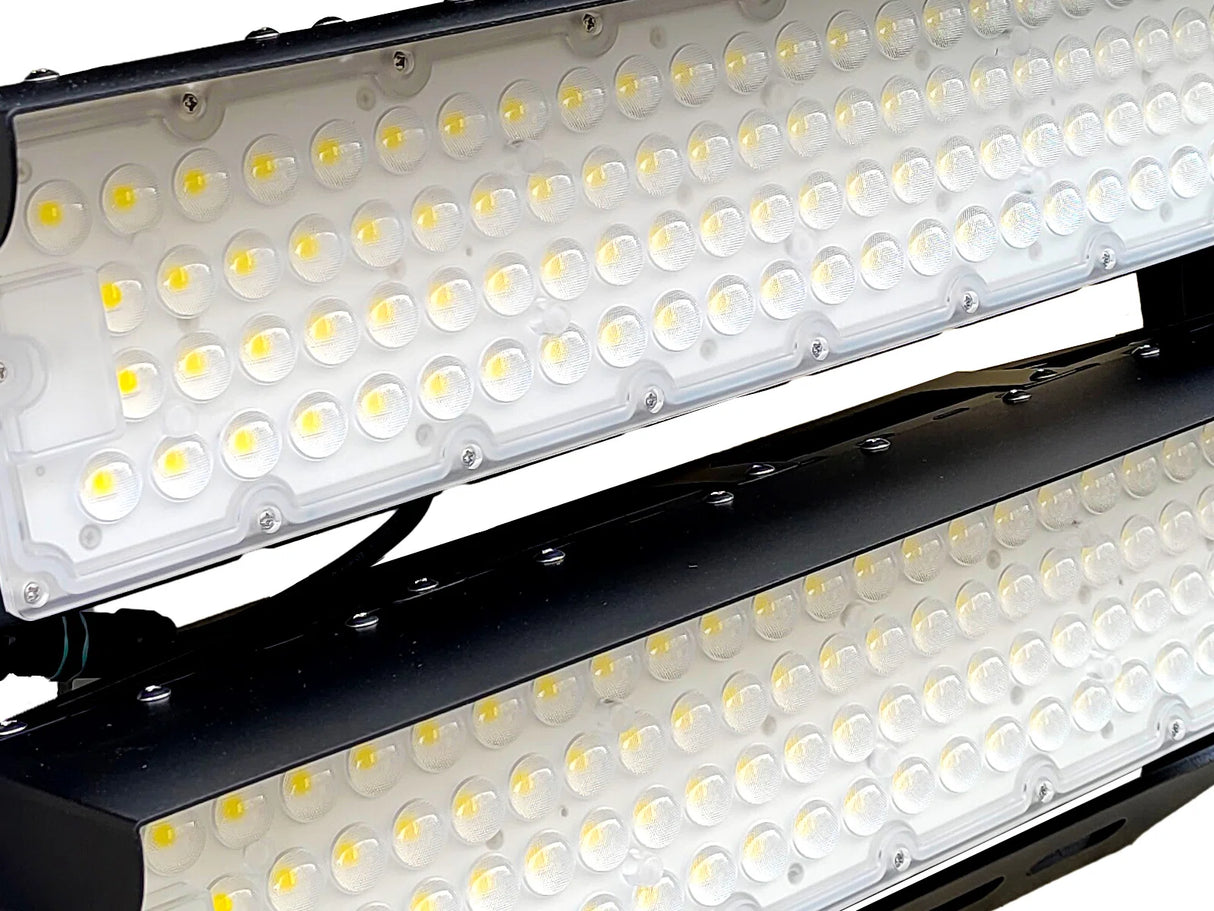

This 1500W LED sports field lighting delivers an impressive light output of 255,000 lumens, providing significant savings compared to conventional 3750W halogen or HID lamps. The lamp uses SMD5050 LED chips that produce a light output of 170 lumens per watt, ensuring powerful and efficient lighting that is ideal for sports fields, athletic tracks, and parking lots.

With a color temperature of 5000K (Neutral-cool white), the lighting provides bright, well-distributed illumination that is perfect for sports activities where maximum visibility and minimal glare are essential.

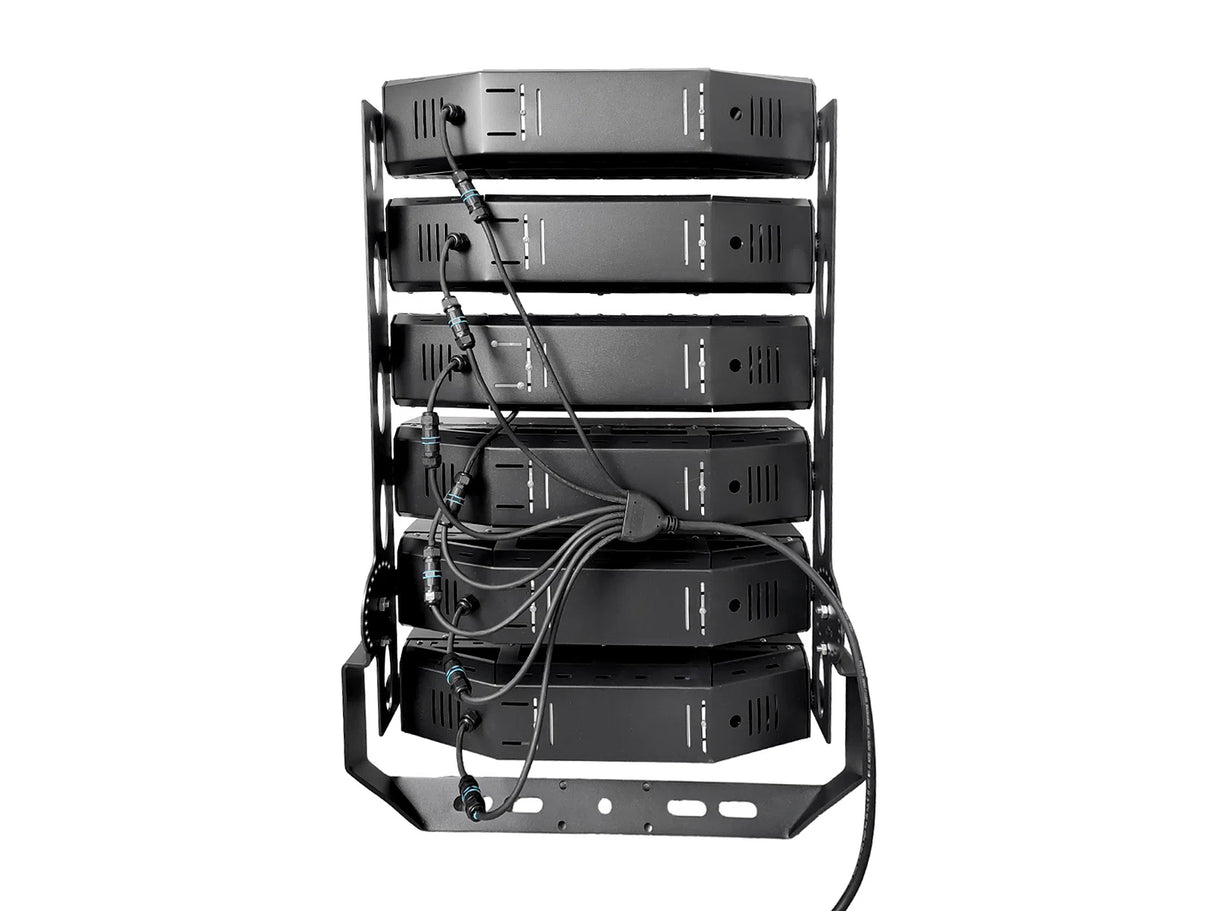

The Philips Xitanium driver ensures stable and reliable operation, even in extreme weather conditions, making this lamp ideal for use in sports fields where consistency and durability are crucial.

Optional lenses for precise light distribution. Maximum control and efficiency

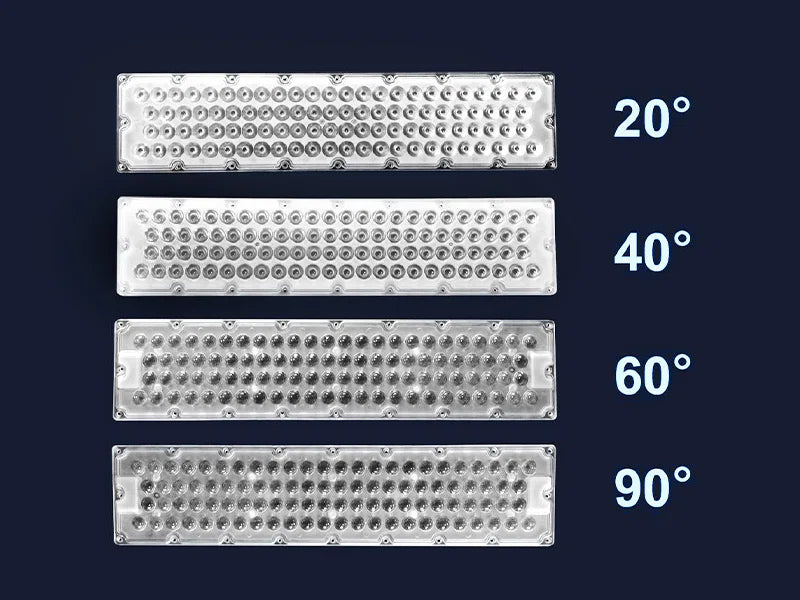

For professional applications such as stadiums, industrial yards and large-scale commercial projects, optional lenses (20°, 40°, 60°) give you tighter control over the light distribution of your LED sports-field floodlights / commercial LED floodlights. Choosing a narrower beam angle enables you to optimise illuminance, reduce light spill and meet strict lighting standards (EN, IES), which is critical for contractors, installers and facility managers.

Why a lens is a valuable option

• Higher illuminance on the target area - a narrower beam concentrates light so you get higher and more consistent lux on the playing or working surface without increasing power consumption.
• Reduced light spill & light pollution - prevents unwanted light from reaching neighbouring areas, aiding environmental compliance and permitting.
• Lower project cost & material use - tighter beams can reduce the number of fixtures required or allow lower mast heights while achieving the same coverage.
• Accurate design & standards compliance - professional lighting designs commonly specify beam angle (Full-Width Half-Maximum, FWHM) and field angle (≈10% level) to ensure calculations and measurements align with EN and IES guidance.

Applications and installations

This LED sports field lighting is suitable for a wide range of applications and can be easily installed at various heights depending on the location and desired light level.

Typical applications:

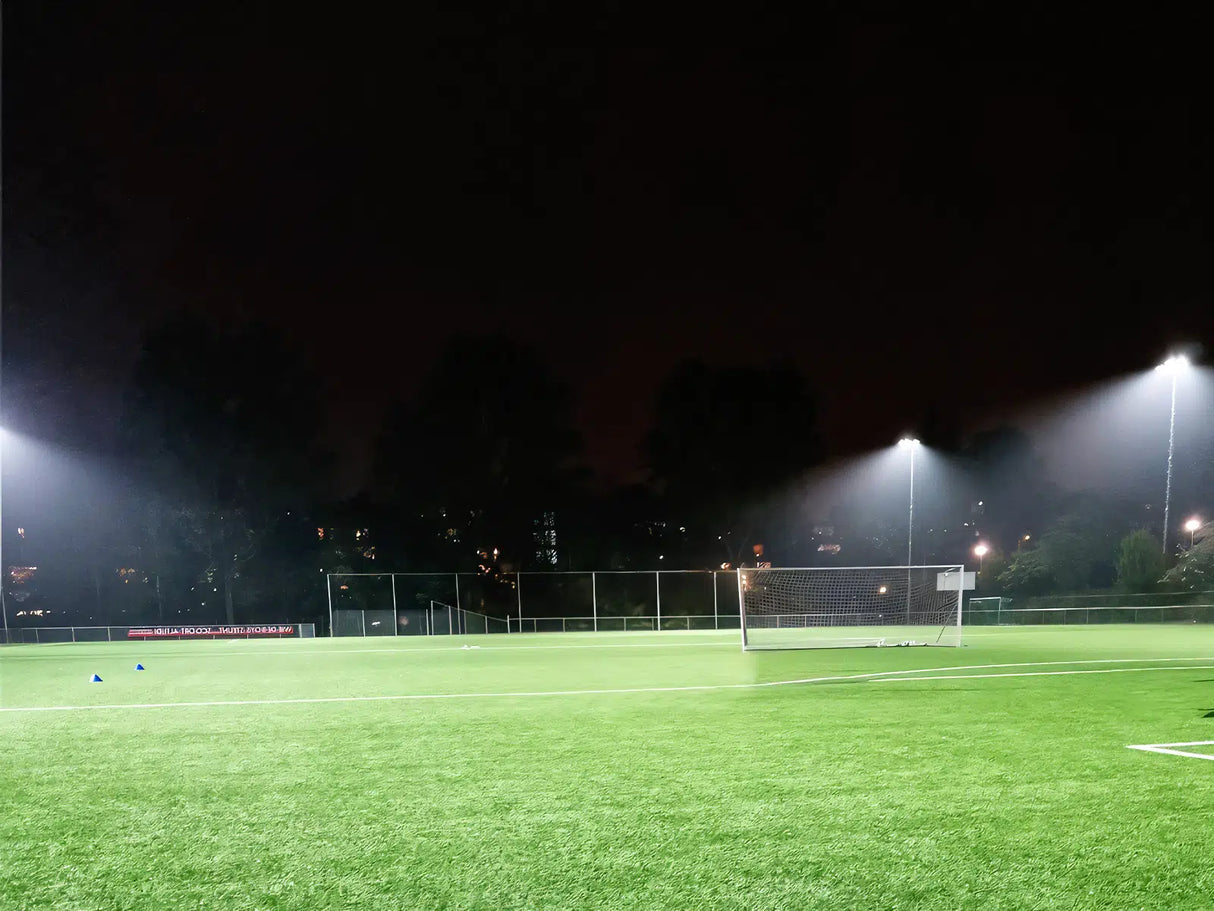

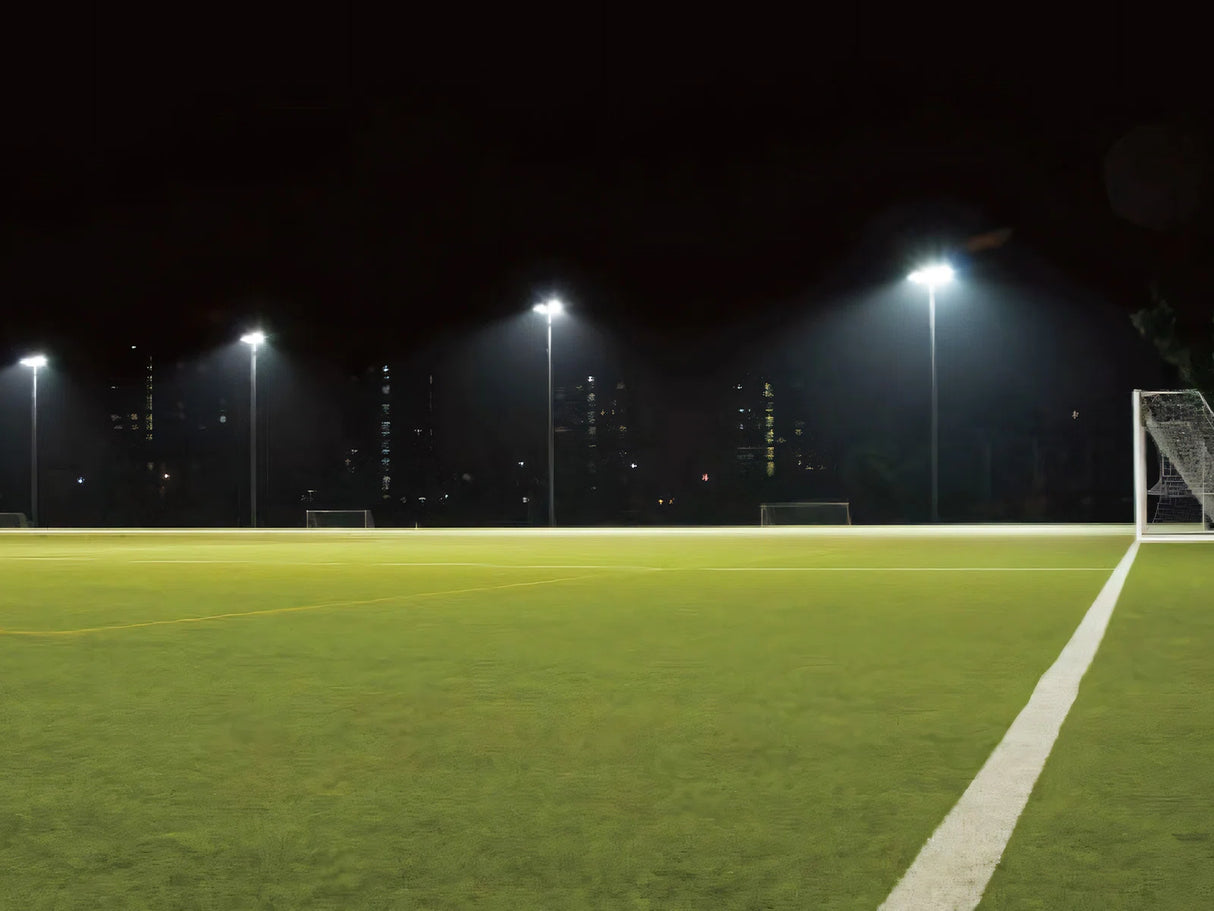

• Stadiums: Perfect for football fields, tennis courts, and basketball courts.
• Sports parks: Ideal for lighting recreational parks, athletics tracks, and sports complexes.
• Parking lots: Illuminates large areas with even coverage without dark spots.
• Industrial and construction sites: Provides clear visibility in industrial locations, even under challenging weather conditions.

Recommended installation heights:

• Mounting heights of 8 to 12 meters are ideal for sports facilities such as korfball fields, smaller rugby fields, and public parking lots. At this height, the lamp optimally benefits from the 90° beam angle, ensuring even and bright light distribution. This 1500W lighting generates an impressive light intensity of up to 12,000 lux, contributing to optimal visibility and improved performance during evening matches and other events.

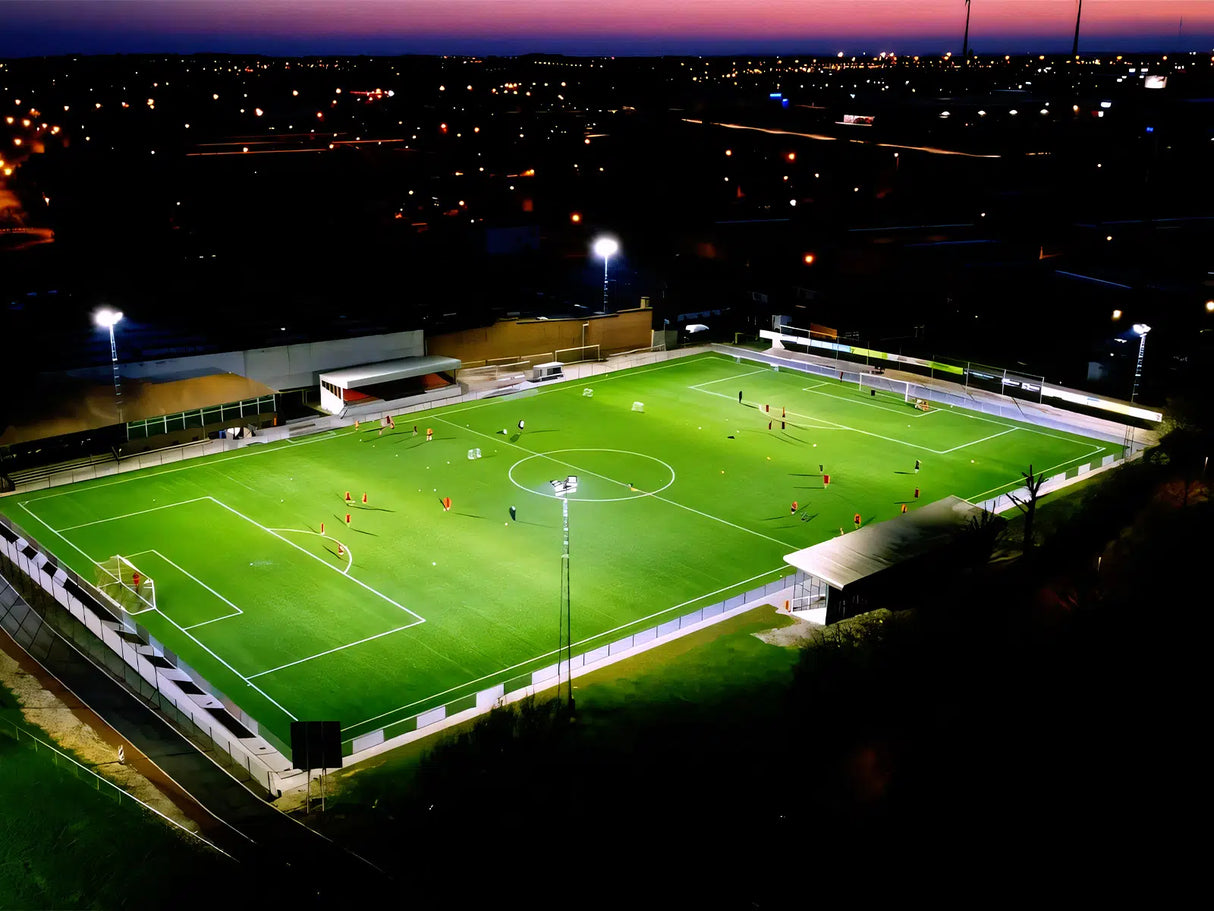

• For larger sports fields, such as football and athletics stadiums, a height of 12 to 20 meters is recommended. Here, the lamp can achieve a light intensity of up to 7000 lux, which is essential for competitive training and major sporting events. This lighting is particularly suitable for large sports tournaments and events where brightness and safety are paramount.

• At lower mounting heights (for example, 5 meters), this lamp remains highly suitable for outdoor spaces such as sports complexes, recreational areas, and workshops. At this height, the lamp provides an impressive light intensity of up to 15,000 lux, ensuring a safe and well-lit environment for various activities, from sports training to social events and outdoor parties.

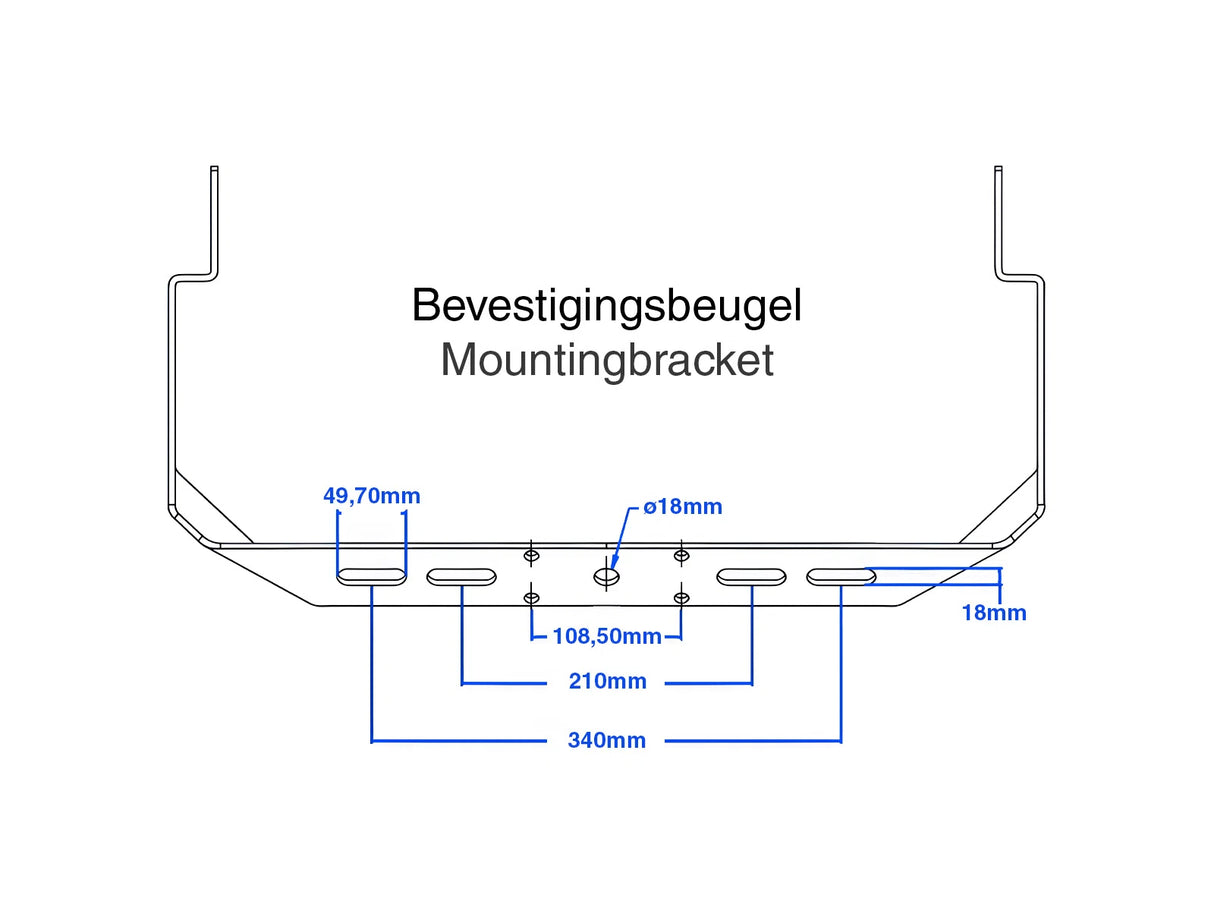

Installation and Mounting

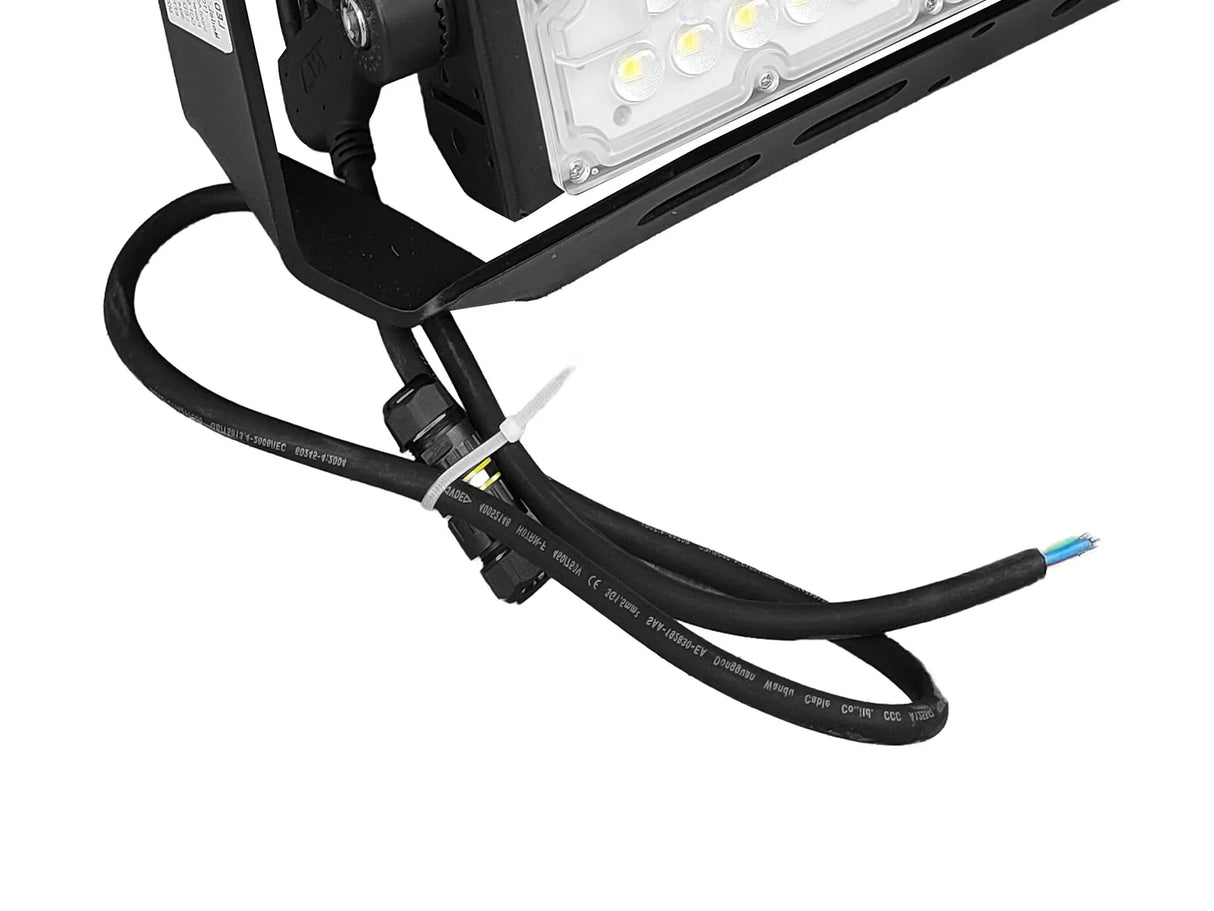

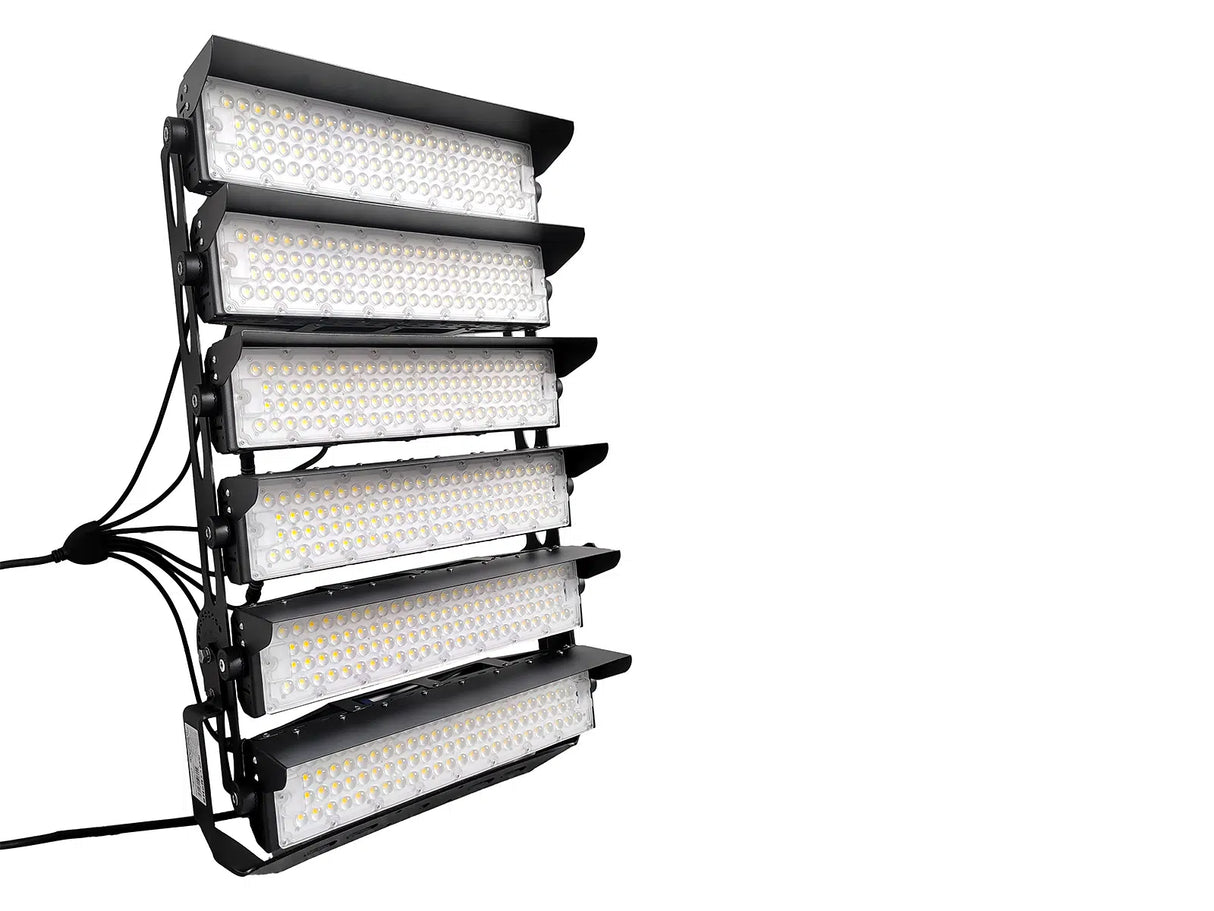

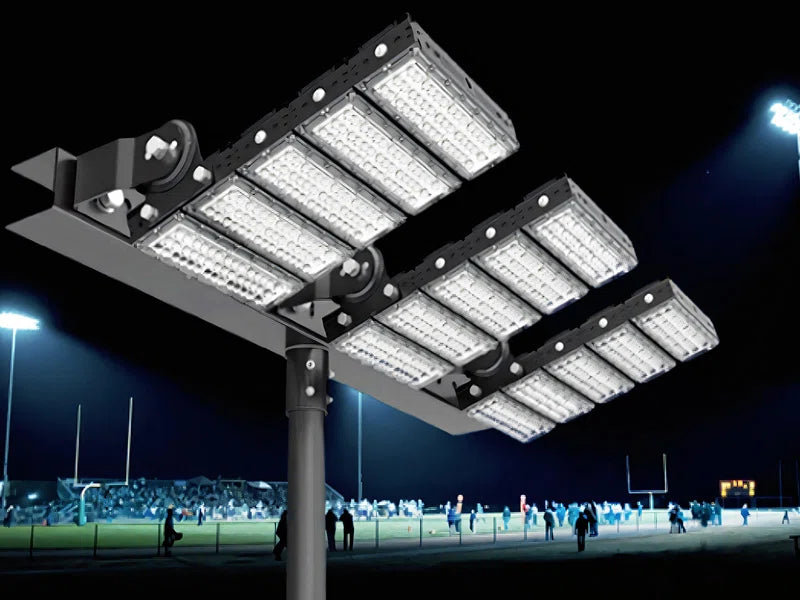

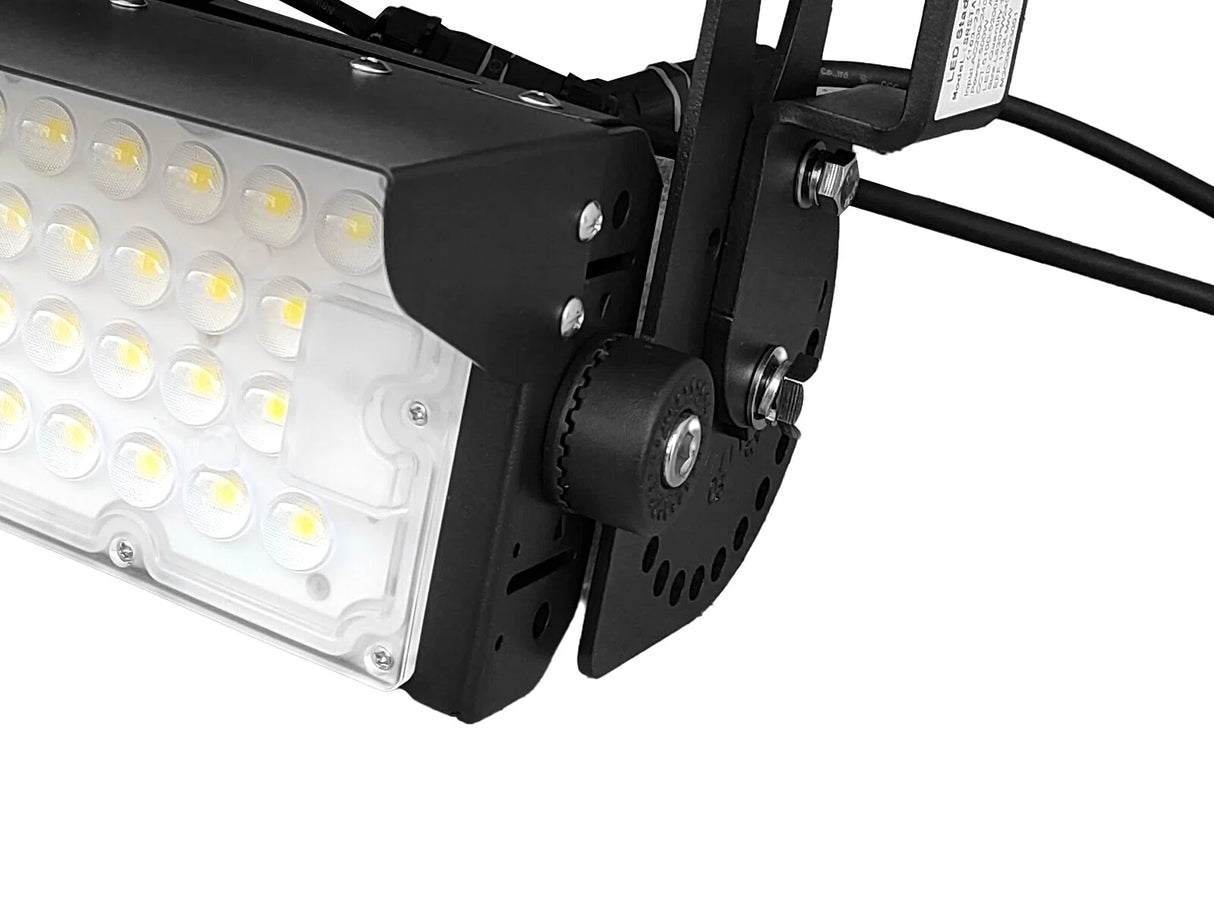

This LED lighting is designed for easy installation and can be mounted on poles, facades, or ceilings. Thanks to the 90° tiltable design, you can precisely direct the light, which is crucial for sports fields and outdoor environments where even lighting is essential.

The fixture is made of high-quality cast aluminum and features hardened glass, which not only guarantees durability but also withstands corrosion and wear in harsh outdoor conditions. Moreover, the light is at full brightness immediately thanks to the direct start, with no delay or flickering, which is especially important for sporting events where quick lighting is required.

Save Energy and Extend Lifespan

With an efficiency of 170 lm/W and a power factor of ≥0.95, this LED lighting offers significant energy savings, meaning you not only reduce your energy bill but also decrease your CO2 footprint. The lamp replaces traditional 3750W halogen lamps while consuming 1500W, resulting in an energy saving of 60%.

The long lifespan of 50,000 hours means you won't have maintenance costs for years. This is especially important for sports clubs, stadiums, and industrial sites where lamp replacements can often be difficult and expensive.

Certifications and Reliability

The lamp is CE and RoHS certified, meaning it meets the highest European standards for safety, quality, and environmental friendliness. The housing of the lamp provides excellent heat dissipation, maximizing the lifespan of the LEDs and minimizing the risk of overheating.

High-Quality Technical Specifications for Optimal Performance

The 1250W LED sports field lighting is designed with advanced technology to ensure reliable performance even in demanding environments. With an input voltage of AC200-240V and a maximum current of 1.02A (per lamp), this lamp delivers stable, powerful illumination. The built-in constant current of 1.05A and power factor of ≥0.95 ensure optimal energy efficiency, allowing you to save up to 60% energy compared to traditional halogen lamps.

Thanks to the SMD5050 LEDs with a CRI of ≥70Ra, the light is rendered accurately, which is essential for sporting events and other outdoor activities. The beam angle of 90° provides a focused light beam, perfect for illuminating specific areas without loss of brightness.
